2007 TOYOTA PRIUS turn signal bulb

11 2
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs—” on page 422.
23p001e
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveAutomatic light cut off system
The lights automatically turn off when the
driver ’s door is opened with the hybrid
system off. To turn them on again, press
the “POWER” switch twice from the off
setting to select the “IG
−ON” mode with-
out depressing the brake pedal or actuate
the headlight switch. If you are going to
park for over one week, make sure the
headlight switch is off.
When the headlight switch is turned to the
first or second clickstop, the brightness of
the instrument cluster will be reduced
slightly unless the instrument panel light
control dial is turned fully on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
longer than necessary when the hy-
brid system is not running.
Headlights and turn signals
(without automatic light control system)

11 3

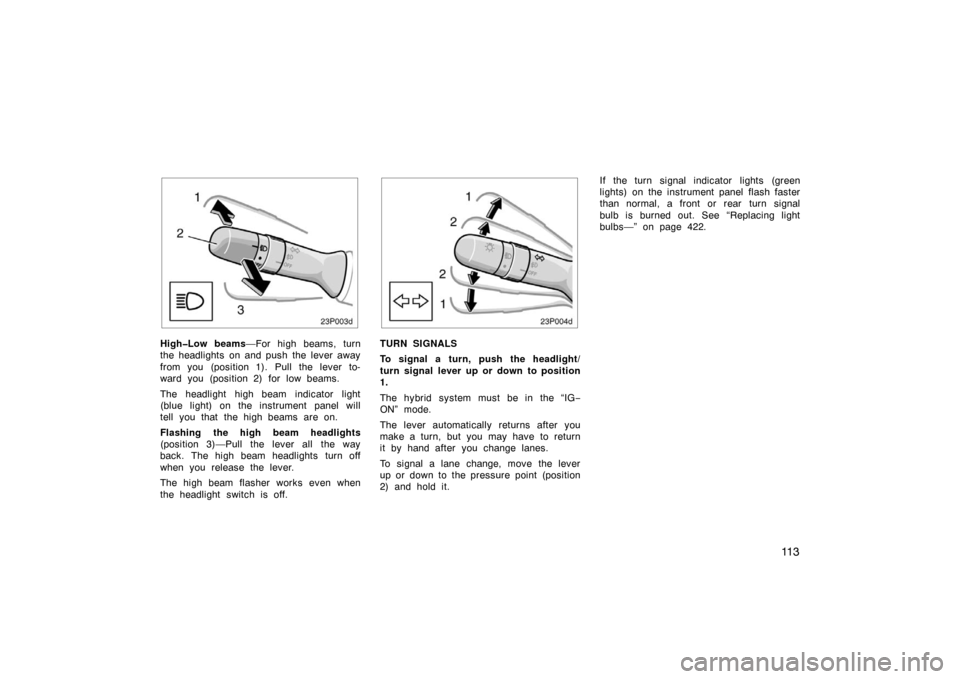

23p003d
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
The high beam flasher works even when
the headlight switch is off.
23p004d
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The hybrid system must be in the “IG −
ON” mode.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it. If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs—” on page 422.

423
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lense becomes wet in the rain
or in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lense, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lense, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulbNo.WTy p e
Headlights
Discharge headlights
Halogen headlights
—
—35
60/55A
B
Front fog lights900651C
Parking lights—5D
Front turn signal
lights—21D
Rear turn signal lights—21D
Tail lights—5D
Stop lights—4.4F
High mounted stop-
light—2.8F
Back −up lights744021D
License plate lights—5D
Interior lights—8E
Personal lights—5D
Door courtesy lights—5D
Vanity lights—5E
Luggage compart-
ment light—5E
A: D4R Discharge bulbs
B: HB2 Halogen bulbs
C: HB4 Halogen bulbs
D: Wedge base bulbs
E: Double end bulbs
F: LEDs (Light −emitting Diodes)
