2007 TOYOTA PRIUS Theft deterrent

7
or
Hybrid vehicle immobilizer / Theft deterrent
system indicator light Tail light indicator light
Shift position indicator light
*4
Driving ready light
Automatic air conditioner indicator light
Recirculate mode indicator light
Smart entry and start system warning light
*5
Windshield air flow indicator light
Slip indicator light
Headlight high beam indicator light
Headlight indicator light Turn signal indicator lights
Cruise control indicator light*3
Hybrid system warning light*2
Automatic head light leveling system
warning light*2
Electric power steering system warning light*2
“AIRBAG ON” and “AIRBAG OFF”
indicator lights
Rear window and outside rear view mirror
defoggers indicator light
Hybrid battery warning light*2

19
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Hybrid vehicle immobilizer system 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart entry and start system 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Back door 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power windows 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Hood 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2– 1

22
21p007b
The system is automatically set when the
hybrid system is off and driver ’s door is
opened. The indicator light will start flash-
ing to show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 46.)
The indicator light does not start flash-
ing when the hybrid system is off and
driver ’s door is opened.
The indicator light flashes inconsistent-
ly.Carrying a smart key and pressing the
“POWER” switch automatically cancels the
system, which e
nables the hybrid system
to start. The indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.
21p006a
DEACTIVATION USING THE KEY
The hybrid vehicle immobilizer system
is a theft prevention system. When you
insert the key in the key slot, the trans-
ponder chip in the key transmits an
electronic code to the vehicle. The hy-
brid system will start only when the
electronic code in the chip corresponds
to the registered ID code for the ve-
hicle.

23
21p007b
The system is automatically set when the
key is removed from the key slot. The
indicator light will start flashing to show
the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 46.)
The indicator light does not start flash-
ing when the key is removed from the
key slot.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the key slot
automatically cancels the system, which
enables the hybrid system to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.
For vehicles sold in U.S.A.
FCC ID: MOZRI24KTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

35

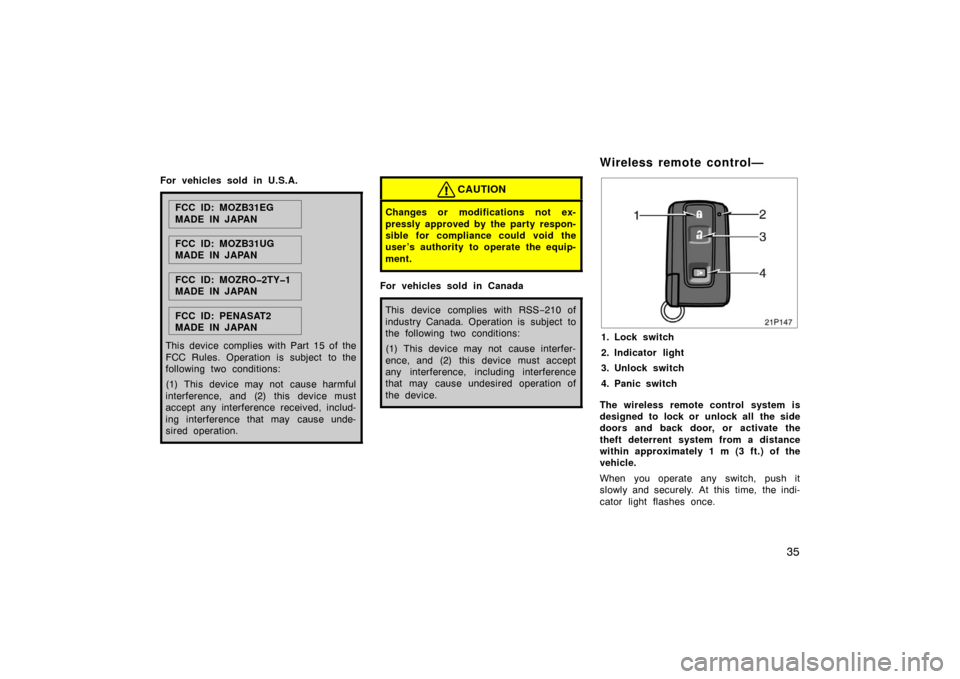

For vehicles sold in U.S.A.
FCC ID: MOZB31EG
MADE IN JAPAN
FCC ID: MOZB31UG
MADE IN JAPAN
FCC ID: MOZRO2TY1
MADE IN JAPAN
FCC ID: PENASAT2
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
21p147
1. Lock switch
2. Indicator light
3. Unlock switch
4. Panic switch
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
theft deterrent system from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.
Wireless remote control—

40
21p008a
LOCKING AND UNLOCKING THE DRIV-
ER’S DOOR WITH MECHANICAL KEY
Insert the mechanical key into the key-
hole and turn it.
To lock: Turn the knob forward.
To unlock: Turn the knob backward.
The alarm sounds when you unlock the
door using a key with the theft deterrent
system set. For details, see “Theft deter-
rent system” on page 46.
21p009a
LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The driver ’s door can be opened by pull-
ing the inside door handle even if the lock
knob is depressed.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
The driver ’s door cannot be locked if you
leave the key in the key slot.
21p010a
Driver’s side
21p011a
Front passenger’s side
Side doors

46
21p032e
3. Hold the hood open by inserting thesupport rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod
inserted into the slot could cause the
hood to bend.
Theft deterrent system
21p028a
To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors or hood is forcibly unlocked
or the battery terminal is reconnected
when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights
and other exterior lights.
This function can be deactivated or acti-
vated. For details, contact your Toyota
dealer.

48
CANCELING THE SYSTEM
The system will be cancelled by the
above mentioned two ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
mechanical key, wireless remote control
transmitter or smart function. Be sure
to wait until the indicator light goes off
or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the back
door, also check that the system is
activated when the 12 volt battery ter-
minal is disconnected and then recon-
nected. When testing the hood, release
the lock with the hood lock release
lever and raise the hood.
If the system does not work properly,
have it checked by your Toyota dealer.
21p117
This indicates that the fuel filler door
is on the left side of your vehicle.
21p030e
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the hybrid
system.
Fuel tank cap
