2007 TOYOTA PRIUS Ev mode

142
INFORMATION
You can insert a genuine key while in
the “IGON” mode or with the hybrid
system starting. Do not insert any key
other than genuine keys.
25p103a
Without depressing the brake pedal
Each time you press the “POWER”
switch briefly without the brake pedal
depressed, the hybrid system mode
changes in the order of “OFF”, “ACC”,
“IGON” and then back to “OFF”.
1) “ACC” (Green indicator is turned on)
Accessories such as the radio operate.
Pressing the “POWER” switch briefly with-
out depressing the brake pedal in the
“OFF” mode turns on this mode.
The key can be removed at this position.
The hybrid system is automatically turned
off.In the “ACC” mode, pressing the “POW-
ER” switch briefly while depressing the
brake pedal will start the hybrid system.
If you leave your vehicle in the “ACC”
mode for about an hour, the hybrid system
is automatically turned off.
2) “IGON” (Amber indicator is turned
on)
All accessories are operable.
Pressing the “POWER” switch briefly with-
out depressing the brake pedal in the
“ACC” mode turns on this mode.
In the “IG
−ON” mode, pressing the
“POWER” switch briefly while depressing
the brake pedal will start the hybrid sys-
tem. However, if “N” position is selected,
the hybrid system will be turned in the
“OFF” mode.
3) “OFF” (Indicator is turned off)
The hybrid system is off. The key can
be removed at this position.
You may hear a motor sound in the en-
gine compartment for a few seconds after
the system is turned off and about 90
seconds have passed.
Once you remove the key, the hybrid ve-
hicle immobilizer system is automatically
set. See “Hybrid vehicle immobilizer sys-
tem” on page 21.
—Selecting the push button
start system mode
(without smart function)

143
25p104a
With the brake pedal depressed
The hybrid system will start and stop
by pressing the “POWER” switch briefly
with the brake pedal depressed.
You may hear a motor sound in the en-
gine compartment when the brake pedal is
depressed with the hybrid system off.
1) “START” (Amber indicator comes on
for a few seconds)
The hybrid system is ready to operate
and all accessories are operable. (“IG
ON”)
Insert the key and press the “POWER”
switch briefly with the brake pedal de-
pressed.For starting tips, see “How to start the
hybrid system—” on page 350.
If, in an emergency, you must turn the
hybrid system off while the vehicle is
moving, press the “POWER” switch more
than 3 seconds. At this time, the “ACC”
mode and shift position “N” are automati-
cally enabled.
2) “OFF” (Indicator is turned off)
The hybrid system is off. The key can
be removed at this position.
You may hear a motor sound in the en-
gine compartment for a few seconds after
the system is turned off and about 90
seconds have passed.
Once you remove the key, the hybrid ve-
hicle immobilizer system is automatically
set. See “Hybrid vehicle immobilizer sys-
tem” on page 21.
Approximately 5 hours after the hybrid
system is turned off, you may hear a
sound coming from underneath the lug-
gage compartment for several minutes.
This is normal operation and does not
indicate a malfunction. (See “Leak detec-
tion pump” on page 452.)
NOTICE

The hybrid system cannot be
started when the shift position is in
“N”. Be sure to put it in “P” and
then start the system.
 Do not leave the hybrid system in
“ACC” or “IGON” for a long time.
The 12 volt battery will discharge.
 The hybrid mode in which the bat-
tery is discharged or disconnected
is retained in memory, and that
mode is turned on when power is
applied.

147
(g) Vehicle driving characteristics
Creeping
In order to hold the vehicle properly on an
incline and for better accelerator pedal
operation at starting, your vehicle is de-
signed like a typical automatic transmis-
sion vehicle which tends to move without
depressing the accelerator pedal with the
transaxle in a position other than “P” or
“N”.
With the transaxle in a position other than
“P” or “N”, depress the brake pedal firmly
even when stopped and apply the parking
brake as required.
When moving in a compact area or during
a traffic jam, it is an effective way to
control the speed using only the brake
pedal operation without depressing the ac-
celerator pedal.
Regenerative brake
When the accelerator pedal is released or
the brake pedal is depressed, the electric
motor acts as a generator and converts
kinetic energy to electric energy to provide
deceleration and recover electric energy to
charge the hybrid battery.
At this time, the electric motor running
noise may increase.The operation is the same as a typical
gasoline powered vehicle.
You may experience the following condi-
tion while braking. As they do not indicate
a malfunction, perform braking as usual:
In the “OFF” mode, pressing the
“POWER” switch once or twice will se-
lect “ACC” or “IG
−ON” only if the brake
pedal is not depressed. In this condi-
tion, the brake pedal may move a little.
Hybrid driving
This vehicle runs in combination with the
gasoline engine and electric motor.
If the “READY” light is on, you can start
your vehicle even with the gasoline engine
stopped. (h) If the system malfunctions
In the following conditions, there is some
problem in the system.
The indicator on the “P” position switch
flashes. However, this does not indi-
cate a malfunction unless a warning
message appears in the multi
−informa-
tion display.
All frames of shift position indicators in
the instrument cluster flash.
The parking system error message ap-
pears on the multi −information display.
The instrument cluster and multi −infor-
mation display does not come on when
the “IG −ON” mode is enabled.
In these cases, stop your vehicle in a
safe and level place, apply the parking
brake securely and contact your Toyota
dealer immediately.
(i) When the 12 volt battery is discon- nected
Before you disconnect the 12 volt battery,
confirm the shift position is “P” and apply
the parking brake completely.
After you reconnect the 12 volt battery,
shift the shift lever to “N” and confirm the
shift position is in “N” when the “IG −ON”
mode is enabled.

149
The slip indicator light comes on when the
“IG−ON” mode is enabled and will go off
after the “READY” light comes on. If the
indicator light does not come on when the
hybrid system is turned on, contact your
Toyota dealer.
25p117
“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system.
The light will come on when the “IG −ON”
mode is enabled and will go off after the
“READY” light comes on.
If the light comes on while driving, the
system does not work. However, because
the conventional braking still operates, you
can drive your vehicle without damaging
it. Contact your Toyota dealer. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the “IG
−ON” mode is enabled.
The warning light remains on after the
“READY” light comes on.
The warning light comes on while driv-
ing.

150
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if bursts or sudden air
leakage should occur.
The tire pressure warning light comes on
when the “POWER” switch is selected in
“IG−ON” mode and goes off after a few
seconds. This means the tire pressure
warning light is operating properly. If the
tire inflation pressure becomes low, the
light comes on again. In this case, adjust-
ing the tire inflation pressure will turn off
the light after a few minutes. If the light
comes on after blinking for 1 minute, the
tire pressure warning system is not work-
ing properly. Indicator
status
MeaningsDo this
ONTire inflation
pressure is
lowAdjust the
tire inflation
pressure
ON after
blinking for
1 minuteTire pres-
sure warn-
ing system
malfunctionHave the
system
checked at
your Toyota
dealer
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Tire pressure warning system

152
NOTICE
Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
“POWER” switch is selected in “IGON”
mode, the tire pressure warning system
is not working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure warn-
ing valves and transmitters is not regis-
tered on the tire pressure warning ECU.
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.
If non −genuine Toyota wheels are used.
If tire chains are used.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2 or bar, 73
psi) or higher.
If the tire pressure warning light continues
to come on after blinking for 1 minute
when the “POWER” switch is selected in
“IG −ON” mode, have the system checked
by your Toyota dealer.
Even if you use genuine wheels, the tire
pressure warning system may not work
properly with some types of tires.

155
To initialize the system, perform the fol-
lowing:1. Park the vehicle in a safe place and the hybrid system is off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level. (See “Tires” on page
434.)
3. Turn the “POWER” switch to “IG −ON”
mode.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for a few minutes with the “POW- ER” switch selected in “IG −ON” mode,
and then turn the hybrid system off.
If you push the tire pressure reset switch
while the vehicle is moving, initialization is
not performed.
If you push the tire pressure reset switch
accidentally and initialization is performed,
adjust the tire inflation pressure to the
specified level and initialize the system
again.
25p124
If the tire pressure warning light does not
blink slowly three times when you push
and hold the reset switch, initialization has
failed and the tire pressure warning sys-
tem may not work properly. In this case,
initialize the system again. If initialization
cannot be performed, have the system
checked at your Toyota dealer.
CAUTION
Do not push the reset switch without
first adjusting the tire inflation pres-
sure to the specified level. Otherwise,
the tire pressure warning light may
not come on even if the tire inflation
pressure is low, or it may come on
when the tire inflation pressure is ac-
tually normal.

163

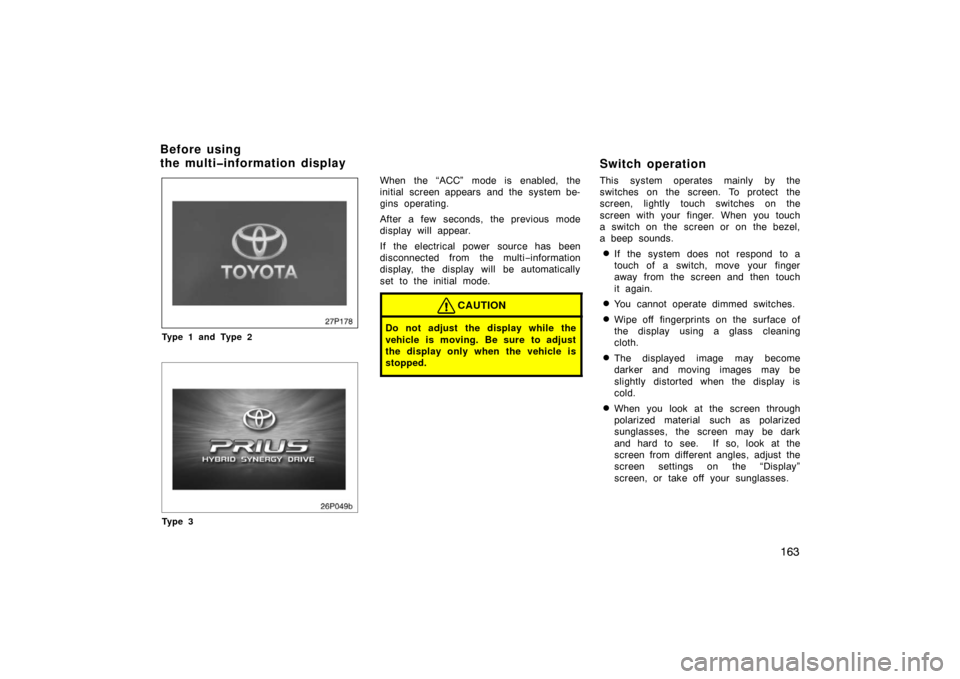

27p178
Type 1 and Type 2
26p049b
Ty p e 3
When the “ACC” mode is enabled, the
initial screen appears and the system be-
gins operating.
After a few seconds, the previous mode
display will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will be automatically
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Switch operation
This system operates mainly by the
switches on the screen. To protect the
screen, lightly touch switches on the
screen with your finger. When you touch
a switch on the screen or on the bezel,
a beep sounds.
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
When you look at the screen through
polarized material such as polarized
sunglasses, the screen may be dark
and hard to see. If so, look at the
screen from different angles, adjust the
screen settings on the “Display”
screen, or take off your sunglasses.
Before using
the multiinformation display
