2007 SUBARU TRIBECA lock

3-32 Instruments and controls
„Rear window wiper and wash- er switch
: Washer (accompanied by wiper opera-tion)
ON: Continuous
INT: Intermittent
OFF: Park : Washer (accompanied by wiper opera-tion)
T Rear wiper
To turn the rear wiper on, turn the knob on
the end of the wiper control lever upward
to the “INT” or “ON” position.
To turn the wiper off, return the knob on
the end of the lever to the “OFF” position.
With the switch turned to the “INT” posi-
tion, the rear wiper will operate intermit-
tently at intervals corresponding to the ve- hicle speed (longer when the vehicle
speed is low; shorter when the vehicle
speed is high).
When you subsequently move the selec-
tor lever of the automatic transmission to
the “R” position, the rear wiper will switch
to continuous operation. When you move
the selector lever from the “R” position to
some other position, the rear wiper will re-
turn to intermittent operation. T
Washer
To wash the rear window while the rear
wiper is operating, turn the knob on the
end of the wiper control lever upward to
the “ ” position. The washer fluid
sprays until you release the knob.
To wash the rear window when the rear
wiper is not in use, turn the knob on the
end of the wiper control lever downward to
the “ ” position. The washer fluid
sprays and the wiper operates until you
release the knob.Windshield wiper deicer
The windshield wiper deicer operates only
when the ignition switch is in the “ON” po-
sition.
Before turning on the windshield wiper de-
icer, remove any snow from the wind-
shield. To turn on the windshield wiper de-
icer, push the button. The indicator light
located on the button lights up while the
windshield wiper deicer is operating.
The windshield wiper deicer will automati-
cally shut off after approximately 15 min-
utes. If the windshield wiper blades have
been deiced completely before that time,
push the button to turn it off. It also turns
off when the ignition switch is turned to the
“ACC” or “LOCK” position. If deicing is not
300290300515

Instruments and controls 3-33
– CONTINUED –
complete, you have to push the button to
turn the deicer on again.
Your SUBARU dealer can set your wind-
shield wiper deicer for continuous opera-
tion. Contact your SUBARU dealer for de- tails.
Once the windshield wiper deicer has
been set for continuous operation, press-
ing the button results in continuous opera-
tion. The windshield wiper deicer automat-
ically stops operating if any one of the fol-
lowing conditions occurs during continu-
ous operation. y
The outside temperature becomes 41 °F
(5 °C) or higher.
y The vehicle speed remains at 9 mph (15
km/h) or lower for 15 minutes.y The battery voltage decreases below
the permissible level. Rear window defogger but-
ton
The rear window defogger operates only
when the ignition switch is in the “ON” po- sition.
The rear window defogger button is locat-
ed on the climate control panel.
To turn on the defogger, push the button.
To turn it off, push the button again.
The indicator light located on the button
lights up while the rear window defogger is
operating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the win-
dow clears before that time, push the but-
ton to turn it off. It also turns off when theignition switch is turned to the “ACC” or
“LOCK” position. If defrosting or defogging
is desired when you restart your vehicle,
you have to push the button to turn it on
again.
Your SUBARU dealer can set your rear
window defogger for continuous opera-
tion. Contact your SUBARU dealer for de- tails.
Once the rear window defogger has been
set for continuous operation, the rear win-
dow defogger repeatedly operates for 15
minutes, stops for two minutes, and again
operates for 15 minutes. If the battery volt-
age drops below the permissible level,
continuous operation is canceled and op-
eration stops as described in the follow-
ing. y
If the battery voltage drops below the
permissible level within 15 minutes of de-
pression of the button, continuous opera-
tion is canceled and the rear window de-
fogger stops operating 15 minutes later. y If the battery voltage drops below the
permissible level after the rear window de-
fogger has, following depression of the
button, operated for 15 minutes, stopped
operating for two minutes, and started op-
erating again, the rear window defogger
immediately stops operating.
300522

3-36 Instruments and controls
„Outside mirrors
T Convex mirror (Passenger side)
TRemote control mirror switch
The remote control mirrors operate only when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the knob to the “L” side to adjust
the left-hand mirror or to the “R” side to ad-
just the right-hand mirror.
2. Move the knob in the direction you
want to move the mirror.
3. Return the knob to the neutral position
to prevent unintentional operation.
The mirrors can also be adjusted manual- ly. T
Outside mirror defogger
The outside mirror defogger shares the
button with rear window defogger.
The outside mirror defogger operates only
when the ignition switch is in the “ON” po- sition. To turn on the outside mirror defogger,
push the button.
To turn it off, push the button again. The
indicator light located on the button lights
up while the outside mirror defogger is op-
erating.
The defogger will automatically shut off af-
ter approximately 15 minutes. If the mirror
clears before that time, push the button to
turn it off. It also turns off when the ignition
switch is turned to the “ACC” or “LOCK”
position. If defrosting or defogging is de-
sired when you restart your vehicle, you
have to push the button to turn it on again.
NOTE y
While the outside mirror defogger is
operating, the rear window defogger
also operates.y When the rear window defogger has
been set for continuous operation, the
outside mirror defogger also operates
continuously. Refer to the “Rear win-
dow defogger button” section in this
chapter.
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the dis-
tance of vehicles behind you when
changing lanes. Use the inside mir-ror (or glance backwards) to deter-
mine the actual size and distance of
objects that you view in convex mir-
ror.
300519
300522
To prevent the battery from being
discharged, do not operate the de-
fogger continuously for any longer
than necessary.

Instruments and controls 3-37
Tilt steering wheel
1. Adjust the seat position. Refer to the
“Front seats” section (chapter 1).
2. Pull the tilt lock lever down.
3. Move the steering wheel to the desired
level.
4. Push the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down.
Horn
To sound the horn, push the horn pad.
Do not adjust the steering wheel tilt
position while driving. This may
cause loss of vehicle control and re-
sult in personal injury.
300520
300521

4-6 Climate control
To change the system back to the AUTO
mode, press the “AUTO” button. TOFF button
The Automatic Climate Control system
turns off (the air conditioner compressor
and fan turn off) when the “OFF” button is
pressed.
When the “OFF” button is pressed, the
outside air introduction mode (air inlet se-
lection OFF) is automatically selected. T
Temperature control dial
Driver’s side
Passenger’s side
It is possible to make separate tempera- ture settings for the driver’s side and pas-
senger’s side. Each temperature setting is
shown on the display. With the dial set at
your desired temperature, the system au-
tomatically adjusts the temperature of air
supplied from the outlets such that the de-
sired temperature is achieved and main-
tained.
Turning the dial counterclockwise and re-
leasing it reduces the temperature by 1
°F
(0.5 °C). Turning the dial clockwise and re-
leasing it increases the temperature by1 °F (0.5 °C). Holding the dial in either
turned position causes the temperature to
change continuously.
With the minimum temperature set, the
system gives maximum cooling perfor-
mance. With the maximum temperature
set, the system gives maximum heating
performance.
400508
400509
400510

5-6 Audio
TFM/AM selection button
Push the “FM” (2) or “AM” (1) button when the radio is off to turn on the radio.
Push the “FM” or “AM” button when the radio is on to select FM1, FM2 or AM reception. Control mode (Range of
levels)
Turn counterclockwise Turn clockwise
Bass control (–6 to +6) For less bass sound For more bass sound
Midrange control (–6 to +6) For less midrange sound For more midrange sound
Treble control (–6 to +6) For less treble sound For more treble sound
Fader control (R9 to F9) To increase rear speaker volume and decrease front speaker vol-ume To increase front speaker volume
and decrease rear speaker vol- ume
Balance control (L9 to R9) To increase left speaker volume and decrease right speaker vol-ume To increase right speaker volume
and decrease left speaker vol- ume
Volume control (0 to 40) For less volume For more volume
500204
T Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received. T Tuning
V Manual tuning
Press the “ ” side of the TUNE TRACK
button (4) to increase the tuning frequency
and press the “ ” side of the button to
decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 kHz in the AM mode and 0.2 MHz in the
FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached.
NOTE
While you are holding down either side
of the TUNE TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached. V Seek tuning
If you press the “ ” or “ ” side of the SEEK FLDR button (6), the radio will auto-

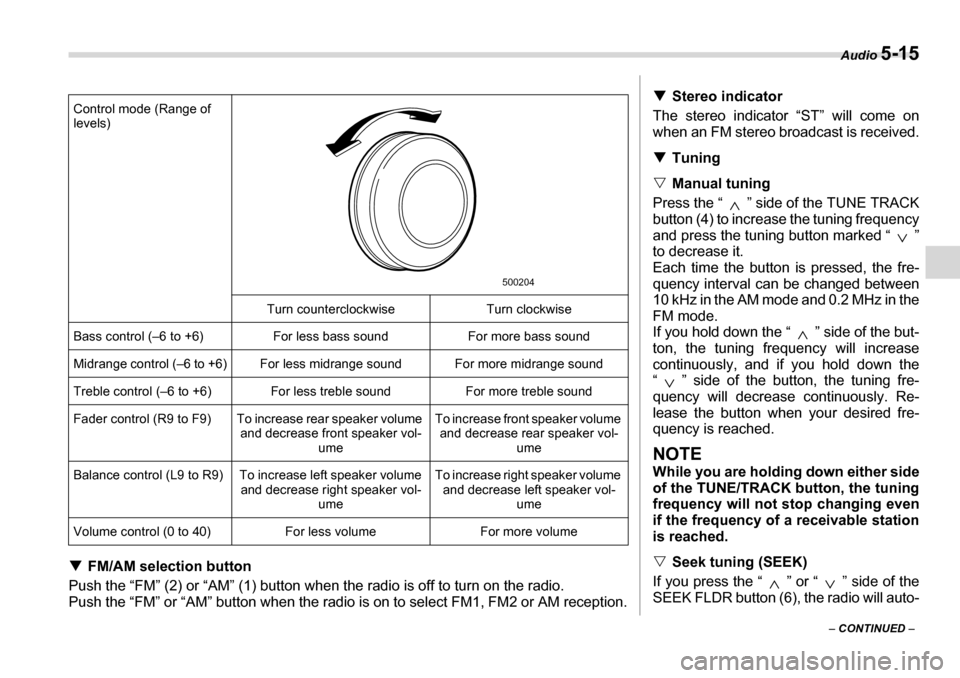

Audio 5-15
– CONTINUED –
TFM/AM selection button
Push the “FM” (2) or “AM” (1) button when the radio is off to turn on the radio.
Push the “FM” or “AM” button when the radio is on to select FM1, FM2 or AM reception. Control mode (Range of
levels)
Turn counterclockwise Turn clockwise
Bass control (–6 to +6) For less bass sound For more bass sound
Midrange control (–6 to +6) For less midrange sound For more midrange sound
Treble control (–6 to +6) For less treble sound For more treble sound
Fader control (R9 to F9) To increase rear speaker volume and decrease front speaker vol-ume To increase front speaker volume
and decrease rear speaker vol- ume
Balance control (L9 to R9) To increase left speaker volume and decrease right speaker vol-ume To increase right speaker volume
and decrease left speaker vol- ume
Volume control (0 to 40) For less volume For more volume
500204
T Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received. T Tuning
V Manual tuning
Press the “ ” side of the TUNE TRACK
button (4) to increase the tuning frequency
and press the tuning button marked “ ”
to decrease it.
Each time the button is pressed, the fre-
quency interval can be changed between
10 kHz in the AM mode and 0.2 MHz in the
FM mode.
If you hold down the “ ” side of the but-
ton, the tuning frequency will increase
continuously, and if you hold down the
“ ” side of the button, the tuning fre-
quency will decrease continuously. Re-
lease the button when your desired fre-
quency is reached.
NOTE
While you are holding down either side
of the TUNE/TRACK button, the tuning
frequency will not stop changing even
if the frequency of a receivable station
is reached. V Seek tuning (SEEK)
If you press the “ ” or “ ” side of the
SEEK FLDR button (6), the radio will auto-

Interior equipment 6-3
– CONTINUED –
Map light
To turn on the map light, push the switch.
To turn it off, push the switch again.
When leaving the vehicle, make sure the
light is turned off to avoid battery dis-
charge.
The light also can be turned on by use of
the remote keyless entry transmitter. See
the “Remote keyless entry system” in
chapter 2 for detailed information.
The setting of the period for which the light
stays on can be changed by a SUBARU
dealer.
Contact the nearest SUBARU dealer for
details.Sun visors
To block out glare, swing down the visors.
To use the sun visor at a side window,
swing it down and move it sideways. „
Sun visor extension plate
With the sun visor positioned over the side
window, you can use the sun visor exten-
sion plate to prevent glare through the gap
between the sun visor and center pillar. To
use the extension plate, pull it toward the
rear of the vehicle. When you have fin-
ished using it, stow it by pushing it toward
the front of the vehicle.
600406400228600407
