2007 SUBARU TRIBECA lock

Keys and doors 2-21
VLocking the passengers’ windows
To lock the passengers’ windows, push
the lock switch. When the lock switch is in
the “LOCK” position, the passengers’ win-
dows cannot be opened or closed.
Press the switch again to cancel the pas-
sengers’ window locking.
NOTE
When the lock switch is pushed to the
“LOCK” position, the indicator lights in
the passenger’s window switches (in-
cluded in the power window switch
cluster on the driver’s door) all go out. T
Passengers’ side switches
Front passenger’s window switch
1) Open
2) Close
To open the window, push the switch
down and hold it until the window reaches
the desired position. Rear passengers’ window switches
1) Open
2) Close
To close the window, pull the switch up
and hold it until the window reaches the
desired position.
When the lock switch on the power win-
dow switch cluster, located on the driver’s
side door, is in the “LOCK” position, the
passengers’ windows cannot be operated
with the passengers’ switches.
200732
1
2
200733
1
2
200734

2-22 Keys and doors
Rear gate
The rear gate can be locked and unlocked
using either the keyless entry system or
the power door locking switch.
Refer to the “Power door locking switches”
and “Remote keyless entry system” sec-
tions in this chapter.
To open the rear gate, first unlock the rear
gate lock then push the button. To close the rear gate, lower it slowly and
push down firmly until the latch engages.
The rear gate can be lowered easily if you
pull it down holding the recessed grip.
1) Reflectors200735
y
To prevent dangerous exhaust
gas from entering the vehicle, al-
ways keep the rear gate closed
while driving.
yDo not attempt to shut the rear
gate while holding the recessed
grip. Also avoid closing the rear
gate by pulling on the recessed
grip from inside the cargo space.
There is a danger of your hand be-
ing caught and injured.
200736
When the rear gate is open, do not
place a heavy item on either reflec-
tor. Also, do not sit on either reflec-
tor. Doing so could break the reflec- tor.
1
200894

Keys and doors 2-23
– CONTINUED –
NOTE
Should the rear gate be unable to be
unlocked due to a discharged battery,
a fault in the door locking/unlocking
system or other causes, you can un-
lock it by manually operating the rear
gate lock release lever.
For the procedure, refer to “Rear gate –
if the rear gate cannot be unlocked”
section in chapter 9.
Moonroof
The moonroof has both tilting and sliding
functions.
The moonroof operates only when the ig-
nition switch is in the “ON” position.
y
Do not jam a plastic bag in or
place cellophane tape on the rear
gate stays or scratch the stays
while loading or unloading cargo.
That could cause leakage of gas
from the stays, which may result
in their inability to hold the rear
gate open.
y Be careful not to hit your head or
face on the rear gate when open-
ing or closing the rear gate and
when loading or unloading cargo.
yNever let anyone’s hands, arms,
head or any objects protrude from
the moonroof. A person could be
seriously injured if the vehicle
stops suddenly or turns sharply
or if the vehicle is involved in an
accident.
To avoid serious personal injury
caused by entrapment, you must
do the following.
yBefore closing the moonroof,
make sure that no one’s hands,
arms, head or other objects will be
accidentally caught in the moon- roof.
yBefore leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child operating the moonroof.
yNever try to check the anti-entrap-
ment function by deliberately
placing part of your body in the moonroof.
yDo not sit on the edge of the open
moonroof.
y Do not operate the moonroof if
falling snow or extremely cold
conditions have caused it to
freeze shut.
y The anti-entrapment function
does not operate when the moon-
roof is being tilted down. Be sure
to confirm that it is safe to do so
before tilting the moonroof down.

3
Instruments and controls
Ignition switch .................................................... 3-3 LOCK ....................................................................... 3-3
ACC .......................................................................... 3-3
ON ............................................................................ 3-4
START ...................................................................... 3-4
Key reminder chime ............................................... 3-4
Ignition switch light ................................................ 3-4
Hazard warning flasher ...................................... 3-5
Meters and gauges ............................................. 3-5 Combination meter illumination ............................ 3-5
Canceling the function for meter needle/gauge movement and combination meter sequential
illumination upon turning on the ignition
switch .................................................................... 3-5
Speedometer ........................................................... 3-6
Odometer ................................................................. 3-6
Double trip meter .................................................... 3-7
Tachometer ............................................................. 3-7
Fuel gauge ............................................................... 3-8
Temperature gauge ................................................ 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-10
SRS airbag system warning light .......................... 3-11
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-12
CHECK ENGINE warning light/Malfunction
indicator lamp ....................................................... 3-12
Charge warning light ............................................... 3-13
Oil pressure warning light ..................................... 3-13
AT OIL TEMPerature warning light ....................... 3-13 Rear differential oil temperature warning light .... 3-14
Low tire pressure warning light ............................ 3-14
ABS warning light ................................................... 3-15
Brake system warning light ................................... 3-16
Low fuel warning light ..................................... 3-17
Door open warning light ........................................ 3-17
Windshield washer fluid warning light ................. 3-17
All-Wheel Drive warning light ................................ 3-17
Vehicle Dynamics Control operation indicator
light ........................................................................ 3-18
Vehicle Dynamics Control warning light/Traction Control system OFF indicator light .................... 3-18
Security indicator light ........................................... 3-19
SPORT mode indicator light .................................. 3-19
Selector lever/Gear position indicator .................. 3-20
Turn signal indicator lights .................................... 3-20
High beam indicator light ....................................... 3-20
Cruise control indicator light ................................. 3-20
Cruise control set indicator light .......................... 3-20
Headlight indicator light ......................................... 3-20
Front fog light indicator light ................................. 3-20
Clock .................................................................... 3-21
Outside temperature indication ........................ 3-21
Multi function display (Vehicle without Navigation System) ......................................... 3-23Current fuel consumption ...................................... 3-23
Average fuel consumption ..................................... 3-23
Driving range on remaining fuel ............................ 3-24
Journey time ........................................................... 3-25

Instruments and controls 3-3
– CONTINUED –
Instruments and controlsIgnition switch
The ignition switch has four positions:
LOCK, ACC, ON and START.
NOTE yKeep the ignition switch in the
“LOCK” position when the engine is
not running. y Using electrical accessories for a
long time with the ignition switch in the
“ON” or “ACC” position can cause the
battery to go dead.
If the ignition switch will not move from
the “LOCK” position to the “ACC” po-
sition, turn the steering wheel slightlyto the left and right as you turn the ig-
nition switch. y If the key is attached to a keyholder
or to a large bunch of other keys, cen-
trifugal force may act on it as the vehi-
cle moves, resulting in unwanted turn-
ing of the ignition switch. Also, if a
large keyholder is attached to the key, your knees or hands may accidentally
touch it in a way that turns the ignition
switch. „
LOCK
The key can only be inserted or removed
in this position. The ignition switch will lock
the steering wheel when you remove the key.
If turning the key is difficult, turn the steer-
ing wheel slightly to the right and left as
you turn the key.
The key can be turned from “ACC” to
“LOCK” only when the selector lever is in
the “P” position. „ ACC
In this position the electrical accessories
y Never turn the ignition switch to
“LOCK” while the vehicle is being
driven or towed because that will
lock the steering wheel, prevent-
ing steering control. And when
the engine is turned off, it takes a
much greater effort than usual to
steer.
yBefore leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child or others. Children could
operate the power windows, the
sunroof or other controls or even
make the vehicle move.
300500
300501

3-4 Instruments and controls
(radio, accessory power outlet, etc.) can
be used. „ON
This is the normal operating position after
the engine is started. „ START
The engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns to
the “ON” position.
If your registered key fails to start the en-
gine, pull out the key once (the security in-
dicator light will blink), and then insert the
key in the ignition switch and turn it to the
“START” position and again try to start the
engine.
NOTE
The engine may not start in the follow-
ing cases: y
The key grip is touching another key
or a metallic key holder. y The key is near another key that con-
tains an immobilizer transponder. „
Key reminder chime
The reminder chime sounds when the
driver’s door opens and the key is in the
“LOCK” or “ACC” positions. The chime
stops when the key is removed from the
ignition switch. „ Ignition switch light
For easy access to the ignition switch in
the dark, the ignition switch light comes on
when any of the doors are opened. The
light remains on for a several seconds and
gradually goes out after all doors are
closed or if the key is inserted in the igni-tion switch.
Do not turn the ignition switch to the
“START” position while the engine
is running.
300502
300503

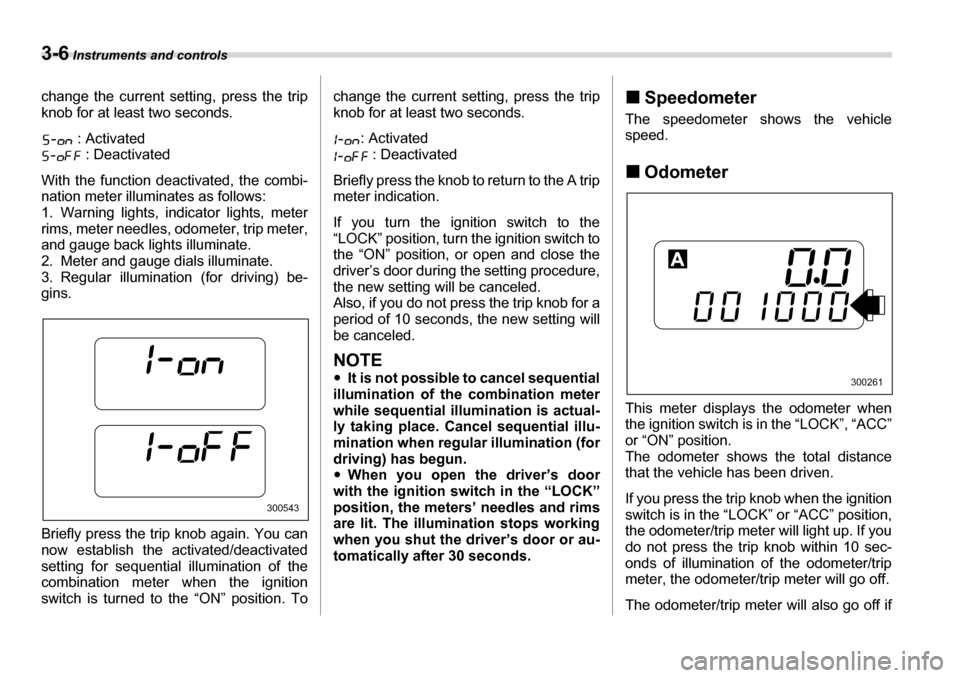

3-6 Instruments and controls
change the current setting, press the trip
knob for at least two seconds.
: Activated : Deactivated
With the function deactivated, the combi-
nation meter illuminates as follows:
1. Warning lights, indicator lights, meter
rims, meter needles, odometer, trip meter,
and gauge back lights illuminate.
2. Meter and gauge dials illuminate.
3. Regular illumination (for driving) be-
gins.
Briefly press the trip knob again. You can
now establish the activated/deactivated
setting for sequential illumination of the
combination meter when the ignition
switch is turned to the “ON” position. To change the current setting, press the trip
knob for at least two seconds.
: Activated : Deactivated
Briefly press the knob to return to the A trip
meter indication.
If you turn the ignition switch to the
“LOCK” position, turn the ignition switch to
the “ON” position, or open and close the
driver’s door during the setting procedure,
the new setting will be canceled.
Also, if you do not press the trip knob for a
period of 10 seconds, the new setting will
be canceled.
NOTE y It is not possible to cancel sequential
illumination of the combination meter
while sequential illumination is actual-
ly taking place. Cancel sequential illu-
mination when regular illumination (for
driving) has begun.y When you open the driver’s door
with the ignition switch in the “LOCK”
position, the meters’ needles and rims
are lit. The illumination stops working
when you shut the driver’s door or au-
tomatically after 30 seconds. „
Speedometer
The speedometer shows the vehicle
speed. „ Odometer
This meter displays the odometer when
the ignition switch is in the “LOCK”, “ACC”
or “ON” position.
The odometer shows the total distance
that the vehicle has been driven.
If you press the trip knob when the ignition
switch is in the “LOCK” or “ACC” position,
the odometer/trip meter will light up. If you
do not press the trip knob within 10 sec-
onds of illumination of the odometer/trip
meter, the odometer/trip meter will go off.
The odometer/trip meter will also go off if
300543
300261

Instruments and controls 3-7
– CONTINUED –
you open and close the driver’s door with-
in 10 seconds of illumination of the odom- eter/trip meter. „
Double trip meter
This meter display two trip meters when
the ignition switch is in the “LOCK”, “ACC”
or “ON” position.
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
To change the mode indication, briefly
push the knob.
Each press of the knob changes the mode
indication alternately. To set the trip meter to zero, select the A
trip or B trip meter by pushing the knob
and keep the knob pushed for more than 2 seconds.
If you press the trip knob when the ignition
switch is in the “LOCK” position, the
odometer/trip meter will light up. It is pos-
sible to switch between the A trip meter and B trip meter indications while the
odometer/trip meter is lit up. If you do not
press the trip knob within 10 seconds of il-
lumination of the odometer/trip meter, the
odometer/trip meter will go off. Also, if you
open and close the driver’s door within 10
seconds of illumination of the odometer/
trip meter, the odometer/trip meter will go
off.
NOTE
If the connection between the combi-
nation meter and battery is broken for
any reason such as vehicle mainte-
nance or fuse replacement, the data re-
corded on the trip meter will be lost. T
Vehicle communication system
fault indication
The vehicle communication system car-
ries various types of information (vehicle
speed, running conditions, etc.) to control
modules. In the event of a fault in this
communication system, the trip meter will
show “ ”.
If the trip meter shows “ ”, immedi-
ately contact the nearest SUBARU dealer
and have the vehicle communication sys-
tem inspected.
NOTE
If you press the trip knob while the trip
meter is showing “ ”, the trip
meter indication will appear for 10 sec-
onds. „ Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.
300258
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.
A trip meter
B trip meter
