In case of emergency
If you park your vehicle in an emergency ........ 9-2
Spare tire ............................................................. 9-2 Removing the spare tire ......................................... 9-3
Re-storage of spare tire ......................................... 9-5
Temporary spare tire .......................................... 9-6
Flat tires .............................................................. 9-7 Changing a flat tire ................................................. 9-7
Tire pressure monitoring system (TPMS) ............ 9-10
Jump starting ...................................................... 9-11 How to jump start ................................................... 9-12
Engine overheating ............................................ 9-14 If steam is coming from the engine compartment ......................................................... 9-14
If no steam is coming from the engine
compartment ......................................................... 9-14
Towing ................................................................. 9-15 Towing and tie-down hooks .................................. 9-15
Using a flat-bed truck ............................................. 9-17
Towing with all wheels on the ground .................. 9-18
Rear gate – if the rear gate cannot be unlocked .......................................................... 9-18
Maintenance tools .............................................. 9-19 Jack and jack handle .............................................. 9-19

In case of emergency 9-3
– CONTINUED –
the “Temporary spare tire” section in this
chapter for instructions and precautions. „

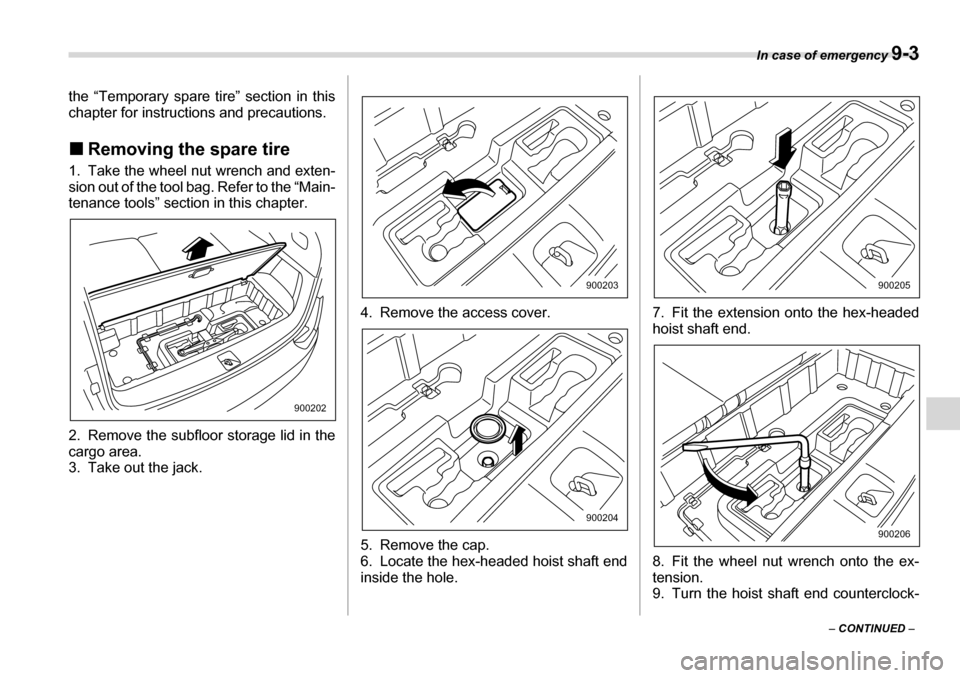

Removing the spare tire
1. Take the wheel nut wrench and exten-
sion out of the tool bag. Refer to the “Main-
tenance tools” section in this chapter.
2. Remove the subfloor storage lid in the
cargo area.
3. Take out the jack. 4. Remove the access cover.
5. Remove the cap.
6. Locate the hex-headed hoist shaft end
inside the hole. 7. Fit the extension onto the hex-headed
hoist shaft end.
8. Fit the wheel nut wrench onto the ex-
tension.
9. Turn the hoist shaft end counterclock-
900202
900203
900204
900205
900206

9-4 In case of emergency

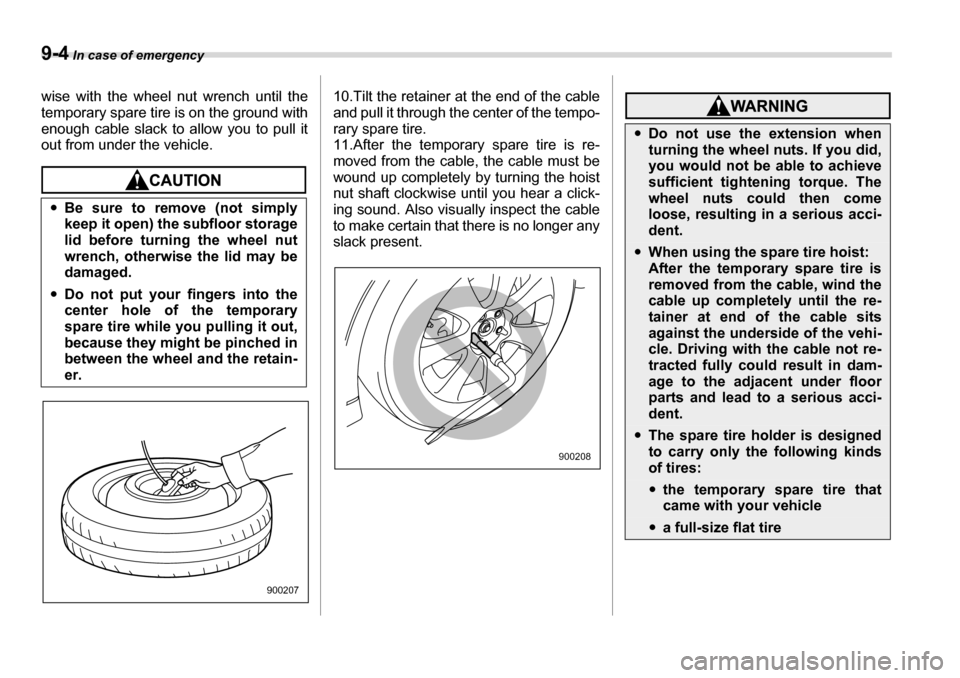

wise with the wheel nut wrench until the
temporary spare tire is on the ground with
enough cable slack to allow you to pull it
out from under the vehicle.10.Tilt the retainer at the end of the cable
and pull it through the center of the tempo-
rary spare tire.
11.After the temporary spare tire is re-
moved from the cable, the cable must be
wound up completely by turning the hoist
nut shaft clockwise until you hear a click-
ing sound. Also visually inspect the cable
to make certain that there is no longer any
slack present.
yBe sure to remove (not simply
keep it open) the subfloor storage
lid before turning the wheel nut
wrench, otherwise the lid may be
damaged.
y Do not put your fingers into the
center hole of the temporary
spare tire while you pulling it out,
because they might be pinched in
between the wheel and the retain-er.
900207
900208
yDo not use the extension when
turning the wheel nuts. If you did,
you would not be able to achieve sufficient tightening torque. The
wheel nuts could then come
loose, resulting in a serious acci-
dent.
yWhen using the spare tire hoist:
After the temporary spare tire is
removed from the cable, wind the
cable up completely until the re-
tainer at end of the cable sits
against the underside of the vehi-
cle. Driving with the cable not re-
tracted fully could result in dam-
age to the adjacent under floor
parts and lead to a serious acci-
dent.
yThe spare tire holder is designed to carry only the following kinds
of tires:
ythe temporary spare tire that
came with your vehicle
ya full-size flat tire

In case of emergency 9-5

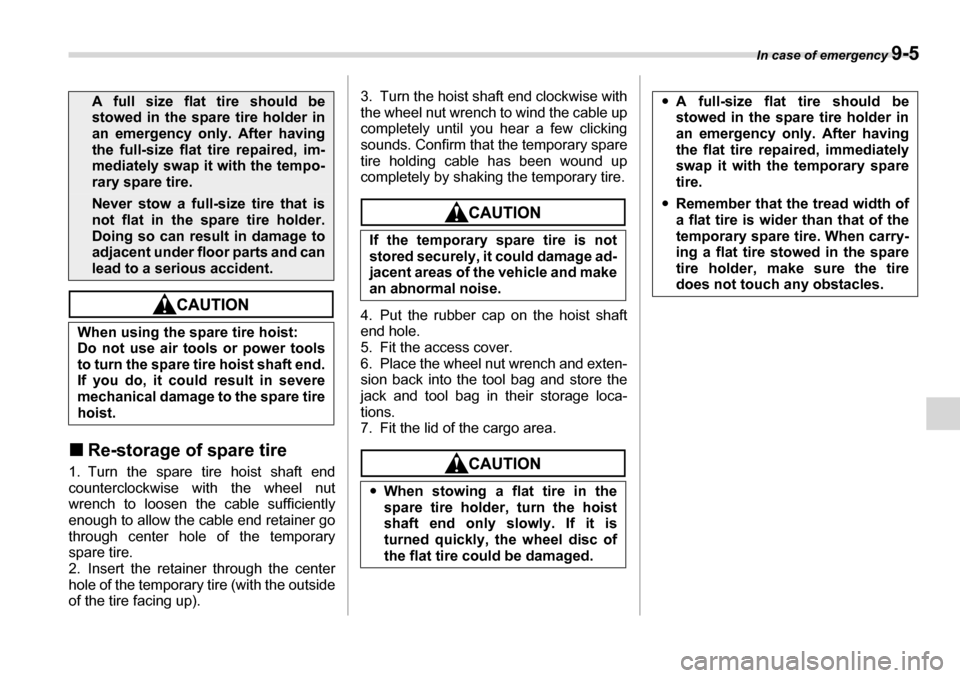

„Re-storage of spare tire
1. Turn the spare tire hoist shaft end
counterclockwise with the wheel nut
wrench to loosen the cable sufficiently
enough to allow the cable end retainer go
through center hole of the temporary
spare tire.
2. Insert the retainer through the center
hole of the temporary tire (with the outside
of the tire facing up). 3. Turn the hoist shaft end clockwise with
the wheel nut wrench to wind the cable up
completely until you hear a few clicking
sounds. Confirm that the temporary spare
tire holding cable has been wound up
completely by shaking the temporary tire.
4. Put the rubber cap on the hoist shaft
end hole.
5. Fit the access cover.
6. Place the wheel nut wrench and exten-
sion back into the tool bag and store the
jack and tool bag in their storage loca- tions.
7. Fit the lid of the cargo area.
A full size flat tire should be
stowed in the spare tire holder in
an emergency only. After having
the full-size flat tire repaired, im-
mediately swap it with the tempo-
rary spare tire.
Never stow a full-size tire that is
not flat in the spare tire holder.
Doing so can result in damage to
adjacent under floor parts and can
lead to a serious accident.
When using the spare tire hoist:
Do not use air tools or power toolsto turn the spare tire hoist shaft end.
If you do, it could result in severe
mechanical damage to the spare tire
hoist.
If the temporary spare tire is not
stored securely, it could damage ad-
jacent areas of the vehicle and make
an abnormal noise. y When stowing a flat tire in the
spare tire holder, turn the hoist
shaft end only slowly. If it is
turned quickly, the wheel disc of
the flat tire could be damaged.
yA full-size flat tire should be
stowed in the spare tire holder in
an emergency only. After having
the flat tire repaired, immediately
swap it with the temporary spare tire.
y Remember that the tread width of
a flat tire is wider than that of the
temporary spare tire. When carry-
ing a flat tire stowed in the spare
tire holder, make sure the tire
does not touch any obstacles.

In case of emergency 9-7
– CONTINUED –
Flat tires
If you have a flat tire while driving, never
brake suddenly; keep driving straight
ahead while gradually reducing speed.
Then slowly pull off the road to a safe
place. „Changing a flat tire
1. Park on a hard, level surface, whenev-
er possible, then stop the engine.
2. Set the parking brake securely and
shift in the “P” (Park) position.
3. Turn on the hazard warning flasher and
have everyone get out of the vehicle.
4. Put wheel blocks at the front and rear
of the tire diagonally opposite the flat tire. 7 seater models
1) Jack handle
2) Jack
3) Spare tire
y
Do not jack up the vehicle on an
incline or a loose road surface.
The jack can come out of the jack-
ing point or sink into the ground
and this can result in a severe ac-
cident.
yUse only the jack provided with
your vehicle. The jack supplied
with the vehicle is designed only for changing a tire. Never get un-
der the vehicle while supporting
the vehicle with this jack.
yAlways turn off the engine before
raising the flat tire off the ground
using the jack. Never swing or
push the vehicle supported with
the jack. The jack can come out of
the jacking point due to a jolt and
this can result in a severe acci-
dent.
600122
1 3
2900261

In case of emergency 9-9
– CONTINUED –

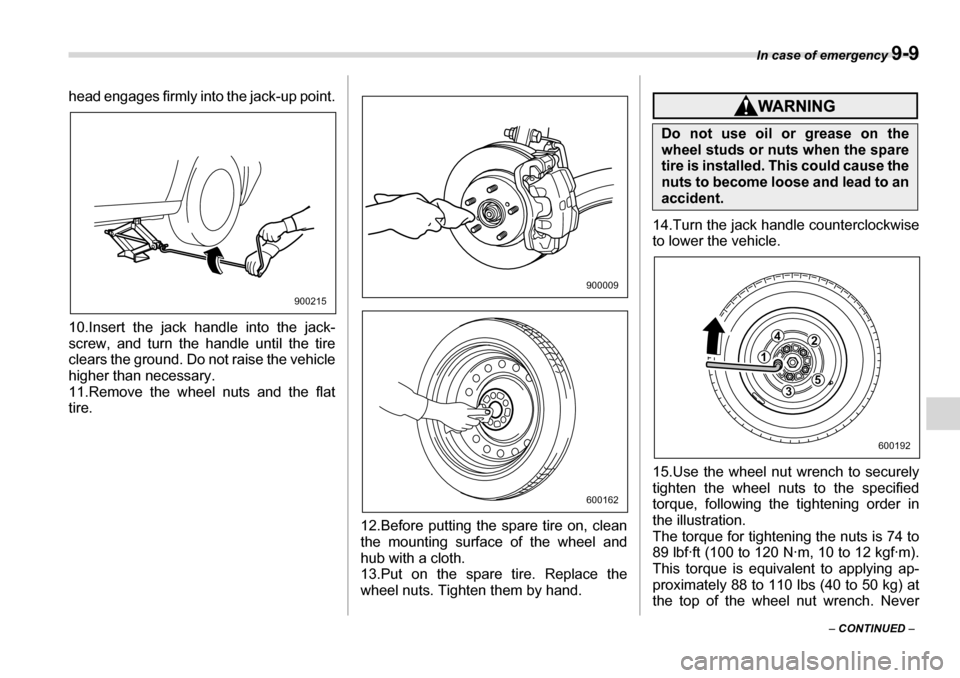

head engages firmly into the jack-up point.
10.Insert the jack handle into the jack-
screw, and turn the handle until the tire
clears the ground. Do not raise the vehicle
higher than necessary.
11.Remove the wheel nuts and the flattire.
12.Before putting the spare tire on, clean
the mounting surface of the wheel and
hub with a cloth.
13.Put on the spare tire. Replace the
wheel nuts. Tighten them by hand.
14.Turn the jack handle counterclockwise
to lower the vehicle.
15.Use the wheel nut wrench to securely
tighten the wheel nuts to the specified
torque, following the tightening order in
the illustration.
The torque for tightening the nuts is 74 to
89 lbf·ft (100 to 120 N·m, 10 to 12 kgf·m).
This torque is equivalent to applying ap-
proximately 88 to 110 lbs (40 to 50 kg) at
the top of the wheel nut wrench. Never
900215
900009
600162
Do not use oil or grease on the
wheel studs or nuts when the spare
tire is installed. This could cause the
nuts to become loose and lead to an
accident.
1
42
53
600192

9-14 In case of emergency
5. Start the engine of the vehicle with the
booster battery and run it at moderate
speed. Then start the engine of the vehi-
cle that has the discharged battery.
6. When finished, carefully disconnect the
cables in exactly the reverse order.Engine overheating
If the engine overheats, safely pull off the
road and stop the vehicle in a safe place. „If steam is coming from the
engine compartment
Turn off the engine and get everyone
away from the vehicle until it cools down. „ If no steam is coming from
the engine compartment
1. Keep the engine running at idling
speed.
2. Open the hood to ventilate the engine compartment.
Confirm that the cooling fan is turning. If
the fan is not turning, immediately turn off the engine and contact your authorized
dealer for repair.
3. After the engine coolant temperature
has dropped, turn off the engine.
If the temperature gauge stays at the
overheated zone, turn off the engine.
4. After the engine has fully cooled down,
check the coolant level in the reserve
tank.
If the coolant level is below the “MIN”
mark, add coolant up to the “MAX” mark.
5. If there is no coolant in the reserve
tank, add coolant to the reserve tank.
Then remove the radiator cap and fill the
radiator with coolant.
If you remove the radiator cap from a hot
radiator, first wrap a thick cloth around the
radiator cap, then turn the cap counter-
clockwise slowly without pressing down
until it stops. Release the pressure from
the radiator. After the pressure has been
fully released, remove the cap by pressing
down and turning it.
Never attempt to remove the radia-
tor cap until the engine has been
shut off and has fully cooled down.
When the engine is hot, the coolant
is under pressure. Removing the
cap while the engine is still hot
could release a spray of boiling hot
coolant, which could burn you very
seriously.

9-18 In case of emergency
„Towing with all wheels on the ground
1. Check the transmission and differential
oil levels and add oil to bring it to the upper
level if necessary.
2. Release the parking brake and put the
transmission in neutral.
3. The ignition switch should be in the
“ACC” position while the vehicle is being
towed.
4. Take up slack in the towline slowly to
prevent damage to the vehicle. Rear gate – if the rear gate
cannot be unlocked
In the event that you cannot unlock the
rear gate by operating the power door locking switches or the remote keyless en-
try system, you can unlock it from inside
the cargo area.
0
1. Remove the access cover at the bot-
tom-center of the rear gate trim using flat-
head screwdriver.
2. Locate the rear gate lock release lever
behind the rear gate trim panel.
y
Never turn the ignition switch to
the “LOCK” position while the ve-
hicle is being towed because the
steering wheel and the direction
of the wheels will be locked.
yRemember that the brake booster
and power steering do not func-
tion when the engine is not run-
ning. Because the engine is
turned off, it will take greater ef-
fort to operate the brake pedal and
steering wheel.
900227
yIf transmission failure occurs,
transport your vehicle on a flat-
bed truck.
y Do not run the engine while being
towed using this method. Trans-
mission damage could result if
the vehicle is towed with the en-
gine running.
y The traveling speed must be limit-
ed to less than 20 mph (30 km/h)
and the traveling distance to less
than 31 miles (50 km). For greater
speeds and distances, transport
your vehicle on a flat-bed truck.
900228
