2007 SKODA FABIA Owner's Manual

Seats and Stowage64
The luggage compartment cover can also be put into the lower position on the supporting elements ⇒fig. 59.
The luggage compartment cover in the lowe r position is foreseen for storage of small objects of up to 6 kg. in weight.
The luggage compartment cover can also be stowed behind the rear seats ⇒ fig. 60.
WARNING
No objects should be placed on the luggage compartment cover, the vehicle occupants could be endangered if th ere is sudden braking or the vehicle collides with something.
Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of objects placed in this area.
Note
When opening the boot lid, lift the lugga ge compartment cover - risk that objects placed in this area can slip forward!
The roof rack*
Description
Pay attention to the following points if yo u wish to transport luggage or other items on the roof of your vehicle:
•A special roof luggage rack system was developed for the vehicle, that is why you should only use a roof luggage rack which has been released for use by Škoda Auto a.s.
•The base carrier is the basis for a comple te roof luggage rack system. Separate additional holders are required for safety reasons for transporting luggage, bikes, surfboards, skis and boats.
•The basic version of the roof luggage rack system and further components are obtainable as accessories from Škoda Service Partners.
Caution
•If you use other roof rack systems or if th e roof bars are not properly fitted, then any damage which may result to your ca r is not covered by the warranty agree- ments. It is therefore essential to pay atte ntion to the fitting instructions supplied with the roof luggage rack system.
•On models fitted with a power sliding/tilting roof, ensure that the opened sliding/tilting roof does not strike any items of luggage transported on the roof.
•Ensure that the opened boot lid do es not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption. One should therefore take off the roof bar system after use.
Attachment points
Fig. 61 Attachment points for base roof carrier
NKO A05F 20 MR08.book Page 64 Thursday, April 19, 2007 11:34 AM

Seats and Stowage65
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Fitting
– Insert the attachment points of th e roof rack into the mounts of the
body so that the pins of the attachment points grasp into the holes of
the body.
Note
•Pay attention to the information regarding assembly and disassembly in the attached instructions.
•If you have any questions, plea se contact a specialist garage.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum permis- sible roof load (including roof rack system) of 75 kg and the maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof luggage rack system with a lower load carrying capacity. The load transported on the roof luggage rack system must not exceed the we ight limit which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the permis- sible axle loads and the permissible gros s weight of your vehicle - risk of accident!
•Please note that the handling prop erties of your vehicle change when you transport heavy or bulky items on the roof bar system as a result of the displacement of the centre of gravity and the increased wind attack area - risk of accident! You must absolutely adapt your style of driving and the speed of the vehicle to the specific circumstances.
Front cup holder
You can place two cups or beve rage cans into the recesses ⇒fig. 62.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Fig. 62 Front centre console: Cup holder
NKO A05F 20 MR08.book Page 65 Thursday, April 19, 2007 11:34 AM

Seats and Stowage66
Rear cup holder*
You can place one cup or beverage can into the recess ⇒fig. 63.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Note holder
The note holder is designed e.g. for atta ching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict the driver's vision.
Fig. 63 Centre console: Cup holderFig. 64 Windscreen: Note holder
NKO A05F 20 MR08.book Page 66 Thursday, April 19, 2007 11:34 AM

Seats and Stowage67
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

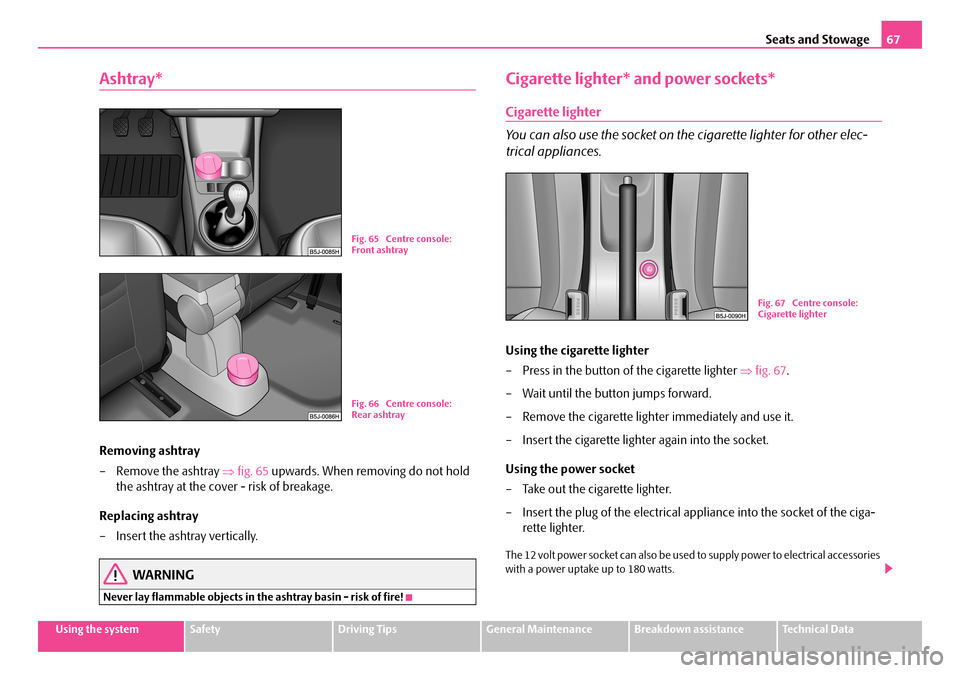

Ashtray*
Removing ashtray
– Remove the ashtray ⇒fig. 65 upwards. When removing do not hold
the ashtray at the cover - risk of breakage.
Replacing ashtray
– Insert the ashtray vertically.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter* and power sockets*
Cigarette lighter
You can also use the socket on the cigarette lighter for other elec-
trical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 67.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical a ppliance into the socket of the ciga-
rette lighter.
The 12 volt power socket can also be used to supply power to electrical accessories with a power uptake up to 180 watts.
Fig. 65 Centre console: Front ashtray
Fig. 66 Centre console: Rear ashtray
Fig. 67 Centre console: Cigarette lighter
NKO A05F 20 MR08.book Page 67 Thursday, April 19, 2007 11:34 AM

Seats and Stowage68
WARNING
•Take care when using the cigarette lighter! Not paying proper attention or incorrect use the cigarette lighter in an uncontrolled manner may result in burns.
•The cigarette lighter and the power so cket also operates when the igni- tion is switched off or the ignition key withdrawn. This is why you should never leave children unattended in the vehicle!
Caution
Only use matching plugs, which fulfil s the DIN - ISO Standard 4165, to avoid damaging the power sockets.
Note
Connecting electrical components when the engine is not running will drain the battery of the vehicle - risk of battery draining!
Storage compartments
Overview
You will find the following storag e facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such objects might slide or fall down when driving (when accelerating or cornering) and may distract you from concentrating on the traffic situation - risk of acci- dent!
•Ensure that when driving no objects from the centre console of from other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the br akes, operate the clutch or accelerator - risk of accident!
Storage compartments on the front passenger side*
Certain model versions are equipped without lid for the storage compart-
ments.
Storage compartments on the front passenger side*⇒ page 68
Storage compartment on the driver's side⇒page 69
Stowage compartment for spectacles*⇒page 69
Stowage compartment in centre console⇒page 70
Storage compartment in the front seat*⇒page 70
Front seat armrest with stowage compartment*⇒page 71
Storage compartment in the front doors⇒page 71
Storage box*⇒page 72
Storage compartments in the luggage compart- ment⇒ page 73
Flexible storage compartment*⇒page 73
Clothes hooks*⇒page 73
Fig. 68 Dash panel: Storage compartments on the front passenger side
NKO A05F 20 MR08.book Page 68 Thursday, April 19, 2007 11:34 AM

Seats and Stowage69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Opening and closing the storage compartments on the front
passenger side
– Pull or press the handle of the lid in the direction of arrow ⇒page 68,
fig. 68 and fold open the lid.
– Raise the lid until it is heard to engage.
A pin holder is located inside the lid.
WARNING
The storage compartment must always be closed when driving for safety reasons.
Cooling of storage compartment on front passenger side*
The storage compartment can be fitted for vehicles with an air-
conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control dial
⇒ fig. 69.
Opening the air inlet when the air conditioning system is on causes fresh or interior air to flow into the storage compartment.
The storage compartment is only cooled in the cooling mode. We recommend that you switch off the cooling (opening concealed) if it is operating in the heating mode or if you are not using the cooling system for the storage compartment.
Storage compartment on the driver's side
Unlockable compartment below the steering wheel on the left.
Stowage compartment for spectacles*
Fig. 69 Storage compartment: Using cooling system
Fig. 70 Dash panel: Storage compartment on the driver's side
Fig. 71 Detail of the headliner: Stowage compartment for specta-cles
NKO A05F 20 MR08.book Page 69 Thursday, April 19, 2007 11:34 AM

Seats and Stowage70
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒page 69, fig. 71.
WARNING
The storage compartment must always be closed when driving for safety reasons - risk of head injury.
Stowage compartment in centre console
Unlocable compartment in the centre console.
Storage compartment in the front seat*
The storage compartment is foreseen for storing small objects of up to 1
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 73.
– Tilt the lock to close the flap and press flap close.
Fig. 72 Centre console: Storage compartment
Fig. 73 Front seat: Storage compartment
NKO A05F 20 MR08.book Page 70 Thursday, April 19, 2007 11:34 AM

Seats and Stowage71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Front seat armrest with storage compartment*
Fold the armrest
– Press the lower button on the end face of the armrest ⇒fig. 74 in
order to fold the armrest. Fold th e armrest forwards and release the
button.
Opening stowage compartment
– The armrest includes a stowage compartment. The storage compart-
ment is unlocked by pressing the upper button and then can be
opened to the top.
Note
The moving space of the arms can be restricted if the armrest is folded down. In city traffic the armrest should not be folded down.
Storage compartment in the front doors
A bottle holder is located in the area of the storage compartment for the front doors.
WARNING
Use the area ⇒fig. 76 of the storage compartment only for storing objects which do not project so that the effectiveness of the side airbag is not impaired.
Fig. 74 Armrest: Storage compartment
Fig. 75 Opening stowage compartment
Fig. 76 Stowage compartment in door panel
AB
AA
