Technical Data216
Vehicle data sticker
The vehicle data sticker ⇒page 215, fig. 185 is located on the floor of the luggage compartment and is also stated in the Service schedule.
The vehicle data sticker co ntains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output, engine code
Partial description of the vehicle
7GG - vehicles with DPF ⇒page 150
Vehicle identification number (VIN)
The vehicle identification num ber - VIN (vehicle body number) is stamped into the engine compartment on the right hand shoc k absorber dome. This number is also located on a sign on the lower left hand edge below the windscreen (together with a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Type plate (production plate)
The type plate is located in the engine co mpartment at the front on the left hand shock absorber dome.
Homologation sign
The homologation sign is located on the lo ck carrier. Vehicles for certain countries do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. The sticker contains the following data:
•The prescribed types of fuel,
•Tyre si z e,
•Tyre pressure.
Fuel consumption according to the regulations
(99/100/EU)
Depending on the range of the special equipment, style of driving, traffic situation, weather influences and vehi cle condition, the consumption values which in prac- tice result when using the vehicle ca n deviate from the indicated values.
Urban traffic
The consumption measurement in urban traf fic begins with starting of the cold engine. Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-ur ban traffic the vehicle, as in daily motoring, is accelerated and braked several times in all gears. The vehicle speed changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traf fic consists of 37% from the value for the urban traffic and of 63% from the value for the non-urban traffic.
Note
•Please note that the information stated in the official vehicle registration documents always takes priority.
A1
A2
A3
A4
A5
NKO A05F 20 MR08.book Page 216 Thursday, April 19, 2007 11:34 AM

Technical Data217
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Dimensions
Dimensions (mm)
Length3992
Width1642
Width including exterior mirror1886
Height1498/1513a)
a)The value is valid for vehicles with rough road package.
Wheel base2462
Tr a c k g a u g e f r o n t / r e a r1436/1426
NKO A05F 20 MR08.book Page 217 Thursday, April 19, 2007 11:34 AM

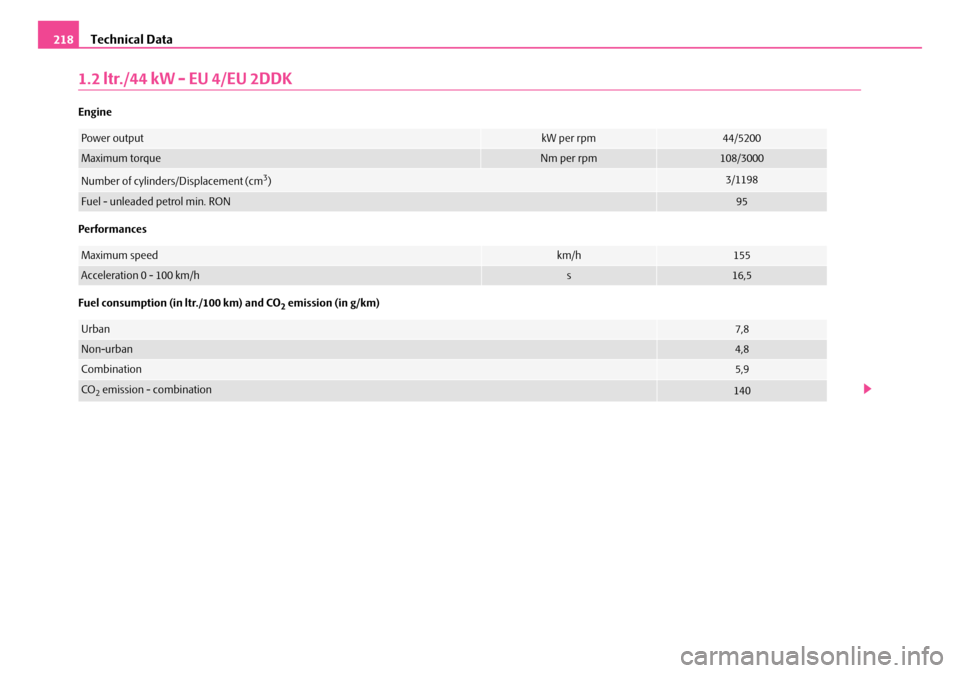

Technical Data218
1.2 ltr./44 kW - EU 4/EU 2DDK
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm44/5200
Maximum torqueNm per rpm108/3000
Number of cylinders/Displacement (cm3)3/1198
Fuel - unleaded petrol min. RON95
Maximum speedkm/h155
Acceleration 0 - 100 km/hs16,5
Urban7,8
Non-urban4,8
Combination5,9
CO2 emission - combination140
NKO A05F 20 MR08.book Page 218 Thursday, April 19, 2007 11:34 AM

Technical Data219
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 176.
3,0
Cooling system of the vehicle5,5
Permissible gross weight1555/1505a)
a)without power steering
Unloaden weight ready for work1040/1015a)
Loading capacity515/490a)
Loading capacity when using the TLC465/440a)
Permissible front axle load820/765a)
Permissible rear axle load840/800a)
Permissible trailer load, trailer braked/unbraked800/500b)
900/500c)
b)Uphills up to 12%c)Uphills up to 8 %
NKO A05F 20 MR08.book Page 219 Thursday, April 19, 2007 11:34 AM

Technical Data220
1.2 ltr./51 kW - EU 4/EU 2DDK
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm51/5400
Maximum torqueNm per rpm112/3000
Number of cylinders/Displacement (cm3)3/1198
Fuel - unleaded petrol min. RON95
Maximum speedkm/h163
Acceleration 0 - 100 km/hs14,9
Urban7,7
Non-urban4,9
Combination5,9
CO2 emission - combination140
NKO A05F 20 MR08.book Page 220 Thursday, April 19, 2007 11:34 AM

Technical Data221
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 176.
3,0
Cooling system of the vehicle5,5
Permissible gross weight1565
Unloaden weight ready for work1050
Loading capacity515
Loading capacity when using the TLC465
Permissible front axle load890
Permissible rear axle load840
Permissible trailer load, trailer braked/unbraked(800/500)a)
(900/500)b)
a)Uphills up to 12%b)Uphills up to 8 %
NKO A05F 20 MR08.book Page 221 Thursday, April 19, 2007 11:34 AM

Technical Data222
1.4 ltr./63 kW - EU 4/EU 2DDK
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm63/5000
Maximum torqueNm per rpm132/3800
Number of cylinders/Displacement (cm3)4/1390
Fuel - unleaded petrol min. RON95
Maximum speedkm/h174
Acceleration 0 - 100 km/hs12,3
Urban8,6
Non-urban5,3
Combination6,5
CO2 emission - combination155
NKO A05F 20 MR08.book Page 222 Thursday, April 19, 2007 11:34 AM

Technical Data223
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare45/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 176.
3,2
Cooling system of the vehicle5,5
Permissible gross weight1575
Unloaden weight ready for work1060
Loading capacity515
Loading capacity when using the TLC465
Permissible front axle load890
Permissible rear axle load840
Permissible trailer load, trailer braked/unbraked(1000/500)a)
(1200/500)b)
a)Uphills up to 12%b)Uphills up to 8 %
