2007 SATURN ION Owners Manual

Headlamp High/Low-Beam Changer
Push the turn signal lever forward to change
the headlamps from low beam to high beam. Pull
the turn signal lever back and then release it
to change from high beam to low beam.
When the high beams
are on, this light on the
instrument panel
cluster will also be on.
Flash-to-Pass
This feature lets you use your high-beam
headlamps to signal a driver in front of you that
you want to pass.
To use it, pull the turn signal/multifunction lever
toward you until the high-beam headlamps
come on, then release the lever to turn them off.
Windshield Washer
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
L(Washer Fluid):Pull the windshield wiper
lever toward you to operate the windshield wipers.
Washer uid will squirt onto the windshield and
the wipers will run for a few cycles to clear
the windshield. For more wash cycles, pull the
lever toward you and hold it there.
145
ProCarManuals.com

Windshield Wiper Lever
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for
a single wiping cycle. The lever will return to its
original position. For more cycles, hold the
lever down before releasing it.
9(Off):Put the lever in this position to turn off
the wipers.
&(Delay):Put the lever in this position to set a
delay between wipes. Turn the end of the lever
to set the length of the delay.
6(Low Speed):Put the lever in this position
for slow, steady wiping cycles.
1(High Speed):Put the lever in this position
for rapid wiping cycles.
Be sure to clear ice and snow from the wiper
blades before using them. If they are frozen to the
windshield, gently loosen or thaw them. If the
blades do become damaged, install new blades or
blade inserts.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it
cools down. Clear away snow or ice to prevent
an overload.
146
ProCarManuals.com

Cruise Control
With cruise control, you can maintain a speed of
about 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This can
really help on long trips. Cruise control does not
work at speeds below 25 mph (40 km/h).
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
Setting Cruise Control
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
The cruise control buttons are located on the
steering wheel.
147
ProCarManuals.com

J(On/Off):Press this button to turn the cruise
control system on and off.
+RES (Resume):Press this part of the button to
resume a set speed and to accelerate the speed.
−SET (Set):Press this part of the button to set a
speed and to decrease the speed.
To set a speed do the following:
1. Press the on/off button to turn cruise control
on. The indicator light on the button will
come on.
2. Get to the speed you want.
3. Press the−SET part of the control button and
release it. The CRUISE message will display
in the instrument panel cluster to show the
system is engaged.
4. Take your foot off the accelerator pedal.
When the brakes are applied, the cruise control
shuts off.If the vehicle is in cruise control and the Enhanced
Traction System (ETS) begins to limit wheel
spin, the cruise control will automatically
disengage. SeeEnhanced Traction System (ETS)
on page 226. When road conditions allow, the
cruise control can be used again.
Resuming a Set Speed
Suppose you set your cruise control at a desired
speed and then you apply the brake. This, of
course, disengages the cruise control. The
CRUISE message in the instrument panel cluster
will also go out indicating cruise is no longer
engaged. To return to your previously set speed,
you do not need to go through the set process
again. Once you are going about 25 mph (40 km/h)
or more, you can press the +RES part of the
button briey.
This will take you back up to your previously
chosen speed and stay there.
148
ProCarManuals.com

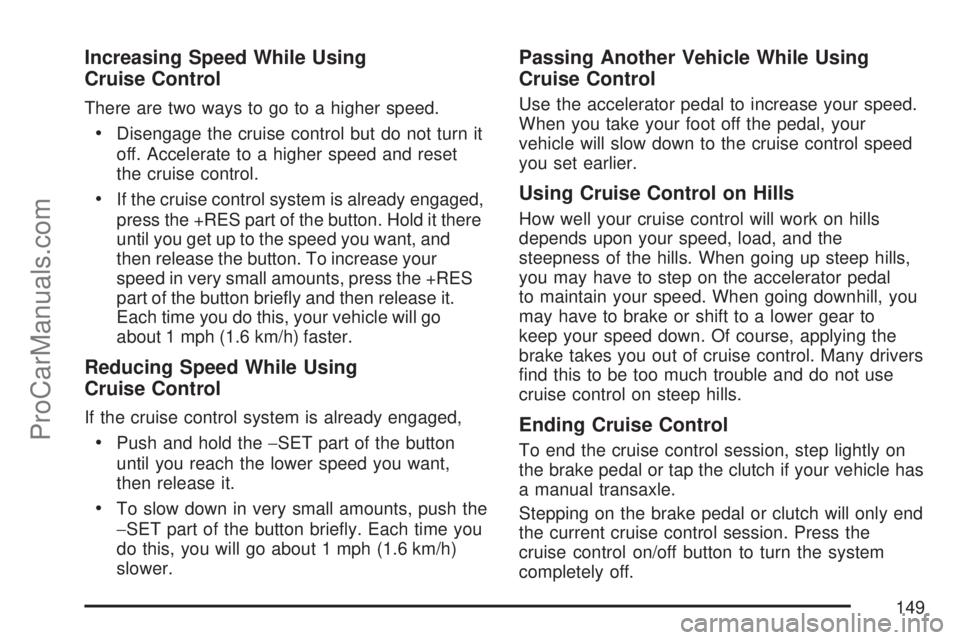

Increasing Speed While Using
Cruise Control
There are two ways to go to a higher speed.
Disengage the cruise control but do not turn it
off. Accelerate to a higher speed and reset
the cruise control.
If the cruise control system is already engaged,
press the +RES part of the button. Hold it there
until you get up to the speed you want, and
then release the button. To increase your
speed in very small amounts, press the +RES
part of the button briey and then release it.
Each time you do this, your vehicle will go
about 1 mph (1.6 km/h) faster.
Reducing Speed While Using
Cruise Control
If the cruise control system is already engaged,
Push and hold the−SET part of the button
until you reach the lower speed you want,
then release it.
To slow down in very small amounts, push the
−SET part of the button briey. Each time you
do this, you will go about 1 mph (1.6 km/h)
slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase your speed.
When you take your foot off the pedal, your
vehicle will slow down to the cruise control speed
you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load, and the
steepness of the hills. When going up steep hills,
you may have to step on the accelerator pedal
to maintain your speed. When going downhill, you
may have to brake or shift to a lower gear to
keep your speed down. Of course, applying the
brake takes you out of cruise control. Many drivers
nd this to be too much trouble and do not use
cruise control on steep hills.
Ending Cruise Control
To end the cruise control session, step lightly on
the brake pedal or tap the clutch if your vehicle has
a manual transaxle.
Stepping on the brake pedal or clutch will only end
the current cruise control session. Press the
cruise control on/off button to turn the system
completely off.
149
ProCarManuals.com

Erasing Speed Memory
When you turn off the cruise control or the
ignition, your cruise control set speed memory is
erased.
Headlamps
The exterior lamp control is located in the middle
of the turn signal/multifunction lever.
O(Exterior Lamp Control):Turn the control
with this symbol on it to operate the exterior lamps.
The exterior lamp control has the following
four positions:
9(Off):Turn the control to this position to turn
off all lamps, except the Daytime Running
Lamps (DRL). On some vehicles, this position
activates the automatic headlamp system.AUTO (Automatic):If the vehicle has automatic
headlamps, turning the control to this position
puts the headlamps in automatic mode. AUTO
mode will turn the exterior lamps on and off
depending upon how much light is available
outside of the vehicle.
;(Parking Lamps):Turn the control to this
position to turn on the parking lamps together with
the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
5(Headlamps):Turn the control to this position
to turn on the headlamps, together with the
previously listed lamps and lights.
Lamps On Reminder
If you open the driver’s door with the ignition off
and the lamps on, you will hear a warning chime.
150
ProCarManuals.com

Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.
The DRL system will make the turn signal
lamps come on in daylight when the following
conditions are met:
The ignition is on.
The exterior lamp band is in the off or AUTO
position.
When the DRL are on, the turn signal lamps will
be on. The taillamps, sidemarker, and other lamps
will not be on. The instrument panel back
lighting will not be on either.
When the exterior lamp band is turned to the
headlamp position, the headlamps will come on.
The other lamps that come on with the headlamps
will also come on.
When the headlamps are turned off, the regular
lamps will go off, and the turn signal lamps
will come on.
Automatic Headlamp System
If you have the automatic headlamps system, the
headlamps will come on automatically when it
is dark enough.
Your vehicle may have
a light sensor located
on top of the instrument
panel. Make sure it is
not covered, or the
headlamps will come on
when you do not
need them.
The system may also turn on the headlamps when
driving through a parking garage or tunnel.
151
ProCarManuals.com

Fog Lamps
If your vehicle has this feature, use your fog lamps
for better visibility in foggy or misty conditions.
The button for your fog
lamps is located next to
the instrument panel
brightness control.
Push the button to turn the fog lamps on or off.
When using fog lamps, the parking lamps or
low-beam headlamps must be on.
A light on the button will come on when the fog
lamps are on. The fog lamps will go off whenever
the high-beam headlamps come on. When the
high-beam headlamps go off, the fog lamps
will come on again.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
Instrument Panel Brightness
This feature controls the brightness of the
instrument panel lights.
The thumbwheel for
this feature is located
on the instrument panel
to the left of the
steering column.
Turn the thumbwheel to the right to brighten the
lights or to the left to dim them.
152
