2007 SATURN ION Owners Manual

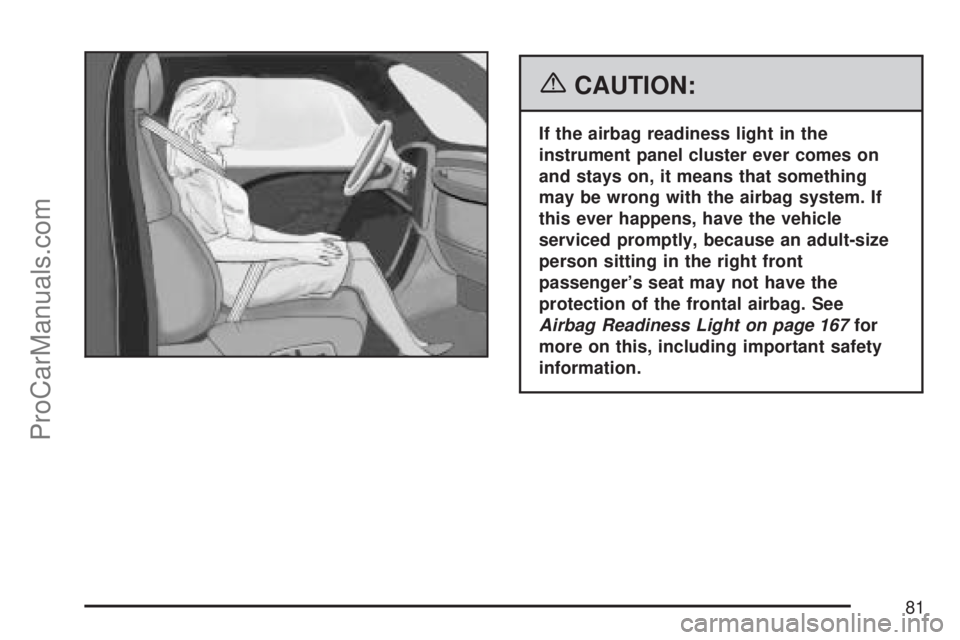

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag. See
Airbag Readiness Light on page 167for
more on this, including important safety
information.
81
ProCarManuals.com

A thick layer of additional material such as a
blanket, or aftermarket equipment such as seat
covers, seat heaters, and seat massagers,
can affect how well the passenger sensing system
operates. Remove any additional material from
the seat cushion before reinstalling or securing the
child restraint and before a small occupant,
including a small adult, sits in the right front
passenger position. You may want to consider not
using seat covers or other aftermarket equipment
if your vehicle has the passenger sensing
system. SeeAdding Equipment to Your
Airbag-Equipped Vehicle on page 83for more
information about modications that can affect how
the system operates.
The passenger sensing system may suppress the
airbag deployment when liquid is soaked into
the seat. If this happens, the off indicator in the
passenger airbag status indicator and the
airbag readiness light on the instrument panel will
be lit. The system should resume normal
operation after the seat is allowed to dry. If the
system operates incorrectly after the seat
has dried, have your retailer check the system.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your retailer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 425.
82
ProCarManuals.com

{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 410.
83
ProCarManuals.com

Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling and
pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance. The
phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 410.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 369
for more information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Also look for any opened or broken airbag
covers, and have them repaired or replaced. The
airbag system does not need regular maintenance.
84
ProCarManuals.com

Notice:If you damage the covering for the
driver’s or the right front passenger’s airbag,
or the roof-mounted side impact airbag
covering (if equipped) on the garnish trim and
ceiling near the side windows, the airbag
may not work properly. You may have to
replace the airbag module in the steering
wheel, both the airbag module and the
instrument panel for the right front passenger’s
airbag, or the side impact airbag module,
garnish trim and the ceiling covering for
roof-mounted side impact airbags (if equipped).
Do not open or break the airbag coverings.Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make
sure your restraint systems are working
properly after a crash, have them
inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
85
ProCarManuals.com

If the LATCH system was being used during a
more severe crash, you may need new LATCH
system parts.
If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system, safety belt or seat parts
repaired or replaced. New parts and repairs may
be necessary even if the belt or LATCH system
was not being used at the time of the collision.
If your seat adjuster will not work after a crash, the
special part of the safety belt that goes through
the seat to the adjuster may need to be replaced.
If an airbag inates, you will need to replace
airbag system parts. See the part about the airbag
system earlier in this manual.If the frontal airbags inate you will need to
replace the driver’s and right front passengers
safety belt retractor assembly. Be sure to do so.
Then the new retractor assembly will be there
to help protect you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 167.
86
ProCarManuals.com

Keys.............................................................. 89
Remote Keyless Entry (RKE) System.......... 90
Remote Keyless Entry (RKE) System
Operation................................................. 91
Doors and Locks.......................................... 94
Door Locks................................................. 94
Power Door Locks....................................... 95
Delayed Locking.......................................... 95
Programmable Automatic Door Locks.......... 96
Rear Door Security Locks (Sedan).............. 96
Lockout Protection....................................... 97
Rear Doors (Coupe).................................... 97
Trunk.......................................................... 98
Windows...................................................... 100
Manual Windows....................................... 100
Power Windows........................................ 101
Sun Visors................................................ 102Theft-Deterrent Systems............................. 103
Content Theft-Deterrent............................. 103
Passlock
®.................................................. 103
Starting and Operating Your Vehicle......... 104
New Vehicle Break-In................................ 104
Ignition Positions....................................... 105
Retained Accessory Power (RAP)............. 108
Starting the Engine.................................... 108
Automatic Transaxle Operation.................. 110
Manual Transaxle Operation...................... 112
Parking Brake........................................... 115
Shifting Into Park (P)
(Automatic Transaxle)............................ 116
Shifting Out of Park (P)............................. 118
Parking Your Vehicle
(Manual Transaxle)................................ 118
Parking Over Things That Burn................. 119
Engine Exhaust......................................... 120
Running the Engine While Parked............. 121
Section 2 Features and Controls
87
ProCarManuals.com

Mirrors......................................................... 122
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 122
Automatic Dimming Rearview Mirror with
Compass and Temperature Display........ 125
Outside Remote Control Mirror.................. 128
Outside Power Mirrors............................... 128
Outside Convex Mirror............................... 129OnStar
®System.......................................... 129
Storage Areas............................................. 133
Glove Box................................................. 133
Cupholder(s).............................................. 133
Center Console Storage Area.................... 133
Roof Rack System.................................... 134
Convenience Net....................................... 134
Sunroof....................................................... 135
Section 2 Features and Controls
88
ProCarManuals.com
