2007 Peugeot Expert VU Dag Owner's Manual

52
Improved comfort
IMPROVED COMFORT
Treatment of the bodywork leading
to acoustic comfort
The underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external attack. The Expert is treated by
cataphoresis, ensuring perfect protection
against corrosion. The anticorrosion
warranty has a duration of 6 years. Protection of the driving position
The Expert is fitted with a ladder type
separation with load retainer at the base, so
protecting the front occupants against the
risks of load movement.
As an option, panel or glazed separation
partitions permit separation of the load
space from the cab for increased protection
and improved acoustic and temperature-
related comfort.

53
3
Seats
FRONT SEATS
Depending on the version and configuration
of your vehicle, different front seats are
fitted, either:
- a driver ’s seat and a passenger seat,
- an individual driver ’s seat and a two-seat passenger bench.
Depending on the models, the following
adjustments are available: 3 - Driver ’s seat height adjustment
Depending on the version and configuration
of your vehicle, you have either:
- a passive adjustment: pull the handle
upwards then take your weight off the seat
to raise, or push on the seat to lower,
2 -
Seat back angle adjustment
Pull the lever upwards and set the required
angle.
SEATS
1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or
backwards.ERGONOMICS and COMFORT

54
Seats
- an active adjustment: manoeuvre the handle upwards or downwards until the desired
position is reached.
Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it. The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls
Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.
Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the
seat back.
To place the armrest in a position for use:
- fold it down fully,
- raise it slowly to the required position,
- if you pass the required position, raise it fully then repeat the operations above.
4 - Driver ’s seat lumbar adjustment
Move the lever up or down to obtain the
required position.

55
3
Seats

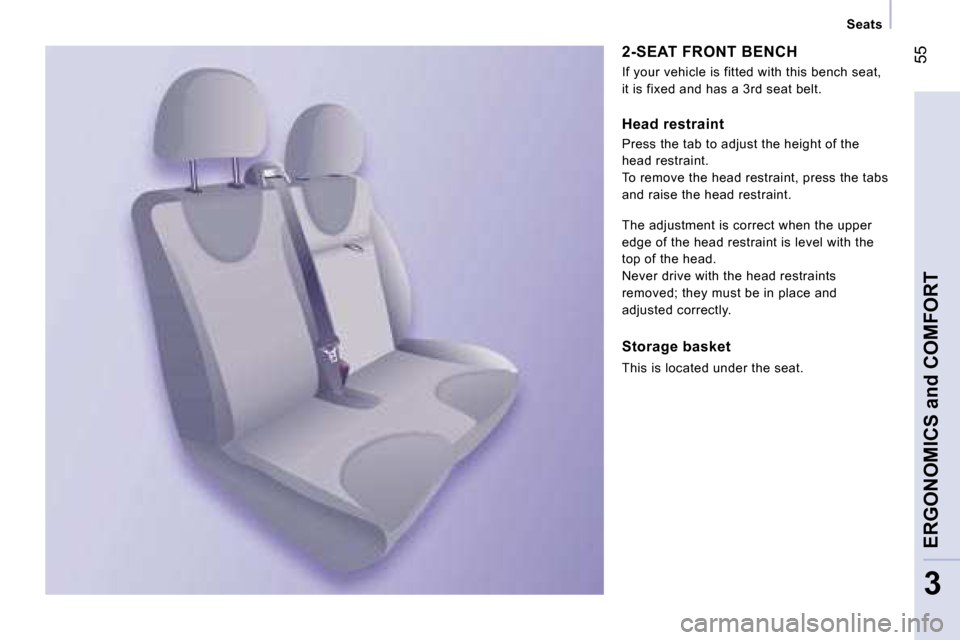

2-SEAT FRONT BENCH
If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Storage basket
This is located under the seat.
ERGONOMICS and COMFORT

56
Seats
Writing table
The back of the centre seat folds to form a
writing table and two cup holder recesses.
Pull the handle located at the top of the seat
back cushion.

57
3
Practical information
CAB LAYOUT
Depending on the vehicle’s equipment, the
various fittings below enhance your cab.
Sun visor
To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver ’s sun visor
for storing toll cards, tickets, ...
Glove box
This is fitted with a lock, you can lock it
using the key.
If the vehicle is fitted with air conditioning,
it can be cooled. It contains three sockets
for the connection of portable electronic
equipment (video equipment, ...) if the
vehicle is fitted with the RT3.
It also contains can holders and
compartments for storing maps, a packet of
cigarettes, an A4 format document, a pen,
etc.
Storage compartmentPRACTICAL INFORMATION
ERGONOMICS and COMFORT

58
Ashtray
Lighter/12 volt socket
Press and wait a few minutes until the lighter
pops out automatically.
The maximum power of the socket is 120 W.Storage tray and bottle holder (1.5 L)
Cup holder
Any liquid transported in the vehicle in
a cup (mug or similar), which may spill,
presents a risk of damage on contact with
the instrument panel and centre console
controls. "Take care".
Practical information

59
3
Practical information
Ticket storage
According to the configuration of the vehicle.
Overhead storage unit
This is located above the sun visors and has
two compartments, with or without a cover,
for storing a jumper, a file, ...
Be aware that storing a hard object in direct
contact with the compartment may result in
noise.Tip: the central cavity of the overhead
storage unit, located in the extension of the
vehicle’s roof between the rear space and
the cab, permits the transportation of long
objects. Take care to support and wedge
them securely.
The tunnel may be added to by an internal
rack, offered as an accessory by PEUGEOT
Accessories.
For raised vehicles, a shelf located above
the overhead storage unit permits the
storing of small objects and materials
(straps, cloths, gloves, helmets, etc...).
ERGONOMICS and COMFORT
