2007 Peugeot Expert VU Dag Owner's Manual

147
8
Changing a fuse
CHANGING A FUSE
The three fuse boxes are placed:
- in the fascia panel on the right-hand side (behind the storage compartment,
retractable),
- in the passenger compartment (battery compartment),
- under the bonnet.
If fitted on your vehicle, a further fuse
box is added for towing, the towbar and
the connections for the coachbuilder and
platform cab conversions. It is located on the
right behind the load retaining partition.
The descriptions communicated are only
the fuses which can be changed by the
user using the pliers and replacement fuses
located behind the fascia panel storage
compartment on the right-hand side. For any
other operations, visit a PEUGEOT dealer.
Intended for professionals: for
complete fuse and relay information,
consult the "Methods" diagram via the
Network or the INFOTEC site.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified.
- Use the pliers. Always replace a faulty fuse with a fuse
of the same rating.
TROUBLESHOOTING

฀F฀1฀F฀1฀1
฀F฀1฀7
฀F฀1฀6฀฀฀/฀฀฀S฀H฀U฀N฀T
฀F฀4 ฀F฀3 ฀F฀1฀3 ฀F฀1฀2 ฀F฀9 ฀F฀1฀4 ฀F฀1฀0 ฀F฀1฀5
฀F฀7 ฀F฀8 ฀F฀5 ฀F฀6

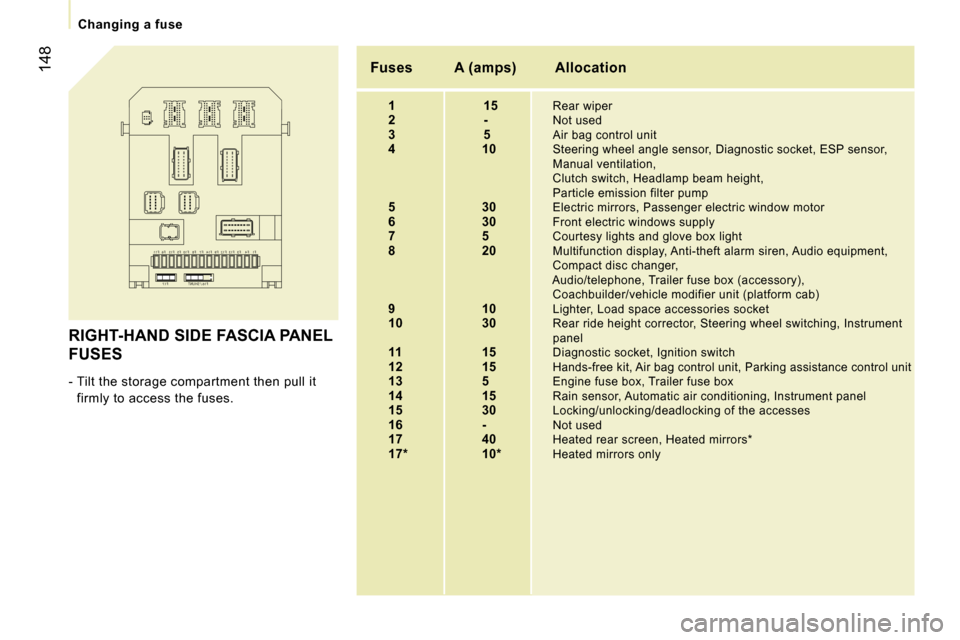

148Fuses A (amps) Allocation
1 15 Rear wiper 2 - Not used 3 5 Air bag control unit 4 10 Steering wheel angle sensor, Diagnostic socket, ES P sensor,
Manual ventilation,
Clutch switch, Headlamp beam height,
Particle emission filter pump
5 30 Electric mirrors, Passenger electric window motor 6 30 Front electric windows supply 7 5 Courtesy lights and glove box light 8 20 Multifunction display, Anti-theft alarm siren, Aud io equipment,
Compact disc changer,
Audio/telephone, Trailer fuse box (accessory),
Coachbuilder/vehicle modifier unit (platform cab )
9 10 Lighter, Load space accessories socket 10 30 Rear ride height corrector, Steering wheel switching, Instrument
panel
11 15 Diagnostic socket, Ignition switch 12 15 Hands-free kit, Air bag control unit, Parking assi stance control unit 13 5 Engine fuse box, Trailer fuse box 14 15 Rain sensor, Automatic air conditioning, Instrumen t panel 15 30 Locking/unlocking/deadlocking of the accesses 16 - Not used 17 40 Heated rear screen, Heated mirrors* 17* 10* Heated mirrors only
Changing a fuse
RIGHT-HAND SIDE FASCIA PANEL
FUSES
- Tilt the storage compartment then pull it firmly to access the fuses.

฀F฀1
฀F฀1
฀F฀4 ฀F฀3 ฀F฀4 ฀F฀5
฀F฀2
฀F฀3
149
8
Changing a fuse
PASSENGER COMPARTMENT
FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).
When you have finished, close the cover
carefully.
Fuses A (amps) Allocation
1 30 Heated seats 2 Not used 3 40/50 Trailer fuse box (accessory)/
Coachbuilder/vehicle modifier unit (platform cab )
4 - Not used 36 15 Hinged door locks 37 10 Hinged door locks 38 20 Hinged door rear wiper 39 - Not used 40 5 Folding mirrors
TROUBLESHOOTING

฀3฀0฀3฀0
฀4฀0฀4฀0 ฀3฀0
฀2฀0
฀1฀5
฀1฀5
฀1฀0 ฀1฀0 ฀1฀0฀1฀0 ฀1฀1
฀1 ฀2
฀3 ฀4 ฀5 ฀6 ฀7 ฀8
฀1฀2
฀2 ฀1 ฀1฀3 ฀1฀4฀1฀0
฀1฀0
150
FUSES UNDER THE BONNET
- After opening the bonnet, slide the
screenwash support to make access
easier.
- Unclip and tilt the box to access the fuses.
Fuses A (amps) Allocation
1 20 Engine control unit, Fuel supply and air supply sy stems,
Fan assembly
2 15 Horn 3 10 Front and rear wash-wipe pump 4 20 Headlamp wash pump 5 15 Fuel supply system 6 10 Power steering, Secondary brake pedal switch 7 10 Braking system (ABS/ESP) 8 20 Starter control 9 10 Main brake pedal switch 10 30 Fuel supply and air supply systems, Emission contr ol systems 11 40 Front ventilation 12 30 Windscreen wipers 13 40 Built-in systems interface 14 30 Not used
Changing a fuse

฀F฀1
฀F฀2
฀F฀3
฀F฀4
฀F฀5
151
8
Changing a fuse

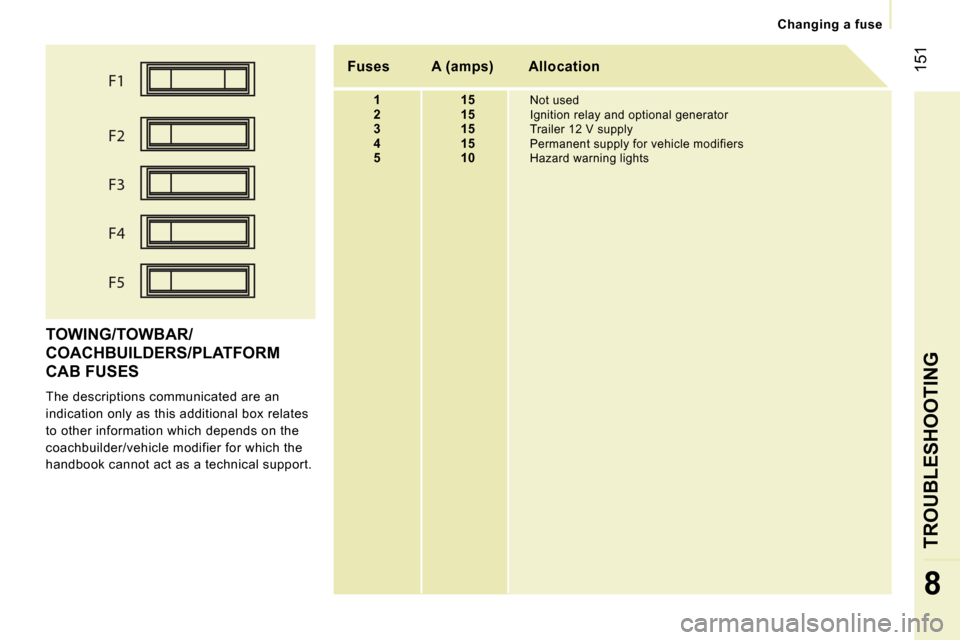

TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle modifier for which the
handbook cannot act as a technical support.
Fuses A (amps) Allocation
1 15 Not used 2 15 Ignition relay and optional generator 3 15 Trailer 12 V supply 4 15 Permanent supply for vehicle modifiers 5 10 Hazard warning lights
TROUBLESHOOTING

152

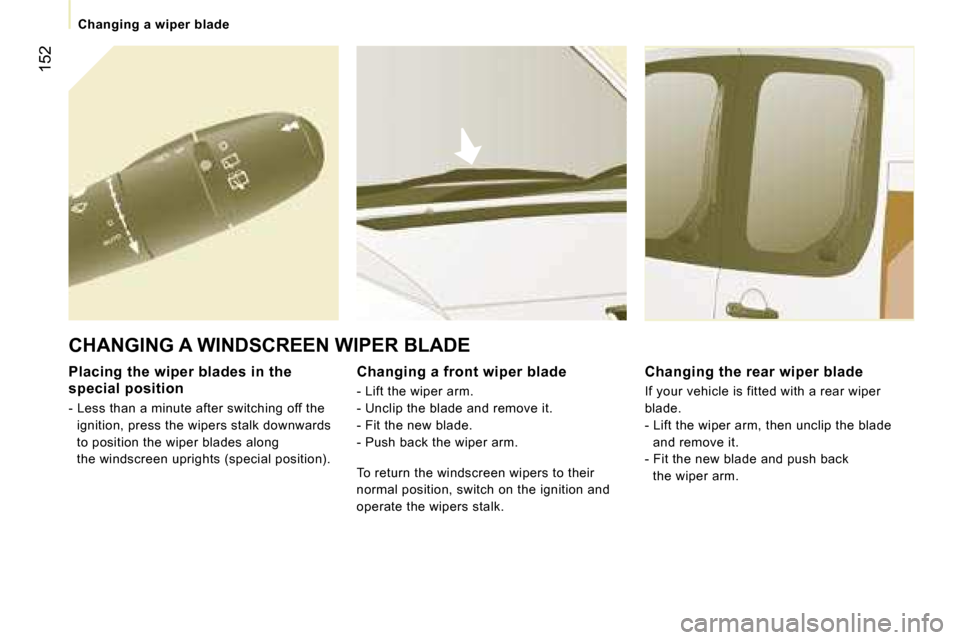

Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the
ignition, press the wipers stalk downwards
to position the wiper blades along
the windscreen uprights (special position).
Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wipers stalk.
Changing the rear wiper blade
If your vehicle is fitted with a rear wiper
blade.
- Lift the wiper arm, then unclip the blade and remove it.
- Fit the new blade and push back
the wiper arm.

CHANGING A WINDSCREEN WIPER BLADE

153
8
Without lifting (4 wheels on the
road)
You should always use a towbar.
The removable towing eye is inside
the engine compartment.
From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the flat part of the towing eye,
- Screw in the removable towing eye until it locks.

BEING TOWED
Lifting
(2 wheels on the road only)
It is preferable to raise the vehicle using
professional lifting equipment.
When towing with the engine switched
off, there is no braking or steering
assistance.
Having your vehicle towed
TROUBLESHOOTING

155
9
Environment
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult, the < Tradition & Innovation >
tab, the < Environnement > item and then
specifically to visit the nursery of
< Opération Carbone >.
the < Tradition & Innovation >
tab, the < Environment > item and then
specifically to visit the nursery of the Fazenda
via < Opération Carbone > (the carbon sink
project). PEUGEOT’s clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure.
As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving, without frequent and sharp acceleration. Refer to the starting and stopping "good
practice" advice in this handbook at the end
of chapter 2,
- observe the service intervals; we
recommend that services are carried out by
a PEUGEOT dealer authorised to collect
used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do not
use engine oil additives.
