Instruments and controls
Warning lightis
indicates Solution - action
Power steering
lit. system malfunction. The vehicle retains conventional steering without a
ssistance.
Have the system checked by a PEUGEOT dealer.
Opening
detectionlit and accompanied
by a message on
the display. access not closed correctly.
Check that the cab doors, the rear and side doors a
nd the
bonnet are closed (if your vehicle is fitted with a n alarm).
ABSremaining on.failure of the anti-lock braking
system. The vehicle retains conventional braking without as
sistance but
you are advised to stop. Call a PEUGEOT dealer.
Rear suspension
with pneumatic
compensationflashing. abnormal difference between
the detected sill height and the
optimum sill height. In automatic correction mode: drive slowly (approxi
mately
6 mph (10 km/h)) until the warning light is switche d off.
In manual correction mode: return the sill which is still at
the upper or lower limit to an optimum height. Chap ter 4,
"Suspension with compensation" section.
ESP
flashing. wheel skid avoided. The system optimises drive and permits improvement
of the
directional stability of the vehicle. Chapter 5, "D riving safety"
section.
remaining on. system malfunction.
E.g.: under-inflation of the tyres. Check the pressure of the tyres. Call a PEUGEOT dea
ler.
remaining on with
the diode on the
button (on the
fascia) lit. deactivation of the system.
Operation of the system is deactivated.
lit on starting or
while driving.
failure of the pneumatic
compensation.
You must stop. Call a PEUGEOT dealer.
READY TO SET OFF

24
Instruments and controls

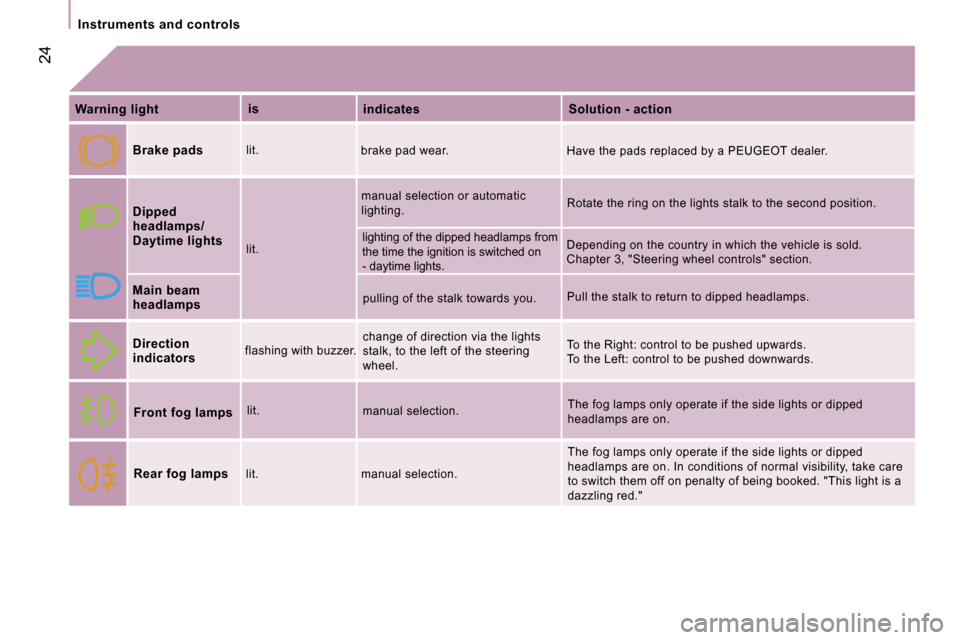

Warning lightis
indicates Solution - action
pulling of the stalk towards you. Pull the stalk to return to dipped headlamps.
Direction
indicators flashing with buzzer.change of direction via the lights
stalk, to the left of the steering
wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog lampslit.
manual selection. The fog lamps only operate if the side lights or di
pped
headlamps are on.
Rear fog lampslit.
Dipped
headlamps/
Daytime lights
lit. lighting of the dipped headlamps from
the time the ignition is switched on
- daytime lights. Rotate the ring on the lights stalk to the second p
osition.
Depending on the country in which the vehicle is so ld.
Chapter 3, "Steering wheel controls" section.
manual selection or automatic
lighting.
Main beam
headlamps
Brake pads
lit.
brake pad wear.
Have the pads replaced by a PEUGEOT dealer.
manual selection. The fog lamps only operate if the side lights or di
pped
headlamps are on. In conditions of normal visibilit y, take care
to switch them off on penalty of being booked. "Thi s light is a
dazzling red."

25
2
Instruments and controls
Service spannerlit.service due shortly. Refer to the list of checks in the servicing bookle
t. Have the
service carried out by a PEUGEOT dealer.
Display is
indicates
Time
displayed. adjustment of the time. Use the left-hand button on the instrument panel. C
hapter 2, at
the beginning of the "Instruments and controls" sec tion.
Diesel pre-
heatinglit.climatic conditions requiring pre-
heating. Wait until the warning light is switched off before
operating the
starter.
Presence of
water in the
diesel filterlit and accompanied
by a message on
the display. water in the diesel filter.
Have the filter bled by a PEUGEOT dealer without de
lay.
Chapter 7, "Checks" section.
Cruise controllit. cruise control selected. Manual selection. Chapt er 3, "Steering wheel controls" section.
Speed limiterlit. speed limiter selected. Manual selection. Chapte r 3, "Steering wheel controls" section.
Solution - action
READY TO SET OFF

26
Instruments and controls

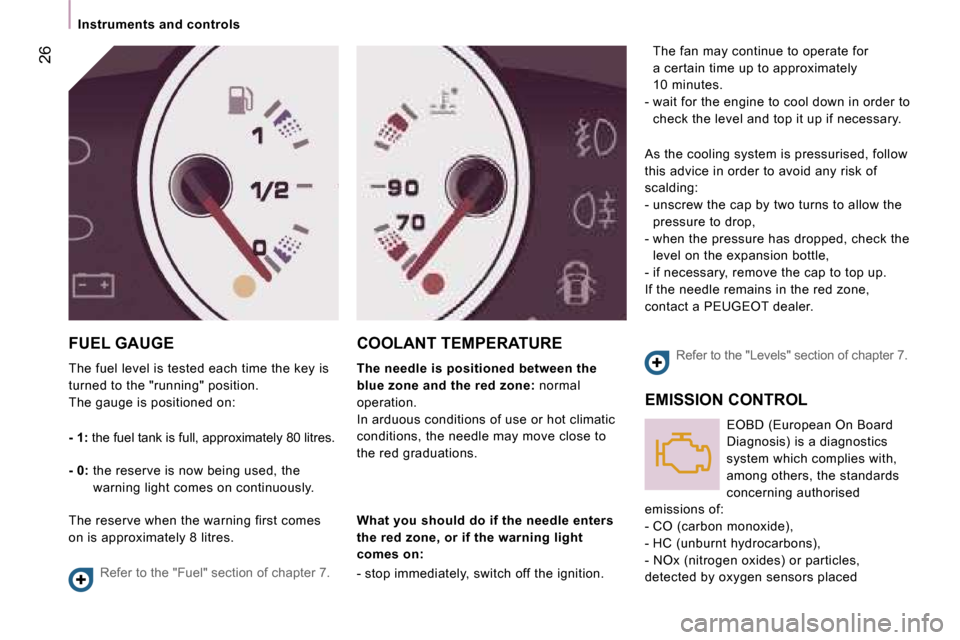

FUEL GAUGE
The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:
- 1: the fuel tank is full, approximately 80 litres.
- 0: the reserve is now being used, the
warning light comes on continuously.
The reserve when the warning first comes
on is approximately 8 litres.
Refer to the "Fuel" section of chapter 7.
COOLANT TEMPERATURE
The needle is positioned between the
blue zone and the red zone: normal
operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the needle enters
the red zone, or if the warning light
comes on:
- stop immediately, switch off the ignition. The fan may continue to operate for
a certain time up to approximately
10 minutes.
- wait for the engine to cool down in order to check the level and top it up if necessary.
As the cooling system is pressurised, follow
this advice in order to avoid any risk of
scalding:
- unscrew the cap by two turns to allow the pressure to drop,
- when the pressure has dropped, check the level on the expansion bottle,
- if necessary, remove the cap to top up.
If the needle remains in the red zone,
contact a PEUGEOT dealer.Refer to the "Levels" section of chapter 7.
EMISSION CONTROL
EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles,
detected by oxygen sensors placed
