2007 Peugeot Expert VU Dag Owner's Manual

1
21
2
3
93
CD
PLAYING A CD OR AN MP3 COMPILATION
CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
If the GPS is used, the navigation CD ROM must
remain in the RT3 audio/telephone player. In this c
ase,
audio CDs must be inserted in the CD changer.
Otherwise, insert an audio CD or an MP3 compilation
in the player, play begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display the list
of tracks on the CD or of the directories
of the MP3 compilation. Insert one or more CDs in the changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
alphanumeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard.

11
94
2
3
2

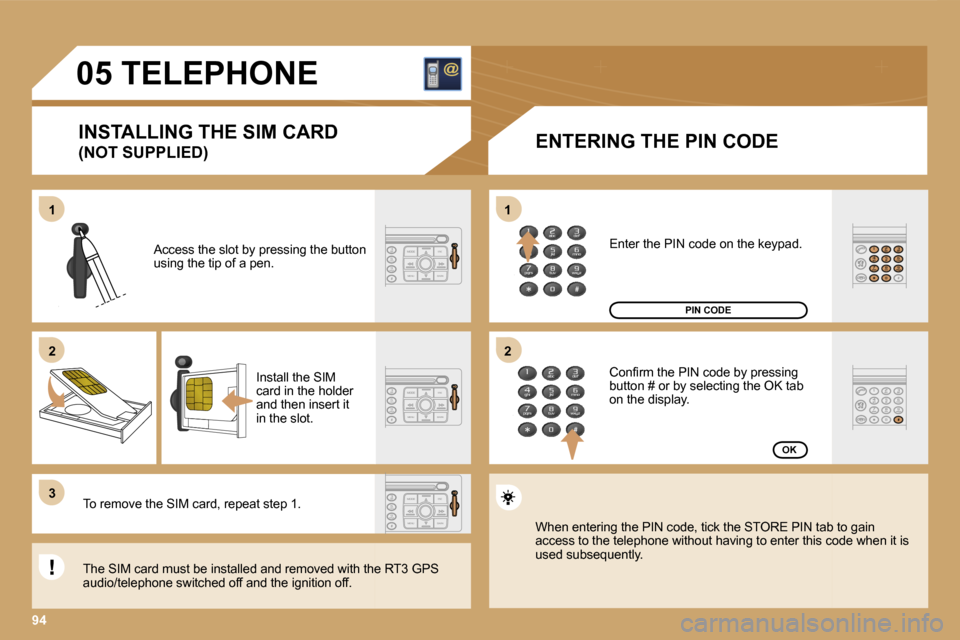

05 TELEPHONE
INSTALLING THE SIM CARD
(NOT SUPPLIED)ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM
card in the holder
and then insert it
in the slot.
To remove the SIM card, repeat step 1.
The SIM card must be installed and removed with the RT3 GPS
audio/telephone switched off and the ignition off. Enter the PIN code on the keypad.
Confirm the PIN code by pressing
button # or by selecting the OK tab
on the display.
PIN CODE
OK
When entering the PIN code, tick the STORE PIN tab
to gain
access to the telephone without having to enter thi s code when it is
used subsequently.

1
2
3
45
6
1
1
95

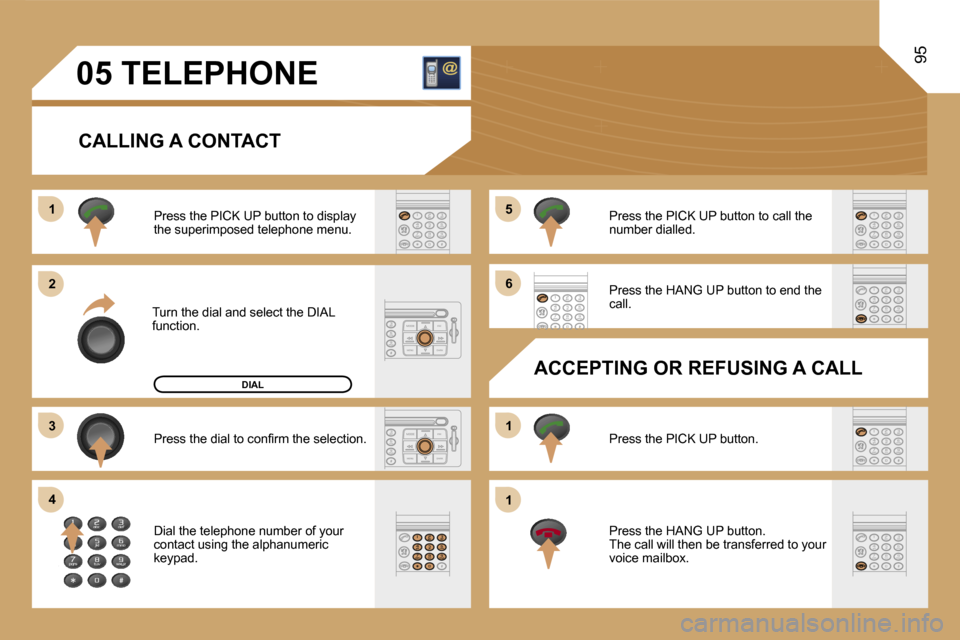

05 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to confirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad. Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to your
voice mailbox.
DIAL

1
2
3
96
Turn the dial and select the MAILBOX
function.Press the PICK UP button.
Press the dial to confirm the selection.
CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject
to conditions and availability.
In an emergency, press the SOS button
until you hear an audible signal and
a CONFIRMATION/CANCELLATION
screen is displayed.
The services and options are subject
to conditions and availability.
MAILBOX
OPERATOR SERVICES
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.
RECEIVED MESSAGES

3
97

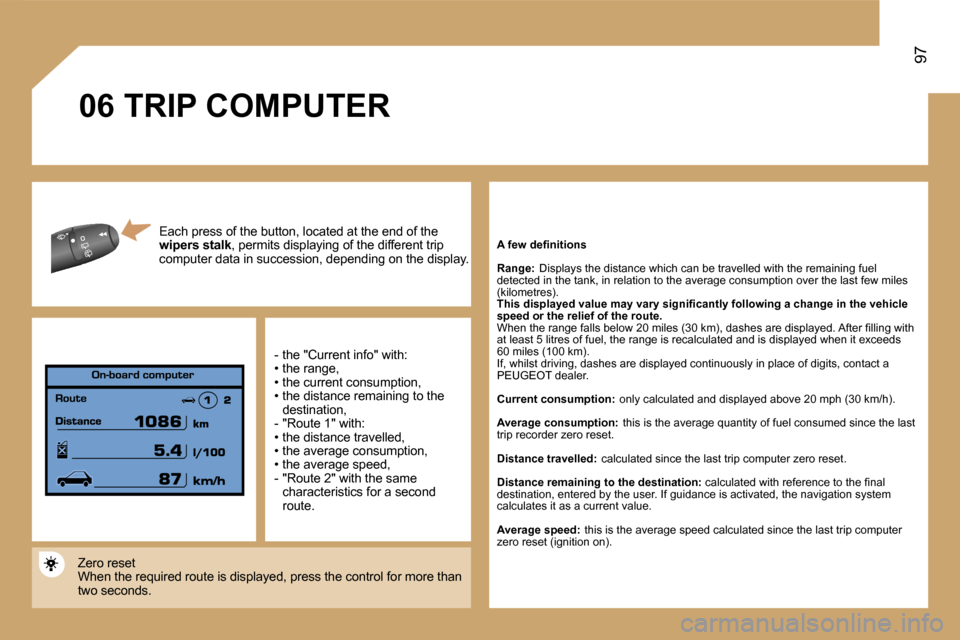

06 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk , permits displaying of the different trip
computer data in succession, depending on the displ ay.
- the "Current info" with:
• the range,
• the current consumption,
• the distance remaining to the destination,
- "Route 1" with:
• the distance travelled,
• the average consumption,
• the average speed,
- "Route 2" with the same characteristics for a second
route. A few definitions
Range:
Displays the distance which can be travelled with the remainin g fuel
detected in the tank, in relation to the average consumptio n over the last few miles
(kilometres).
This displayed value may vary significantly following a c hange in the vehicle
speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displaye d. After filling with
at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds
60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of digits, contact a
PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30 km/h).
Average consumption: this is the average quantity of fuel consumed since the last
trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the final
destination, entered by the user. If guidance is activated, the navigation system
calculates it as a current value.
Average speed: this is the average speed calculated since the last trip compute r
zero reset (ignition on).
Zero reset
When the required route is displayed, press the con trol for more than
two seconds.

98
RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
Backwards scrolling of the RADIO and CD lists.
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.
Forwards scrolling of the RADIO and CD lists.RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous
track.
Continuous press: fast backwards play. - Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.
07 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.

2
1
99
Press the end of the lights stalk to start the voic
e
recognition.
Say the words one by one and wait for the audible
confirmation signal between each word.
The list which follows is not exhaustive. AUDIO
- RADIO then NEXT
- CD PLAYER then NEXT TRACK
- CD CHANGER then NEXT DISK
...
TELEPHONE
- TELEPHONE then REDIAL
- TELEPHONE then ADDRESS BOOK then DESCRIPTION
- TELEPHONE then VOICE MAIL
...
GPS
- NAVIGATION then SHOW then DESTINATION
- NAVIGATION then STOP
- NAVIGATION then ZOOM IN
...

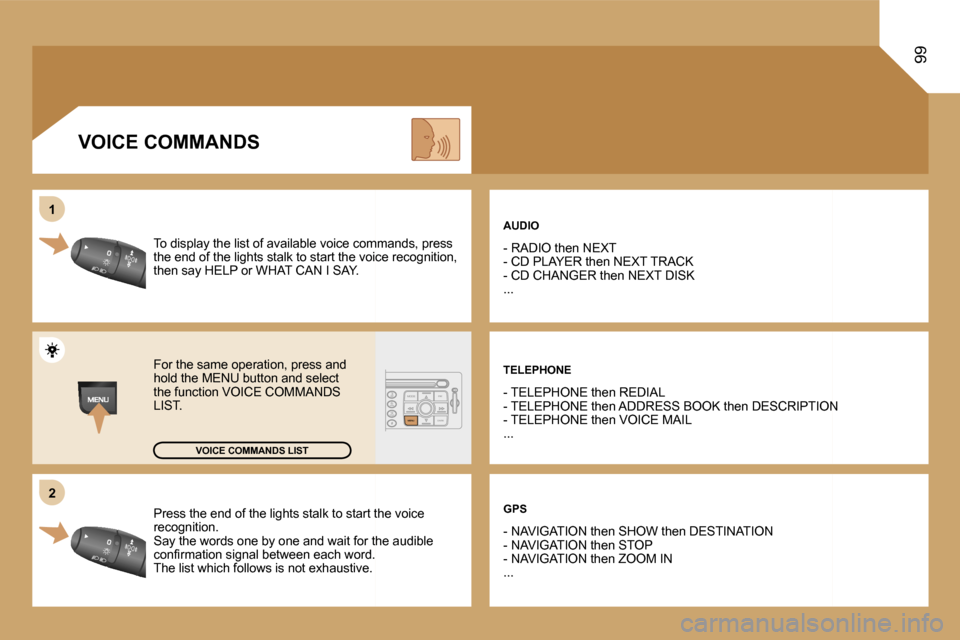

VOICE COMMANDS
To display the list of available voice commands, pr ess
the end of the lights stalk to start the voice reco gnition,
then say HELP or WHAT CAN I SAY.
For the same operation, press and
hold the MENU button and select
the function VOICE COMMANDS
LIST.
VOICE COMMANDS LIST

1
2
3
45 6
7
8
9
100

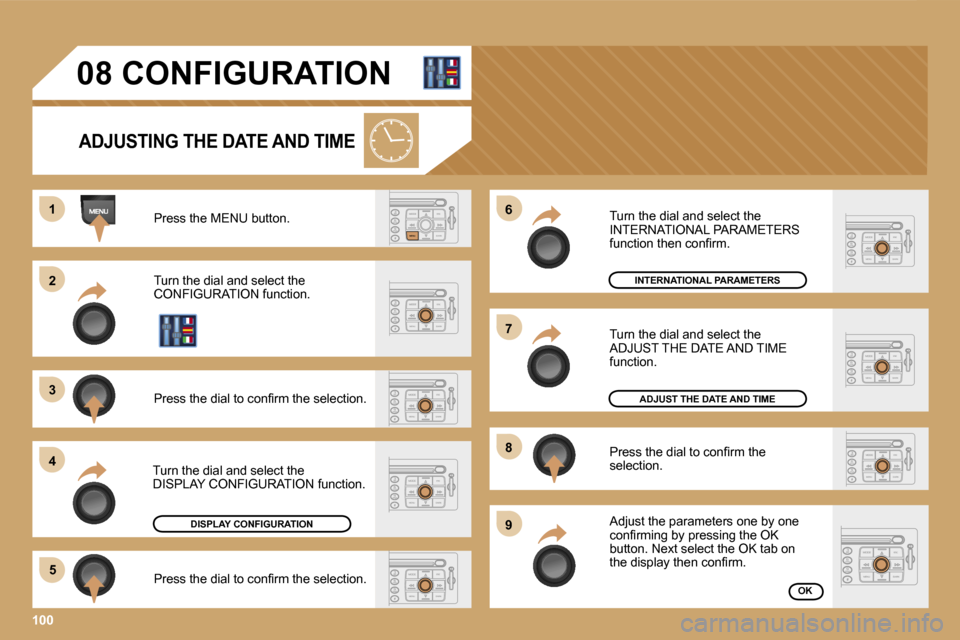

08 CONFIGURATION
ADJUSTING THE DATE AND TIME
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the
DISPLAY CONFIGURATION function. Press the dial to confirm the
selection.
Turn the dial and select the
ADJUST THE DATE AND TIME
function.
Adjust the parameters one by one
confirming by pressing the OK
button. Next select the OK tab on
the display then confirm.
DISPLAY CONFIGURATION
ADJUST THE DATE AND TIME
OK
Press the dial to confirm the selection. Turn the dial and select the
INTERNATIONAL PARAMETERS
function then confirm.
INTERNATIONAL PARAMETERS
