SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service ..................................... 3
Precautions for Battery Service ................................ 3
Occupant Classification System Precaution ............ 3
PREPARATION ........................................................... 4
Commercial Service Tools ........................................ 4
SUPPLEMENTAL RESTRAINT SYSTEM (SRS) ....... 5
SRS Configuration ................................................... 5
Front Seat Belt Pre-tensioner with Load Limiter ...... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag/for Coupe ................................ 6
Warning Lamp .......................................................... 6
Occupant Classification System (OCS) ................... 7
Passenger Air Bag Status Condition ........................ 7
Component Parts of Occupant Classification Sys-
tem ........................................................................... 7
Passenger Seat belt Warning System ...................... 8
TROUBLE DIAGNOSIS .............................................. 9
Trouble Diagnosis Introduction ................................. 9
DIAGNOSIS FUNCTION ....................................... 9
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR ............... 9
WORK FLOW ...................................................... 10
Component Parts Location ...................................... 11
Schematic .............................................................. 12
Wiring Diagram — SRS —/For Coupe ................... 13
Wiring Diagram — SRS —/For Roadster ............... 19
CONSULT-lll Function ............................................ 25
DIAGNOSIS MODE FOR CONSULT-LLL ........... 25
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-LII ............................................ 25
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 26
Self-Diagnosis Function (Without CONSULT-lll) .... 26
HOW TO CHANGE SELF-DIAGNOSTIC MODE WITHOUT CONSULT-LLL ................................... 26
HOW TO ERASE SELF-DIAGNOSTIC
RESULTS ............................................................ 26
SRS Operation Check (USER MODE) ................... 27
DIAGNOSTIC PROCEDURE .............................. 27
Trouble Diagnosis with CONSULT-IlI ...................... 29
DIAGNOSTIC PROCEDURE .............................. 29
Trouble Diagnosis without CONSULT-IlI ................. 33
DIAGNOSTIC PROCEDURE .............................. 33
WARNING LAMP FLASH CODE CHART ........... 33
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF ......................................................... 37
DIAGNOSTIC PROCEDURE .............................. 37
Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON ........................................................... 38
DIAGNOSTIC PROCEDURE .............................. 38
Trouble Diagnosis: Passenger Seat belt Warning
System .................................................................... 39
DRIVER AIR BAG MODULE .................................... 40
Removal and Installation ........................................ 40
REMOVAL ........................................................... 40
INSTALLATION ................................................... 41
SPIRAL CABLE ........................................................ 42
Removal and Installation ........................................ 42
REMOVAL ........................................................... 42
INSTALLATION ................................................... 43
FRONT PASSENGER AIR BAG MODULE .............. 44
Removal and Installation ........................................ 44
REMOVAL ........................................................... 44
INSTALLATION ................................................... 45
SIDE CURTAIN AIR BAG MODULE (FOR COUPE) ... 46
Removal and Installation ........................................ 46
REMOVAL ........................................................... 46
INSTALLATION ................................................... 47
CRASH ZONE SENSOR ........................................... 48
Removal and Installation ........................................ 48
REMOVAL ........................................................... 48
INSTALLATION ................................................... 48

TROUBLE DIAGNOSIS
SRS-9
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionNHS0000H
CAUTION:

Do not use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Do not repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a
new one.

Keep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnostic results can be read by using “AIR BAG” warning lamp and/or CONSULT-lll.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-
function through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-IlI are as follows:
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Information from Customer
WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms
Preliminary Check
Make sure that the following parts are in good order.

Battery (Refer to SC-4, "How to Handle Battery" .)

Fuse (Refer to SRS-13, "Wiring Diagram — SRS —/For Coupe" or SRS-19, "Wiring Diagram — SRS —/
For Roadster" .)

System component-to-harness connections
User mode Diagnosis mode Display type
“AIR BAG” warning lamp X X ON-OFF operation
CONSULT-lII — X Monitoring

TROUBLE DIAGNOSIS
SRS-13
C
D
E
F
G
I
J
K
L
MA
B
SRS
Revision: 2006 November2007 350Z
Wiring Diagram — SRS —/For CoupeNHS0000K

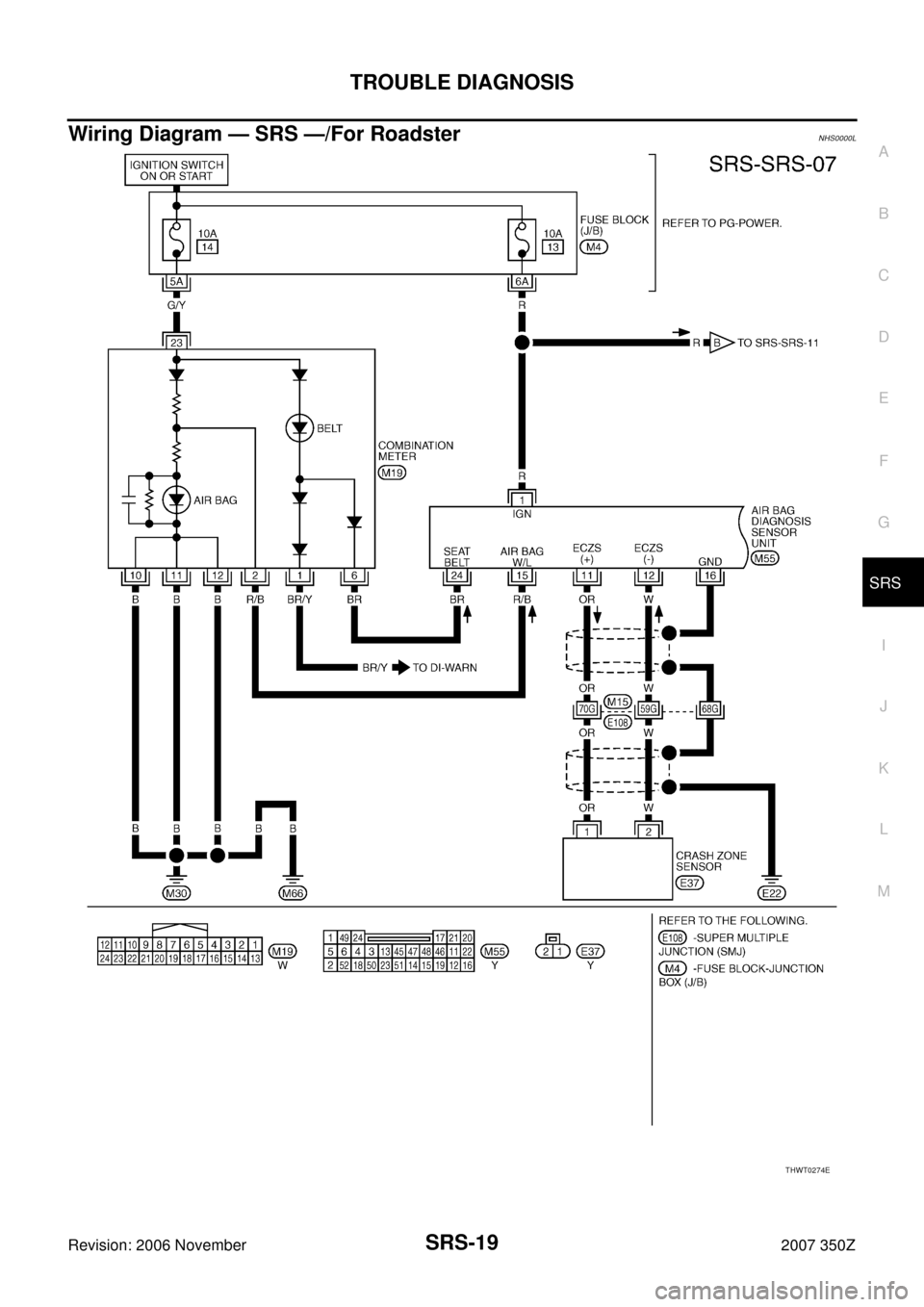

THWT0271E
