2007 NISSAN 350Z Starting And Charging System Workshop Manual

CHARGING SYSTEM
SC-25
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z
2. CHECK “B” TERMINAL CIRCUIT
Check voltage between alternator “B” terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between alternator and fusible
link.
3. CHECK “B” TERMINAL CONNECTION (VOLTAGE DROP TEST)
1. Start engine, then engine running at idle and warm.
2. Check voltage between battery positive terminal and alternator
“B” terminal.
OK or NG
OK >> Go to SC-22, "Trouble Diagnoses with Starting/Charging
System Tester (Charging)" .
NG >> Check harness between battery and alternator for poor continuity.
Te r m i n a l s
Voltage (Approx.) (+)
(–)
Alternator “B” terminal Terminal
E205 1 Ground Battery voltage
PKIB8809E
Terminals
Voltage
(Approx.)
(+)(–)
Alternator “B” terminal Terminal
Battery positive
terminalE205 1 Less than 0.2 V
PKIB8810E

SC-26
CHARGING SYSTEM
Revision: 2006 November2007 350Z
Removal and Installation NKS0000H
REMOVAL
1. Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal.
CAUTION:
Before disconnecting the battery, lower both the driver and passenger windows. This will prevent
any interference between the window edge and the vehicle when the door is opened/closed. Dur-
ing normal operation, the window slightly raises and lowers automatically to prevent any window
to vehicle interference. The automatic window function will not work with the battery discon-
nected.
2. Remove engine undercover, using power tools.
3. Remove air cleaner assembly and harness clip. Refer to EM-15, "
AIR CLEANER AND AIR DUCT" .
4. Remove radiator cooling fan assembly. Refer to CO-21, "
COOLING FAN" .
5. Remove alternator and power steering oil pump belt. Refer to EM-12, "
Removal and Installation" .
6. Disconnect alternator connector (1).
7. Remove “B” terminal mounting nut (2).
8. Remove the harness bracket bolts (A).
1. “B” terminal mounting nut 2. “B” terminal harness 3. Alternator connector
4. Alternator mounting bolt 5. Alternator stay mounting bolt 6. Alternator stay
7. Alternator
:Vehicle front
Refer to GI-11, "
Components" for symbols not described on the above.
PKID1185E
SKIB2605J

CHARGING SYSTEM
SC-27
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z
9. Remove oil pressure switch harness clip (C) from alternator stay
(1).
10. Disconnect oil pressure switch connector (D) and oil tempera-
ture sensor connector (E).
11. Remove alternator mounting bolt (B) and alternator stay mount-
ing bolt (F) using power tools, then remove alternator stay.
12. Remove alternator mounting bolt (A), using power tools.
13. Remove alternator assembly downward from the vehicle.
ALTERNATOR PULLEY INSPECTION
Perform the following.

Make sure that alternator pulley does not rattle.

Make sure that alternator pulley nut is tight.
INSTALLATION
Installation is the reverse order of removal.

Install alternator, and check tension of belt. Refer to EM-12, "Checking Drive Belts" .
CAUTION:
Be sure to tighten “B” terminal nut carefully.
PKID1145E
Alternator pulley nut:
: 118 N·m (12.0 kg-m, 87 ft-lb)

SC-28
CHARGING SYSTEM
Revision: 2006 November2007 350Z

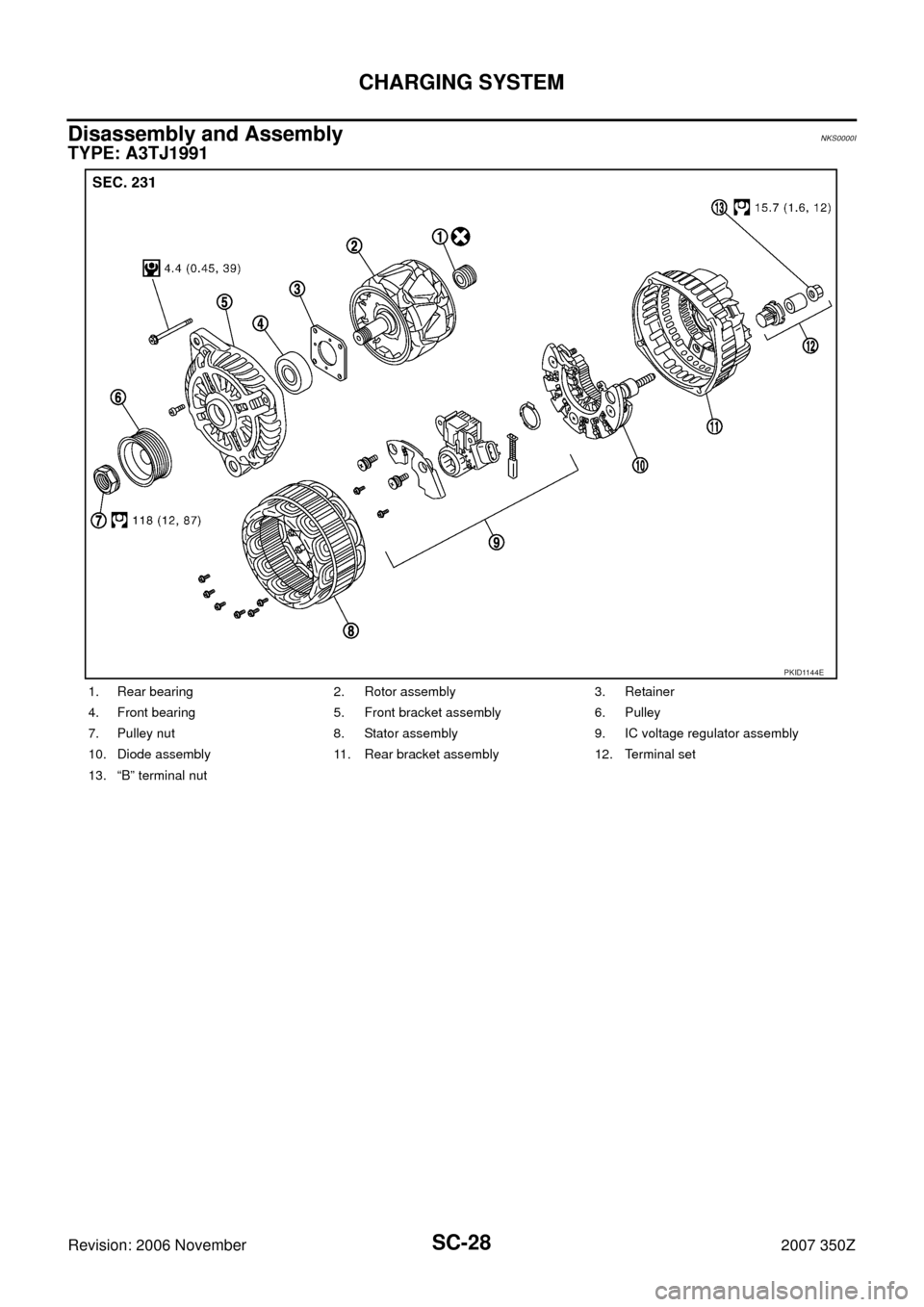

Disassembly and AssemblyNKS0000I
TYPE: A3TJ1991
1. Rear bearing 2. Rotor assembly 3. Retainer
4. Front bearing 5. Front bracket assembly 6. Pulley
7. Pulley nut 8. Stator assembly 9. IC voltage regulator assembly
10. Diode assembly 11. Rear bracket assembly 12. Terminal set
13. “B” terminal nut
PKID1144E

SERVICE DATA AND SPECIFICATIONS (SDS)
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryNKS0054Z
StarterNKS00550
AlternatorNKS00551
Ty p e80D23L
20 hour rate capacity [V - Ah] 12 - 62
Cold cranking current (For reference value) [A] 589
Ty p eS114-928
HITACHI make
Reduction gear type
System voltage [V] 12
No-loadTerminal voltage [V] 11
Current [A] Less than 110
Revolution [rpm] More than 2,700
Minimum diameter of commutator [mm (in)] 28.0 (1.102)
Minimum length of brush [mm (in)] 10.5 (0.413)
Brush spring tension [N (kg, lb)] 16.2 (1.65, 3.6)
Clearance between bearing metal and armature shaft [mm (in)] Less than 0.2 (0.008)
Clearance between pinion front edge and pinion stopper [mm (in)] 0.3 - 2.5 (0.012 - 0.098)
Ty p eA3TJ1991
MITSUBISHI make
Nominal rating [V - A] 12 - 150
Ground polarityNegative
Minimum revolution under no-load (When 13.5 V is
applied)[rpm] Less than 1,300
Hot output current (When 13.5 V is applied) [A/rpm]More than 31/1,300
More than 122/2,500
More than 144/5,000
Regulated output voltage [V] 14.1 - 14.7
Minimum length of brush [mm (in)] More than 5.00 (0.1969)
Brush spring pressure [N (g, oz)] 4.1 - 5.3 (418 - 540, 14.8 - 19.1)
Slip ring minimum outer diameter [mm (in)] More than 22.1 (0.870)
Rotor (Field coil) resistance [Ω] 1.7 - 2.0

SC-30
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
