Page 25 of 80
POWER SEAT/FOR ROADSTER
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
CANCEL FUNCTION
The seatback tilt cancel switch can be used to set following functions ON or OFF.
The seatback tilt forward/backward function
The soft top interlocking operation function
CAUTION:
If a child seat is installed, turn the seat tilt cancel switch OFF to disable the seatback tilt forward/
backward function and the soft top interlock operation function.
FAIL-SAFE MODE
If the power seat switch is not operated, nor the seat back tilt switch is not operated, nor the soft top interlock-
ing operation is not under operation, and if the passenger seat control unit detects a motor operation power
from the soft top control unit, the passenger seat control unit stops the motor by switching the motor power line
to ground.
Canceling Fail-Safe Mode
Disconnect and reconnect the battery terminal.
Disconnect and reconnect the passenger seat control unit connector.
Operation locationSliding motor
Reclining motor
Page 26 of 80
SE-26
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z

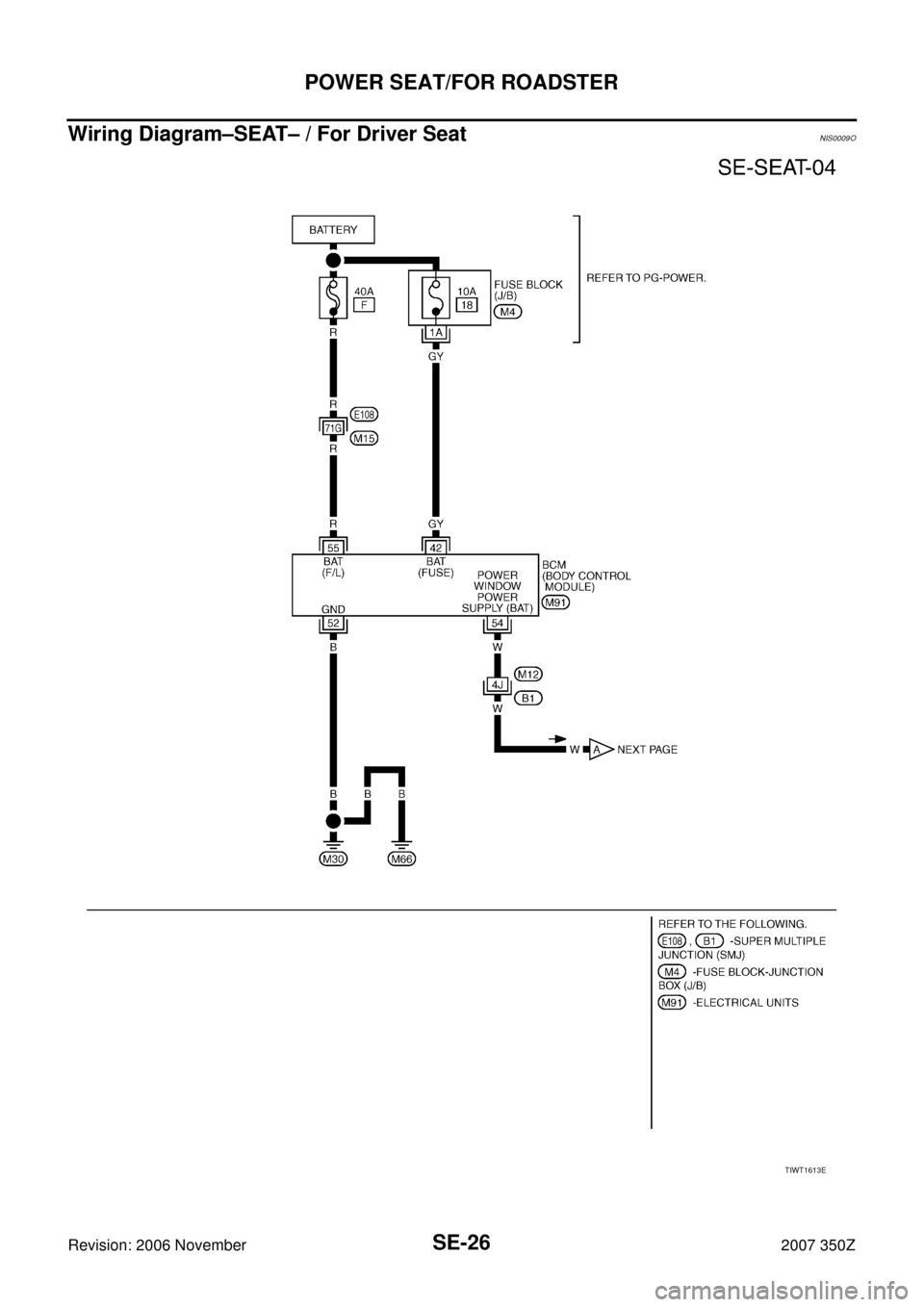

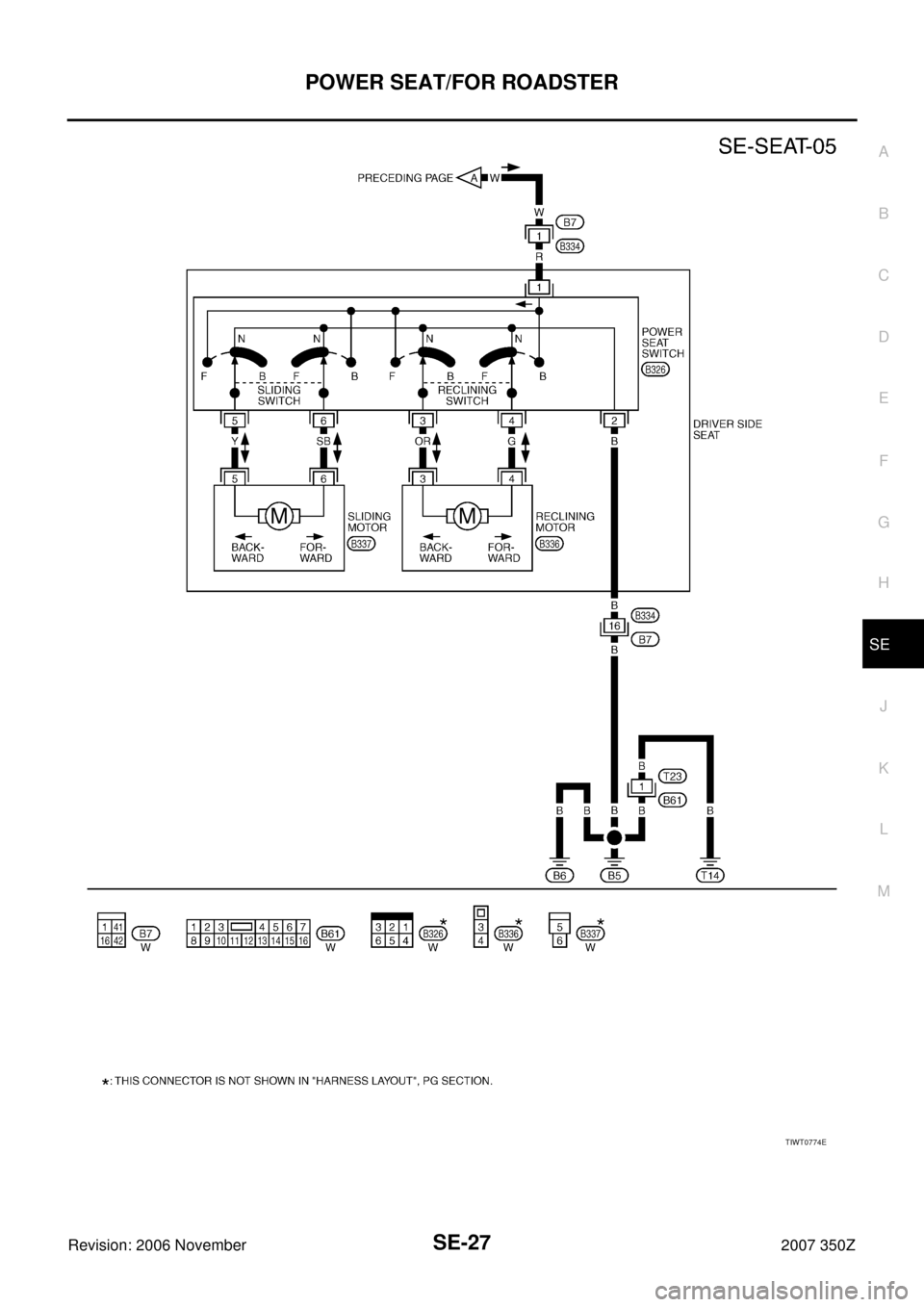

Wiring Diagram–SEAT– / For Driver SeatNIS0009O
TIWT1613E
Page 27 of 80
POWER SEAT/FOR ROADSTER
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT0774E
Page 28 of 80
SE-28
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z

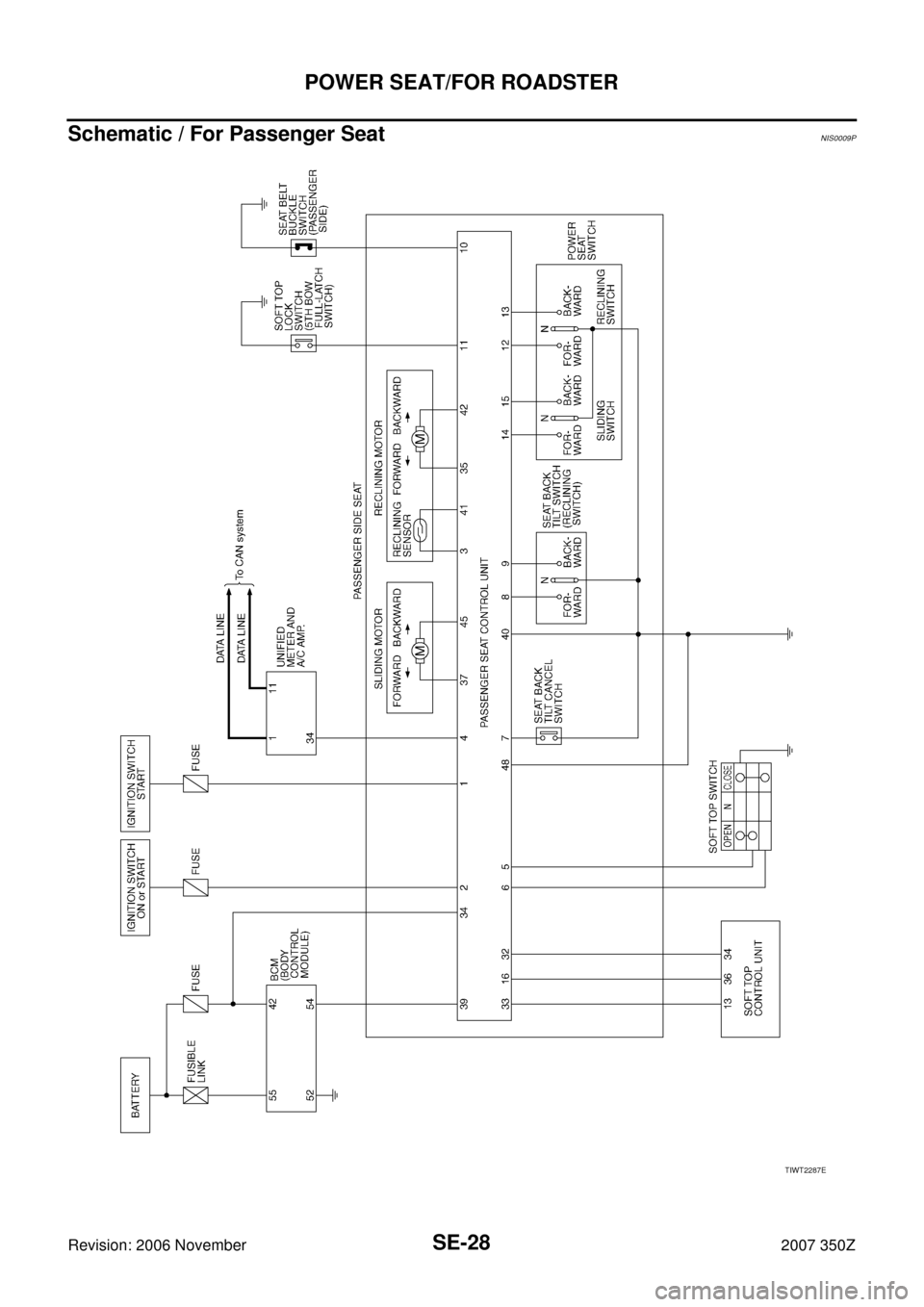

Schematic / For Passenger SeatNIS0009P
TIWT2287E
Page 29 of 80
POWER SEAT/FOR ROADSTER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

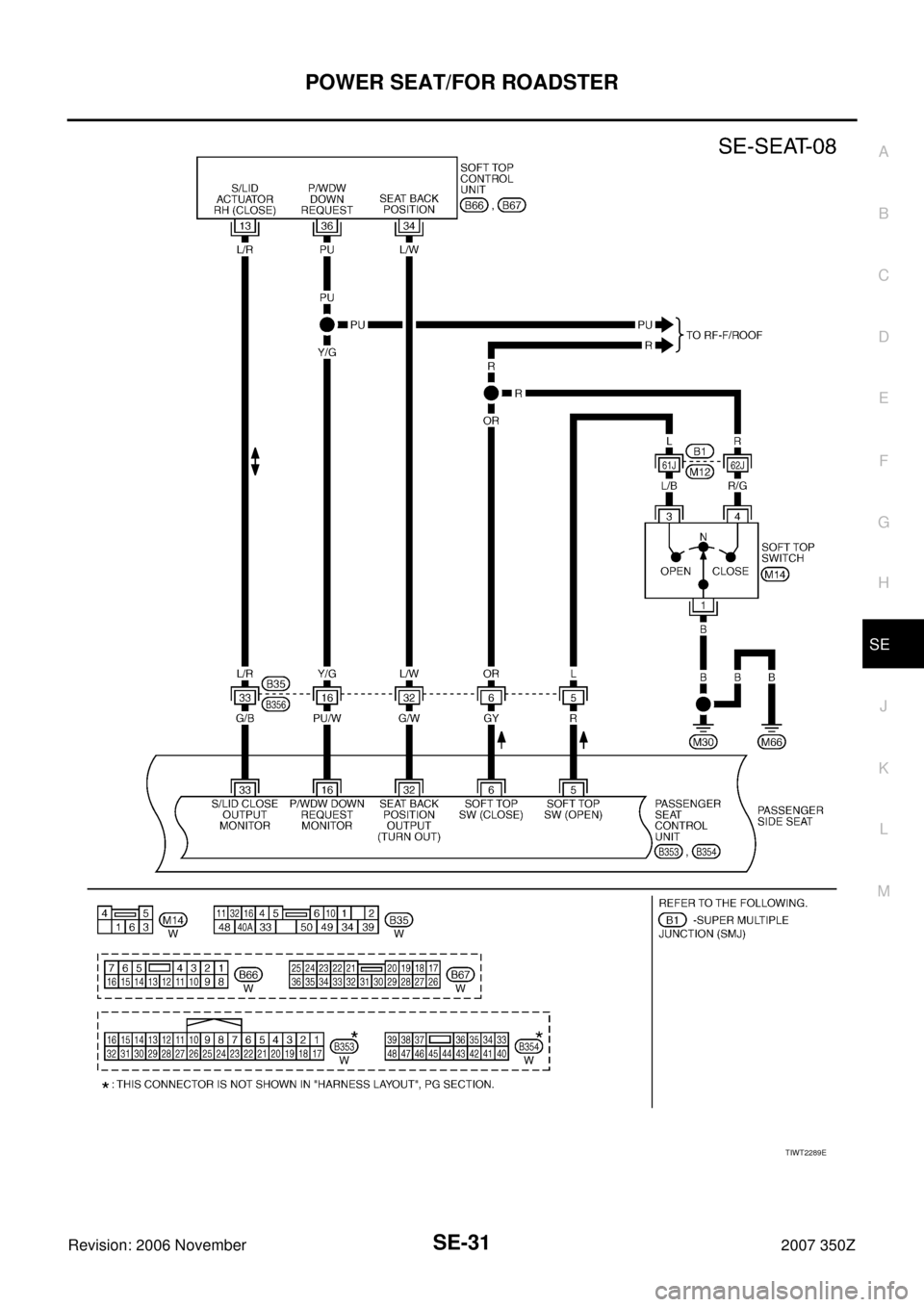

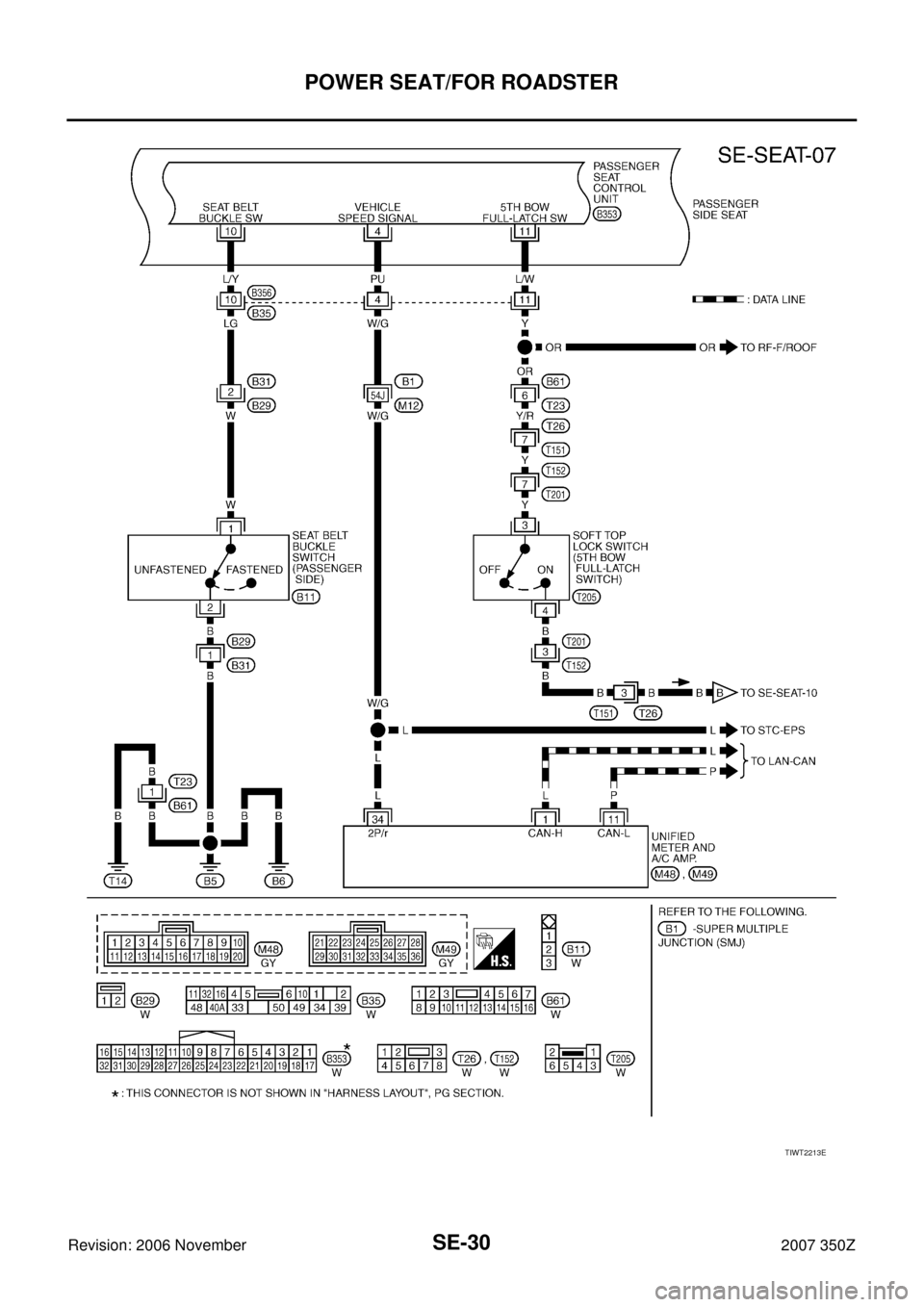

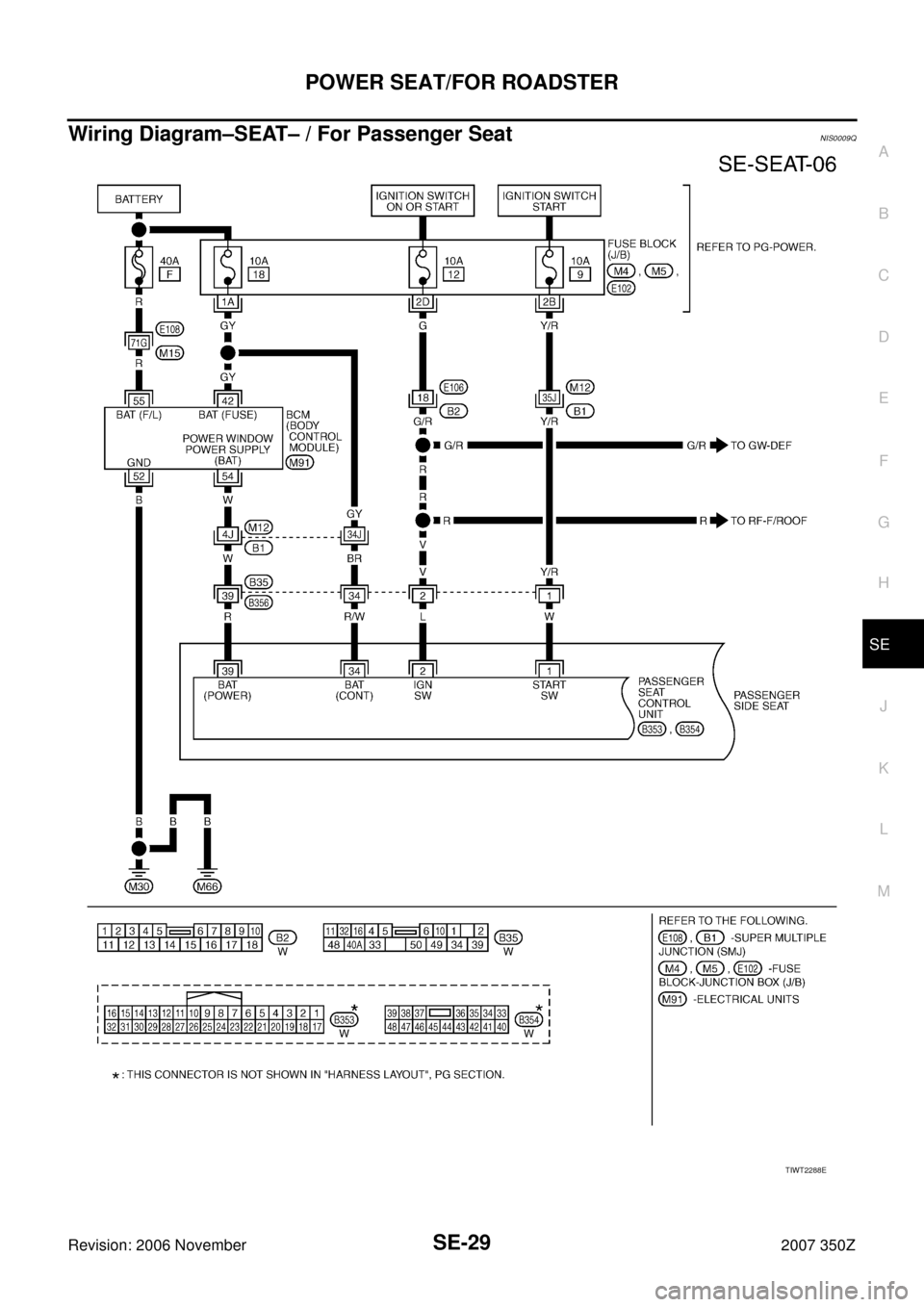

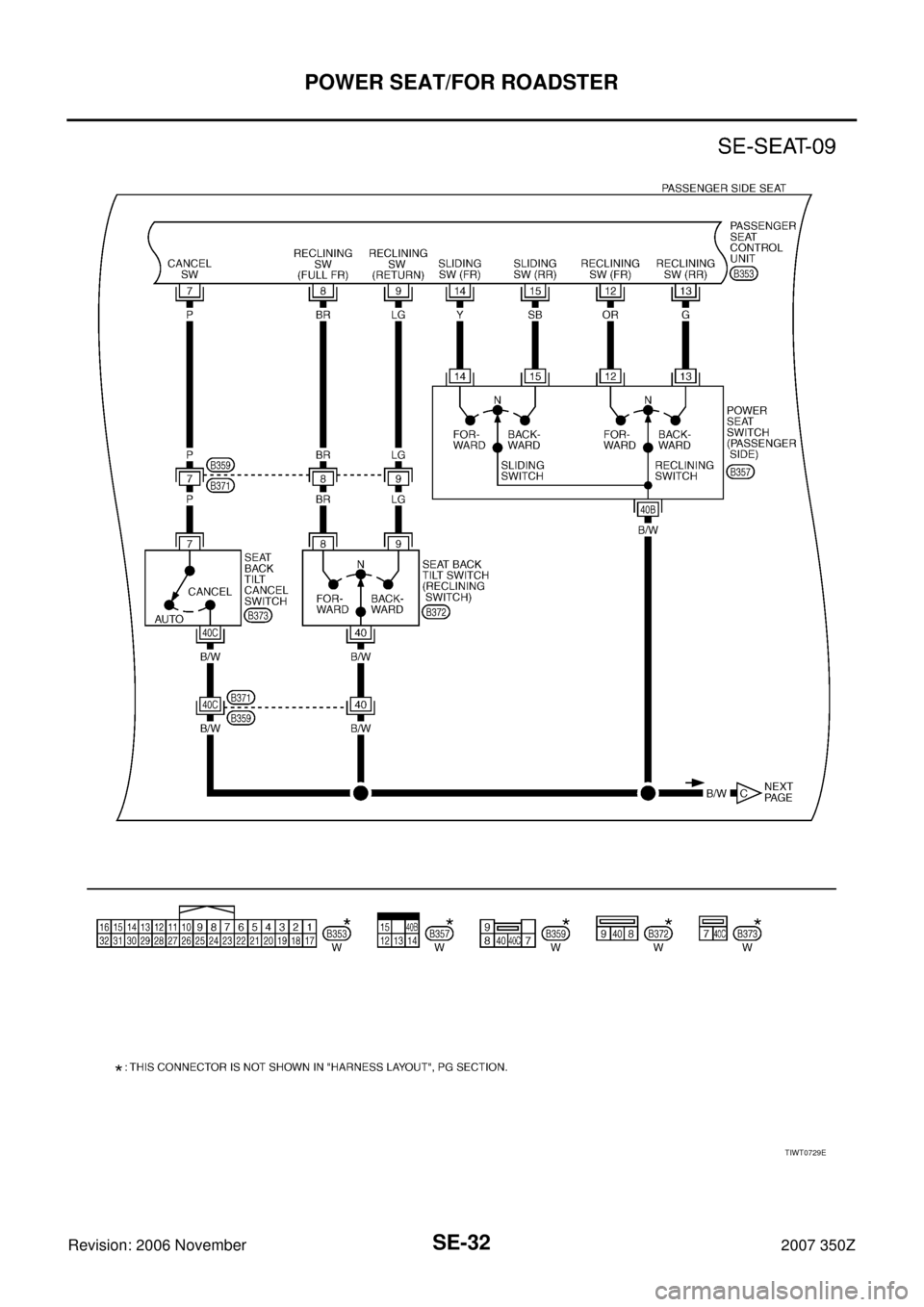

Wiring Diagram–SEAT– / For Passenger SeatNIS0009Q
TIWT2288E
Page 30 of 80
SE-30
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
TIWT2213E
Page 31 of 80
POWER SEAT/FOR ROADSTER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT2289E
Page 32 of 80
SE-32
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
TIWT0729E
