SE-74
SEAT
Revision: 2006 November2007 350Z
Disassembly and AssemblyNIS000AM
SEATBACK TRIM AND PAD (MANUAL SEAT AND POWER SEAT)
Disassembly

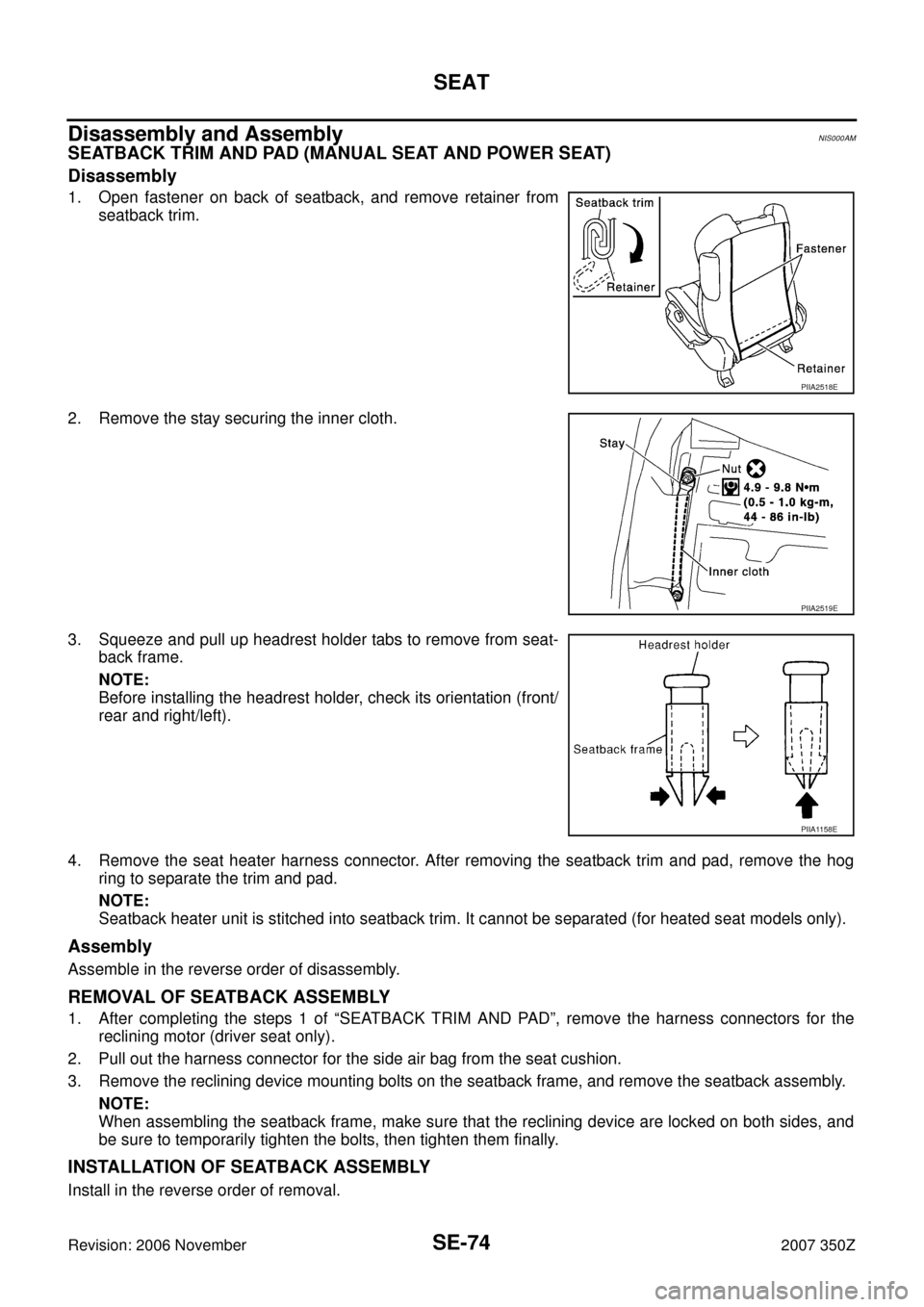

1. Open fastener on back of seatback, and remove retainer from
seatback trim.
2. Remove the stay securing the inner cloth.
3. Squeeze and pull up headrest holder tabs to remove from seat-
back frame.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and right/left).
4. Remove the seat heater harness connector. After removing the seatback trim and pad, remove the hog
ring to separate the trim and pad.
NOTE:
Seatback heater unit is stitched into seatback trim. It cannot be separated (for heated seat models only).
Assembly
Assemble in the reverse order of disassembly.
REMOVAL OF SEATBACK ASSEMBLY
1. After completing the steps 1 of “SEATBACK TRIM AND PAD”, remove the harness connectors for the
reclining motor (driver seat only).
2. Pull out the harness connector for the side air bag from the seat cushion.
3. Remove the reclining device mounting bolts on the seatback frame, and remove the seatback assembly.
NOTE:
When assembling the seatback frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
INSTALLATION OF SEATBACK ASSEMBLY
Install in the reverse order of removal.
PIIA2518E
PIIA2519E
PIIA1158E
SE-78
SEAT
Revision: 2006 November2007 350Z

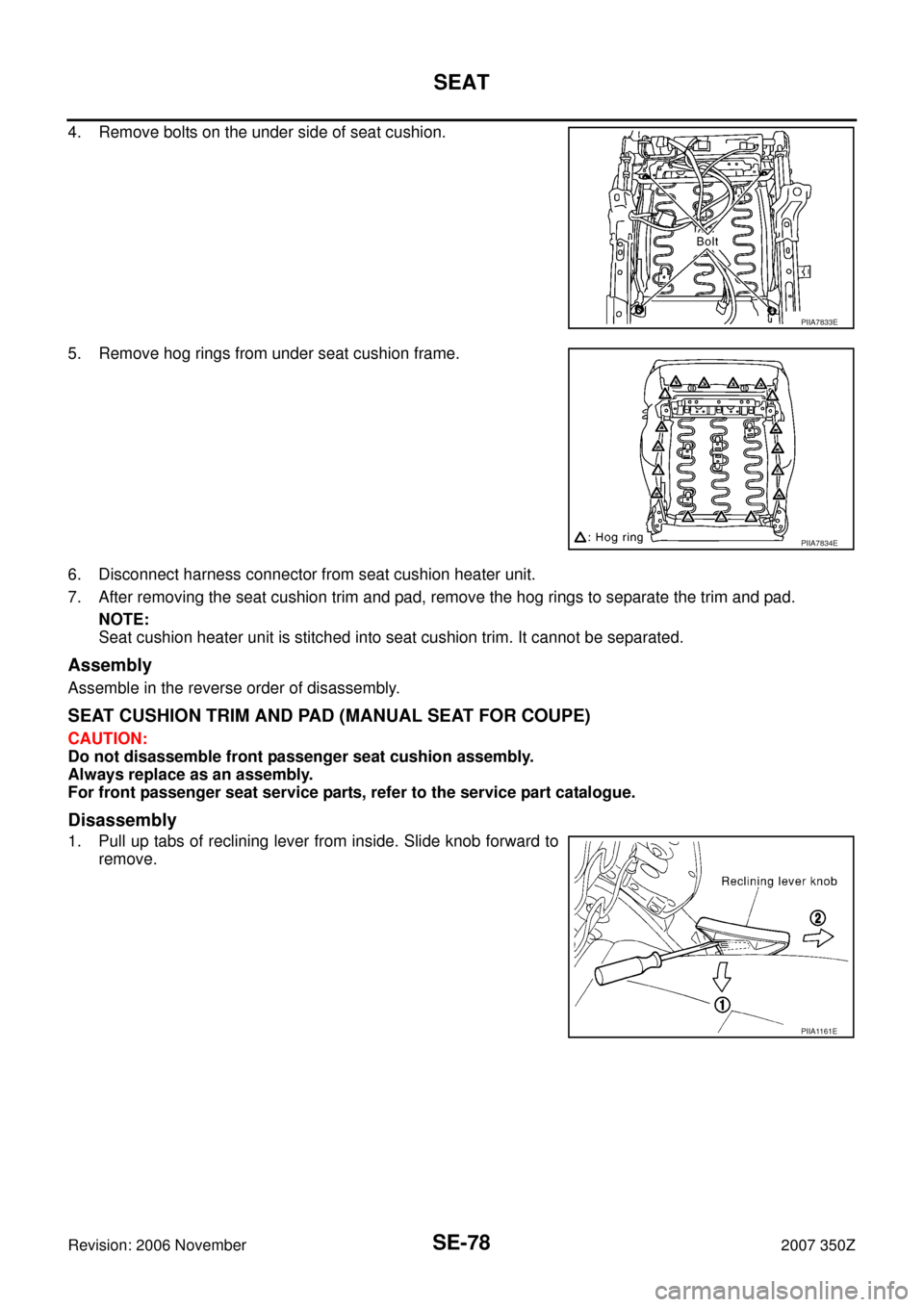

4. Remove bolts on the under side of seat cushion.
5. Remove hog rings from under seat cushion frame.
6. Disconnect harness connector from seat cushion heater unit.
7. After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad.
NOTE:
Seat cushion heater unit is stitched into seat cushion trim. It cannot be separated.
Assembly
Assemble in the reverse order of disassembly.
SEAT CUSHION TRIM AND PAD (MANUAL SEAT FOR COUPE)
CAUTION:
Do not disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.
Disassembly
1. Pull up tabs of reclining lever from inside. Slide knob forward to
remove.
PIIA7833E
PIIA7834E
PIIA1161E
