2007 NISSAN 350Z Seat Workshop Manual

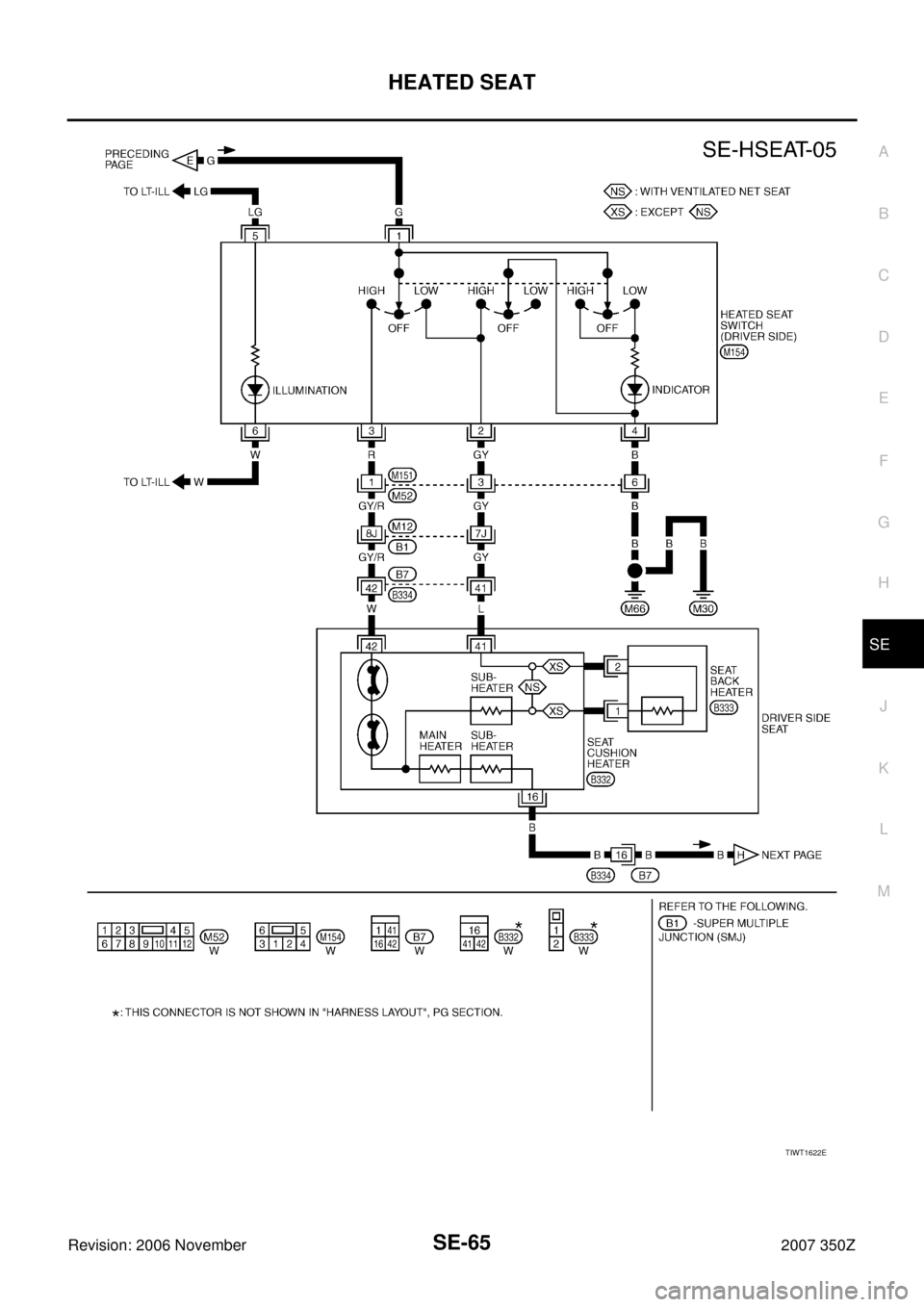

HEATED SEAT
SE-65
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT1622E

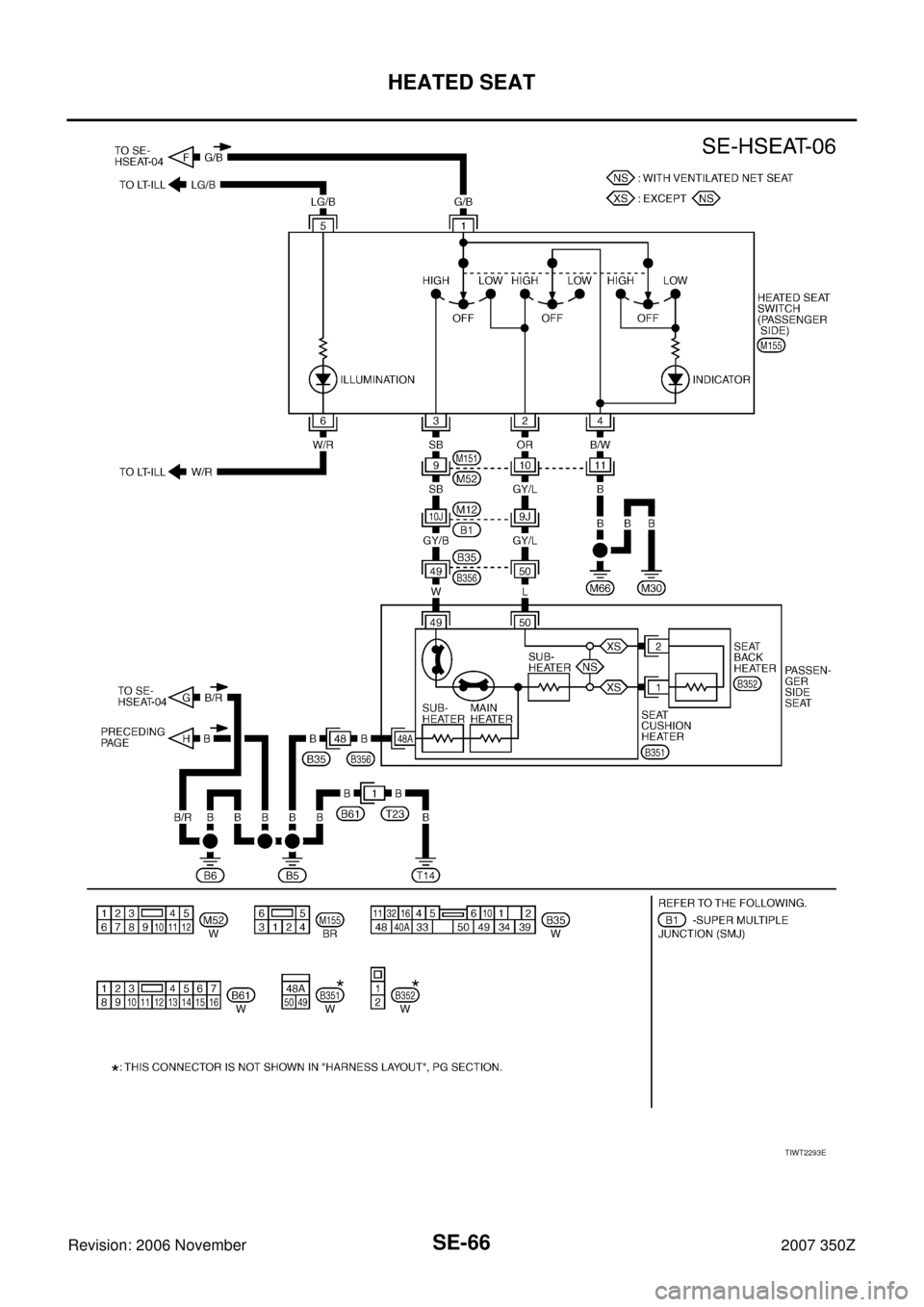

SE-66
HEATED SEAT
Revision: 2006 November2007 350Z
TIWT2293E

SEAT
SE-67
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
SEATPFP:87000
Removal and InstallationNIS000AL
CAUTION:
Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below.

SE-68
SEAT
Revision: 2006 November2007 350Z

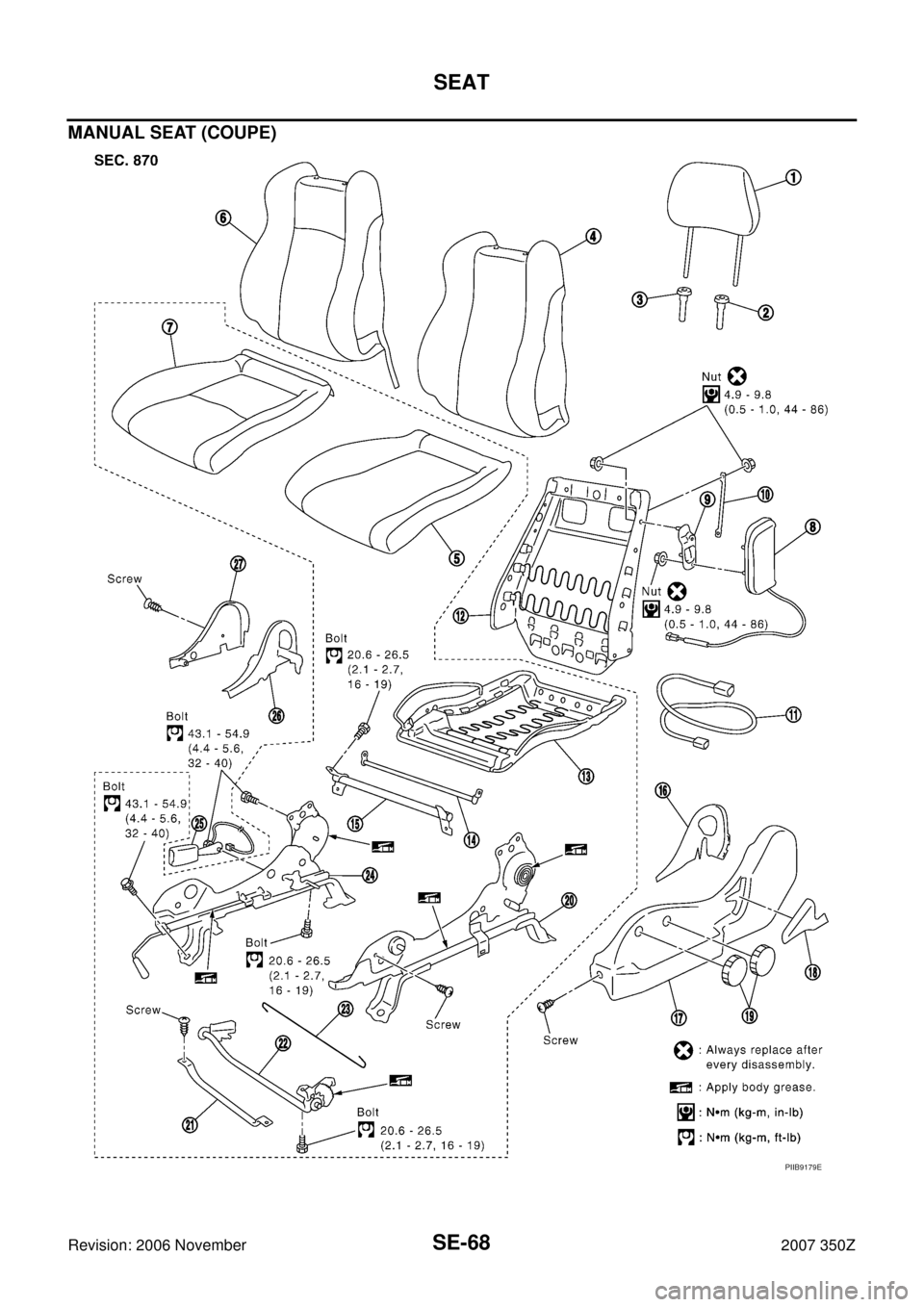

MANUAL SEAT (COUPE)
PIIB9179E

SEAT
SE-69
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Seatback pad 5. Seat cushion pad 6. Seatback trim
7. Seat cushion trim 8. Side air bag module 9. Side air bag module bracket
10. Inner cloth stay 11. Side air bag module harness 12. Seatback frame
13. Seat cushion frame 14. Connector rod 15. Rear gusset
16. Inner cover outer device 17. Seat cushion outer finisher 18. Reclining lever knob
19. Lifter dial 20. Sliding and reclining device outer 21. Front gusset
22. Seat thigh support adjuster 23. Wire pull 24. Sliding and reclining device inner
25. Seat belt buckle 26. Inner cover inner device 27. Seat cushion inner finisher

SE-70
SEAT
Revision: 2006 November2007 350Z

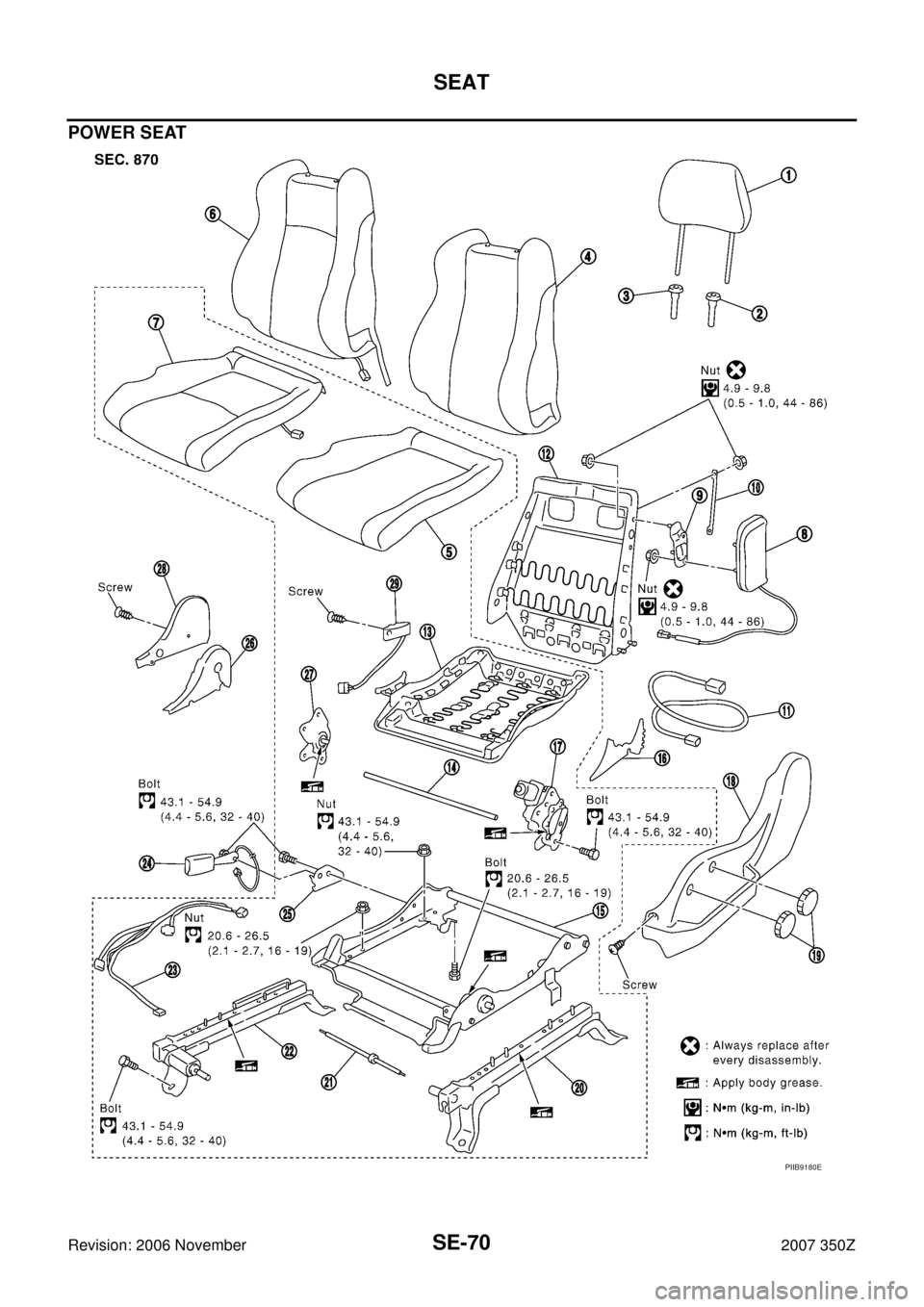

POWER SEAT
PIIB9180E

SEAT
SE-71
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Seatback pad 5. Seat cushion pad 6. Seatback trim
7. Seat cushion trim 8. Side air bag module 9. Side air bag module bracket
10. Inner cloth stay 11. Side air bag module harness 12. Seatback frame
13. Seat cushion frame 14. Reclining device rod 15.Seat thigh support adjuster assem-
bly
16. Inner cover outer device 17. Reclining device outer 18. Seat cushion outer finisher
19. Lifter dial 20. Sliding outer assembly 21. Flexible wire
22. Sliding inner assembly 23. Power seat harness 24. Seat belt buckle
25. Seat belt buckle bracket 26. Inner cover inner device 27. Reclining device inner
28. Seat cushion inner finisher 29. Power seat switch

SE-72
SEAT
Revision: 2006 November2007 350Z

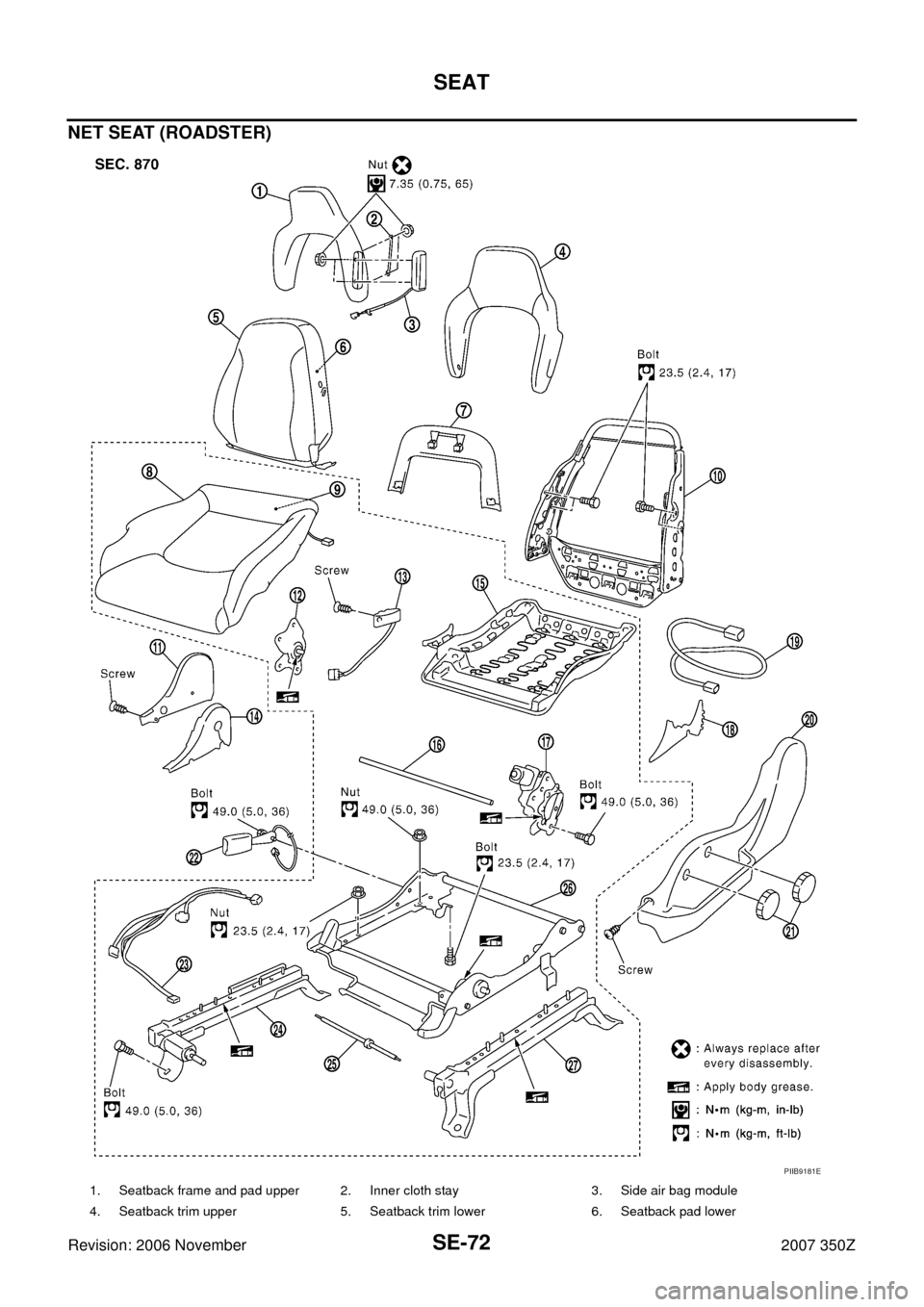

NET SEAT (ROADSTER)
1. Seatback frame and pad upper 2. Inner cloth stay 3. Side air bag module
4. Seatback trim upper 5. Seatback trim lower 6. Seatback pad lower
PIIB9181E
