Page 57 of 80
POWER SEAT/FOR ROADSTER
SE-57
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

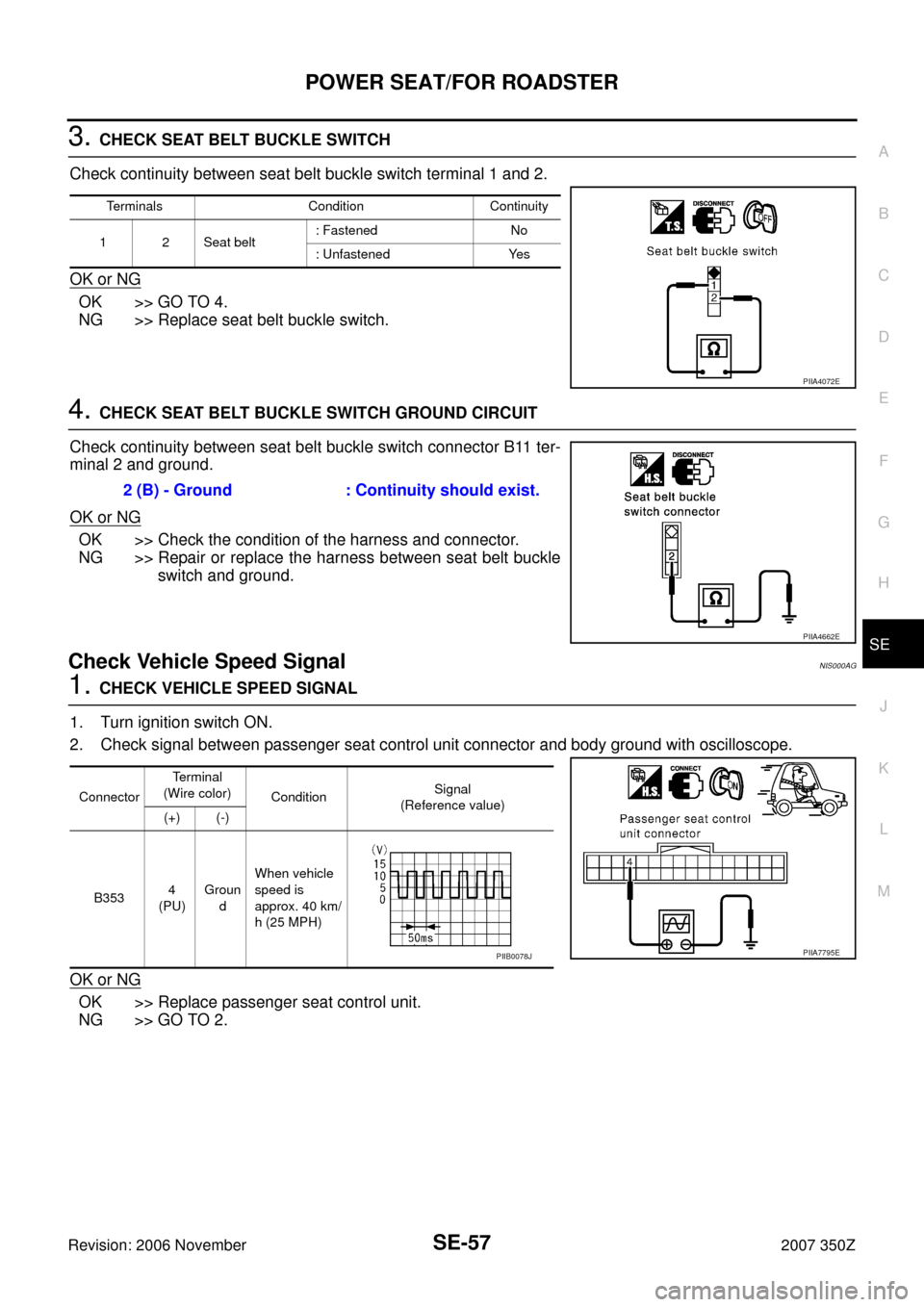

3. CHECK SEAT BELT BUCKLE SWITCH
Check continuity between seat belt buckle switch terminal 1 and 2.
OK or NG
OK >> GO TO 4.
NG >> Replace seat belt buckle switch.
4. CHECK SEAT BELT BUCKLE SWITCH GROUND CIRCUIT
Check continuity between seat belt buckle switch connector B11 ter-
minal 2 and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace the harness between seat belt buckle
switch and ground.
Check Vehicle Speed Signal NIS000AG
1. CHECK VEHICLE SPEED SIGNAL
1. Turn ignition switch ON.
2. Check signal between passenger seat control unit connector and body ground with oscilloscope.
OK or NG
OK >> Replace passenger seat control unit.
NG >> GO TO 2.
Terminals Condition Continuity
1 2 Seat belt: Fastened No
: Unfastened Yes
PIIA4072E
2 (B) - Ground : Continuity should exist.
PIIA4662E
ConnectorTerminal
(Wire color)
ConditionSignal
(Reference value)
(+) (-)
B3534
(PU)Groun
dWhen vehicle
speed is
approx. 40 km/
h (25 MPH)
PIIA7795EPIIB0078J
Page 58 of 80
SE-58
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
2. CHECK VEHICLE SPEED SIGNAL CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect passenger seat control unit connector and unified meter and A/C amp.
3. Check continuity between passenger seat control unit connector
B353 terminal 4 and unified meter and A/C amp. connector M49
terminal 34.
4. Check continuity between passenger seat control unit connector
B353 terminal 4 and ground.
OK or NG
OK >> Vehicle speed signal circuit is OK. Further inspection is
necessary. Refer to DI-18, "
Vehicle Speed Signal
Inspection" .
NG >> Repair or replace harness between passenger seat control unit and unified meter and A/C amp.4 (PU) - 34 (L) : Continuity should exist.
4 (PU) - Ground : Continuity should not exist.
PIIA7797E
Page 59 of 80
HEATED SEAT
SE-59
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

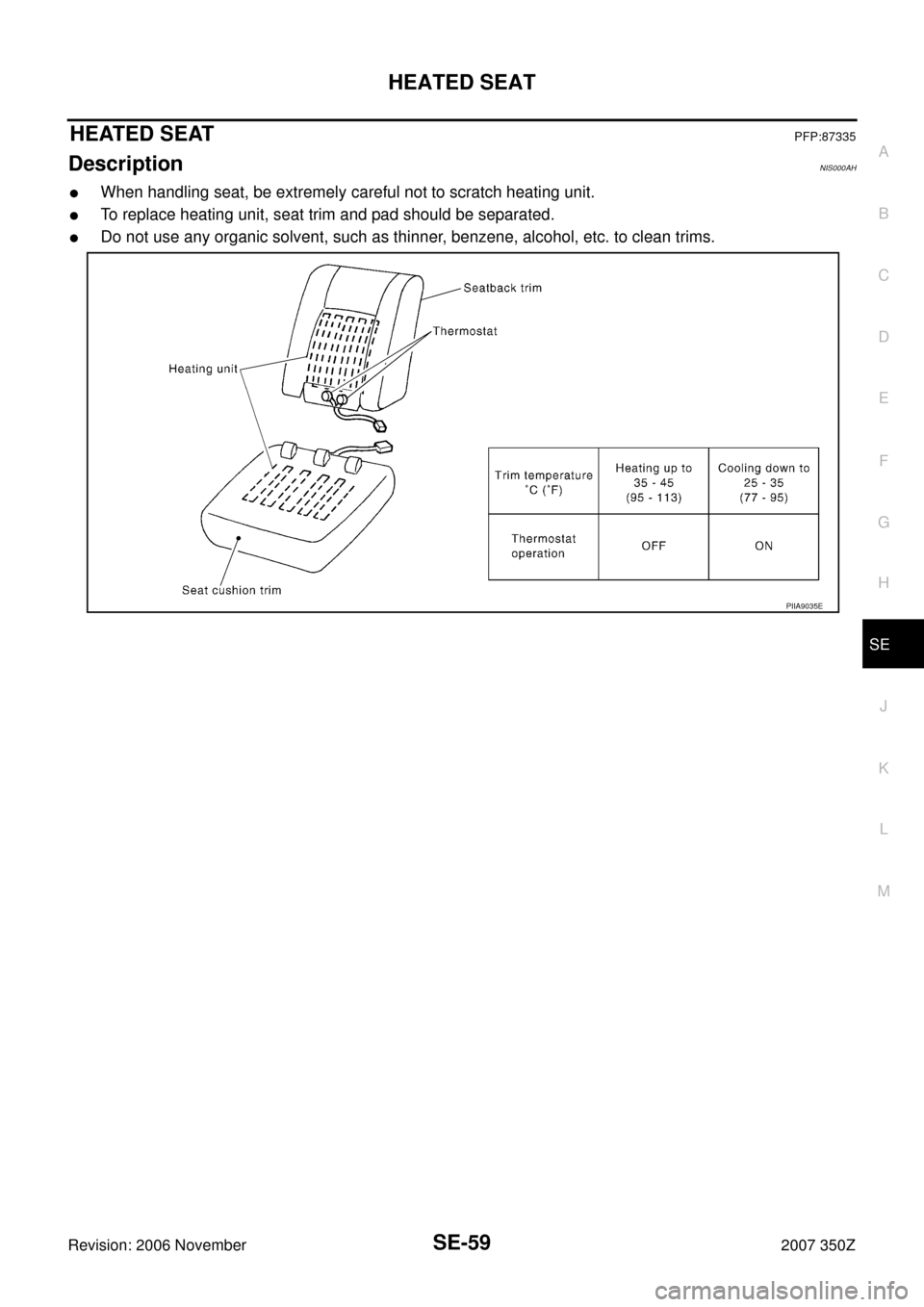

HEATED SEATPFP:87335
DescriptionNIS000AH
When handling seat, be extremely careful not to scratch heating unit.
To replace heating unit, seat trim and pad should be separated.
Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.
PIIA9035E
Page 60 of 80
SE-60
HEATED SEAT
Revision: 2006 November2007 350Z

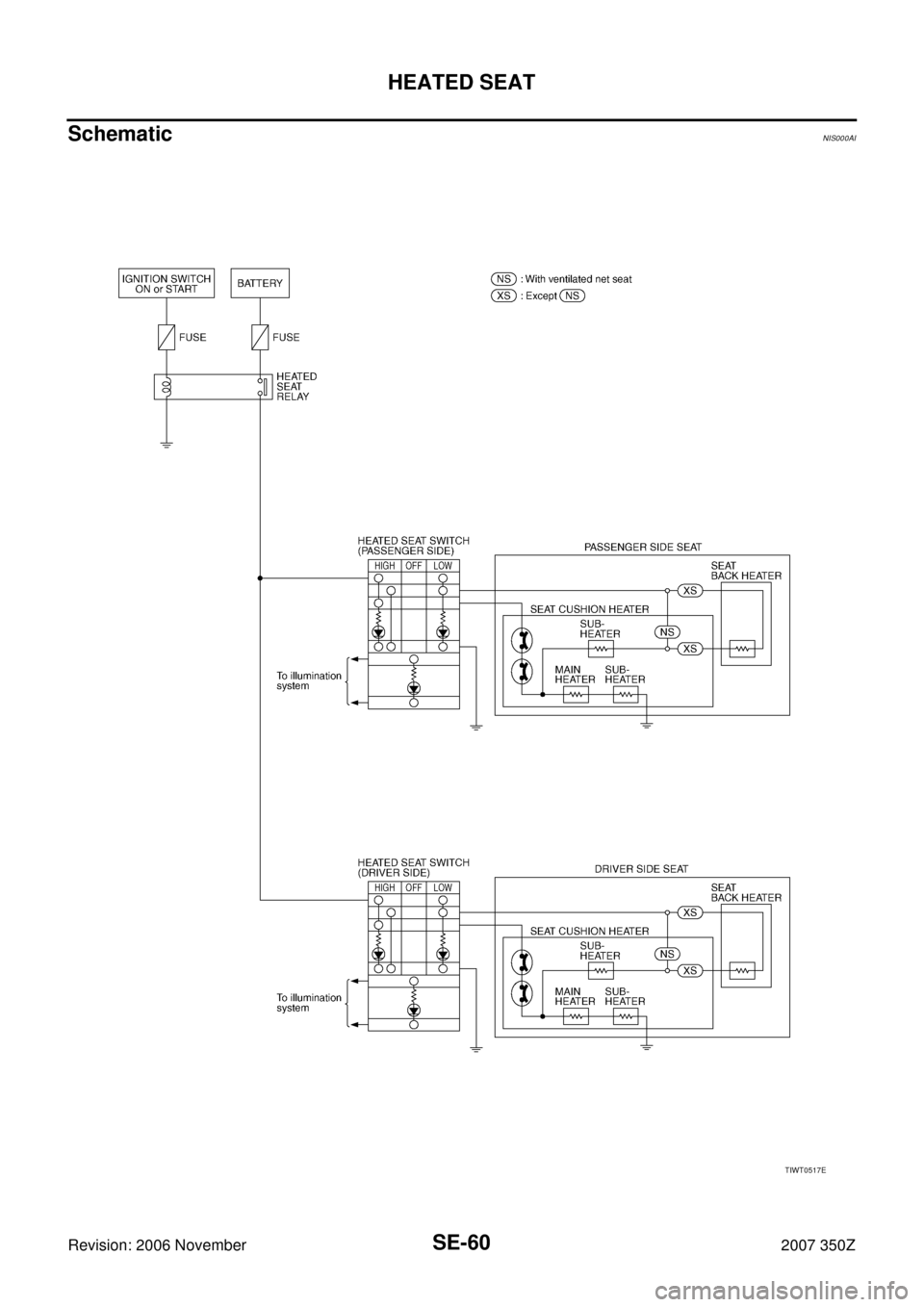

SchematicNIS000AI
TIWT0517E
Page 61 of 80
HEATED SEAT
SE-61
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

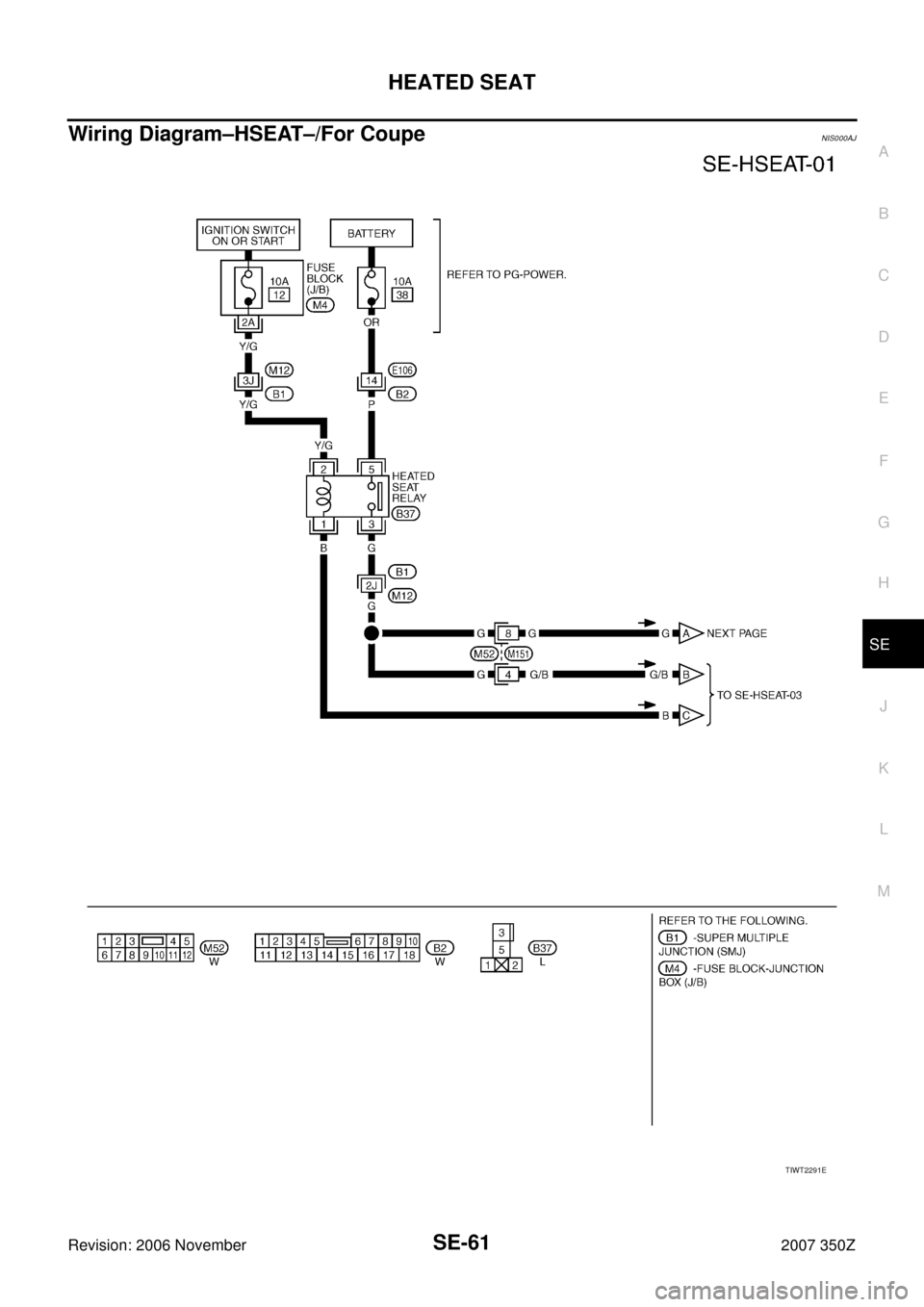

Wiring Diagram–HSEAT–/For CoupeNIS000AJ
TIWT2291E
Page 62 of 80
SE-62
HEATED SEAT
Revision: 2006 November2007 350Z

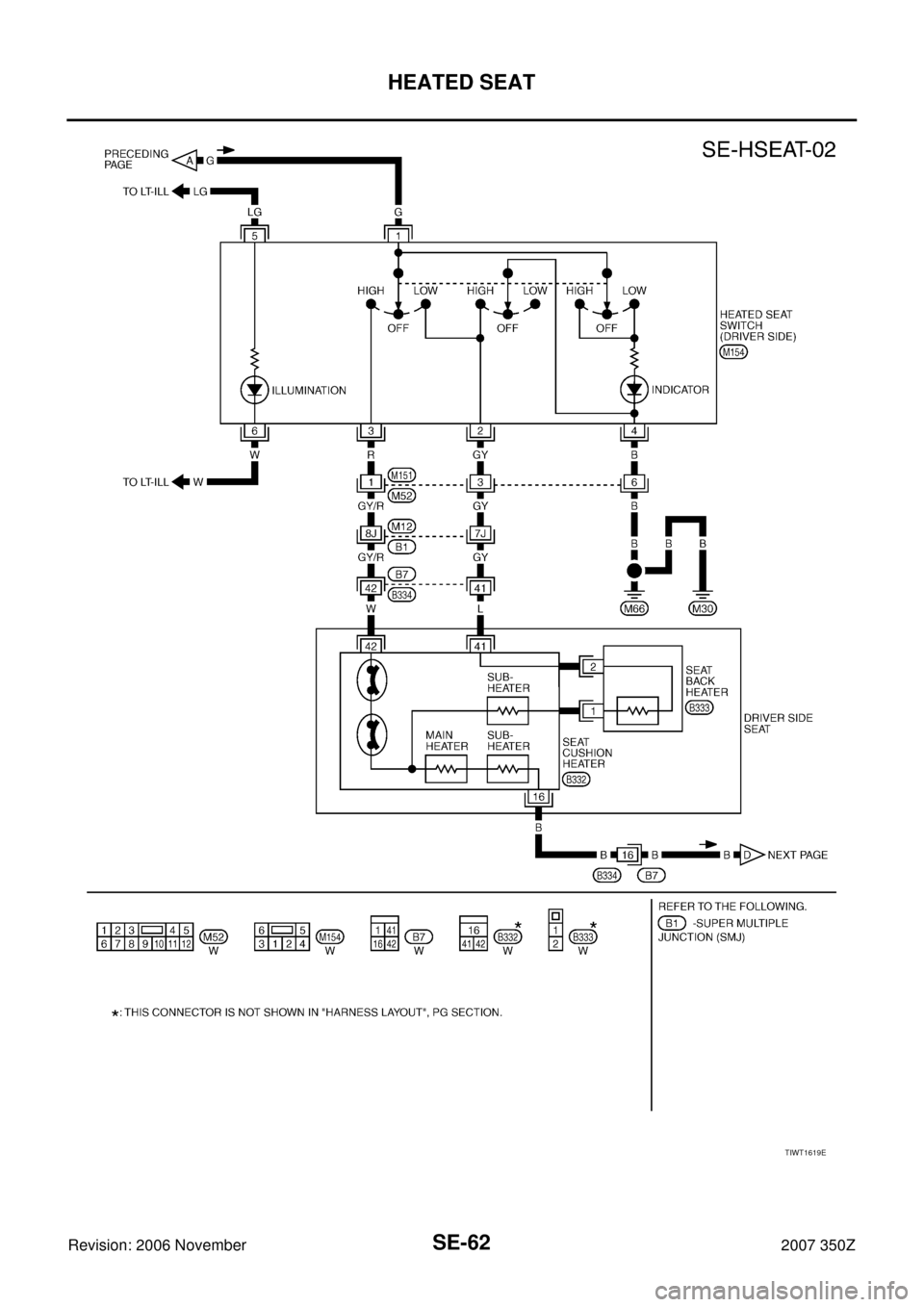

TIWT1619E
Page 63 of 80
HEATED SEAT
SE-63
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT1620E
Page 64 of 80
SE-64
HEATED SEAT
Revision: 2006 November2007 350Z

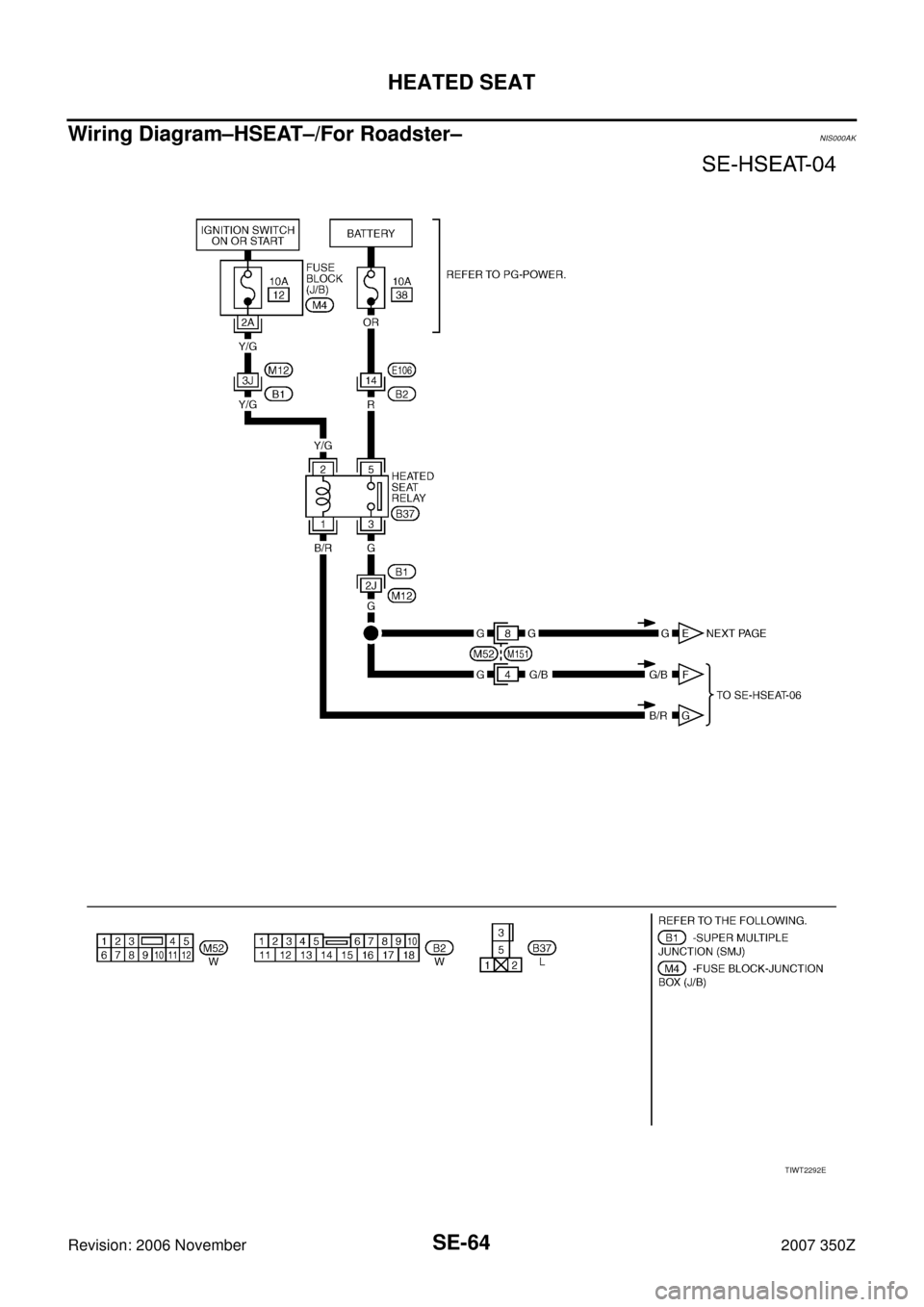

Wiring Diagram–HSEAT–/For Roadster–NIS000AK
TIWT2292E
