2007 NISSAN 350Z Road Wheels And Tires Workshop Manual

TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-33
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Warning Lamp Does Not Come On When Ignition Switch Is Turned OnNES0001Q
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
1. Perform “CONSULT-III Start Procedure”.
2. Touch “BCM” on “SELECT SYSTEM” screen.
3. Touch “SELF-DIAG RESULTS” on “SELECT DIAG MODE” screen.
4. Check display contents in self-diagnostic results.
Is the
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Perform trouble diagnosis for CAN communication system.
NO >> GO TO 2.
2. CHECK COMBINATION METER
Check combination meter function.
OK or NG
OK >> GO TO 3.
NG >> Check combination meter. Refer to DI-47, "
SELF-DIAGNOSTIC RESULTS" .
3. CHECK LOW TIRE PRESSURE WARNING LAMP
1. Turn ignition switch OFF.
2. Disconnect BCM harness connectors M90 and M91.
Does the warning lamp activate?
YES >> Replace BCM. Refer to BCS-17, "Removal and Installation of BCM" .
NO >> Check combination meter and repair or replace.
Warning Lamp Stays On When Ignition Switch Is Turned OnNES0001R
DIAGNOSTIC PROCEDURE
1. PERFORM SELF-DIAGNOSIS
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “AIR PRESSURE MONITOR” with CONSULT-III.
3. Touch “ERASE”.
4. Turn ignition switch OFF.
5. Start engine.
Does low tire pressure warning lamp turn OFF?
YES >> INSPECTION END
NO >> GO TO 2.
2. PERFORM ID REGISTRATION
Perform ID registration all transmitters. Refer to WT-21, "
ID Registration Procedure" .
Does low tire pressure warning lamp turn OFF?
YES >> INSPECTION END
NO >> GO TO 3.

WT-34
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 November2007 350Z

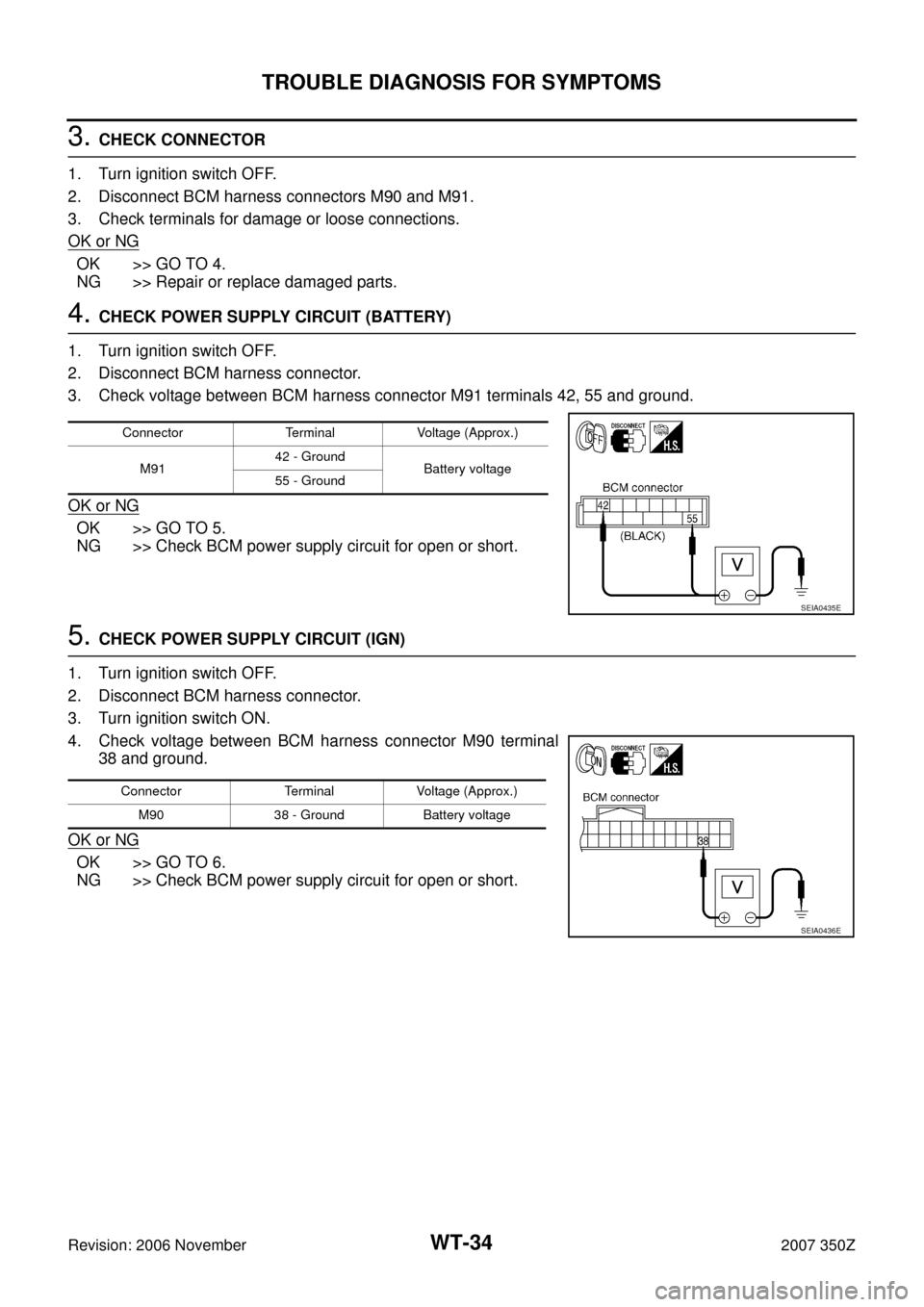

3. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect BCM harness connectors M90 and M91.
3. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK POWER SUPPLY CIRCUIT (BATTERY)
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector.
3. Check voltage between BCM harness connector M91 terminals 42, 55 and ground.
OK or NG
OK >> GO TO 5.
NG >> Check BCM power supply circuit for open or short.
5. CHECK POWER SUPPLY CIRCUIT (IGN)
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector.
3. Turn ignition switch ON.
4. Check voltage between BCM harness connector M90 terminal
38 and ground.
OK or NG
OK >> GO TO 6.
NG >> Check BCM power supply circuit for open or short.
Connector Terminal Voltage (Approx.)
M9142 - Ground
Battery voltage
55 - Ground
SEIA0435E
Connector Terminal Voltage (Approx.)
M90 38 - Ground Battery voltage
SEIA0436E

TROUBLE DIAGNOSIS FOR SYMPTOMS
WT-35
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z

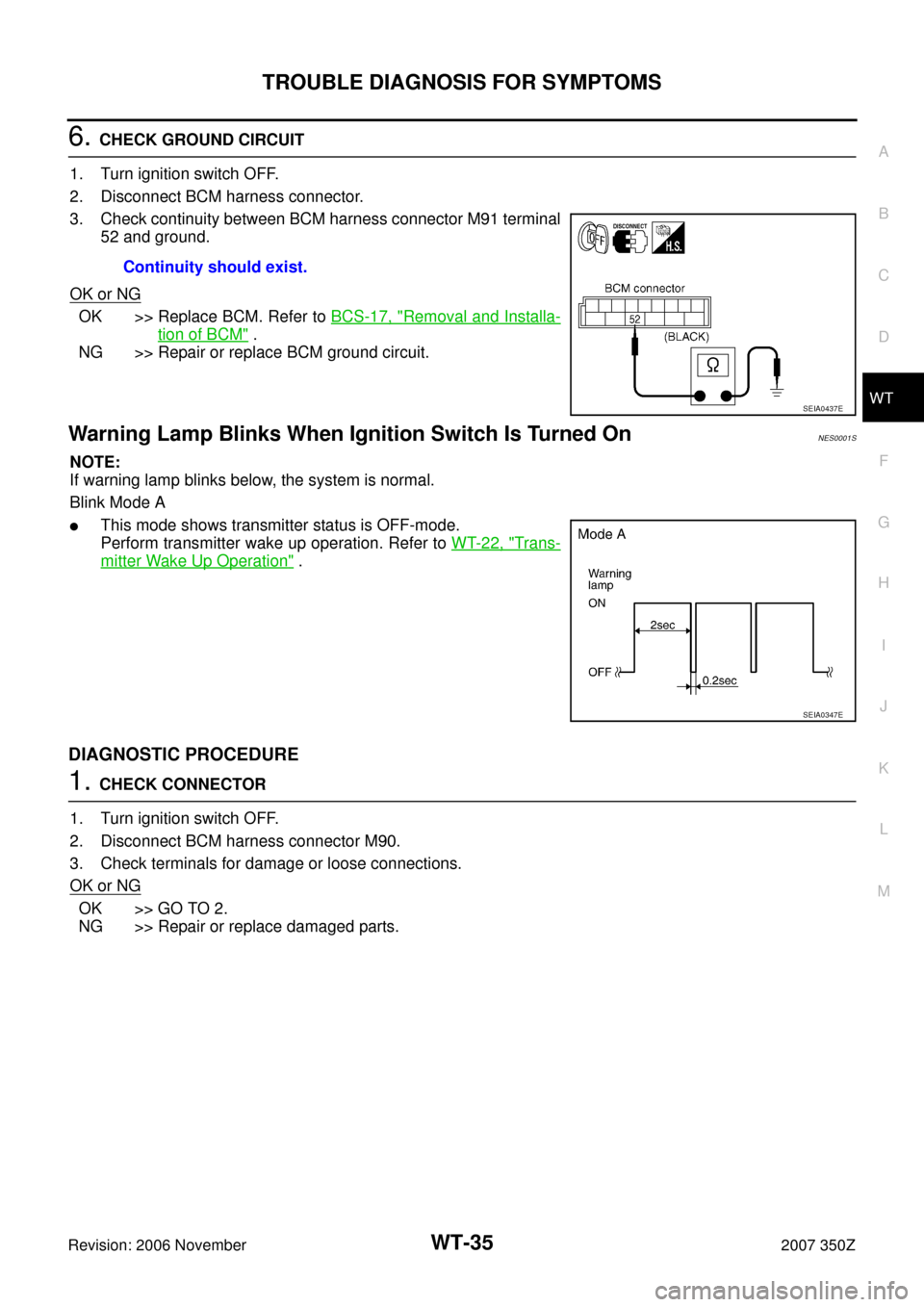

6. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector.
3. Check continuity between BCM harness connector M91 terminal
52 and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace BCM ground circuit.
Warning Lamp Blinks When Ignition Switch Is Turned OnNES0001S
NOTE:
If warning lamp blinks below, the system is normal.
Blink Mode A

This mode shows transmitter status is OFF-mode.
Perform transmitter wake up operation. Refer to WT-22, "
Trans-
mitter Wake Up Operation" .
DIAGNOSTIC PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector M90.
3. Check terminals for damage or loose connections.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace damaged parts.Continuity should exist.
SEIA0437E
SEIA0347E

WT-36
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 November2007 350Z

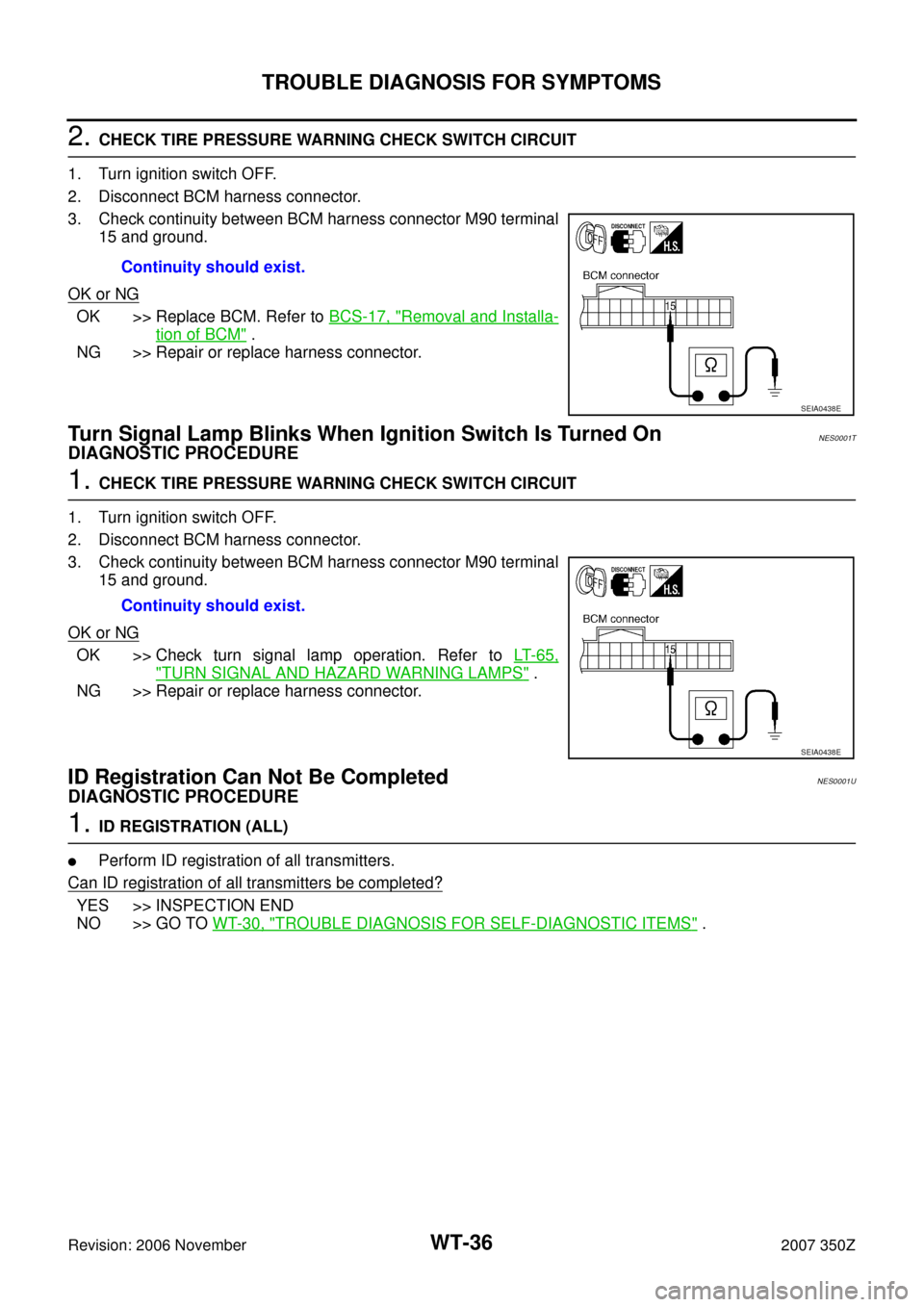

2. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector.
3. Check continuity between BCM harness connector M90 terminal
15 and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace harness connector.
Turn Signal Lamp Blinks When Ignition Switch Is Turned OnNES0001T
DIAGNOSTIC PROCEDURE
1. CHECK TIRE PRESSURE WARNING CHECK SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector.
3. Check continuity between BCM harness connector M90 terminal
15 and ground.
OK or NG
OK >> Check turn signal lamp operation. Refer to LT- 6 5 ,
"TURN SIGNAL AND HAZARD WARNING LAMPS" .
NG >> Repair or replace harness connector.
ID Registration Can Not Be CompletedNES0001U
DIAGNOSTIC PROCEDURE
1. ID REGISTRATION (ALL)

Perform ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> INSPECTION END
NO >> GO TO WT-30, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" . Continuity should exist.
SEIA0438E
Continuity should exist.
SEIA0438E

REMOVAL AND INSTALLATION
WT-37
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z

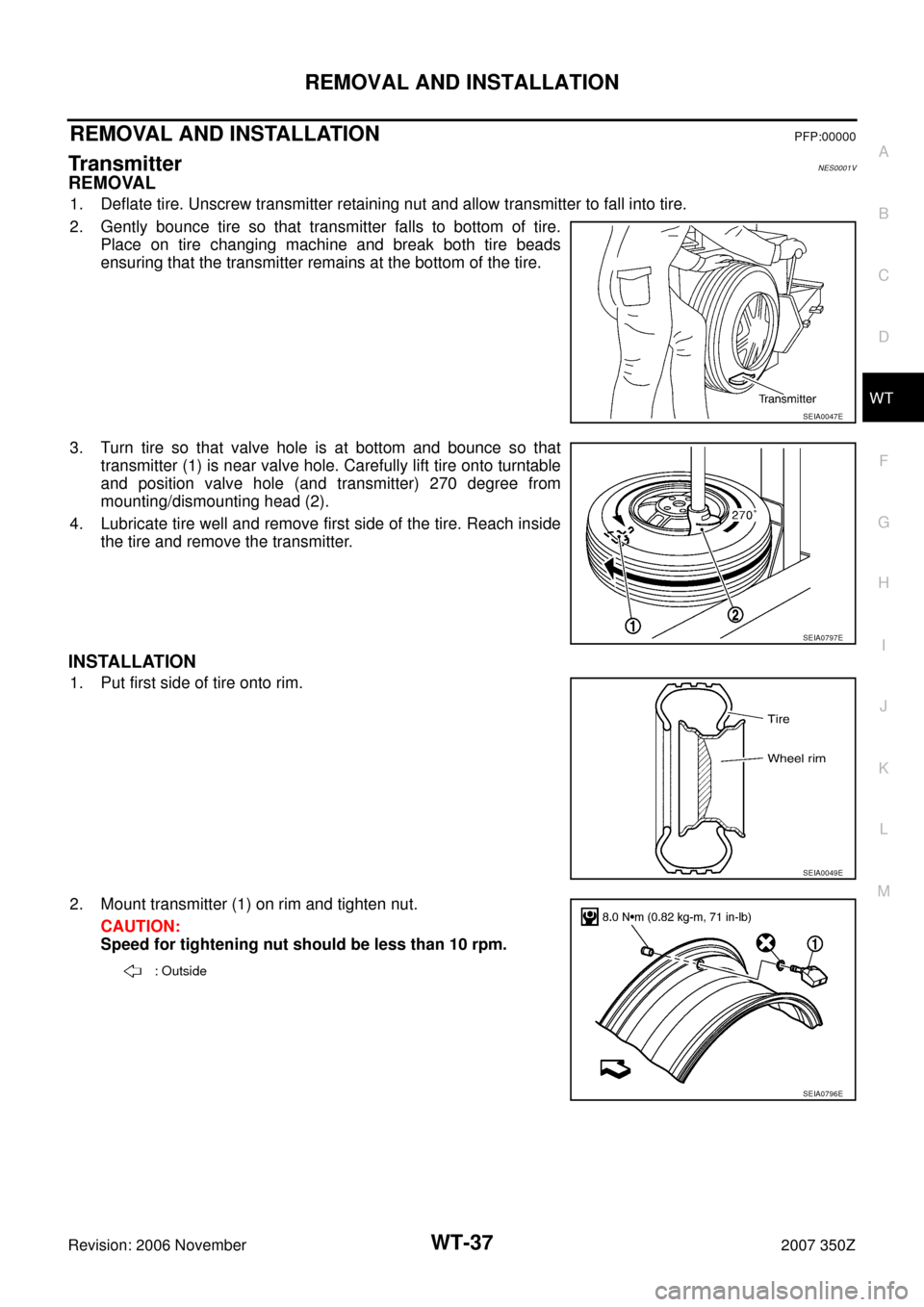

REMOVAL AND INSTALLATIONPFP:00000
TransmitterNES0001V
REMOVAL
1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
2. Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.
3. Turn tire so that valve hole is at bottom and bounce so that
transmitter (1) is near valve hole. Carefully lift tire onto turntable
and position valve hole (and transmitter) 270 degree from
mounting/dismounting head (2).
4. Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter.
INSTALLATION
1. Put first side of tire onto rim.
2. Mount transmitter (1) on rim and tighten nut.
CAUTION:
Speed for tightening nut should be less than 10 rpm.
SEIA0047E
SEIA0797E
SEIA0049E
: Outside
SEIA0796E

WT-38
REMOVAL AND INSTALLATION
Revision: 2006 November2007 350Z
3. Place wheel on turntable of tire machine. Ensure that transmitter
(1) is 270 degree from mounting head (2) when second side of
tire is fitted.
NOTE:
Do not touch transmitter at mounting head.
4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
5. Inflate tire and fit to appropriate wheel position.
REMOTE KEYLESS ENTRY RECEIVER
Removal
1. Remove the front kicking plate LH. Refer to EI-35, "BODY SIDE TRIM" .
2. Remove the dash side finisher LH. Refer to EI-35, "
BODY SIDE TRIM" .
3. Remove the instrument lower cover. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove the glove box assembly. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
5. Disconnect keyless entry receiver connector.
Installation
Install in the reverse order of removal.
BCM (BODY CONTROL MODULE)
Removal
Remove the BCM. Refer to BCS-17, "Removal and Installation of BCM" .
Installation
Install in the reverse order of removal.
SEIA0797E

SERVICE DATA AND SPECIFICATIONS (SDS)
WT-39
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Road WheelNES0001W
Unit: mm (in)
TireNES0001X
Unit: kPa (kg/cm2 , psi)
Tightening TorqueNES0001Y
Kind of wheel Aluminum Steel (for tenporary tire)
Maximum radial runout limitLateral deflection
Less than 0.3 mm (0.012 in) Less than 1.5 mm (0.059 in)
Vertical deflection
Maximum Allowable unbalanceDynamic (At rim flange) Less than 5g (0.14 oz) (one side)
Static (At rim flange) Less than 10g (0.35 oz)
Wheel size Offset
18 × 8JJ 30 (1.18)
18 × 8 1/2JJ 33 (1.30)
18 × 9JJ 30 (1.18)
19 × 10JJ 30 (1.18)
17 × 4T 30 (1.18)
Tire sizeAir pressure
Front Rear
Coupe Roadster Coupe Roadster
225/45R18 91W
240 (2.4, 35)—
245/40R18 93W—
245/45R18 96W —
240 (2.4, 35)
265/35R19 94W —
T145/80 D17 420 (4.2, 60)
Wheel nut108 N·m (11 kg-m, 80 ft-lb)

WT-40
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
