2007 NISSAN 350Z Power Supply, Ground And Circuit Workshop Manual

HARNESS
PG-41
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z
HARNESS PFP:00011
Harness Layout NKS000EG

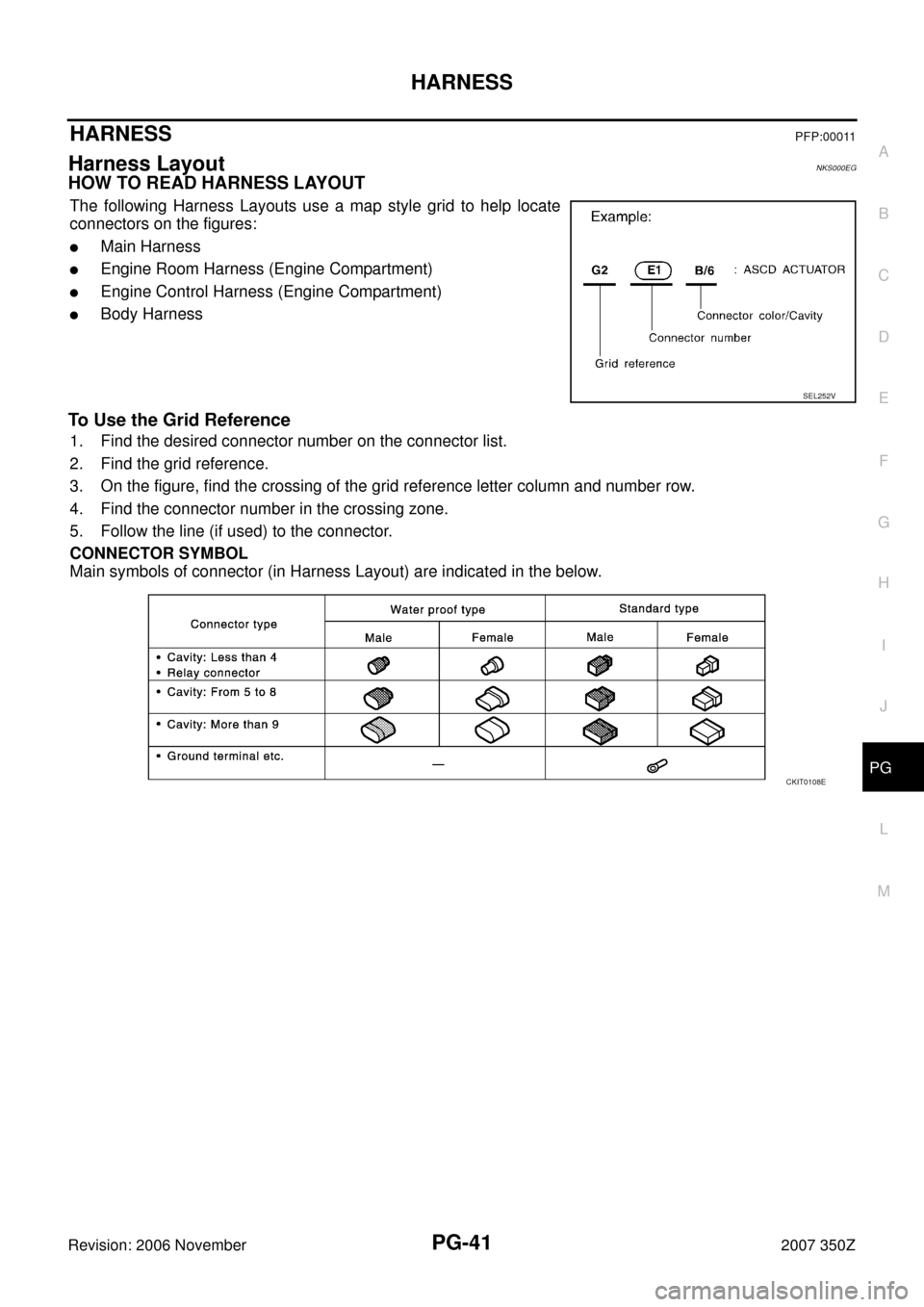

HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:

Main Harness

Engine Room Harness (Engine Compartment)

Engine Control Harness (Engine Compartment)

Body Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E

PG-42
HARNESS
Revision: 2006 November2007 350Z

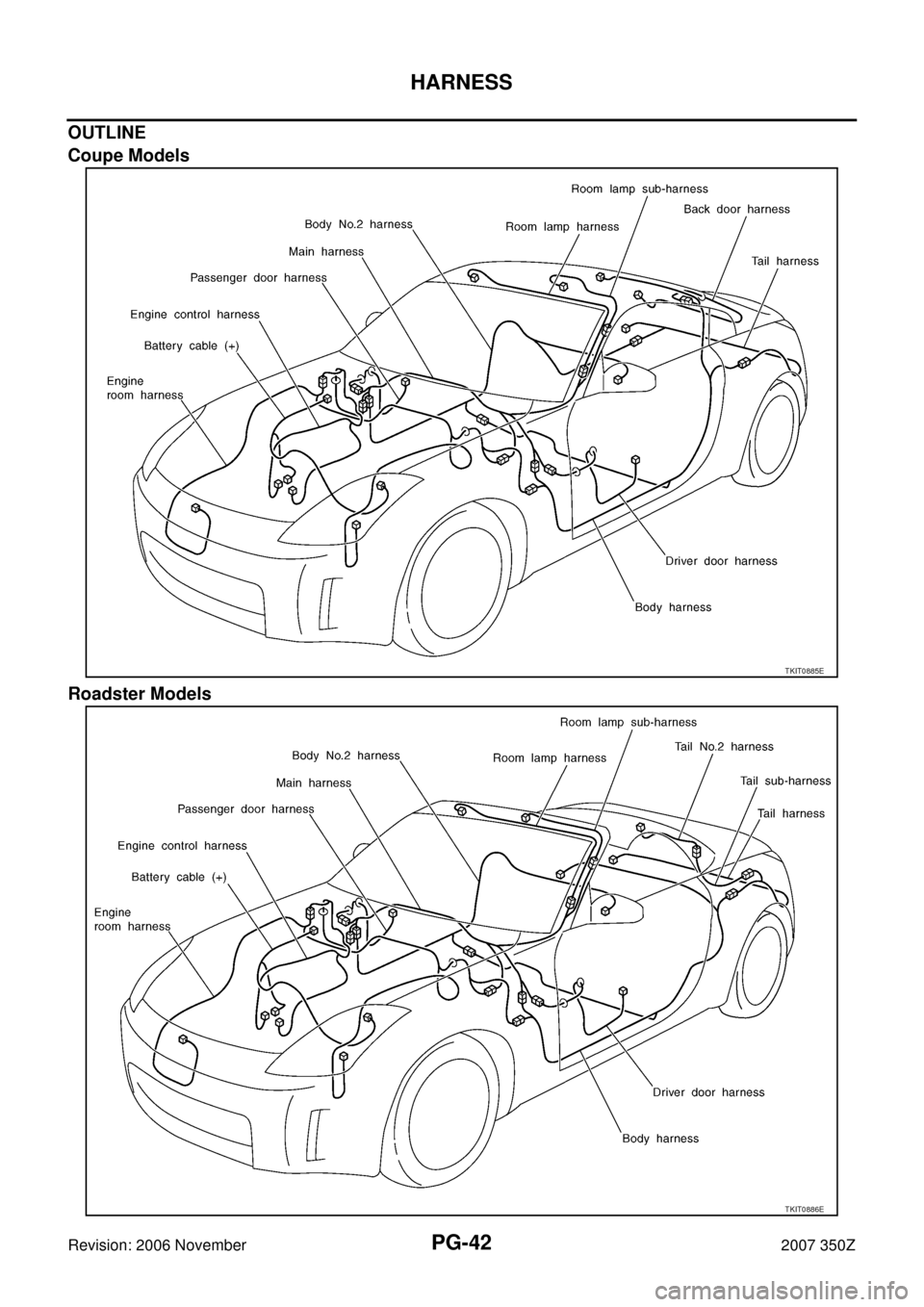

OUTLINE
Coupe Models
Roadster Models
TKIT0885E
TKIT0886E

HARNESS
PG-43
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z

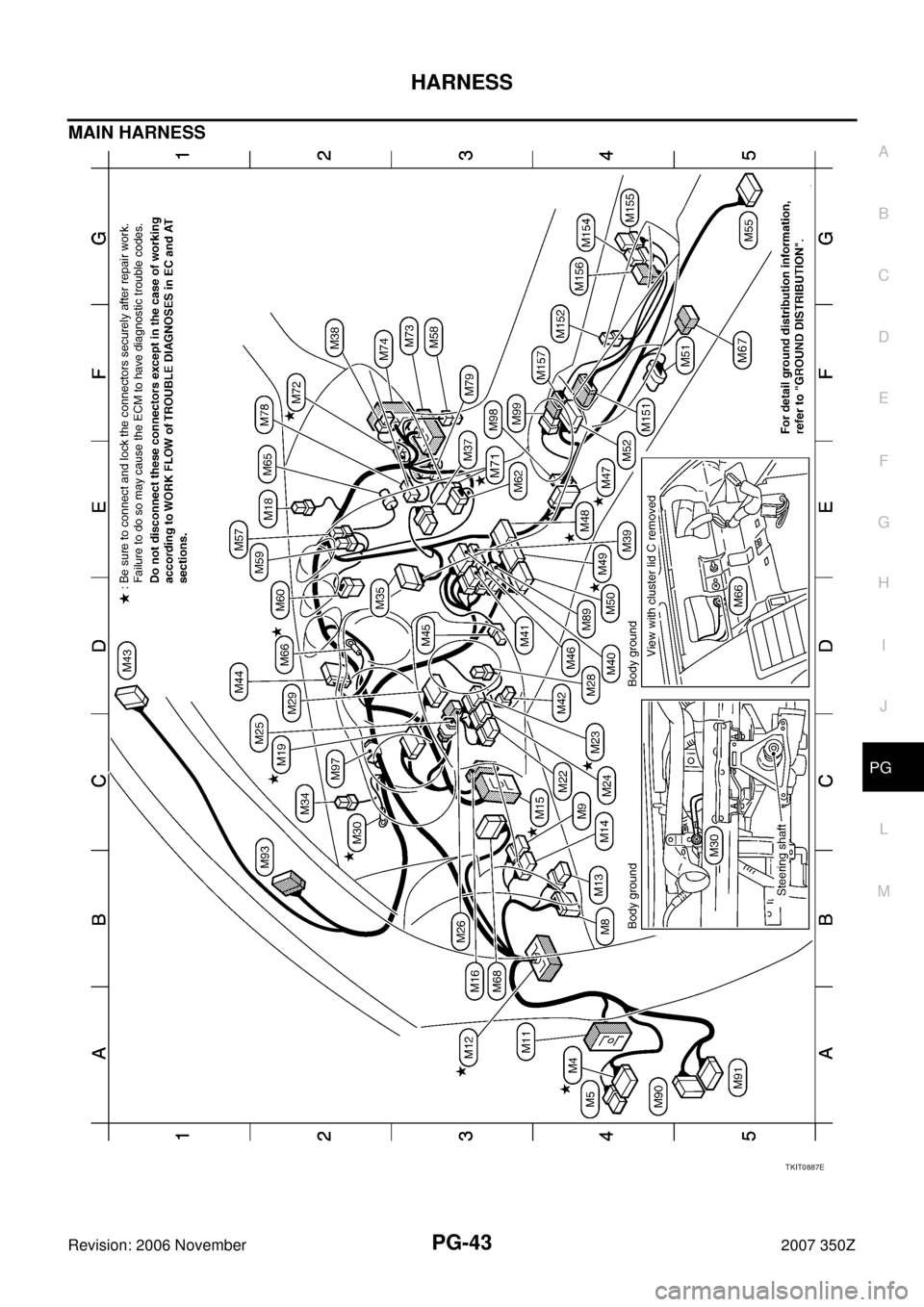

MAIN HARNESS
TKIT0887E

PG-44
HARNESS
Revision: 2006 November2007 350Z

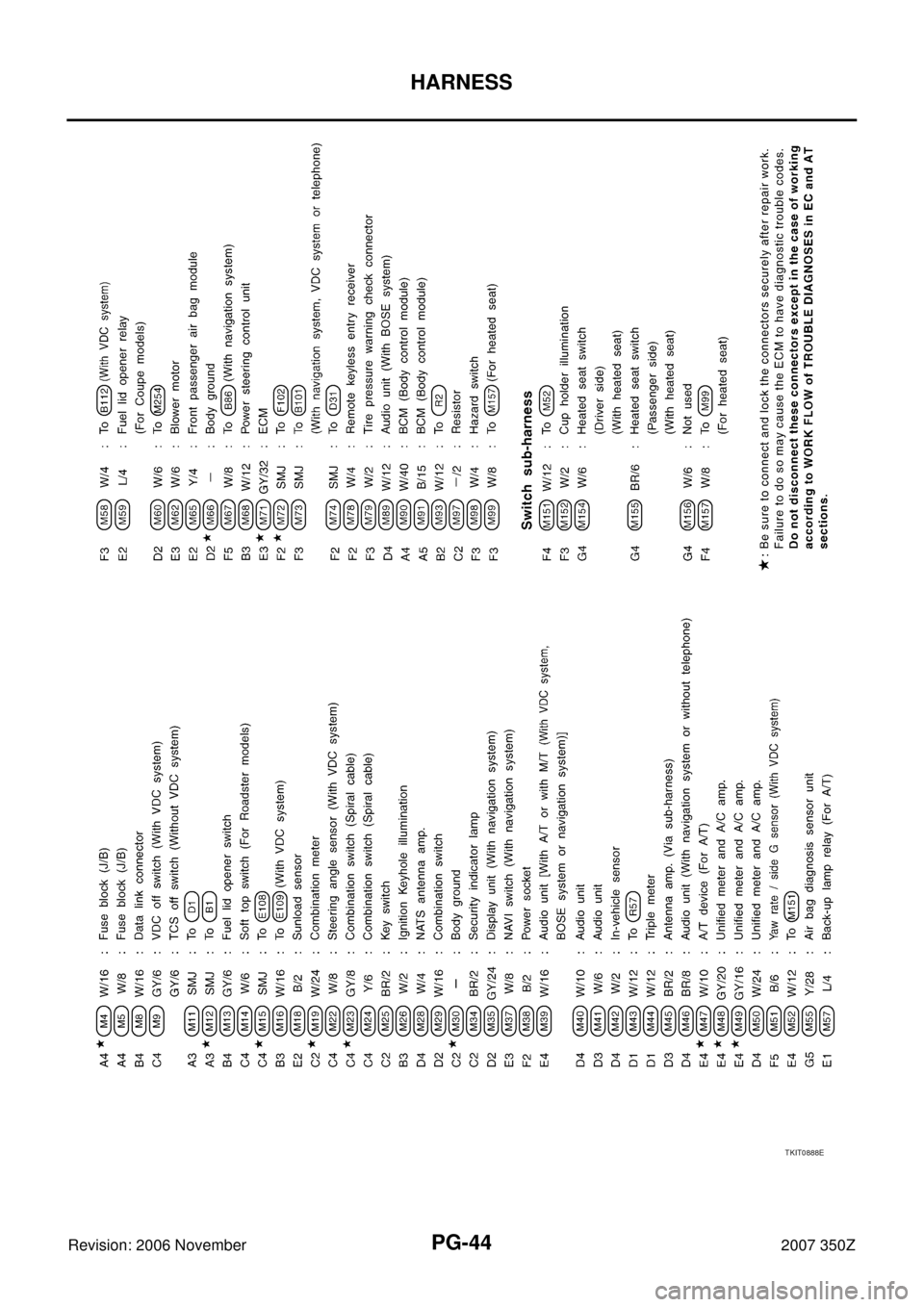

TKIT0888E

HARNESS
PG-45
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z

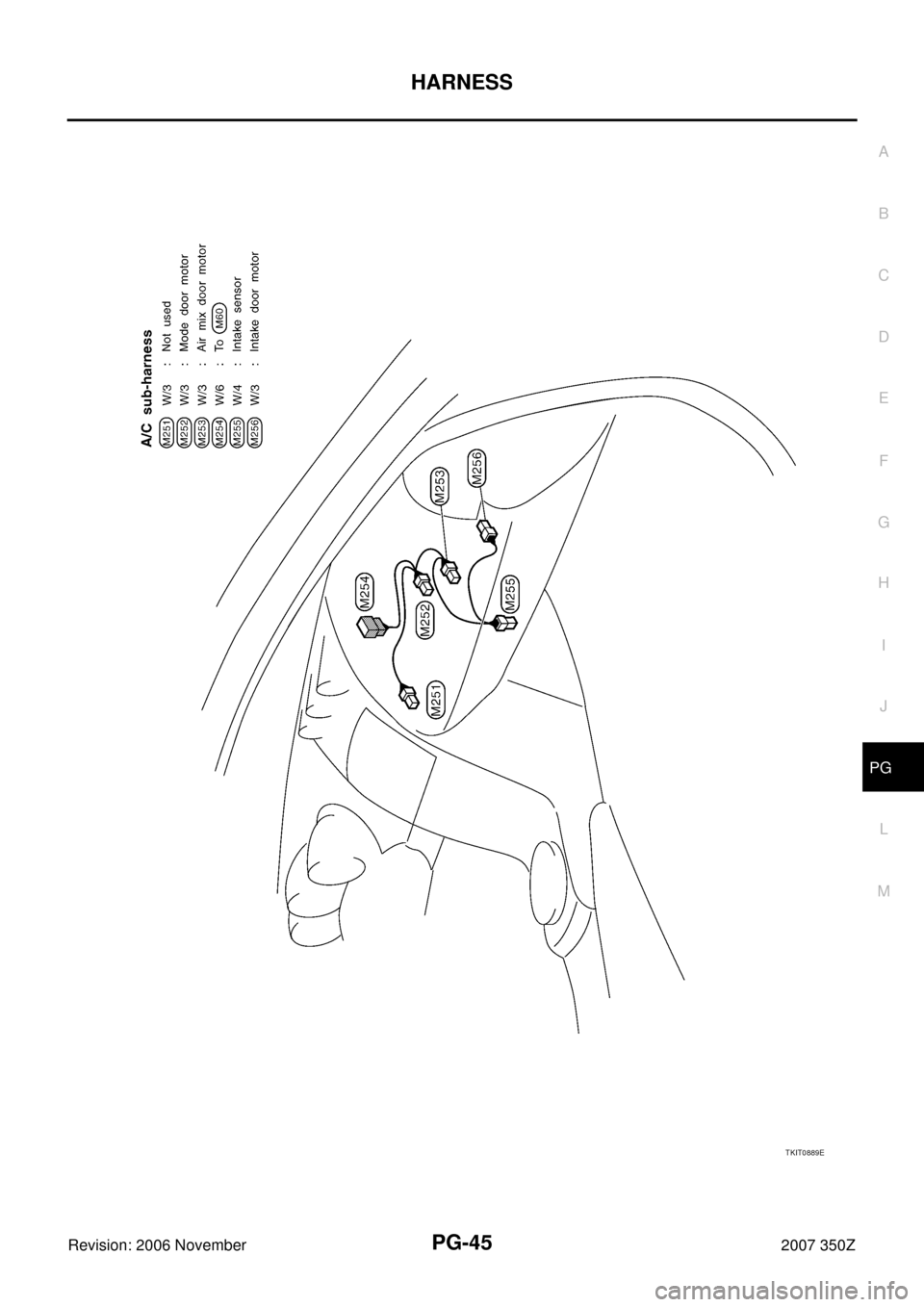

TKIT0889E

PG-46
HARNESS
Revision: 2006 November2007 350Z

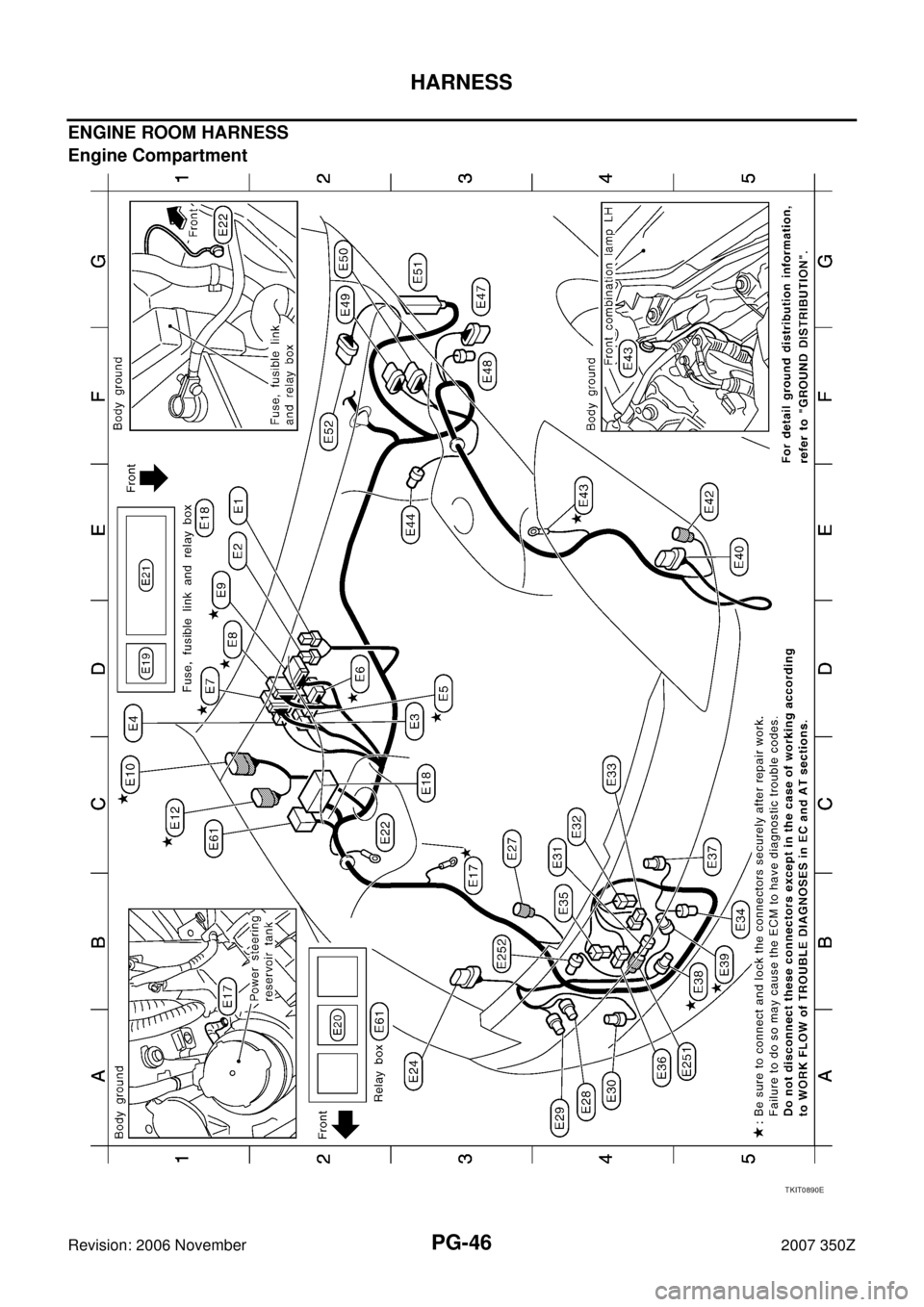

ENGINE ROOM HARNESS
Engine Compartment
TKIT0890E

HARNESS
PG-47
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z

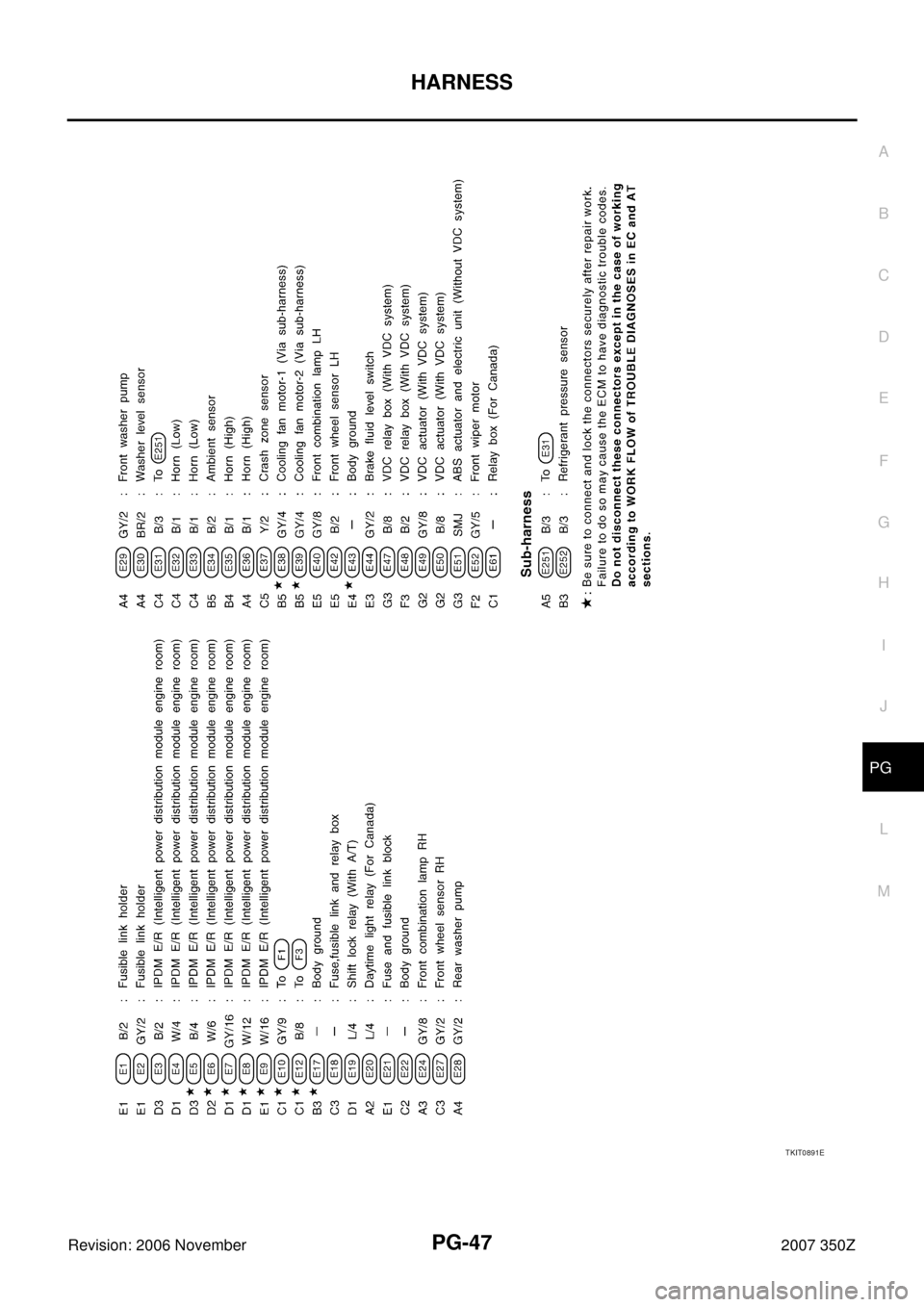

TKIT0891E

PG-48
HARNESS
Revision: 2006 November2007 350Z

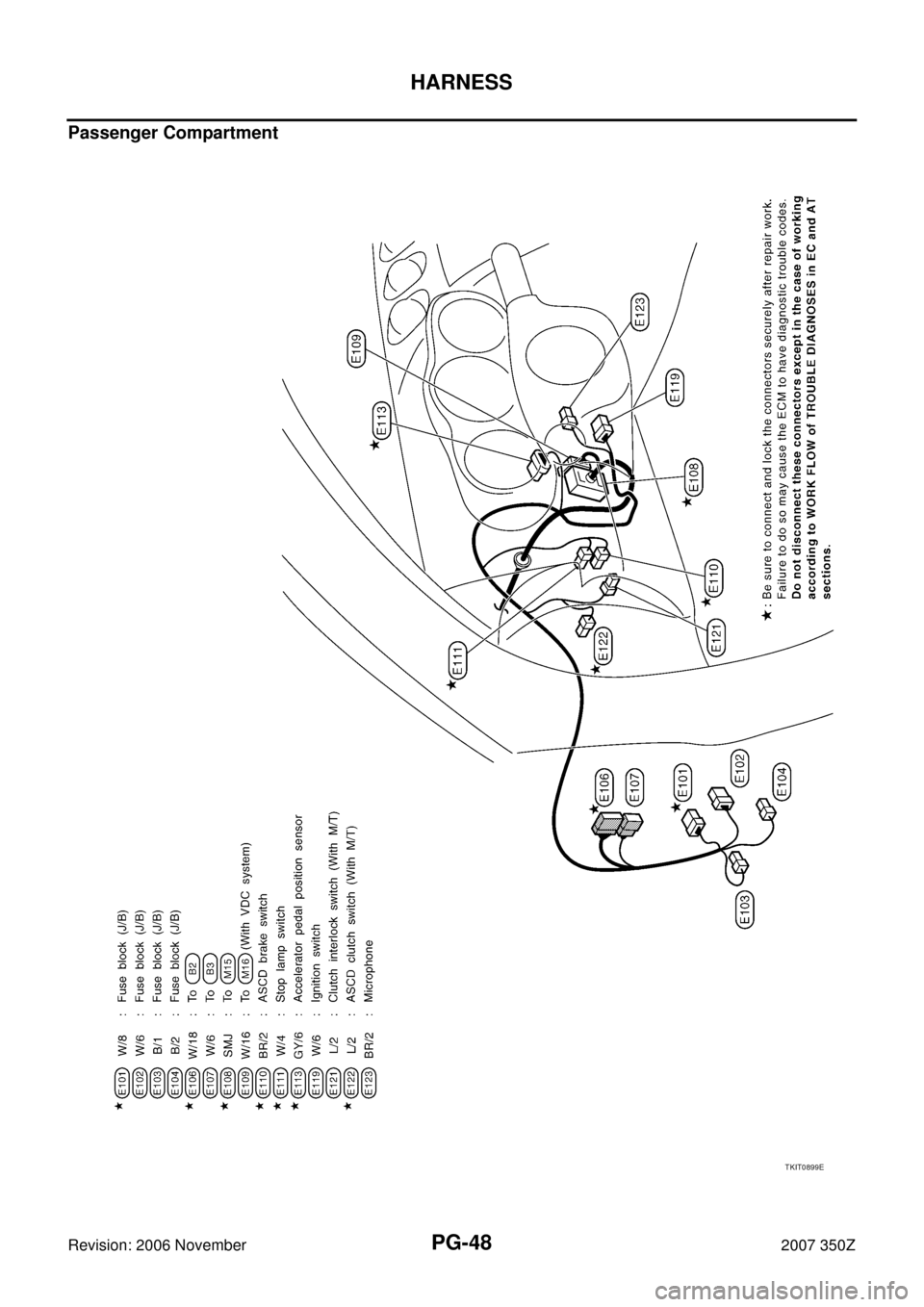

Passenger Compartment
TKIT0899E
