2007 NISSAN 350Z Power Supply, Ground And Circuit Workshop Manual

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z
Inspection With CONSULT-III (Self-Diagnosis)NKS000ED
1. CHECK SELF DIAGNOSTIC RESULT
NOTE:
The details for display of the period are as follows:

CRNT: Error currently detected with IPDM E/R.

PAST: Error detected in the past and memorized with IPDM E/R.
Contents displayed
NO DTC IS DETECTED.FURTHER TESTING MAY BE REQUIRED.>>INSPECTION END
CAN COMM CIRC>>After print-out of the monitor items, refer to LAN-49, "
CAN Communication Signal
Chart" .
CONSULT-III displayCONSULT-III
display codeTIME
Details of diagnosis result
CRNT PAST
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.— — — No malfunction
CAN COMM CIRC U1000××Any of or several items below have errors.

TRANSMIT DIAG

ECM

BCM

PG-26
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Revision: 2006 November2007 350Z
Removal and Installation of IPDM E/RNKS000EE
REMOVAL
1. Remove battery. Refer to SC-7, "Removal and Installation" .
2. Remove IPDM E/R cover A. While pressing pawl on backside of
IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/
R.
3. While pressing pawls on right and left side of IPDM E/R, remove
IPDM E/R cover B from IPDM E/R.
4. Remove harness connector from IPDM E/R.
INSTALLATION
Installation is the reverse order of removal.
SKIA4968E
SKIA1902E
SKIA4969E

GROUND
PG-27
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z
GROUND PFP:00011
Ground Distribution NKS000EF

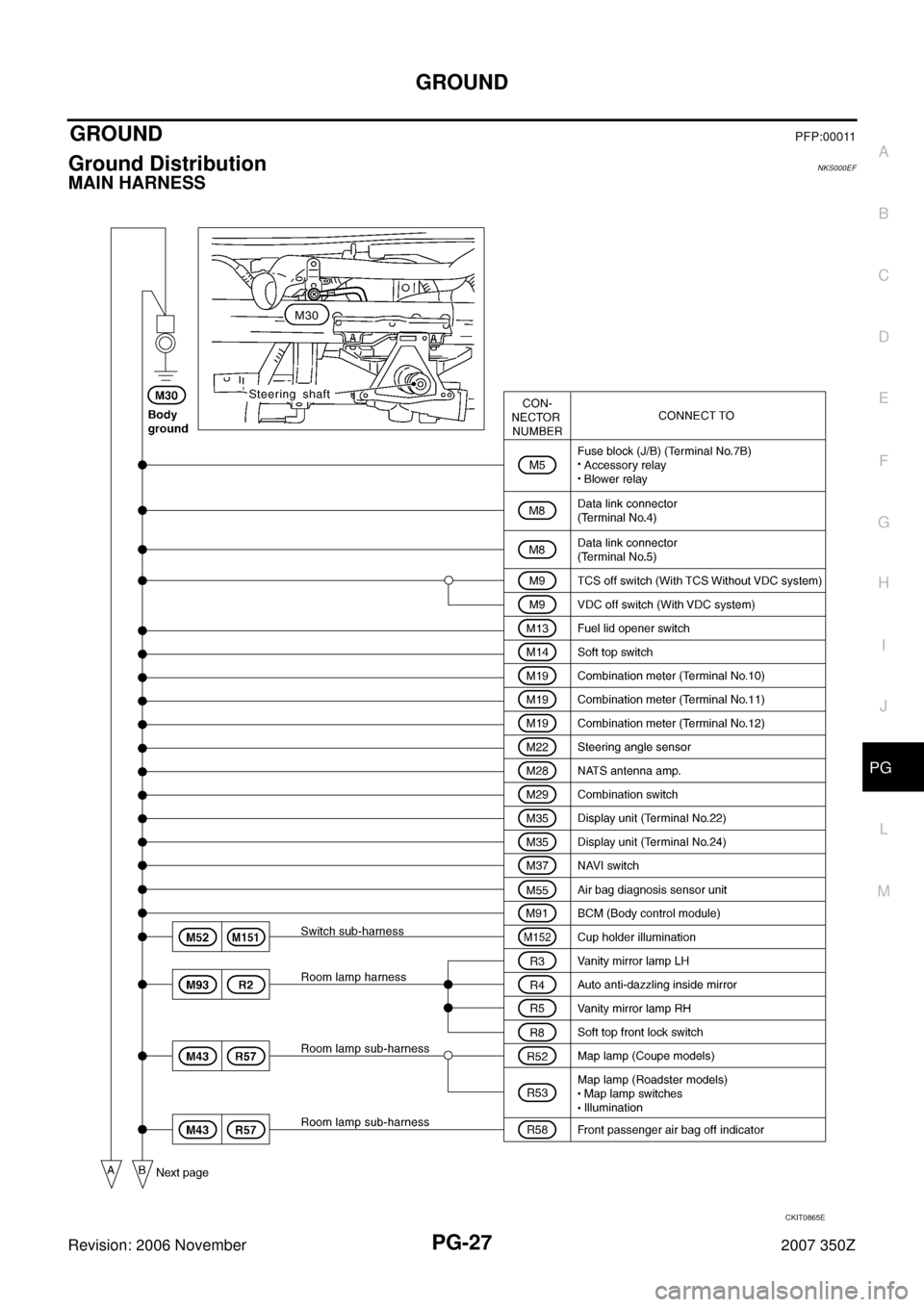

MAIN HARNESS
CKIT0865E

PG-28
GROUND
Revision: 2006 November2007 350Z

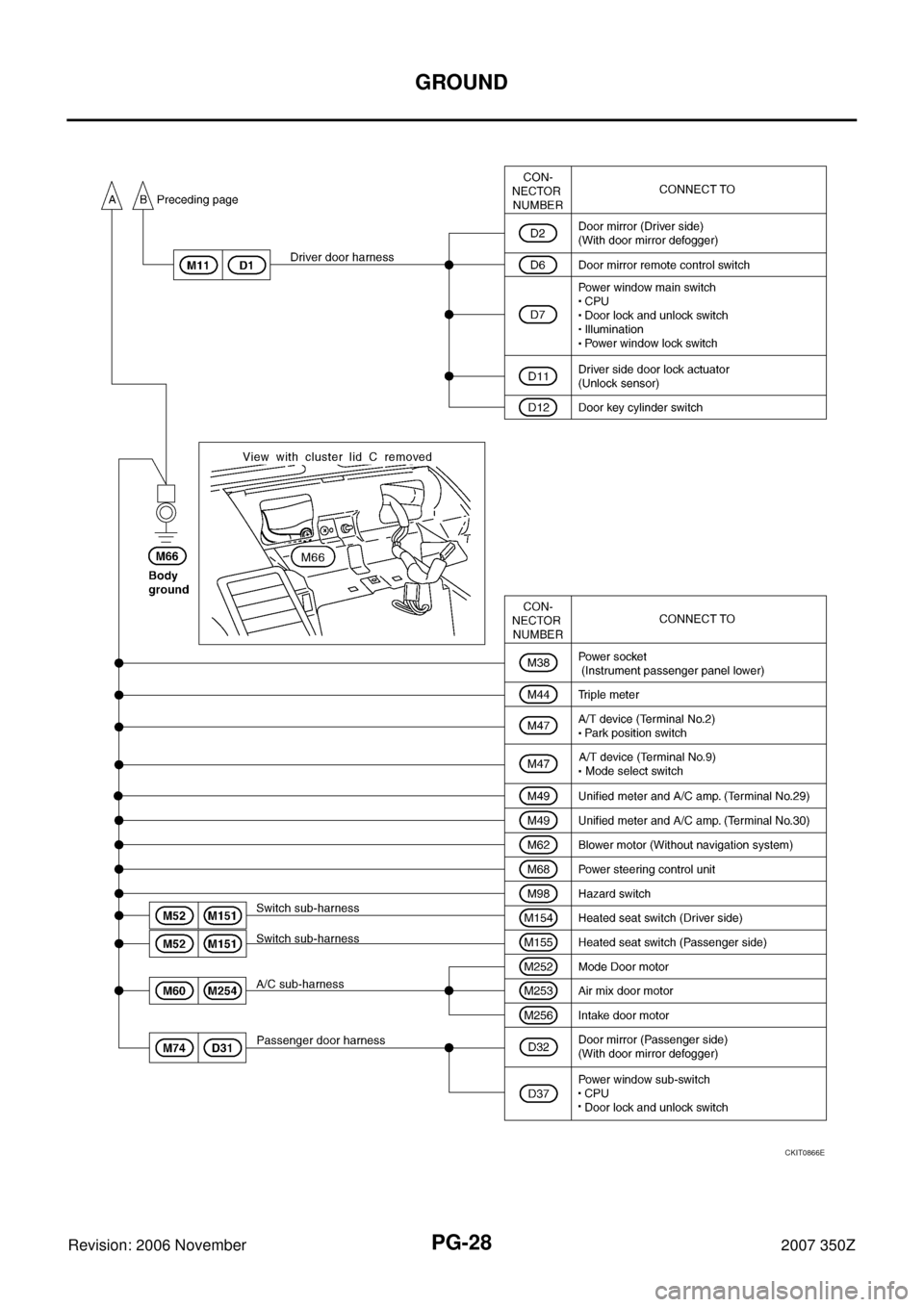

CKIT0866E

GROUND
PG-29
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z

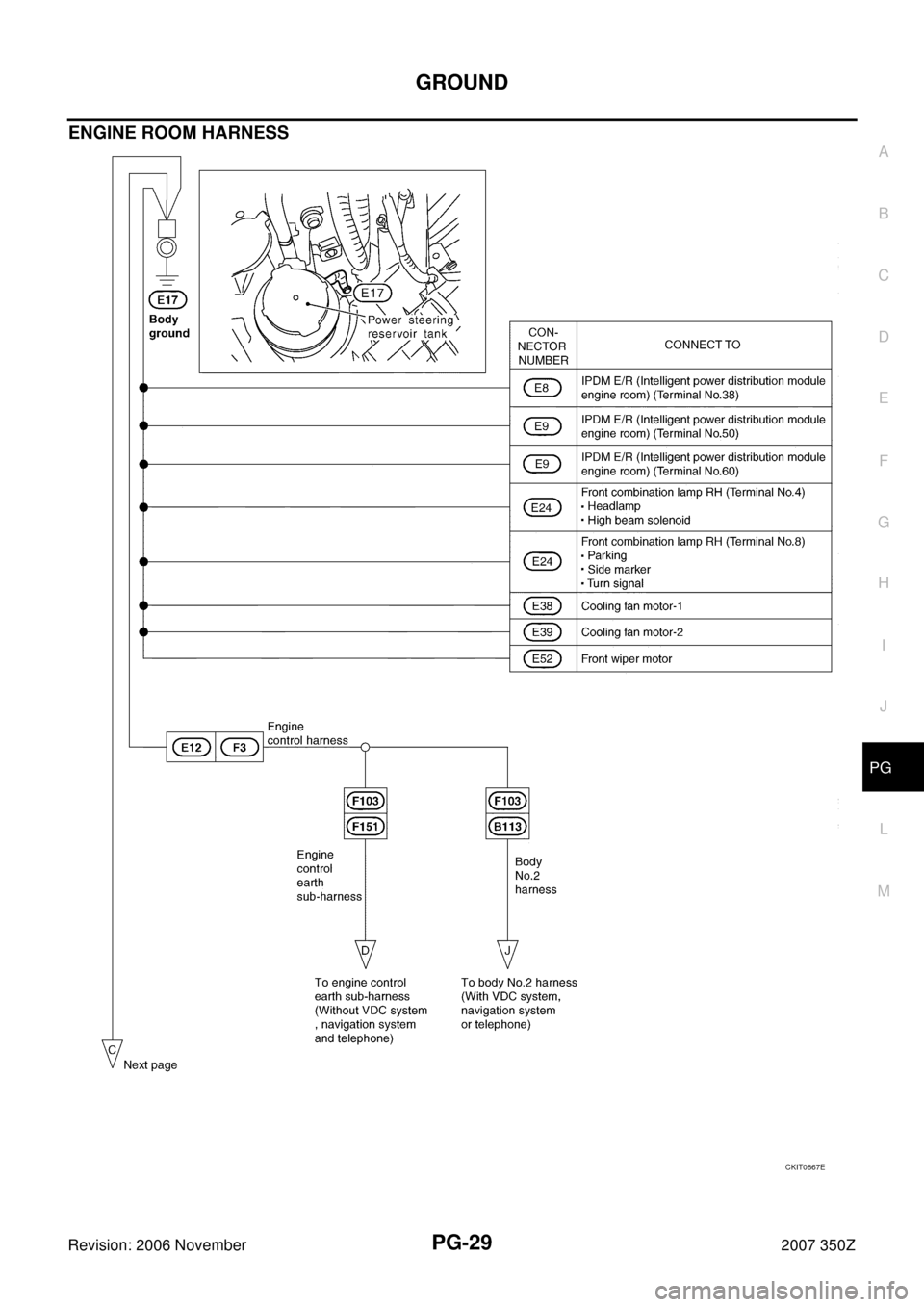

ENGINE ROOM HARNESS
CKIT0867E

PG-30
GROUND
Revision: 2006 November2007 350Z

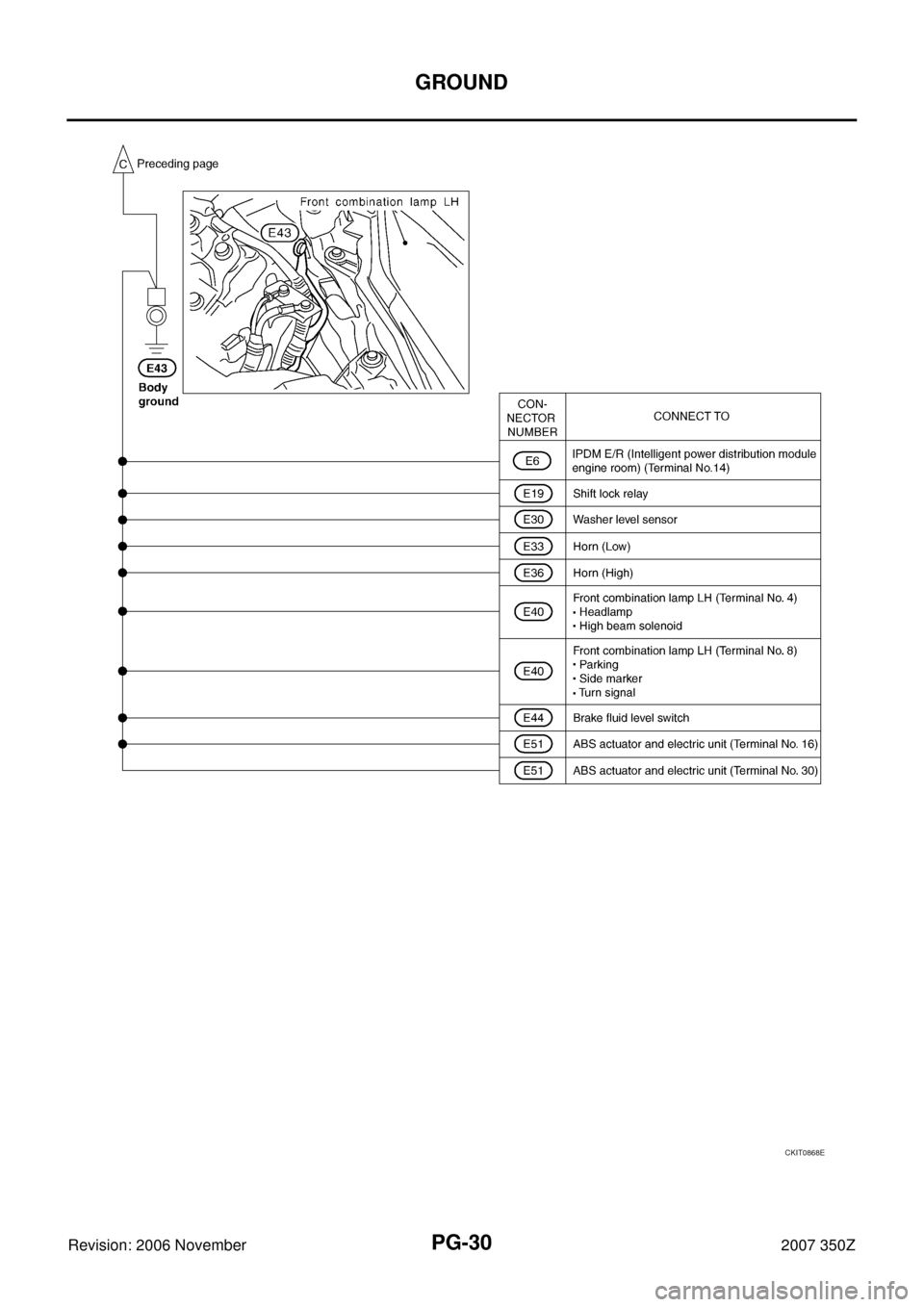

CKIT0868E

GROUND
PG-31
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2006 November2007 350Z

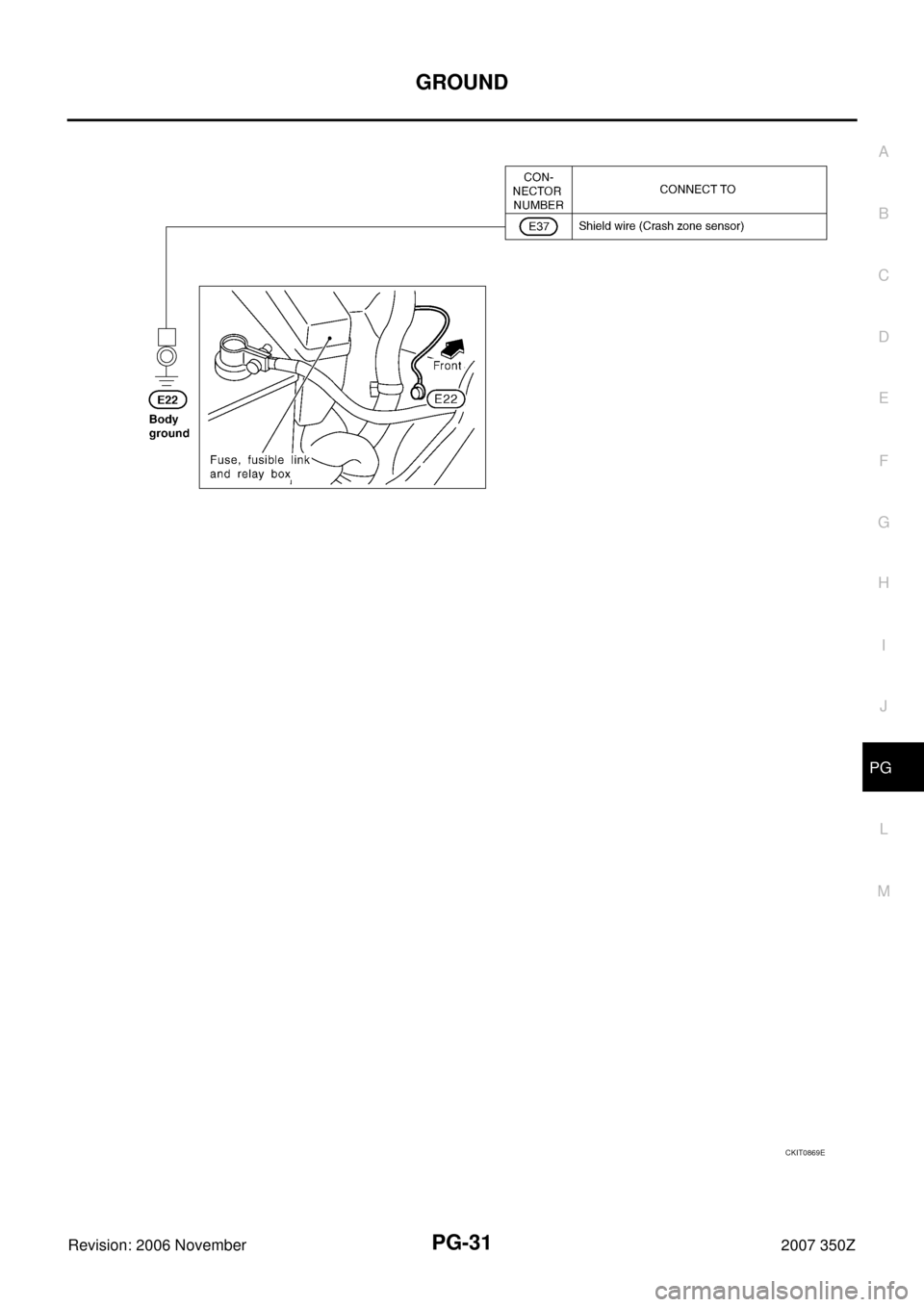

CKIT0869E

PG-32
GROUND
Revision: 2006 November2007 350Z

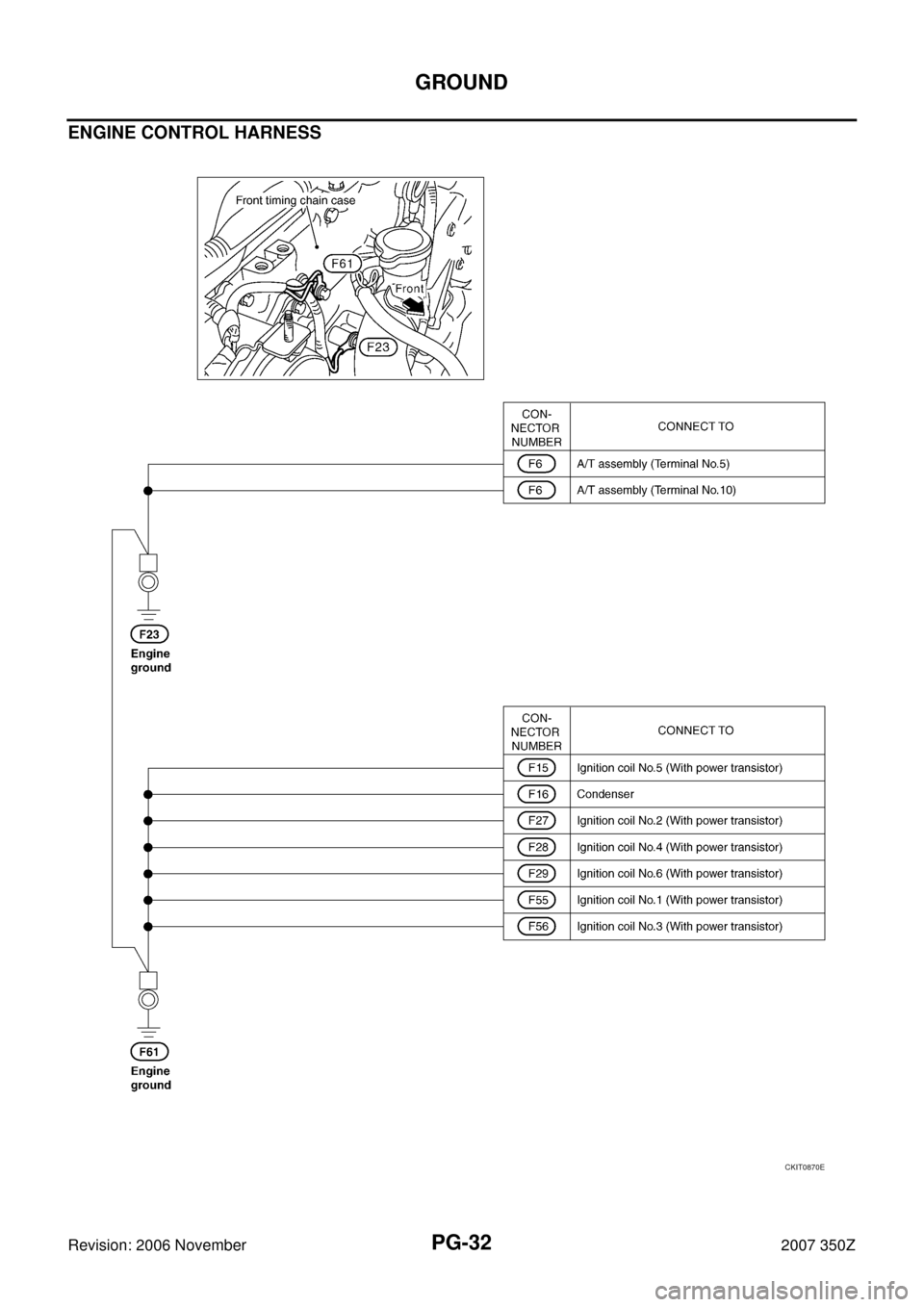

ENGINE CONTROL HARNESS
CKIT0870E
