CLUSTER LID C
Disassembly
1. Remove screws, and then triple meter.
2. Remove screws, and then instrument upper box. (Without NAVI models)
3. Remove screws, and then audio unit. Refer to AV- 4 6 , "
Removal and Installation of Audio Unit (Base sys-
tem)" ,AV- 4 6 , "Locking CD Auto Changer Mechanism (Audio unit of BOSE system)" and AV- 4 7 , "Removal
and Installation of Audio Unit (BOSE system)" .
Assembly
Assemble in the reverse order of disassembly.

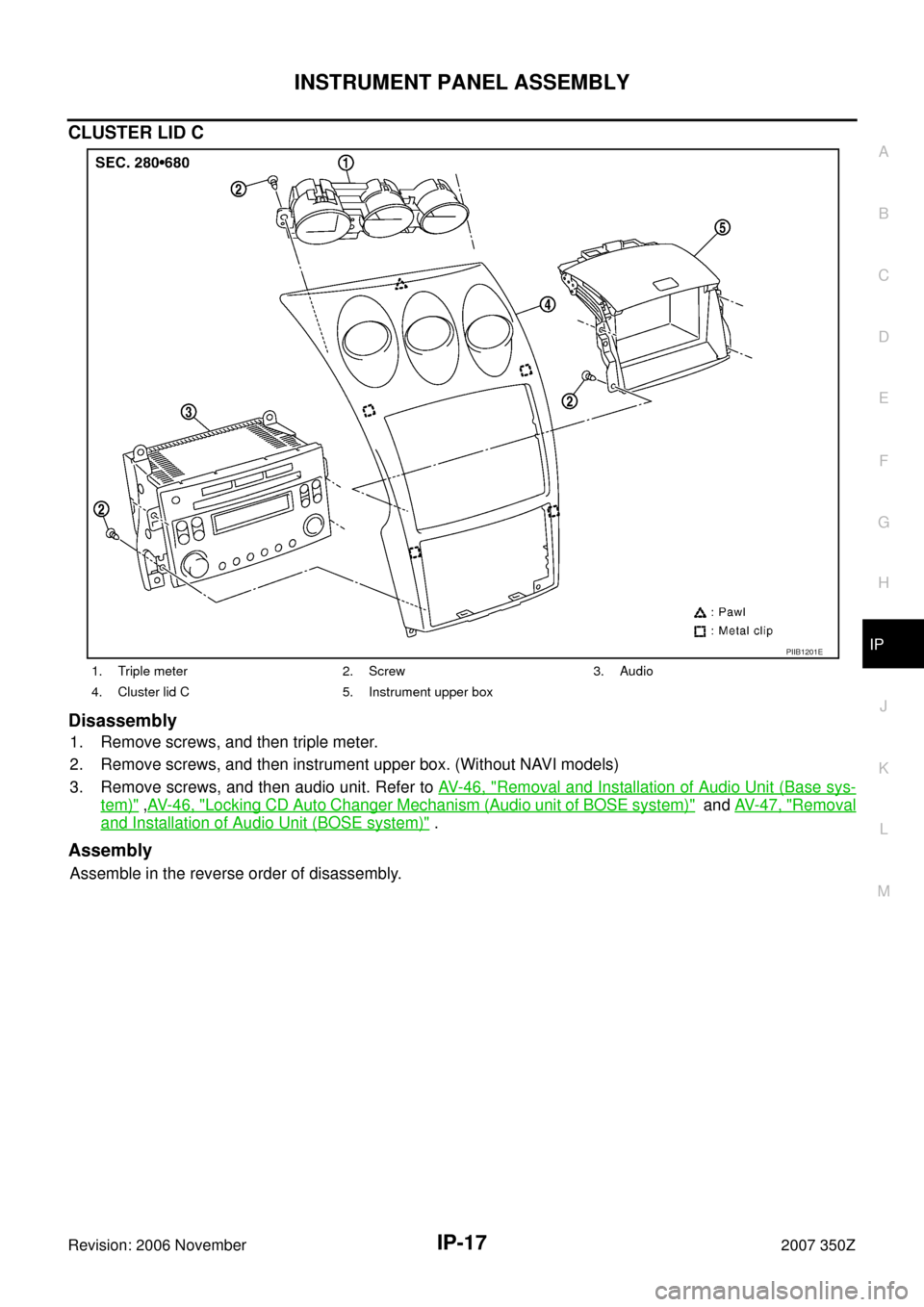

1. Triple meter 2. Screw 3. Audio
4. Cluster lid C 5. Instrument upper box
PIIB1201E
