INSTRUMENT PANEL ASSEMBLY
Revision: 2006 November2007 350Z
INSTRUMENT PANEL ASSEMBLYPFP:68200

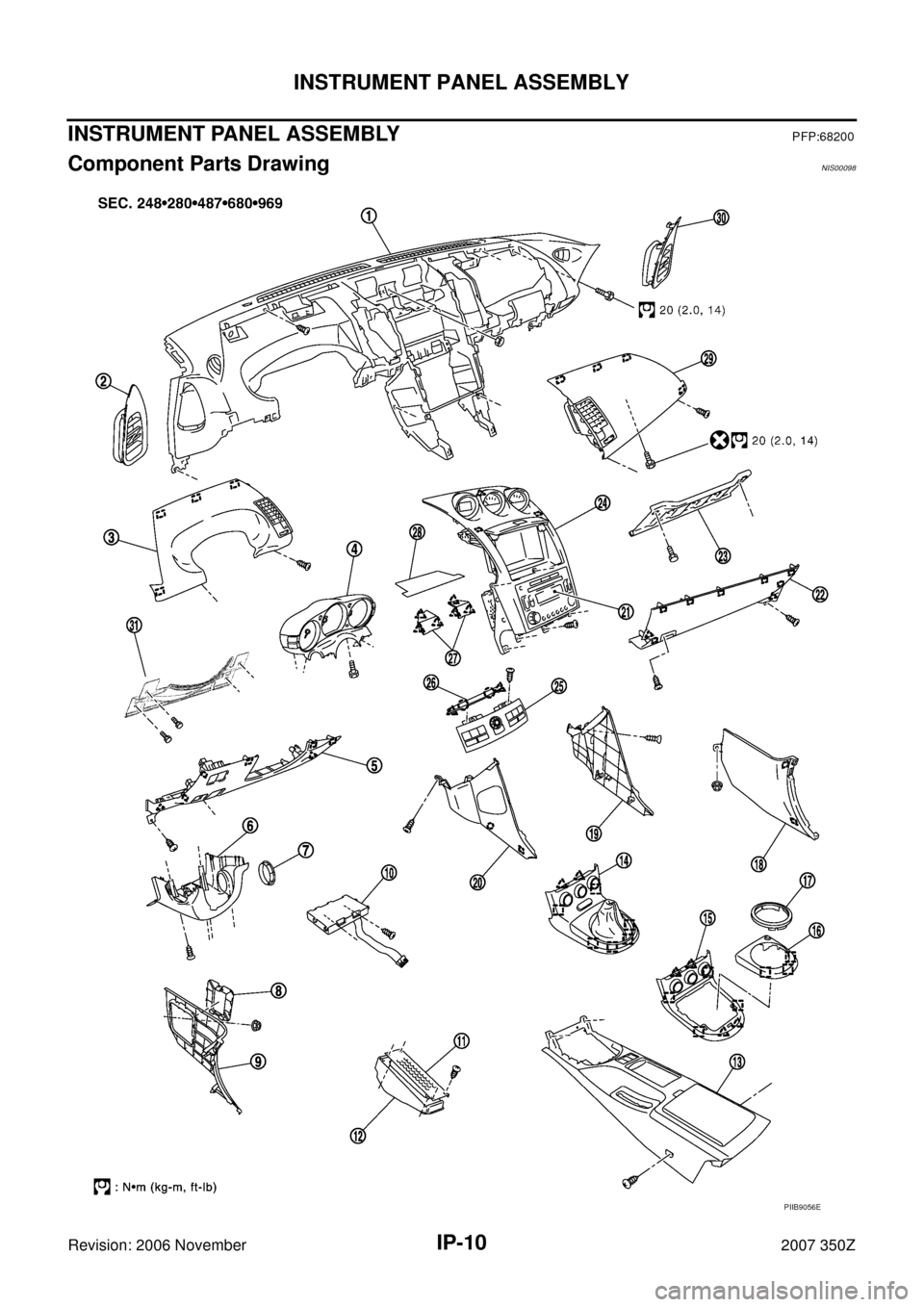

Component Parts DrawingNIS00098
PIIB9056E

INSTRUMENT PANEL ASSEMBLY
IP-11
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2006 November2007 350Z
Removal and InstallationNIS00099
WORK STEP
When removing instrument panel, combination meter, audio and console assembly, take steps in the order
shown by the numbers below.
CAUTION:

Disconnect both battery cables in advance.

Disconnect air bag system line in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.
1. Instrument panel 2. Instrument side finisher (LH) 3. Instrument driver panel upper
4. Combination meter 5. Instrument driver panel lower 6. Steering column cover
7. Steering lock escutcheon 8. Fuse cover 9. Dash side finisher (LH)
10. Unified meter and A/C amp. 11. Foot rest plate 12. Foot rest
13. Center console 14. Console boot (M/T) 15. Cluster lid C lower
16. Console finisher (A/T) 17. Console finisher (A/T ring) 18. Dash side finisher (RH)
19. Instrument side panel (RH) 20. Instrument side panel (LH) 21. Audio unit
22. Instrument passenger panel lower 23. Knee protector (RH) 24. Cluster lid C
25. NAVI switch 26. Instrument center panel 27. Instrument finisher (LH/RH)
28. Pocket mat 29. Instrument passenger panel upper 30. Instrument side finisher (RH)
31. Knee protector (LH)
Pawl Clip Metal clip
PartsReference
pageInstrument
panelCombination
meterAudio Center console
(A) Kicking plate (RH / LH)EI-35
[ 1 ] [ 1 ]
(B) Foot restEI-43
[ 2 ] [ 2 ]
(C) Dash side finisher (RH / LH)EI-35
[ 3 ] [ 3 ]
(D) Instrument driver panel lowerIP-12
[ 4 ] [ 4 ]
(E) Steering column lower coverIP-12
[ 5 ] [ 5 ]
(F) Combination meterIP-12
[ 6 ] [ 6 ]
(G) Spiral cableSRS-42
[ 7 ]
(H) Console finisher (A/T Models)IP-13
[ 8 ] [ 1 ] [ 1 ]
(I) Cluster lid C lower (A/T Models)IP-13
[ 8 ] [ 1 ] [ 1 ]
(J) Console boot (M/T Models)IP-13
[ 8 ] [ 1 ] [ 1 ]
(K)
Center console *
1IP-13[10] [ 2 ]
(L) Instrument passenger panel lowerIP-13
[11]
(M) Instrument side panel (RH / LH)IP-13
[12]
(N) Unified meter and A/C amp.IP-13
[13] [ 2 ]
(O)Instrument center panel (with NAVI
models)IP-14
[14] [ 3 ]
(P) NAVI switch (with NAVI models)IP-14
[15] [ 4 ]
(Q)
Cluster lid C*
2IP-14[16] [ 5 ]
(R) Display unit (with NAVI models)IP-14
[17]
(S) Front pillar garnish (RH / LH)EI-36
[18]
(T) Instrument driver panel upperIP-14
[19]
(U) Instrument passenger panel upperIP-14
[20]
(V) Instrument side finisher (RH)IP-14
[21]
(V) Instrument panel IP-15
[22]

IP-12
INSTRUMENT PANEL ASSEMBLY
Revision: 2006 November2007 350Z
[ ]:number indicates step in removal procedures.
NOTE:
*1: Console rear pocket and coin holder bracket assembly. Refer to IP-16, "
CENTER CONSOLE" .
*2: Audio, Instrument upper box, and triple meter assembly. Refer to IP-17, "
CLUSTER LID C" .
REMOVAL
(A) Kicking Plate (RH/LH)
Remove kicking plate (RH/LH). Refer to EI-35, "BODY SIDE TRIM" .
(B) Foot Rest
Remove foot rest. Refer to EI-43, "FLOOR TRIM" .
(C) Dash Side Finisher (RH/LH)
1. Remove plastics nut.
2. Remove dash side finisher (RH/LH).
(D) Instrument Driver Panel Lower
1. Remove screws.
2. Remove data link connector.
3. Pull to disengage metal clip by removing panel in horizontal direction.
4. Disconnect in-vehicle sensor and each electrical parts.
5. Remove the grommet, and remove hood lock cable.
(E) Steering Column Lower Cover
1. Remove screws.
2. Disengage the tab, remove only lower side. (Upper side is integrated in combination meter.)
(F) Combination Meter
After removing bolts, remove harness connector.
(G) Spiral cable
Remove bolts and remove spiral cable. Refer to SRS-42, "SPIRAL CABLE" .
PIIA2271E
PIIA2270E

INSTRUMENT PANEL ASSEMBLY
IP-13
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2006 November2007 350Z
(H) Console Finisher (A/T Models)
1. Insert a thin flat-bladed screwdriver wrapped with tape from
behind console finisher, and remove metal clip on back. Then
pull up and back to disengage from front metal clip.
2. Disconnect harness connector, and remove console finisher.
NOTE:
A/C controller is assembled in the console finisher. Therefore, when
installing and removing be careful not to use excessive force, etc.
(I) Cluster lid C lower (A/T Models)
1. Disconnect harness connector.
2. Remove metal clips and pawls, and remove cluster lid C lower.
(J) Console Boot (M/T Models)
1. Remove metal clip.
2. Remove shift knob. Refer to MT-12, "
Removal and Installation" .
3. Disconnect harness connector, and remove console boot.
NOTE:
A/C controller is assembled in the console boot. Therefore, when
installing and removing be careful not to use excessive force, etc.
(K) Center Console
1. Remove coin holder and ashtray.
2. Remove screws.
3. Remove console sub-harness.
4. After removing, disassemble each parts. Refer to IP-16, "
CENTER CONSOLE" .
NOTE:
When removing console, be careful not to pull the harness.
(L) Instrument Passenger Panel Lower
1. Remove screws and bolt.
2. Pull panel horizontally toward you and disengage from metal clip.
(M) Instrument Side Panel (RH/LH)
1. Remove screws.
2. Pull to the side, disconnect metal clips, and remove instrument side panel.
(N) Unified Meter And A/C Amp.
Remove screws, and disconnect harness connector, and remove unified meter and A/C amp. Refer to AT C -
103, "AUTO AMP" .
PIIB7174J
PIIB7175J
PIIB7386J

IP-14
INSTRUMENT PANEL ASSEMBLY
Revision: 2006 November2007 350Z
(O) Instrument Center Panel
Insert a screwdriver wrapped with tape into the gap and then remove
instrument center panel.
(P) NAVI Switch (With NAVI Models)
Remove NAVI switch. Refer to AV- 9 9 , "Removal and Installation of NAVI Switch" .
(Q) Cluster Lid C
1. Lift upward while disengaging the pawls, and pull backward to
remove the pocket mat. (Without NAVI)
2. Pull backward to remove the instrument finisher (left/right).
(Without NAVI)
3. Disengage the metal clip with the upper center pawls.
4. Remove the harness connector of the triple meter and audio unit
by pulling backward, and then remove cluster lid C.
CAUTION:
Unit is heavy, so be careful not to pinch your fingers when
working.
5. After remove cluster lid C and then remove triple meter, instru-
ment upper box and audio unit. Refer to IP-17, "
CLUSTER LID
C" .
(R) Display Unit (With NAVI Models)
Remove display unit. Refer to AV- 9 9 , "Removal and Installation of Display Unit" .
(S) Front Pillar Garnish
Pull to inside of vehicle, disconnect metal clips and remove front pillar garnish. Refer to EI-35, "BODY SIDE
TRIM" .
(T) Instrument Driver Panel Upper
1. Remove screws.
2. Disconnect metal clips, then remove instrument driver panel upper.
(U) Instrument Passenger Panel Upper
1. Remove screws.
2. Disconnect metal clips, then remove instrument passenger panel upper.
(V) Instrument Side Finisher (RH)
Using a screwdriver wrapped with tape, pry up and remove instrument side finisher.
Disconnect from metal clip and pull toward you.
PIIB7182E
PIIB7176E
PIIB7177E

INSTRUMENT PANEL ASSEMBLY
IP-15
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2006 November2007 350Z
(W) Instrument Panel
Remove bolts, nut and screws, and remove instrument panel from passenger door opening portion.
INSTALLATION
To install, reverse the removal procedure sequence.
Assemble the following three parts carefully.

IP-16
INSTRUMENT PANEL ASSEMBLY
Revision: 2006 November2007 350Z
Disassembly and AssemblyNIS0009A
CENTER CONSOLE
Disassembly
1. Remove screws, remove console body upper.
2. Remove screws, and then remove console rear pocket from console body lower.
3. Remove screws, and then remove switch bracket from console body upper.
4. Remove screws, and then remove cup holder from console body upper.
Assembly
Assemble in the reverse order of disassembly.
1. Console body upper 2. Switch bracket 3. Console body lower
4. Console rear pocket 5. Cup holder
PIIB7179J
