EC-554
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 November2007 350Z
PROCEDURE B
1. CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect cooling fan motor-1 harness connector and cooling fan motor-2 harness connector.
3. Disconnect all IPDM E/R harness connectors.
4. Check harness continuity between the following;
cooling fan motor-1 terminal 1 and IPDM E/R terminal 8,
cooling fan motor-1 terminal 4 and IPDM E/R terminal 9,
IPDM E/R terminal 14 and ground,
Refer to wiring diagram.
5. Also check harness connector for short to ground or short to power.
6. Check harness continuity between the following;
cooling fan motor-2 terminal 1 and IPDM E/R terminal 13,
cooling fan motor-2 terminal 4 and IPDM E/R terminal 12,
Refer to wiring diagram.
7. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness for open or short between cooling fan motors-1, 2 and IPDM E/R

Harness for open or short between IPDM E/R and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK COOLING FAN MOTORS
Refer to EC-556, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace malfunctioning cooling fan motors.
1. Cooling fan motor-1 2. Cooling fan motor-2
:Vehicle front
Continuity should exist.
Continuity should exist.
PBIB3509E

EC-562
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z

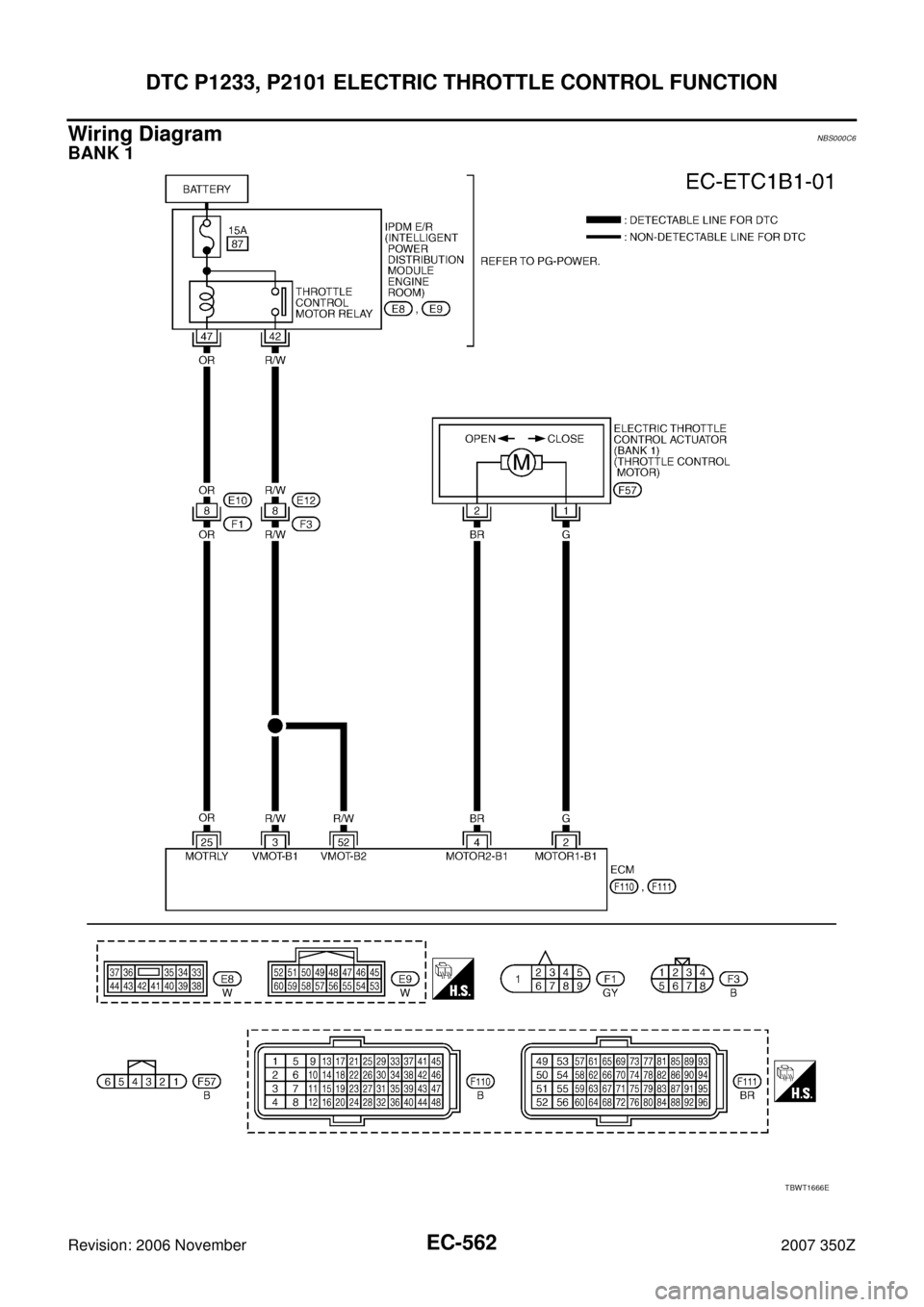

Wiring DiagramNBS000C6
BANK 1
TBWT1666E

DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
EC-567
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Check voltage between ECM terminal 25 and ground with CON-
SULT-III or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 4.
4. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E9.
3. Check continuity between ECM terminal 25 and IPDM E/R terminal 47.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E10, F1

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK FUSE
1. Disconnect 15A fuse.
2. Check 15A fuse for blown.
OK or NG
OK >> GO TO 9.
NG >> Replace 15A fuse.
7. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E8.
3. Check continuity between ECM terminal 3 (bank 1), 52 (bank 2) and IPDM E/R terminal 42.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.Voltage: Battery voltage
PBIB3579E
Continuity should exist.
Continuity should exist.

EC-568
DTC P1233, P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 November2007 350Z
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E12, F3

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-16, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness or connectors.
10. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair or replace.
1. Electric throttle control acutator
(bank 1)2. Electric throttle control acutator
(bank 2)
BankElectric throttle control
actuator terminalECM terminal Continuity
112 Should exist
4 Should not exist
22 Should not exist
4 Should exist
2149 Should not exist
50 Should exist
249 Should exist
50 Should not exist
PBIB3504E

EC-572
DTC P1236, P2118 THROTTLE CONTROL MOTOR
Revision: 2006 November2007 350Z

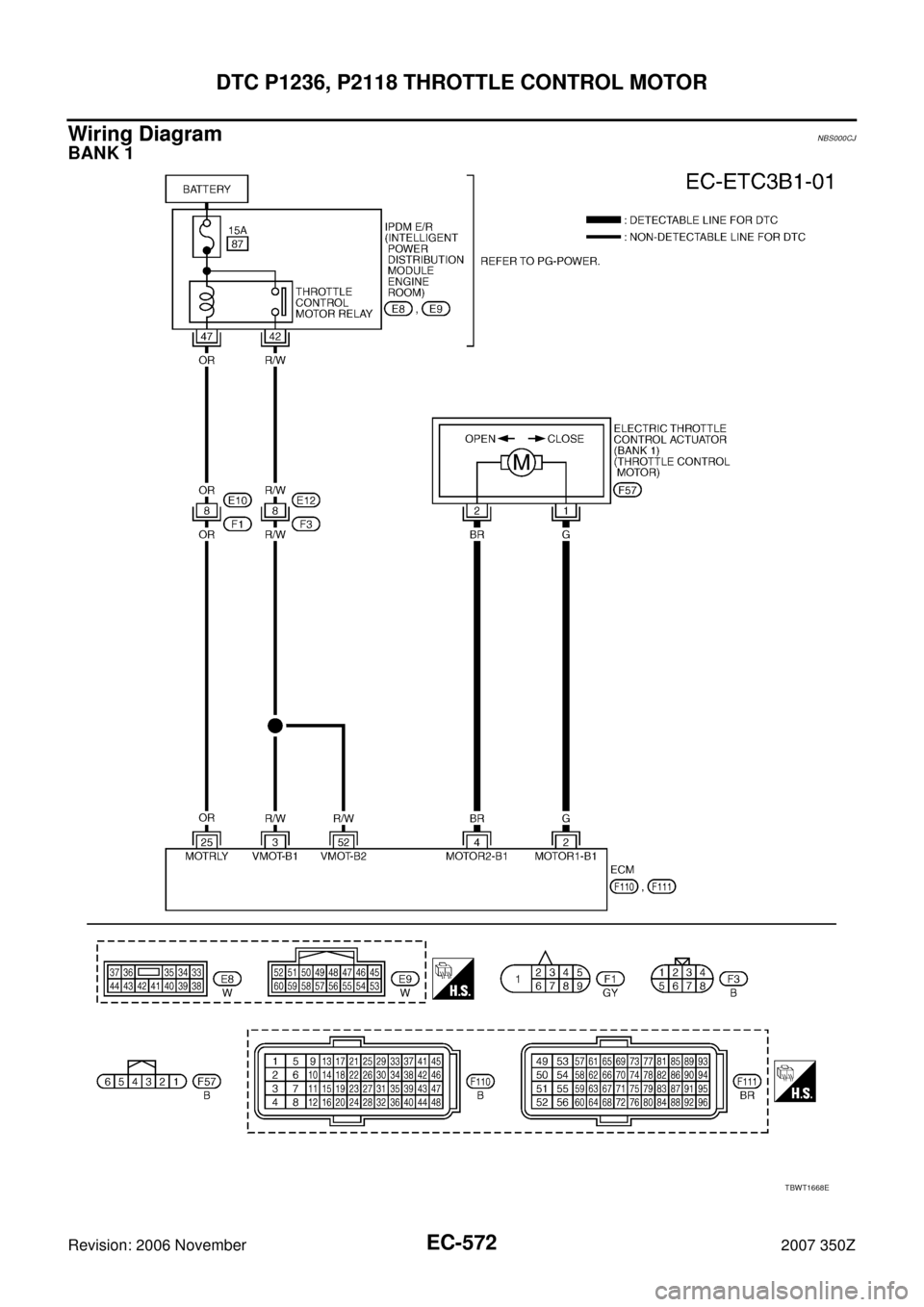

Wiring DiagramNBS000CJ
BANK 1
TBWT1668E

DTC P1236, P2118 THROTTLE CONTROL MOTOR
EC-577
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

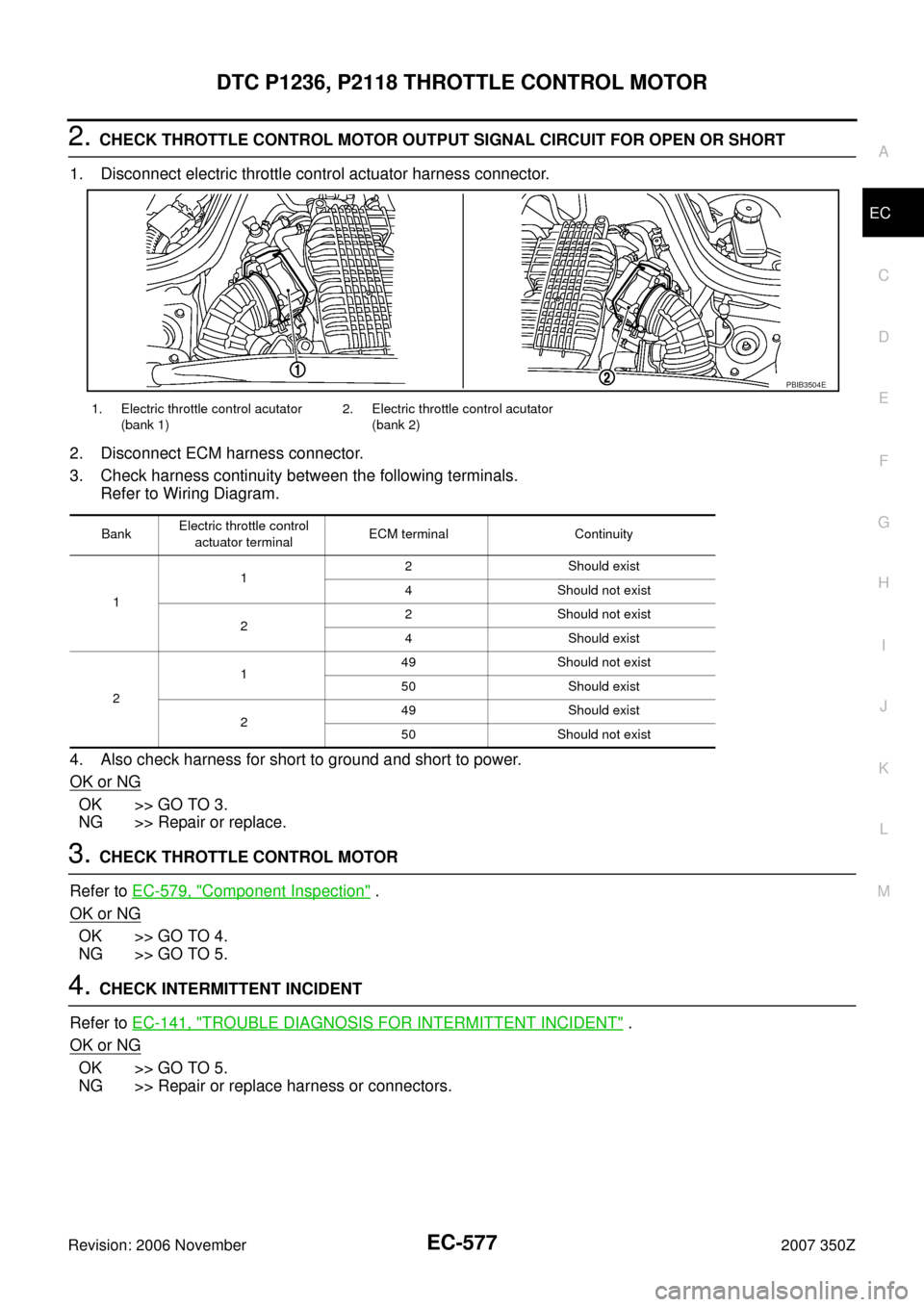

2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
3. CHECK THROTTLE CONTROL MOTOR
Refer to EC-579, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-141, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness or connectors.
1. Electric throttle control acutator
(bank 1)2. Electric throttle control acutator
(bank 2)
BankElectric throttle control
actuator terminalECM terminal Continuity
112 Should exist
4 Should not exist
22 Should not exist
4 Should exist
2149 Should not exist
50 Should exist
249 Should exist
50 Should not exist
PBIB3504E

EC-584
DTC P1239, P2135 TP SENSOR
Revision: 2006 November2007 350Z

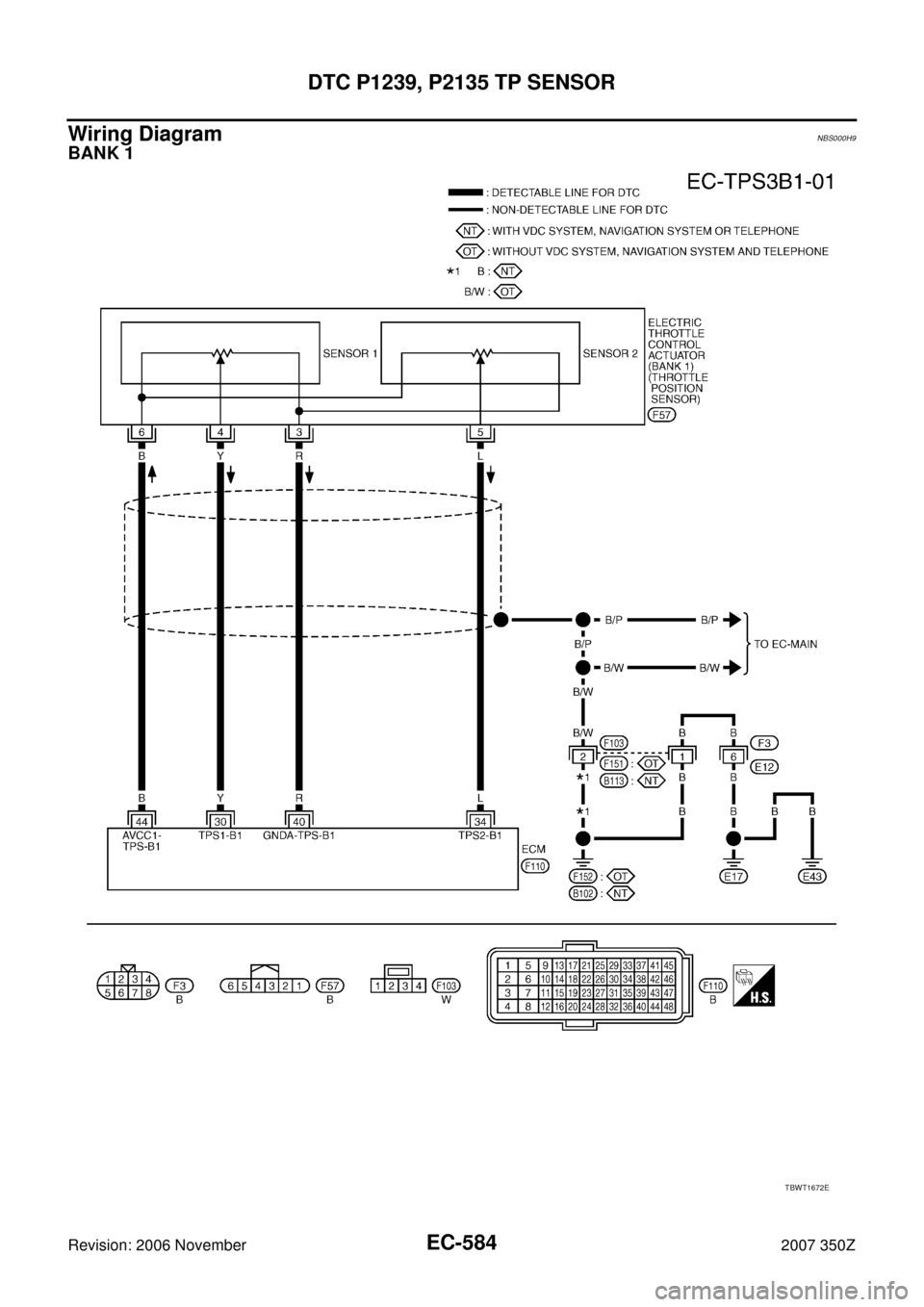

Wiring DiagramNBS000H9
BANK 1
TBWT1672E

DTC P1239, P2135 TP SENSOR
EC-589
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

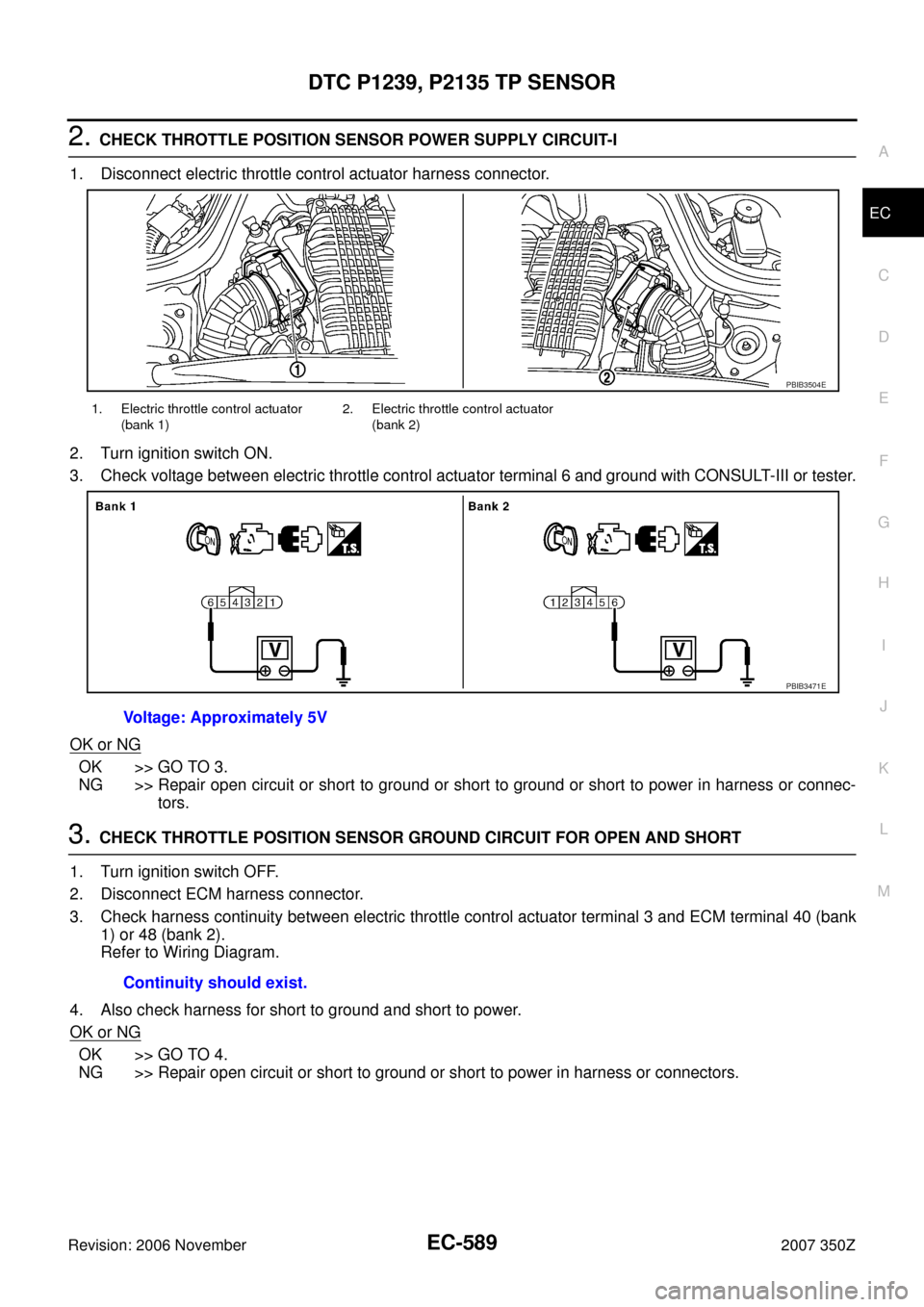

2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 6 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to ground or short to power in harness or connec-
tors.
3. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 3 and ECM terminal 40 (bank
1) or 48 (bank 2).
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Electric throttle control actuator
(bank 1)2. Electric throttle control actuator
(bank 2)
Voltage: Approximately 5V
PBIB3504E
PBIB3471E
Continuity should exist.
