2007 NISSAN 350Z Automatic Air Conditioner Workshop Manual

TROUBLE DIAGNOSIS
ATC-41

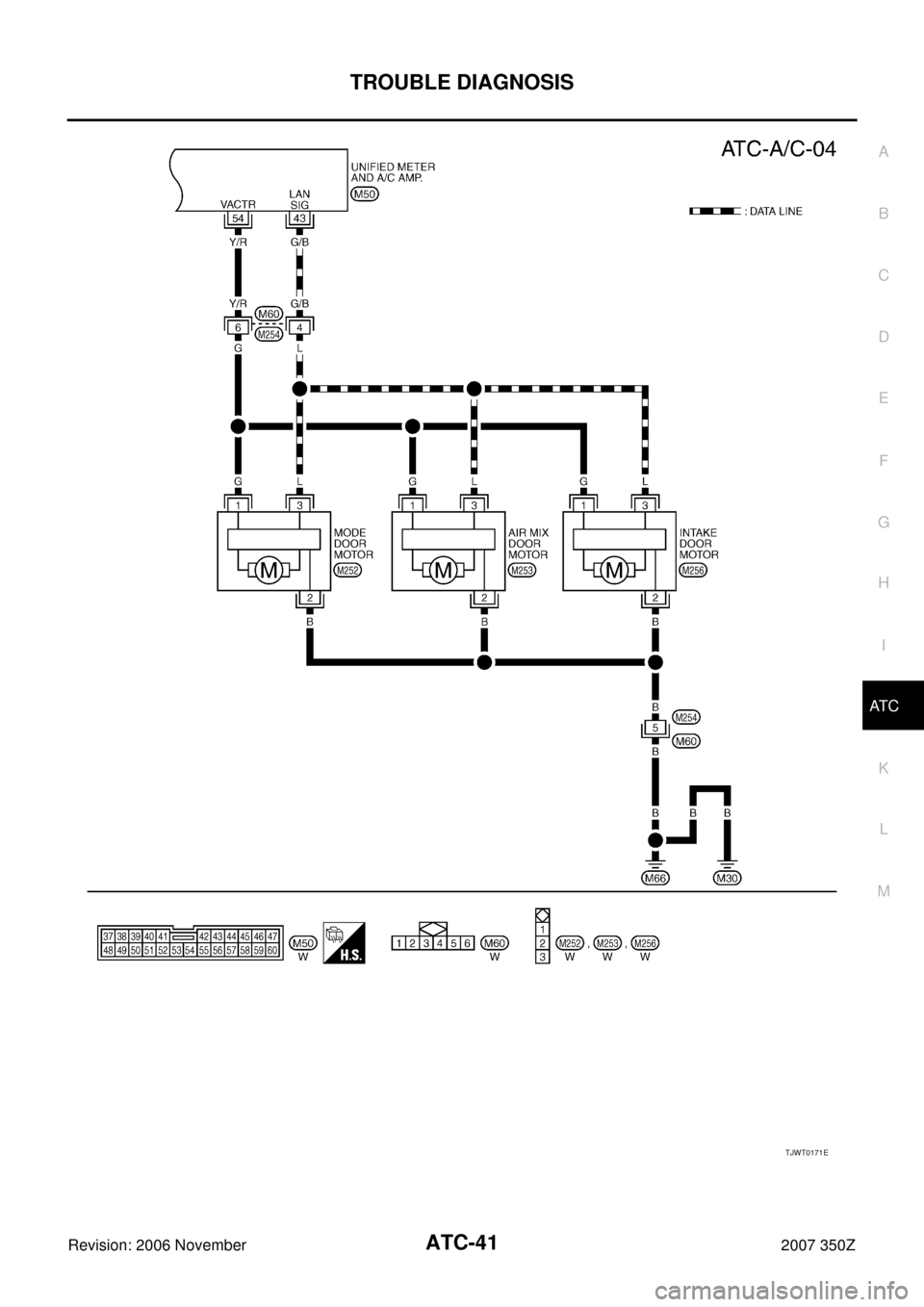

C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
TJWT0171E

ATC-42

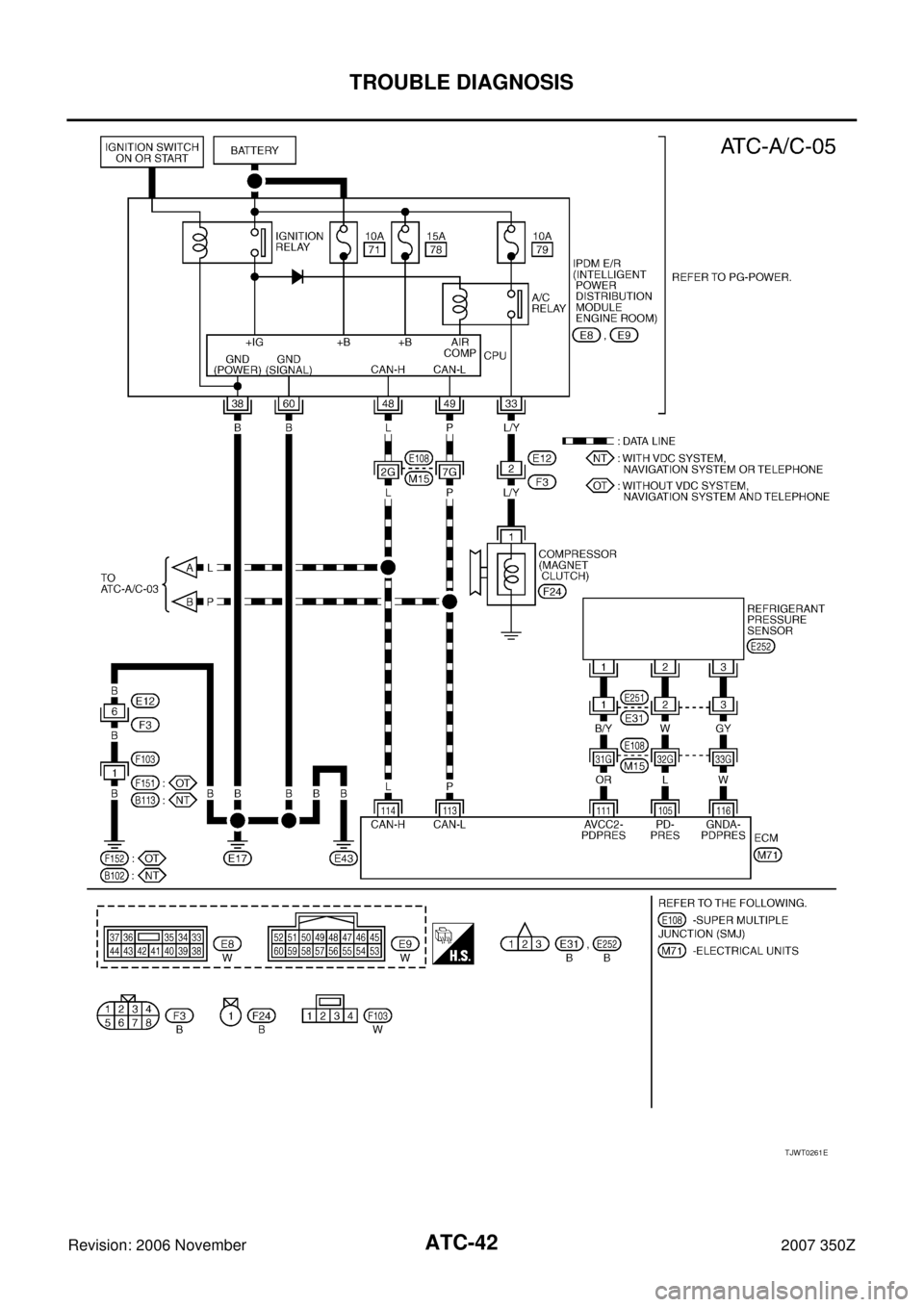

TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TJWT0261E

TROUBLE DIAGNOSIS
ATC-43
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
Auto Amp. Terminals and Reference ValueNJS0000V
Measure voltage between each terminal and ground by referring ter-
minals and reference value for unified meter and A/C amp.
PIN CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR UNIFIED METER AND A/C AMP.
RJIA1356E
RJIA1357E
Terminal
No.Wire
colorItemIgnition
switchConditionVoltage
(V)
1LCAN-H — — —
9L/ORMultiplex communication signal
(TX)—— —
11 P C A N - L — — —
19 R/GMultiplex communication signal
(RX)—— —
21 R/W Power supply from BATT OFF — Battery voltage
22 Y/G Power supply from IGN ON — Battery voltage
29 B Ground (Power) ON — Approx. 0
30 B Ground ON — Approx. 0
38 L/RRear window defogger ON sig-
nalONRear window defogger
switch is depressed.Approx. 0
Rear window defogger
switch is released.Approx. 12
39 Y Ambient sensor — — —
40 BR In-vehicle sensor — — —
41 SB Intake sensor — — —
42 G/Y Compressor ON signal ONA/C switch: ON (Blower
motor operates.)Approx. 0
A/C switch: OFF
SJIA1423J

ATC-44
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
43 G/B A/C LAN signal ON —
46 L/W Power supply from IGN2ACC or
ON— Battery voltage
49 W/L Sensor ground ON — Approx. 0
50 LG Sunload sensor — — —
53 G Blower motor control signal ONBlower speed: 1st speed
(manual)
54 Y/RPower supply for each door
motorON — Battery voltage
56 B/WRear window defogger feedback
signalONRear window defogger
switch: ONApprox. 12
Rear window defogger
switch: OFFApprox. 0
57 BR/W Blower motor ON signal ONFan control dial: ON (A/C
system operates)Approx. 0
Fan control dial: OFF Approx. 5 Terminal
No.Wire
colorItemIgnition
switchConditionVo l ta g e
(V)
SJIA1453J
SJIA1454J

TROUBLE DIAGNOSIS
ATC-45
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
Self-diagnosis FunctionNJS0000W
DESCRIPTION
The self-diagnosis system diagnoses sensors, door motors, blower motor, etc. by system line.
Self-diagnosis is STEP-1 to 7. There are two ways of changing method during self-diagnosis.

Switching to self-diagnosis STEP-1 to 4.
Shifting from normal control to the self-diagnosis system is accomplished by starting the engine (turning
the ignition switch from OFF to ON) and pressing A/C switch for at least 5 seconds. The A/C switch must
be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system will be
canceled by either pressing intake switch or turning the ignition switch OFF. Shifting to the next step is
accomplished by means of turning fan control dial, as required.

Switching to self-diagnosis STEP-5 to 7 (Auxiliary mechanism).
Shifting from normal control to the self-diagnosis system is accomplished by starting the engine (turning
the ignition switch from OFF to ON) and pressing intake switch for at least 5 seconds. The intake switch
must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This system
will be canceled by either pressing A/C switch or turning the ignition switch OFF. Shifting to the next step
is accomplished by means of turning fan control dial, as required.
SJIA1139E

ATC-46
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE (STEP-1 TO 4)
1. Set the fan control dial to OFF position.
2. Turn ignition switch ON.
3. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press A/C switch for at least 5 seconds.
NOTE:
If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower and as a
result, the system may generate an error even when operation is normal. To avoid this, start engine before
performing this diagnosis.
>> GO TO 2.
2. STEP-1: LEDS ARE CHECKED
Check intake and A/C switch LEDs illumination.
OK >> GO TO 3.
NG >> Refer to AT C - 9 1 , "
Self-diagnosis" .
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-2
1. Turn fan control dial to AUTO position.
NOTE:
When switched to STEP-2, LED of REC position blinks for
approximately 25 seconds.
2. Check A/C switch LED illumination.
Advance to self
-diagnosis STEP-2?
YES >> GO TO 4.
NO >> Replace A/C controller. (Fan control dial is malfunction-
ing.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-1
Turn fan control dial to OFF position.
Return to self
-diagnosis STEP-1?
YES >> GO TO 5.
NO >> Replace A/C controller. (Fan control dial is malfunctioning.)
S J I A 1111 E
S J I A 111 2 E

TROUBLE DIAGNOSIS
ATC-47
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
5. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
1. Turn fan control dial to AUTO position.
2. Turn mode control dial to AUTO position.
NOTE:
When switched to STEP-2, LED of REC position blinks for
approximately 25 seconds.
3. Check A/C switch LED is illuminate.
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
1. Turn fan control dial to 1st - 12th speed.
NOTE:
When switched to STEP-3, LED of REC position blinks for
approximately 50 seconds.
2. Check A/C switch LED is illuminate.
OK or NG
OK >> GO TO 7.
NG >> GO TO 10.
7. STEP-4: OPERATION OF EACH ACTUATOR IS CHECKED
1. Turn fan control dial to 13th - 25th speed.
2. Change operation status of air conditioner by changing mode
control dial position.
>> GO TO 8.
S J I A 111 3 E
S J I A 111 4 E
SJIA1133E

ATC-48
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
8. CHECK ACTUATORS
Refer to the following chart and confirm discharge air flow, air tem-
perature, blower motor duty ratio and compressor operation.
Checks must be made visually, by listening the sound, or by touching air outlets with hand, etc. for improper
operation.
*1: STEP-No. 41 to 46 are for differentiation and will not be displayed.
*2: FOOT position during automatic control. Refer to AT C - 5 1 , "
AUXILIARY MECHANISM: FOOT POSITION
SETTING TRIMMER" .
OK or NG
OK >> 1. Turn ignition switch OFF or intake switch ON.
2. INSPECTION END
NG >>

Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to AT C - 6 0 , "
Mode Door Motor Circuit" .

Intake door does not change.
Go to Intake Door Motor Circuit. Refer to AT C - 6 6 , "
Intake Door Motor Circuit" .

Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to AT C - 6 3 , "
Air Mix Door Motor Circuit" .

Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to AT C - 6 9 , "
Blower Motor Circuit" .

Magnet clutch does not engage.
Go to Magnet Clutch Circuit. Refer to AT C - 7 4 , "
Magnet Clutch Circuit" .
RJIA2110E
STEP-No. *1STEP-41 STEP-42 STEP-43 STEP-44 STEP-45 STEP-46
Mode control dial posi-
tionAUTO VENT B/LFOOT or
FOOT2D/F or D/F2 DEF
Mode door position VENT VENT2 B/L
FOOT
*2D/F DEF
Intake door position REC REC REC FRE FRE FRE
Air mix door position FULL COLD FULL COLD FULL COLD FULL HOT FULL HOT FULL HOT
Blower motor duty ratio 25% 25% 41% 57% 75% 91%
Compressor ON ON OFF OFF ON ON
