2007 NISSAN 350Z Automatic Air Conditioner Workshop Manual

TROUBLE DIAGNOSIS
ATC-33
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSISPFP:00004
CONSULT-III Function (BCM)NJS0000Q
CONSULT-III can display each diagnosis item using the diagnosis test modes shown following.
DATA MONITOR
Display Item List
System part Check item, diagnosis mode Description
BCM Data monitor Displays BCM input data in real time.
Monitor Item Condition Value/Status
IGNITION SW Ignition switch OFF → ON OFF → ON
HEATER FAN SW Ignition switch ONBlower fan motor switch ON ON
Blower fan motor switch OFF OFF
AIR COND SIG Ignition switch ONCompressor ON ON
Compressor ON OFF
AC PRESS SEN

Engine is running

Warm-up condition

Both A/C switch and blower fan motor switch: ON (Compressor
operates)1.0 - 4.0 V

ATC-34
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
How to Perform Trouble Diagnosis for Quick and Accurate RepairNJS0000R

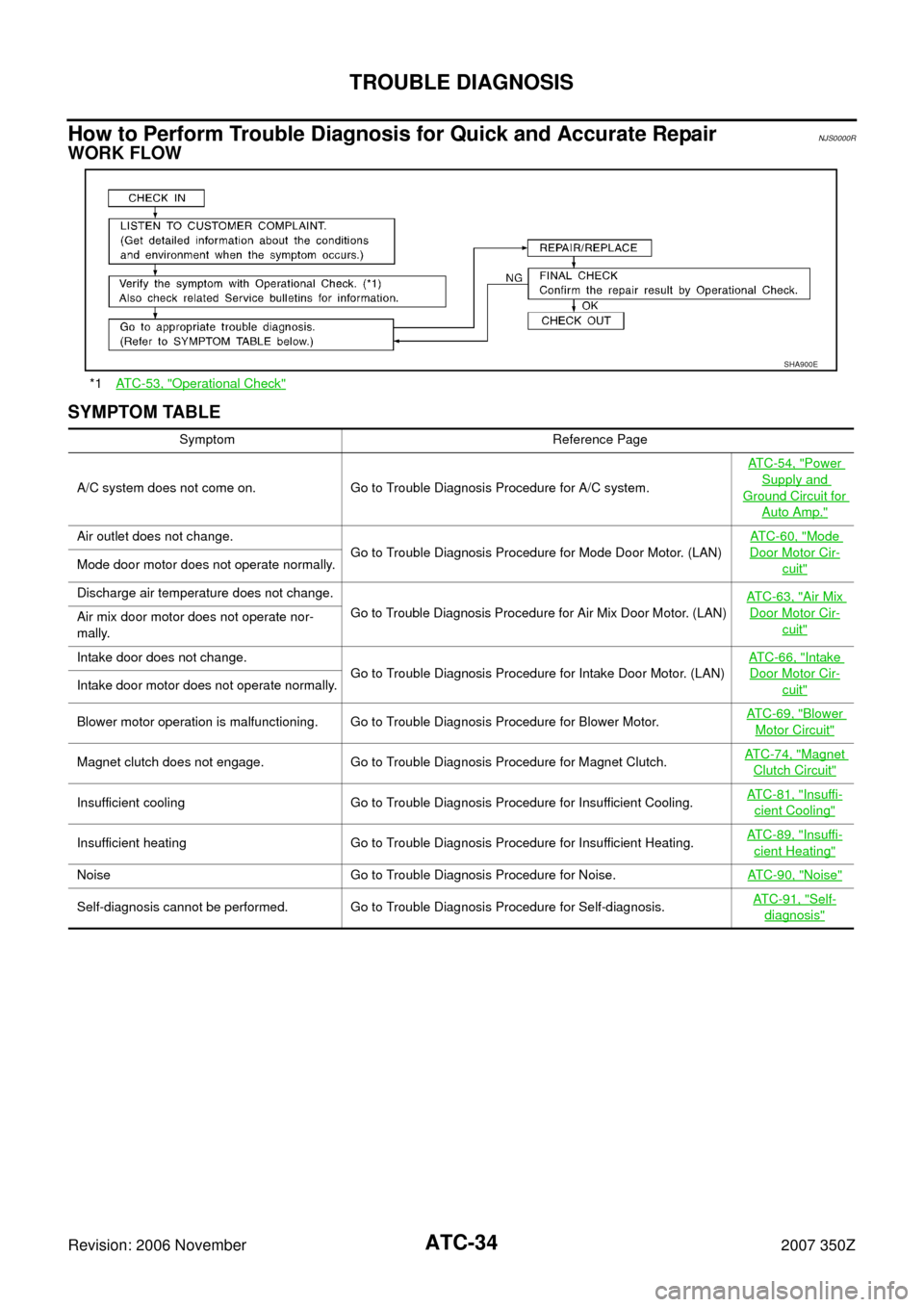

WORK FLOW
SYMPTOM TABLE
*1ATC-53, "Operational Check"
SHA900E
Symptom Reference Page
A/C system does not come on. Go to Trouble Diagnosis Procedure for A/C system.ATC-54, "
Power
Supply and
Ground Circuit for
Auto Amp."
Air outlet does not change.
Go to Trouble Diagnosis Procedure for Mode Door Motor. (LAN)ATC-60, "Mode
Door Motor Cir-
cuit"Mode door motor does not operate normally.
Discharge air temperature does not change.
Go to Trouble Diagnosis Procedure for Air Mix Door Motor. (LAN)AT C - 6 3 , "
Air Mix
Door Motor Cir-
cuit"Air mix door motor does not operate nor-
mally.
Intake door does not change.
Go to Trouble Diagnosis Procedure for Intake Door Motor. (LAN)AT C - 6 6 , "
Intake
Door Motor Cir-
cuit"Intake door motor does not operate normally.
Blower motor operation is malfunctioning. Go to Trouble Diagnosis Procedure for Blower Motor.AT C - 6 9 , "
Blower
Motor Circuit"
Magnet clutch does not engage. Go to Trouble Diagnosis Procedure for Magnet Clutch.AT C - 7 4 , "Magnet
Clutch Circuit"
Insufficient cooling Go to Trouble Diagnosis Procedure for Insufficient Cooling.ATC-81, "Insuffi-
cient Cooling"
Insufficient heating Go to Trouble Diagnosis Procedure for Insufficient Heating.ATC-89, "Insuffi-
cient Heating"
Noise Go to Trouble Diagnosis Procedure for Noise.AT C - 9 0 , "Noise"
Self-diagnosis cannot be performed. Go to Trouble Diagnosis Procedure for Self-diagnosis.AT C - 9 1 , "Self-
diagnosis"

TROUBLE DIAGNOSIS
ATC-35
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
Component Parts and Harness Connector LocationNJS0000S
ENGINE COMPARTMENT
PJIA0175E

ATC-36
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

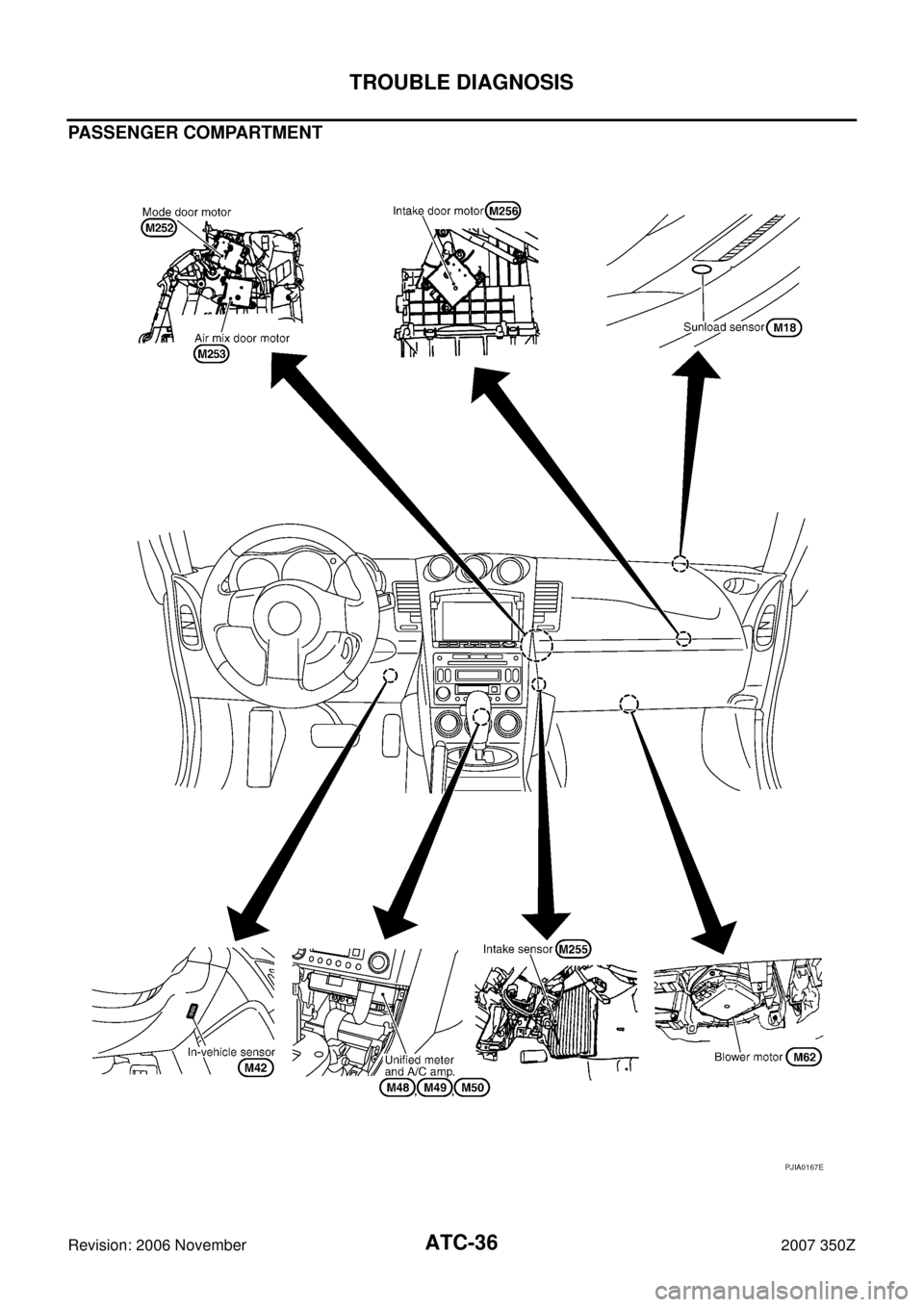

PASSENGER COMPARTMENT
PJIA0167E

TROUBLE DIAGNOSIS
ATC-37
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z

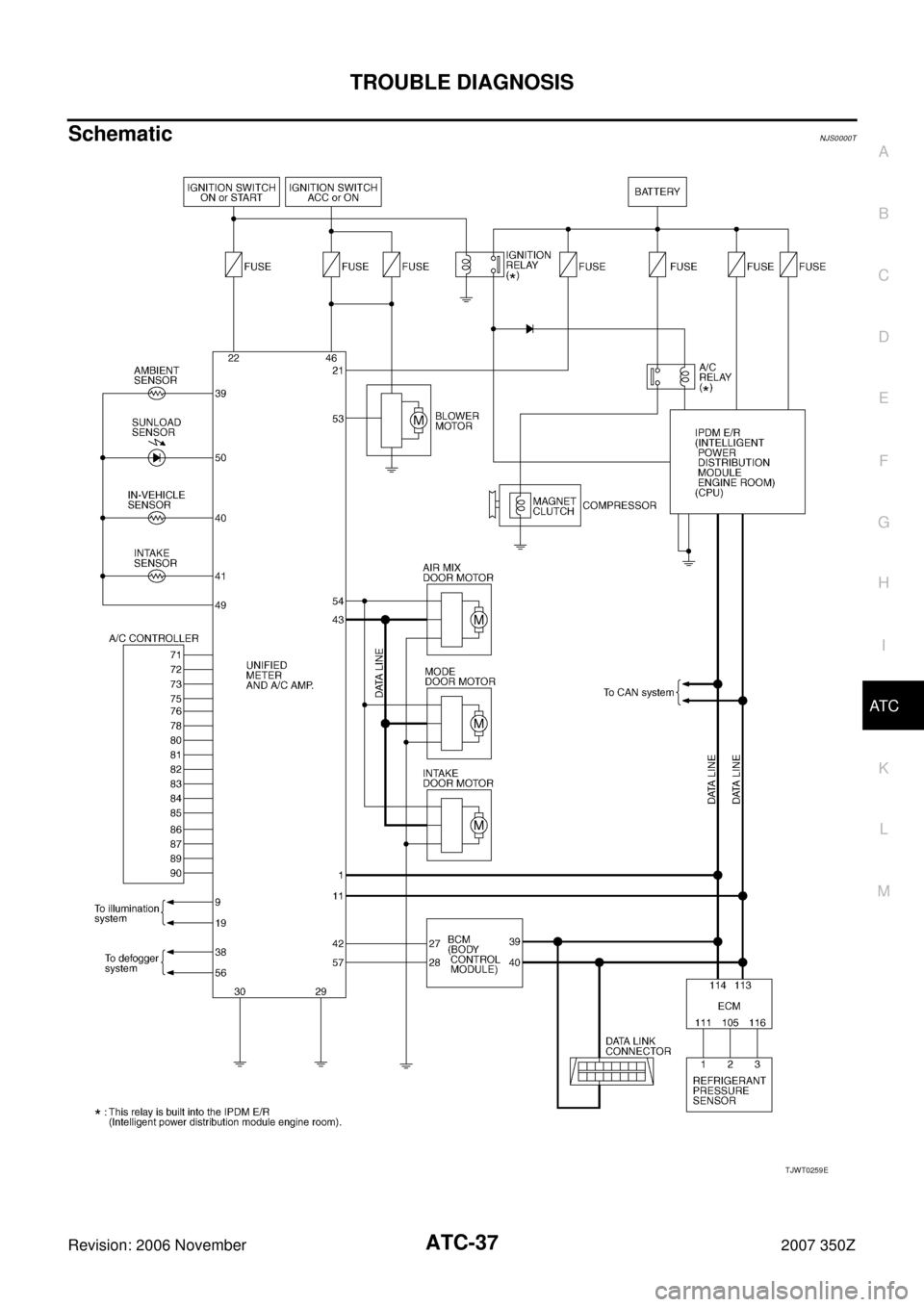

SchematicNJS0000T
TJWT0259E

ATC-38
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

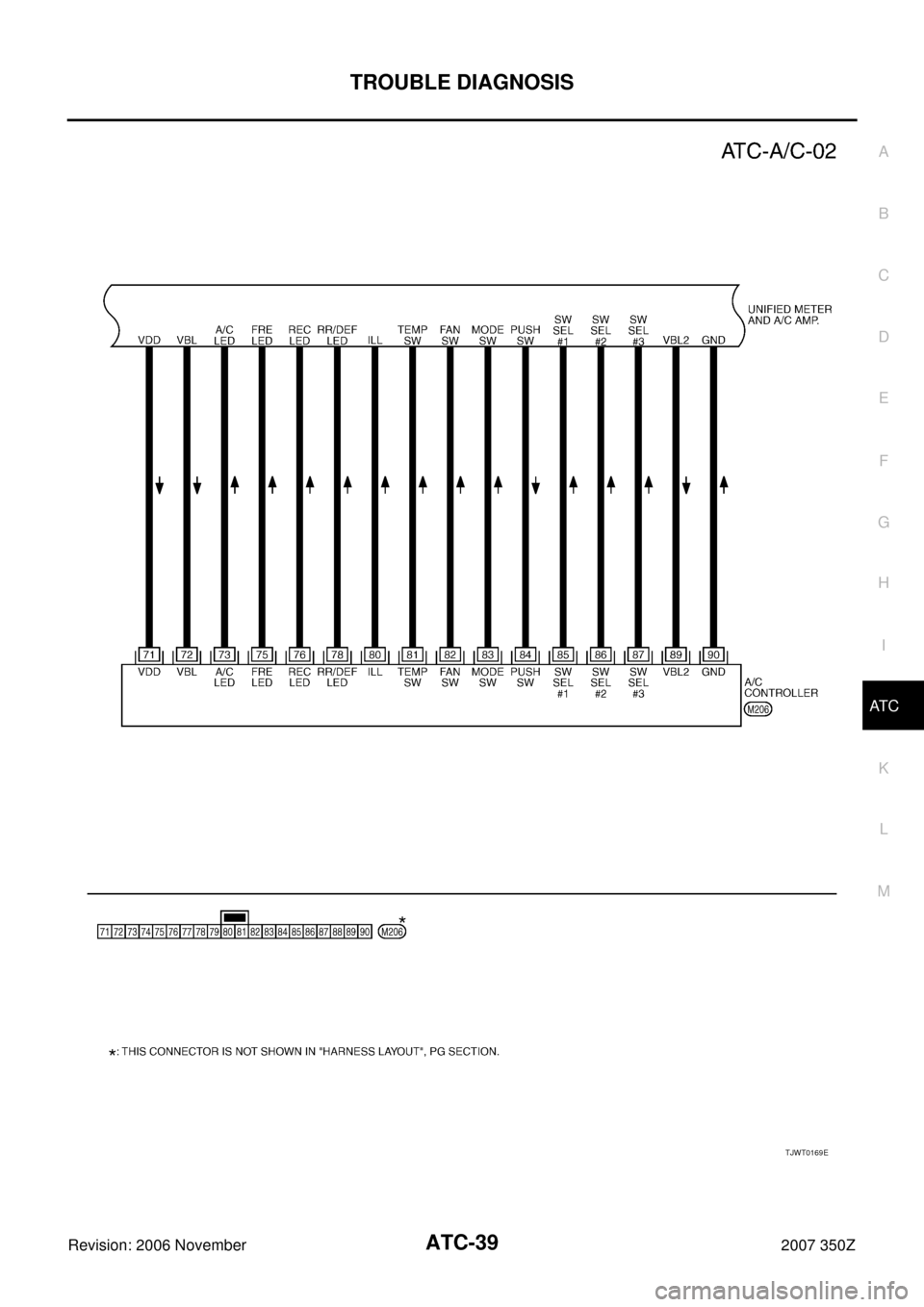

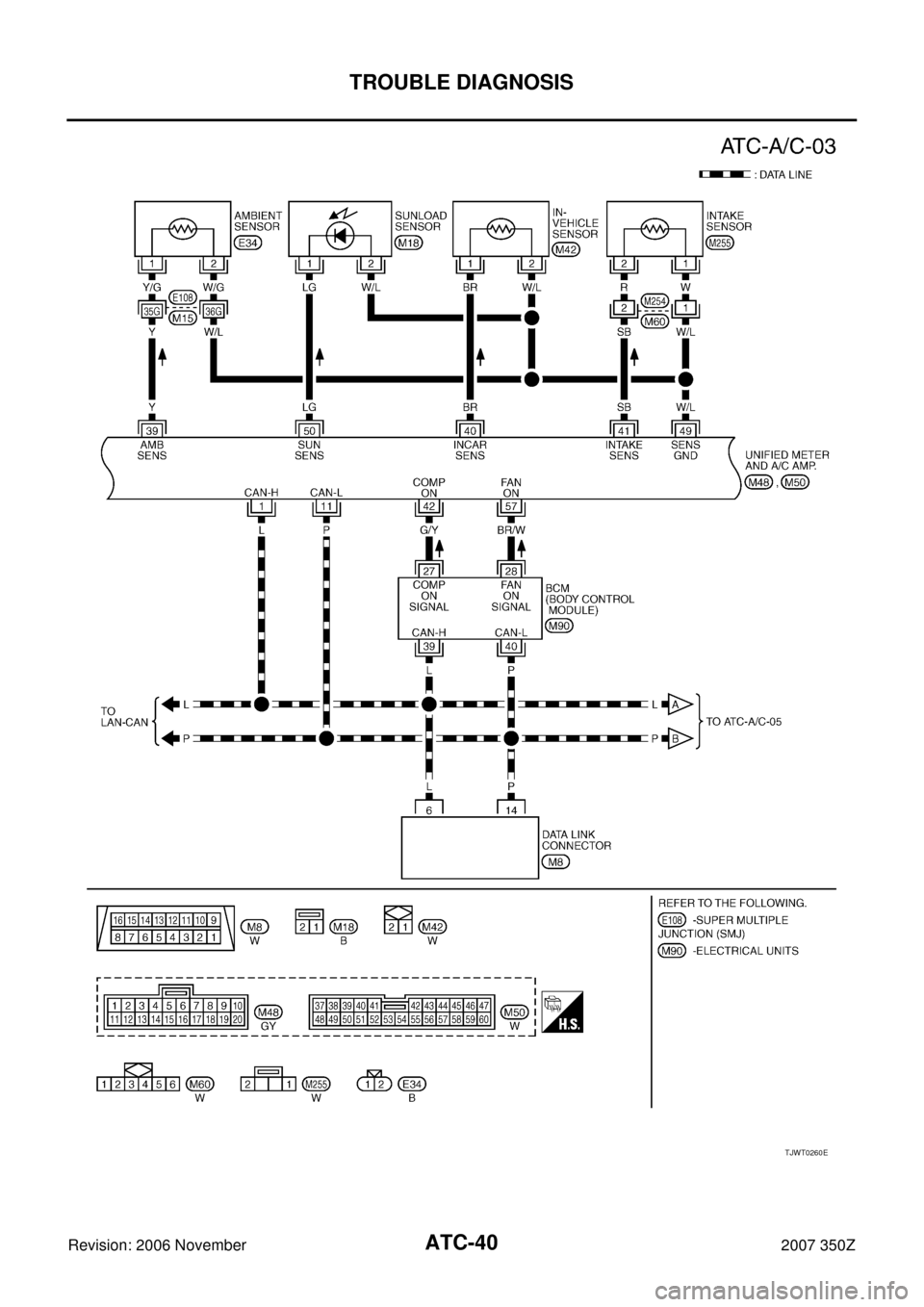

Wiring Diagram — A/C —NJS0000U
TJWT0092E

TROUBLE DIAGNOSIS
ATC-39
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z
TJWT0169E

ATC-40
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
TJWT0260E
