TROUBLE DIAGNOSIS
ATC-55
C
D
E
F
G
H
I
K
L
MA
B
AT C
Revision: 2006 November2007 350Z

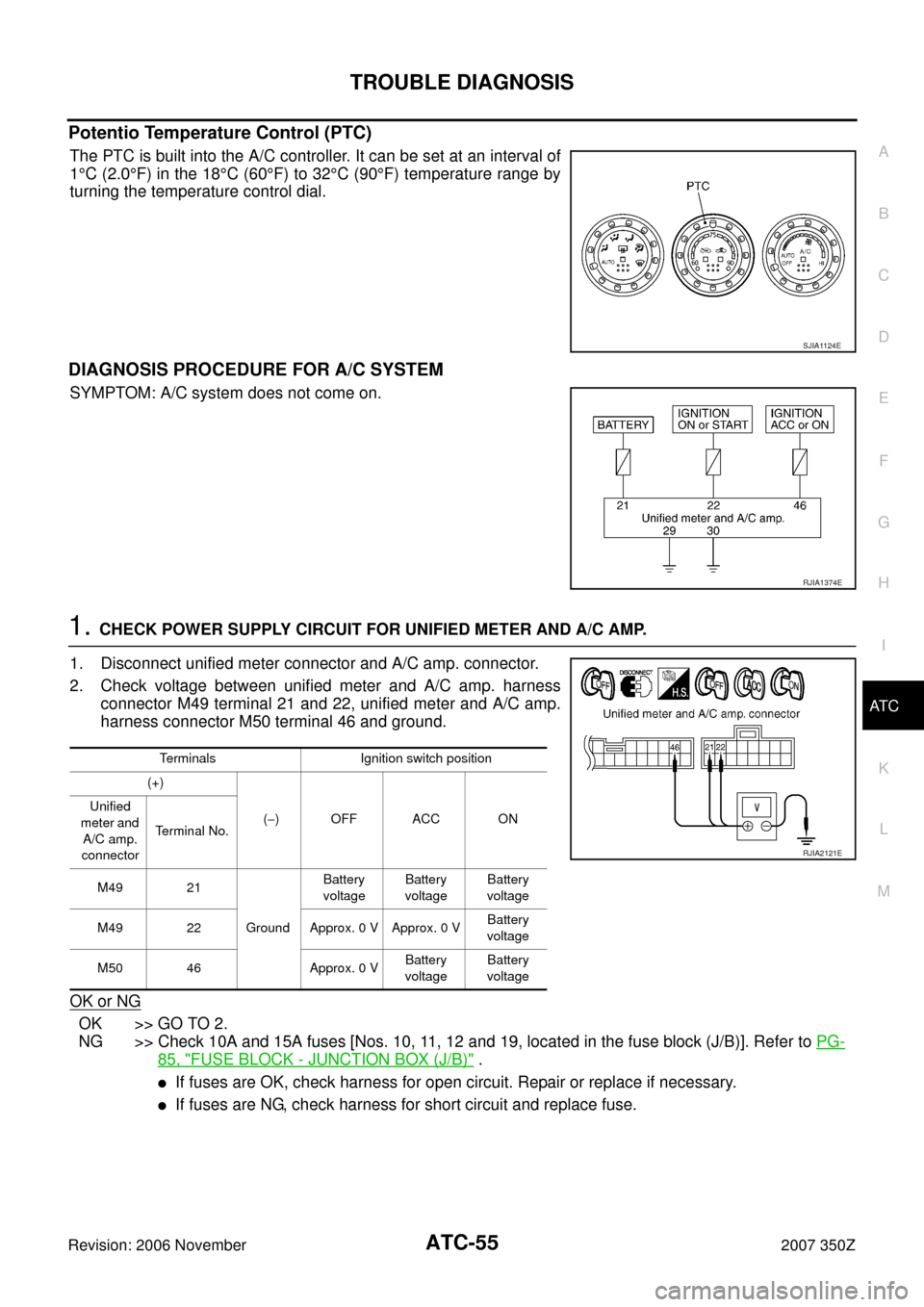

Potentio Temperature Control (PTC)
The PTC is built into the A/C controller. It can be set at an interval of
1°C (2.0°F) in the 18°C (60°F) to 32°C (90°F) temperature range by
turning the temperature control dial.
DIAGNOSIS PROCEDURE FOR A/C SYSTEM
SYMPTOM: A/C system does not come on.
1. CHECK POWER SUPPLY CIRCUIT FOR UNIFIED METER AND A/C AMP.
1. Disconnect unified meter connector and A/C amp. connector.
2. Check voltage between unified meter and A/C amp. harness
connector M49 terminal 21 and 22, unified meter and A/C amp.
harness connector M50 terminal 46 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check 10A and 15A fuses [Nos. 10, 11, 12 and 19, located in the fuse block (J/B)]. Refer to PG-
85, "FUSE BLOCK - JUNCTION BOX (J/B)" .
If fuses are OK, check harness for open circuit. Repair or replace if necessary.
If fuses are NG, check harness for short circuit and replace fuse.
SJIA1124E
RJIA1374E
Terminals Ignition switch position
(+)
(−)OFF ACC ON Unified
meter and
A/C amp.
connectorTerminal No.
M49 21
GroundBattery
voltageBattery
voltageBattery
voltage
M49 22 Approx. 0 V Approx. 0 VBattery
voltage
M50 46 Approx. 0 VBattery
voltageBattery
voltage
RJIA2121E
ATC-72
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z

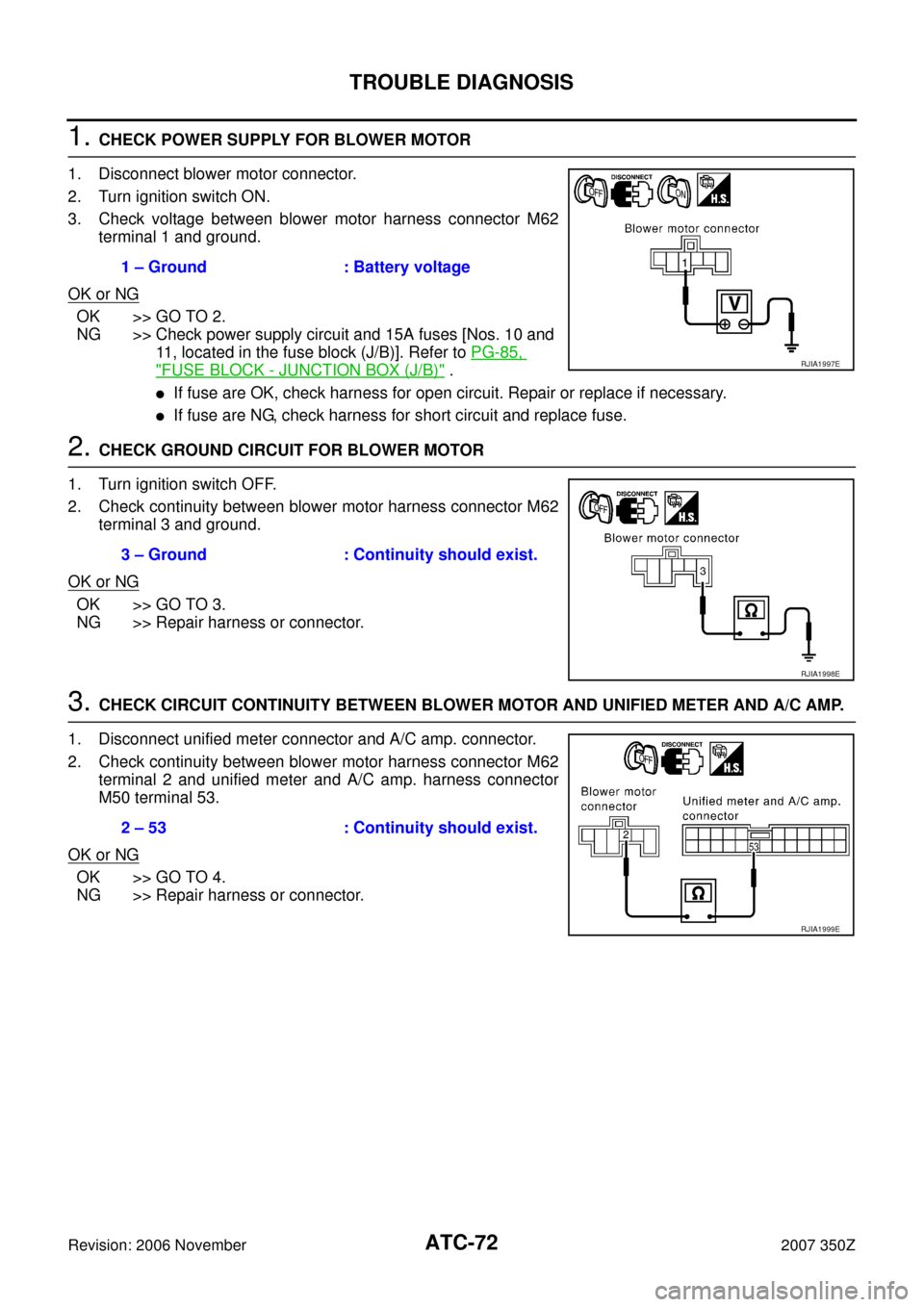

1. CHECK POWER SUPPLY FOR BLOWER MOTOR
1. Disconnect blower motor connector.
2. Turn ignition switch ON.
3. Check voltage between blower motor harness connector M62
terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check power supply circuit and 15A fuses [Nos. 10 and
11, located in the fuse block (J/B)]. Refer to PG-85,
"FUSE BLOCK - JUNCTION BOX (J/B)" .
If fuse are OK, check harness for open circuit. Repair or replace if necessary.
If fuse are NG, check harness for short circuit and replace fuse.
2. CHECK GROUND CIRCUIT FOR BLOWER MOTOR
1. Turn ignition switch OFF.
2. Check continuity between blower motor harness connector M62
terminal 3 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK CIRCUIT CONTINUITY BETWEEN BLOWER MOTOR AND UNIFIED METER AND A/C AMP.
1. Disconnect unified meter connector and A/C amp. connector.
2. Check continuity between blower motor harness connector M62
terminal 2 and unified meter and A/C amp. harness connector
M50 terminal 53.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.1 – Ground : Battery voltage
RJIA1997E
3 – Ground : Continuity should exist.
RJIA1998E
2 – 53 : Continuity should exist.
RJIA1999E
