376 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed,
manufactured or selected for and adapted
to Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s
durability or safety.

377 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts and
Vermont1 Emission Control System
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Spare Parts
and Accessories warranties, copies of
which are available at any Mercedes-Benz
Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.
1At time of printing, the decision regarding compli-
ance with Vermont certification regulations was
still pending. The vehicle may not be permitted to
be registered in Vermont. Check with an
authorized Mercedes-Benz Center for details.

378 Technical data
Identification labels
1Vehicle certification label with Vehicle
Identification Number
2Product option code plate with paint
number
The vehicle certification plate with the Ve-
hicle Identification Number and the vehicle
identification plate (certification plate)
with the paint number are located on the
A-pillar on the driver’s side.
The Vehicle Identification Number is locat-
ed on the driver’s side in the bottom corner
of the windshield.3Vehicle Identification Number
4Vacuum line routing diagram label
5Emission control information label,
includes both federal and California
certification exhaust emission
standards
Engine number
The engine number is engraved on the un-
derside of the engine and can only be read
after removing the casing on the bottom of
the engine.
There is also a plate on the left-hand side
of the engine cover.
iWhen ordering parts, please specify vehicle
identification and engine numbers.

379 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
The SLR has two poly-V-belts (belt one
shown in purple/belt two shown in black).
1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Idler pulley
6Crankshaft
7Coolant pump
8Generator (alternator)
9Idler pulley
aAutomatic belt tensioner
bSupercharger

380 Technical data
Engine
ModelMercedes-Benz SLR McLaren
(199.376)1
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
Mercedes-Benz SLR McLaren 722 Edition
(199.376)1
Engine155155
Mode of operation4-stroke engine, gasoline injection4-stroke engine, gasoline injection
No. of cylinders88
Bore3.82 in (97.00 mm)3.82 in (97.00 mm)
Stroke3.60 in (92.00 mm)3.60 in (92.00 mm)
Total piston displacement331.8 cu in (5439 cm3)331.8 cu in (5439 cm3)
Compression ratio8.8:18.8:1
Output acc. to SAE J 1349617 hp/6500 rpm2
(460 kW/6500 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.
641 hp/6500 rpm2
(478 kW/6500 rpm)
Maximum torque acc. to SAE J 1349575 lb-ft/3250-5000 rpm
(780 Nm/3250-5000 rpm)605 lb-ft/4000 rpm
(820 Nm/4000 rpm)
Maximum engine speed7000 rpm7000 rpm
Firing order1-5-4-2-6-3-7-81-5-4-2-6-3-7-8
Poly-V-belt2415 mm/1244 mm2415 mm/1244 mm

381 Technical data
Rims and tires
Rims and tires
!For safety reasons, only use tires and rims
which have been tested and approved by
Mercedes-Benz for use on SLR vehicles. Tires
approved by Mercedes-Benz are developed to
provide best possible performance in conjunc-
tion with the driving safety systems on your
vehicle such as ABS or ESP
®.
!Using tires and rims other than those ap-
proved by Mercedes-Benz can have detrimental
effects, such as

Poor handling characteristics

Increased noise

Increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
This may result in damage to the tires or the
vehicle.
iFurther information on tires and rims is
available at any authorized Mercedes-Benz Cen-
ter. A placard with the recommended tire infla-
tion pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire pressure information for driving at high
speeds (
page 268) or for vehicle loads less
than the maximum loaded vehicle condition. If
such information is provided, it can be found on
the placard located on the inside of the fuel filler
flap. The tire pressure should be checked regu-
larly and should only be adjusted on cold tires.
Follow tire manufacturer’s maintenance
recommendation included with vehicle.

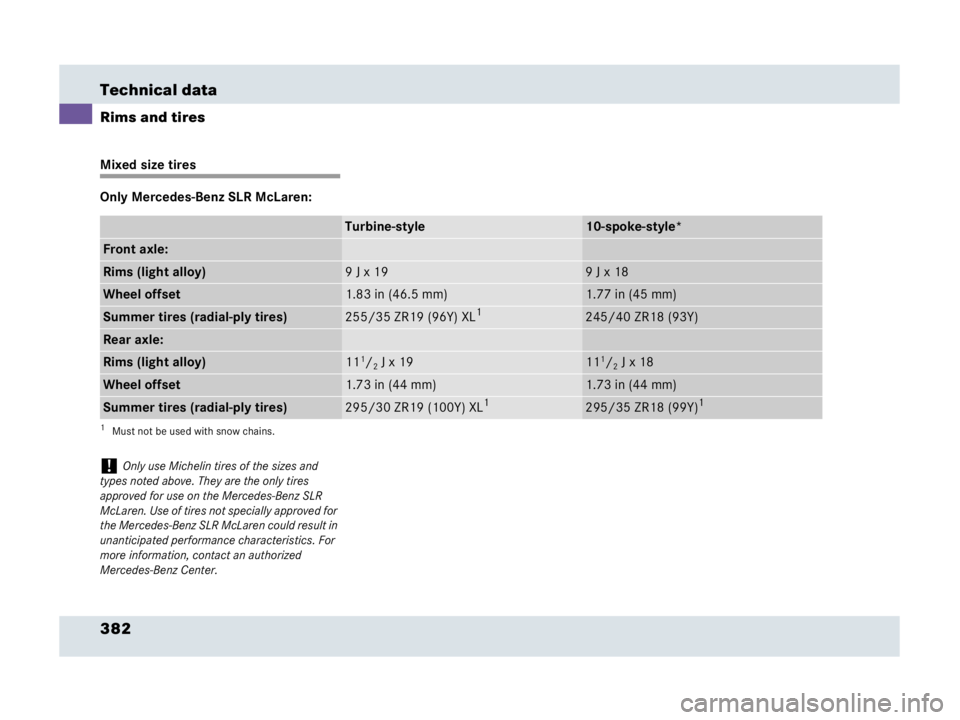

382 Technical data
Rims and tires
Mixed size tires
Only Mercedes-Benz SLR McLaren:
Turbine-style10-spoke-style*
Front axle:
Rims (light alloy)9 J x 199 J x 18
Wheel offset1.83 in (46.5 mm)1.77 in (45 mm)
Summer tires (radial-ply tires)255/35 ZR19 (96Y) XL1245/40 ZR18 (93Y)
Rear axle:
Rims (light alloy)111/2 J x 19111/2 J x 18
Wheel offset1.73 in (44 mm)1.73 in (44 mm)
Summer tires (radial-ply tires)295/30 ZR19 (100Y) XL1295/35 ZR18 (99Y)1
1Must not be used with snow chains.
!Only use Michelin tires of the sizes and
types noted above. They are the only tires
approved for use on the Mercedes-Benz SLR
McLaren. Use of tires not specially approved for
the Mercedes-Benz SLR McLaren could result in
unanticipated performance characteristics. For
more information, contact an authorized
Mercedes-Benz Center.

383 Technical data
Rims and tires
Only Mercedes-Benz SLR McLaren
722 Edition:
Lightweight-style
Front axle:
Rims (light alloy)9 J x 19
Wheel offset1.83 in (46.5 mm)
Summer tires (radial-ply tires)255/35 ZR19 (96Y) XL1
Rear axle:
Rims (light alloy)111/2 J x 19
Wheel offset1.73 in (44 mm)
Summer tires (radial-ply tires)295/30 ZR19 (100Y) XL1
1Must not be used with snow chains.
!Only use Michelin tires of the sizes and
types noted above. They are the only tires
approved for use on the Mercedes-Benz SLR
McLaren 722 Edition. Use of tires not specially
approved for the Mercedes-Benz SLR McLaren
722 Edition could result in unanticipated perfor-
mance characteristics. For more information,
contact an authorized Mercedes-Benz Center.
