56 Getting started
Parking and locking
Pull parking brake lever1 up a s m a ny
notches as possible.
When the engine is running, the
warning lamp; (USA only)
or3(Canada only) in the
instrument cluster comes on.
Switching off headlamps
Turn the exterior lamp switch
toM(
page 51).
For more information on headlamps, see
“Lighting” (
page 106).
Turning off the engine
Place the gear selector lever in
positionP.
Turn the SmartKey in the starter switch
to position0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.
Releasing seat belts
Press the seat belt release button
(
page 46).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from park
positionP, either of which could result in an
accident and/or serious personal injury.
Warning!G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in park
positionP is dangerous. Also, when parked
on an incline, park positionP alone may not
prevent your vehicle from moving, possibly
hitting people or objects.
Always set the parking brake in addition to
shifting to park positionP (
page 48).
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addition to
shifting automatic transmission to park
positionP.
When parked on an incline, turn front wheels
towards the road curb.
iThe SmartKey can only be removed from the
starter switch with the gear selector lever in park
positionP.

57 Getting started
Parking and locking
Locking
Exit the vehicle and close all doors.
Press the lock button‹ on the
SmartKey (
page 38).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The anti-theft alarm system is
armed.
For more information, see “Locking and
unlocking” (
page 98).
!Make sure the seat belt retracts fully so that
the seat belt and/or latch plate cannot get
caught or pinched in the door or in the seat
mechanism. This can damage the seat belt and
impair the effectiveness of the seat belt, and/or
cause damage to the door and/or door trim
panel. Such damage is not covered by the
Mercedes-Benz Limited Warranty.
Damaged seat belts must be replaced. Contact
an authorized Mercedes-Benz Center.
Warning!G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
Warning!G
Only Mercedes-Benz SLR McLaren
722 Edition:
Because of the carbon fiber the footwell
could be slippery when wet. Be careful when
exiting the vehicle with wet shoe soles, you
could slip on it.
iIf you hear a warning signal you have forgot-
ten to switch off the headlamps before opening
the driver’s door.
In addition the message$
Turn off lamps
appears in the multifunction display.
Switch off the headlamps.

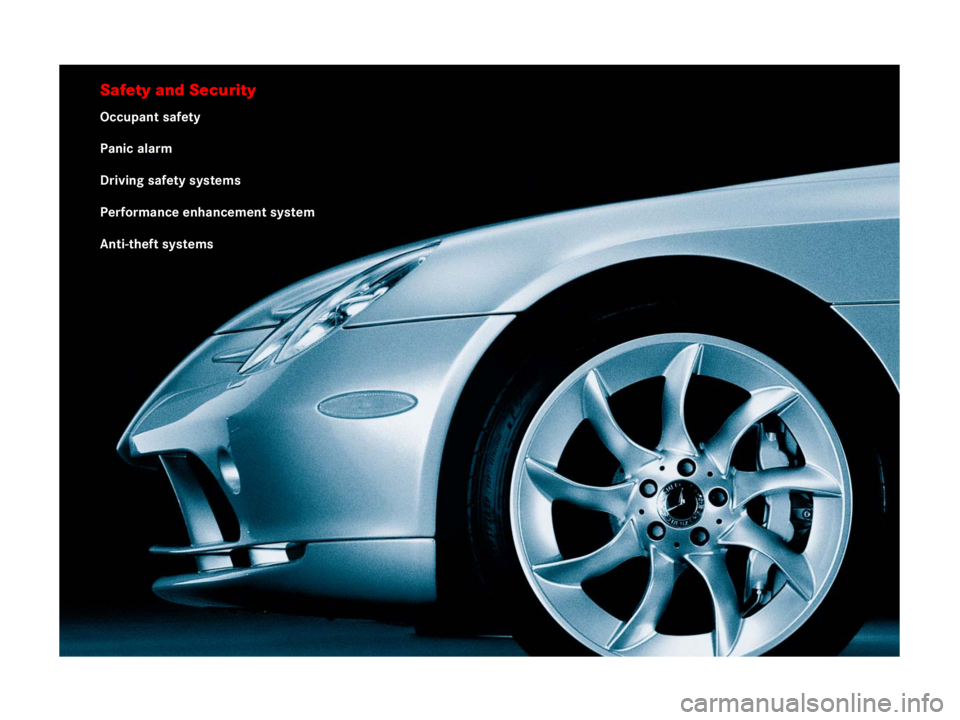

Safety and Security
Occupant safety
Panic alarm
Driving safety systems
Performance enhancement system
Anti-theft systems

60 Safety and Security
Occupant safety
In this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are

Seat belts (page 71)

Child restraints (page 76)
Additional protection potential provided by

Supplemental Restraint System (SRS)
with

Air bags (page 62)

Air bag control unit
(with crash sensors)

Emergency Tensioning Device
(ETD) for seat belts (
page 74)

Seat belt force limiter (page 74)Air bag system components with

Passenger front air bag off indicator
lamp (
page 70)

Passenger seat with Occupant Classifi-
cation S
ystem (OCS) (page 67)
Although independent systems, their
protective functions work in conjunction
with each other.The SRS system conducts a self-test when
the ignition is switched on and in regular
intervals while the engine is running. This
facilitates detection of malfunctions. The
1indicator lamp in the instrument
cluster comes on when the ignition is
switched on and goes out no later than a
few seconds after the engine has been
started.
The SRS components are in operational
readiness if the 1indicator lamp is not
lit when the engine is running.
A malfunction in the system has been
detected if the 1indicator lamp:

fails to go out after approximately
4 seconds after the engine was started

does not come on at all

comes on after the engine was started
or while driving
For more information, see the “Practical
hints” section (
page 310).
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 75).

61 Safety and Security
Occupant safety
Warning!G
Modifications to or work improperly con-
ducted on restraint systems (such as seat
belts and anchors, emergency tensioning
devices, seat belt force limiters or air bags)
or their wiring, as well as tampering with
interconnected electronic systems, can lead
to the restraint systems no longer function-
ing as intended.
Air bags or emergency tensioning devices,
for example, could deploy inadvertently or
fail to deploy in accidents although the
deceleration threshold for air bag deploy-
ment is exceeded. Therefore, never modify
the restraint systems. Do not tamper with
electronic components or their software.
Warning!G
In the event that the 1 indicator lamp
comes on during driving or does not come
on at all, the SRS self-check has detected a
malfunction. For your safety, we strongly
recommend that you contact an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not deploy when needed in an accident,
which could result in serious personal or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.
In addition, improper repair work on the SRS
creates a risk of rendering the SRS inopera-
tive or causing unintended air bag deploy-
ment. Work on the SRS must therefore only
be performed by qualified technicians. Con-
tact an authorized Mercedes-Benz Center.
If it is necessary to modify an air bag system
to accommodate a person with disabilities,
contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.

62 Safety and Security
Occupant safety
Air bags
Warning!G
Air bags are designed to reduce the poten-
tial of injury and fatality in certain frontal
impacts (front air bags, knee air bags) or
side impacts (head-thorax air bags).
However, no system available today can
totally eliminate injuries and fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust, however, is neither injurious
to your health, nor does it indicate a fire in
the vehicle. The dust might cause some tem-
porary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of the
vehicle after the air bag inflates, then get
fresh air by opening a window or door.
Warning!G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and passenger to always be in a prop-
erly seated position and to wear their seat
belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body (
page 45).
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it inflates
with great force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.

Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.

Do not lean your head or chest close to
the steering wheel or dashboard.

Keep hands on the outside of steering
wheel rim. Placing hands and arms
inside the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.

63 Safety and Security
Occupant safety

Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.

Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the air bag be deployed. Always sit as
upright as possible, properly use the
seat belts and an appropriately sized in-
fant, or toddler restraint, or booster seat
recommended for the size and weight of
the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
Warning!G
There is a possibility of a head-thorax air bag
related injury if occupants, especially chil-
dren, are not properly seated or restrained
when next to a head-thorax air bag which
needs to deploy rapidly in a side impact in
order to do its job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag inflates. This could
result in serious injuries or death should
the head-thorax air bag be deployed.
(2) Always sit as upright as possible, prop-
erly use the seat belts, and for children
12 years old or under, use an appropri-
ately sized infant, or toddler restraint, or
booster seat recommended for the size
and weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
passenger seat occupants to have the pas-
senger head-thorax air bag deactivated,
then deactivation can be accomplished
upon your written request to do so at an
authorized Mercedes-Benz Center at an
additional cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center (in the USA) at
1-800-FOR-MERCedes (1-800-367-6372) or
Customer Service (in Canada) at
1-800-387-0100 for details.
