2007 MERCEDES-BENZ CLS63AMG Owner's Manual

176 Controls in detailAutomatic transmissionGear ranges
With the gear selector lever in drive
positionD and driving in program modeC
orS (
page 177), you can select a gear
range for the automatic transmission to
operate within.
Gear selector lever (
page 178):
You can limit the gear range by pressing
the gear selector lever to the left (D-), and
reverse the gear range limit by pressing
the gear selector lever to the right (D+).
Steering wheel gearshift control*
(
page 179):
You can limit the gear range by pulling the
left gearshift paddle on the steering wheel
gearshift control, and reverse the gear
range limit by pulling the right gearshift
paddle on the steering wheel gearshift

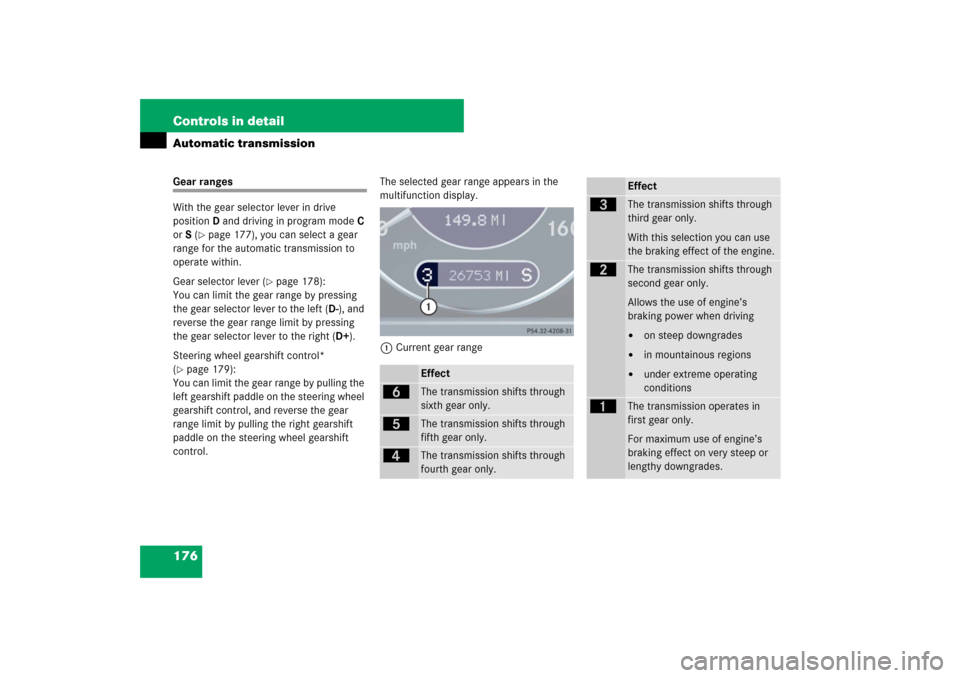

control.The selected gear range appears in the
multifunction display.
1Current gear range
Effect
ï
The transmission shifts through
sixth gear only.
î
The transmission shifts through
fifth gear only.
é
The transmission shifts through
fourth gear only.
Effect
è
The transmission shifts through
third gear only.
With this selection you can use
the braking effect of the engine.
ç
The transmission shifts through
second gear only.
Allows the use of engine’s
braking power when driving

on steep downgrades


in mountainous regions


under extreme operating
conditions
æ
The transmission operates in
first gear only.
For maximum use of engine’s
braking effect on very steep or
lengthy downgrades.

177 Controls in detail
Automatic transmission
Automatic shift program
The program mode selector switch is
located on the lower part of the center
console.Program mode selector switchC Comfort For comfort driving
S Sport For standard driving
Program mode selector switch
(CLS 63 AMG only)M Manual For manual gear shifting
(
page 181)
C Comfort For standard driving
S Sport For sporty drivingThe selected program mode appears in the
multifunction display.
1Current program mode
!
Never change the program mode when the
gear selector lever is out of park positionP. This
could result in a change of driving characteristics
for which you may not be prepared.
i
The last selected program mode (CorS) is
switched on when the engine is restarted.

178 Controls in detailAutomatic transmission
Press program mode selector switch
repeatedly until the letter of the
desired program mode appears in the
multifunction display.
SelectCfor comfort driving
(CLS 63 AMG: for standard driving):

The vehicle starts out in second
gear (both forward and reverse) for
gentler starts. This does not apply if
full throttle is applied or gear
range1 is selected.


Traction and driving stability are
improved on icy roads.


Upshifts occur earlier even when
you give more gas. The engine then
operates at lower rpms and the
wheels are less likely to spin.
SelectSfor standard driving
(CLS 63 AMG: for sporty driving):


The vehicle starts out in first gear.


Upshifts occur later.Gear selector lever one-touch
gearshifting
With the gear selector lever in drive posi-
tion D and driving in program modeC orS,
you can limit or extend the gear range.
If your vehicle is equipped with manual
shift programM, you can use the gear
selector lever to manually shift the gears.
The following instructions describe opera-
tion of the gear selector lever when driving
in the automatic program modeC orS.Limiting gear range

Briefly press the gear selector lever to
the left in theD-direction.
The transmission will shift to the next
lower gear as permitted by the shift
program. This action simultaneously
limits the gear range of the transmis-
sion (
page 176).
i
For information on using the gear selector
lever in program modeM, see “Manual shift pro-
gram CLS 63 AMG” (
page 181).
!
Allow engine to warm up under low load use.
Do not place full load on the engine until the
operating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel for an extended
period when driving off on slippery road
surfaces. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.i
To avoid overrevving the engine when down-
shifting, the transmission will not shift to a lower
gear if the engine’s max. speed would be
exceeded.

179 Controls in detail
Automatic transmission
Extending gear range
Briefly press the gear selector lever to
the right in theD+direction.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmis-
sion.
Canceling gear range limit

Press and hold the gear selector lever
in theD+direction until
D reappears in
the multifunction display (page 173).
The transmission will shift from the
current gear range directly to gear
rangeD.Shifting into optimal gear range

Press and hold the gear selector lever
in theD-direction.
The transmission will automatically
select the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more
gears.Steering wheel gearshift control
one-touch gearshifting*
Steering wheel gearshift control is avail-
able on vehicles with AMG-Sport Package*
and CLS 63 AMG only.
With the gear selector lever in drive
positionD and driving in program modeC
orS, you can limit or extend the gear
range.
If your vehicle is equipped with manual
shift programM, you can use the steering
wheel gearshift control to manually shift
the gears.
i
If you press on the accelerator when the en-
gine has reached its rpm limit, the transmission
will upshift beyond any gear range limit selected.
i
For information on using the steering wheel
gearshift control in program modeM, see “Man-
ual shift program CLS 63 AMG” (
page 181).

180 Controls in detailAutomatic transmission
Gearshift paddles (example illustration
vehicles with AMG-Sport Package*)1Left shift paddle: limiting gear range or
downshift (in program modeM)
2Right shift paddle: extending gear
range or upshift (in program modeM)
The following instructions describe opera-
tion of the steering wheel gearshift control
when driving in the automatic program
modeC orS.Limiting gear range

Briefly pull left shift paddle1.
The transmission will shift to the next
lower gear as permitted by the shift
program. This action simultaneously
limits the gear range of the transmis-
sion (
page 176).
!
Allow engine to warm up under low load use.
Do not place full load on the engine until the
operating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel for an extended
period when driving off on slippery road
surfaces. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.
i
You cannot shift with the steering wheel
gearshift paddles when the gear selector lever is
in positionP,N orR.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.i
To avoid overrevving the engine when down-
shifting, the transmission will not shift to a lower
gear if the engine’s max. speed would be
exceeded.

181 Controls in detail
Automatic transmission
Extending gear range
Briefly pull right shift paddle2.
The transmission will shift to the next
higher gear as permitted by the shift
program. This action simultaneously
extends the gear range of the transmis-
sion.
Canceling gear range limit

Pull and hold right shift paddle2
until
D reappears in the multifunction
display (page 173).
The transmission will shift from the
current gear range directly to gear
rangeD.Shifting into optimal gear range

Pull and hold left shift paddle1.
The transmission will automatically
select the gear range suited for optimal
acceleration and deceleration. This will
involve shifting down one or more
gears.
Manual shift program CLS 63 AMG
In addition to the automatic shift
programC orS, your vehicle is equipped
with the manual shift programM.
In the manual program modeM,
system-controlled automatic gearshifting
is switched off and you need to change the
gears by manually upshifting or downshift-
ing using the steering wheel gearshift
paddles (
page 180) or the gear selector
lever.
i
If you press on the accelerator when the en-
gine has reached its rpm limit, the transmission
will upshift beyond any gear range limit selected.
!
Allow engine to warm up under low load use.
Do not place full load on the engine until the
operating temperature has been reached.
Shift into reverse gearR or park positionP only
when the vehicle is stopped.
Avoid spinning of a drive wheel for an extended
period when driving off on slippery road
surfaces. This may cause serious damage to the
drivetrain which is not covered by the
Mercedes-Benz Limited Warranty.

182 Controls in detailAutomatic transmissionThe program mode selector switch is
located on the lower part of the center
console.Program mode selector switchM Manual For manual gear shifting
C Comfort For standard driving
S Sport For sporty driving
The selected program mode appears in the
multifunction display (
page 177).Activating manual shift program

Press program mode selector switch
repeatedly until the
M for manual pro-
gram modeM appears in the multifunc-
tion display.
The transmission switches to the
manual program modeM. Automatic
shifting is switched off. The gear range
is not limited.
You can change the gears manually when
the gear selector lever is in drive
positionD. You can upshift or downshift
through the gears in succession.Upshifting

Briefly press the gear selector lever to
the right in theD+direction.
or

Briefly pull right shift paddle2
(page 180).
The transmission shifts to the next
higher gear.
If, instead of the manual program mode
symbolM, thep symbol appears in the
multifunction display (
page 177), shift to
the next higher gear. The fuel supply will
otherwise be interrupted to prevent the
engine from overrevving.
i
For information on automatic program
modesC orS, see “Automatic shift program”
(
page 177), “Gear selector lever one-touch
gearshifting” (
page 178), and “Steering wheel
gearshift control one-touch gearshifting*”
(
page 179).
i
The manual program modeM will not be
stored. When the engine is turned off with the
manual program modeM selected, the transmis-
sion will go to the automatic program mode
(CorS) when the engine is restarted.
!
In the manual program modeM, the trans-
mission will not upshift, even if the engine has
reached its overrevving range. Shift up to the
next gear before the engine has reached its over-
revving range. Make absolutely certain that the
engine speed does not reach the red marking on
the tachometer (
page 26). Otherwise the
engine could be damaged which is not covered
by the Mercedes-Benz Limited Warranty.

183 Controls in detail
Automatic transmission
If you have selected the AMG menu in the
control system and you are driving in the
manual program modeM, upshift
indicator2 in the multifunction display
advises you to upshift before the engine
reaches the overspeed range. Thus you
can drive at the maximum engine speed for
each gear without overrevving the engine.
1Gear indicator
2Upshift indicator
Shift to the next higher gear.
The fuel supply will otherwise be inter-
rupted to prevent the engine from over-
revving.Downshifting

Briefly press the gear selector lever to
the left in theD-direction.
or

Briefly pull left shift paddle1
(page 180).
The transmission shifts to the next
lower gear.Kickdown
Using the kickdown when driving in the
manual program modeM is not possible.
Deactivating manual shift program

Press the program mode selector
switch (
page 182) repeatedly
until
Cor
S appears in the multifunction
display.
or

Restart the engine.
The transmission will go to the
automatic program mode (C orS).
The manual program modeM is not
stored.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.i
When you brake or stop, the transmission
shifts down to a gear from which you can easily
accelerate or take off.
