2007 MERCEDES-BENZ C280 Owner's Manual

216 Controls in detail
Audio system
Press and hold button ‚
orƒ.
The system jumps from one initial
letter to the next in ascending or
descending order.
Press and hold button ‚
orƒ until desired initial letter
has been reached.
or
Press button ‚ or ƒ
repeatedly until desired entry has
been reached.
The stored entries are selected in
alphabetical order with the
sub-entries.
When you have selected a number,
press s button.
The call will be made.

Viewing the telephone number of a
phone book entry
Search for desired entry.
Press NUM soft key.
The telephone number of the phone
book entry appears in the display.

Returning calls received
Press MEM soft key or press
button‚ orƒ.
Press RCV soft key (received calls).
The number of received calls and
then the call last received appear
briefly in the display.
Select desired telephone number
with button ‚ or ƒ.
The letter
R and the number of the
memory position appear in the
upper left-hand corner of the
display. The numbers are stored in
the order of the calls received.
When you have selected a number,
press s button.
The call will be made.
iSeveral sub-entries can be stored for each
main entry (name). These entries are marked by
a corresponding abbreviation that appears in the
upper left-hand corner of the display. The
following abbreviations for sub-entries are possi-
ble:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main

217 Controls in detail
Audio system

Speed dial
If you have stored telephone numbers
as speed dial numbers in your
telephone, you can also enter these
with buttons 1 to R on the radio
unit.
Press desired button 1 to R
briefly.
Press s button.
The call will be made.

Turbo dial
If you have stored telephone numbers
as turbo dial numbers in your
telephone, you can also enter these
with buttons 1 to R on the radio
unit.
Press desired button 1 to R
until the call is made.Redial
If the number you have dialed is busy, you
can again place calls to the last ten
telephone numbers dialed using the redial
function.

Manual redial
Press s button.
The telephone number last dialed
will appear in the display.
Select desired telephone number
with button ‚ or ƒ.
The letter
L and the number of the
memory position appears in the
left-hand corner of the display. The
numbers are stored in the order of
the calls received.
When you have selected a number,
press s button.
The call will be made.
Accepting an incoming call
If the telephone is active in the background
(reception symbol is visible in the display),
the audio source is muted when an incom-
ing call is received. A ringing tone can be
heard and the caller’s telephone number,
or the name under which the telephone
number has been saved in the telephone
book, appears in the display. If the caller’s
number is not relayed,
CALL will appear in
the display.
Press s button.
The call is accepted.
iIf you have activated the automatic redial
function on your mobile telephone, the number
of the person being called is automatically redi-
aled after a short waiting period if there is a busy
signal.
Refer to the separate operating instructions for
the mobile telephone.

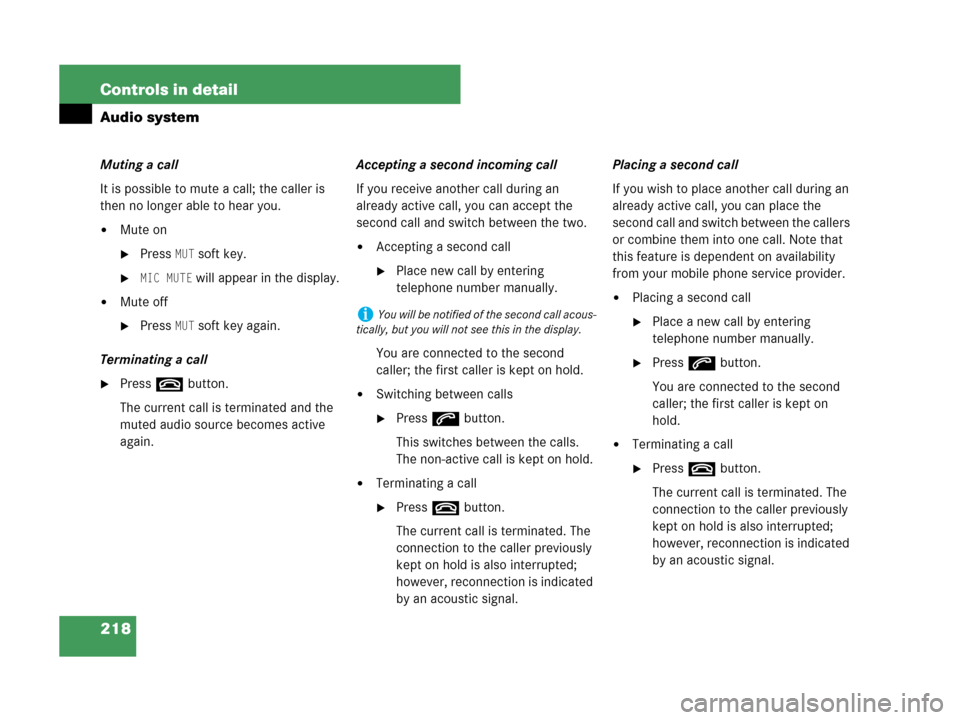

218 Controls in detail
Audio system
Muting a call
It is possible to mute a call; the caller is
then no longer able to hear you.

Mute on
PressMUT soft key.
MIC MUTE will appear in the display.

Mute off
PressMUT soft key again.
Terminating a call
Press t button.
The current call is terminated and the
muted audio source becomes active
again.Accepting a second incoming call
If you receive another call during an
already active call, you can accept the
second call and switch between the two.

Accepting a second call
Place new call by entering
telephone number manually.
You are connected to the second
caller; the first caller is kept on hold.

Switching between calls
Press s button.
This switches between the calls.
The non-active call is kept on hold.

Terminating a call
Press t button.
The current call is terminated. The
connection to the caller previously
kept on hold is also interrupted;
however, reconnection is indicated
by an acoustic signal.Placing a second call
If you wish to place another call during an
already active call, you can place the
second call and switch between the callers
or combine them into one call. Note that
this feature is dependent on availability
from your mobile phone service provider.

Placing a second call
Place a new call by entering
telephone number manually.
Press s button.
You are connected to the second
caller; the first caller is kept on
hold.

Terminating a call
Press t button.
The current call is terminated. The
connection to the caller previously
kept on hold is also interrupted;
however, reconnection is indicated
by an acoustic signal.
iYou will be notified of the second call acous-
tically, but you will not see this in the display.

219 Controls in detail
Audio system

Combining two calls
Press s button.
The calls are combined into one
call.

Terminating a combined call
Press t button.
The connection to both callers is
terminated.
Emergency calls “911”
The following describes how to dial a “911”
emergency call using the audio system
head unit when a Mercedes-Benz specified
mobile phone* is inserted in the phone
cradle*. Unless otherwise specified, the
descriptions refer to the audio system
head unit.
Consult the separate telephone operating
instructions that came with your mobile
phone* for information on how to place a
“911” emergency call on the mobile
phone*. The following conditions must be met for a
“911” emergency call:

Telephone must be switched on.

The corresponding mobile communica-
tions network must be available.
If you cannot make an emergency call, you
will have to initiate rescue measures
yourself.
GSM network phones
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to
telephone operation.
PIN? appears in the audio display.
Enter 911 using the number keypad on
the audio head unit.
Warning!G
The “911” emergency call system is a public
service. Using it without due cause is a crim-
inal offense.
iEmergency calls may not be possible with all
telephone networks or if certain network servic-
es and/or telephone functions are active. Check
with your local service providers.


220 Controls in detail
Audio system
Press OK soft key or sbutton for
dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
Placing a “911” emergency call using
audio head unit with the phone
unlocked
Press hbutton to switch to
telephone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. TDMA/CDMA network phones
Placing a “911” emergency call using
audio head unit with the phone locked
Press hbutton to switch to
telephone operation.
CODE? appears in the audio display.
Enter 911 using the number keypad on
the audio head unit.
Press OK soft key or sbutton for
dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency. Placing a “911” emergency call using
audio head unit with the phone
unlocked
Press hbutton to switch to
telephone operation.
Enter 911 using the number keypad on
the audio head unit.
Press sbutton for dialing to begin.
DIALING appears in the audio display
while the telephone establishes the
connection.
Wait until the emergency call center
answers, then describe the emergency.
iIf no SIM card is in the mobile phone, NO
SERVICE
appears in the audio display. In that
case, you only can make an emergency call on
the mobile phone itself, without the use of the
head unit.


221 Controls in detail
Power windows
Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
doors.
1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 80)
Switch on the ignition (page 32).
Warning!G
When closing the power windows, make
sure there is no danger of anyone being
harmed by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button‹ on the SmartKey, or by press-
ing and holding button, ore on the
climate control panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
iYou can also open or close the power win-
dows using the SmartKey, see “Summer opening
feature” (
page 223) and “Convenience clos-
ing feature” (
page 223).
Depending on current position, the windows may
also open or close when the air recirculation
button, in the control panel of the climate
control (
page 165) or automatic climate
control* (Canada only) (
page 175), or the
charcoal filter buttone in the control panel
of the automatic climate control* (Canada only)
(
page 183) is pressed and held.

222 Controls in detail
Power windows
Opening the windows
Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows
Pull switch1 to4 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the windows
(Express-open)
Press switch1 to4 past the
resistance point and release.
The corresponding window opens
completely.
Fully closing the windows
(Express-close)
Pull switch1 to4 past the
resistance point and release.
The corresponding window closes
completely.Stopping windowsPress or pull respective switch again.
Synchronizing power windows
The power windows must be
resynchronized each time

after the battery has been
disconnected or discharged.

if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).
Switch on the ignition (page 32).
Warning!G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.
!If the upward movement of the window is
blocked during the closing procedure, the win-
dow will stop and open slightly.
Remove the obstruction, pull the switch again
past the resistance point and release.
If the window still does not close when there is
no obstruction, then pull and hold the switch
again. The side window will then close without
the obstruction sensor function.
Warning!G
Driver’s door only:
If within 5 seconds you again pull the switch
past the resistance point and release, the
automatic reversal will not function.

223 Controls in detail
Power windows
Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
1 second.
The power windows are synchronized.
Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows

opening the tilt/sliding sunroof*
Aim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.
Press and hold button Πuntil the
windows and the tilt/sliding sunroof*
have reached the desired position.
Release button Πto interrupt pro-
cedure.
Convenience closing feature
Aim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.
Press and hold button ‹ until the
windows and the tilt/sliding sunroof*
are completely closed.
Release the ‹ button to stop
procedure.
Make sure all windows and the tilt/sliding
sunroof* are properly closed before leav-
ing the vehicle.
Warning!G
When closing the windows and the tilt/slid-
ing sunroof*, make sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to stop the closing
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.
