2007 MERCEDES-BENZ C280 Owner's Manual

128 Controls in detail
Control system
1SAT mode and preset number
2Channel name or number
Press buttonk orj repeatedly
until the desired channel is found.Operating the CD player*
Selecting CD track
Turn on the radio and select CD or
CD changer* (
page 205).
Vehicles with COMAND*:
Refer to separate operating
instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display.1Current CD (with additional number
from 1 to 6 when running from
CD changer*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on CD operation, see
“CD mode” (
page 201) and for the
CD changer*, see (
page 204).
iFor more information on satellite radio oper-
ation, see “Introduction to satellite radio*
(USA only)” (
page 197).
Vehicles with COMAND*:
Refer to separate operating instructions.
iThe COMAND* system and the
CD changer* can play audio CDs as well as CDs
with MP3 files.
iTo select a CD from the CD changer* maga-
zine, press a number on the audio system or the
COMAND* system key pad located in the center
console.


129 Controls in detail
Control system
Selecting CD MP3-track (vehicles with
COMAND* and/or CD changer*)
Turn on the radio and select the
CD changer* (
page 205) or turn on
COMAND* and select CD or
CD changer*. Vehicles with
COMAND*: Refer to separate
operating instructions.
Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display.1MP3 mode (vehicles with COMAND*)
2Current track
Press buttonk orj repeatedly
until the desired track is selected.
For more information on MP3, see “MP3
notes” (
page 202), and for operating,
see “MP3 playback” (
page 204).
NAV* menu
The
NAV menu contains the functions
needed to operate your navigation system.
Press buttonè orÿ repeatedly
until the message
NAV appears in the
multifunction display.

If COMAND* is switched off, the mes-
sage
NAV OFF appears in the multifunc-
tion display.

With COMAND* switched on but route
guidance not activated, the direction of
travel and, if available, the name of the
street currently traveled on appear in
the multifunction display.

With COMAND* switched on and route
guidance activated, the direction of
travel and maneuver instructions ap-
pear in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iA CD with MP3 files insert in the
CD changer* is handled by the
audio/COMAND* system like an audio CD. In-
formation contained on the CD with MP3 files
will not shown in the multifunction display or in
the audio/COMAND* display.
iLevel of information displayed will vary de-
pending on the information contained on the CD
with MP3 files insert in the single CD player of
the COMAND* system.
To select a CD from the CD changer* magazine,
press a number on the audio system or the
COMAND* system key pad located in the center
console.

130 Controls in detail
Control system
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the mul-
tifunction display and are based on condi-
tions or system status the vehicle’s system
has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display.
If the vehicle status message memory
menu does not appear, then there are
no messages stored.Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages
Press buttonk orj.
The stored messages will now be
displayed in the order in which they
have occurred. For malfunction and
warning messages, see “Vehicle status
messages in the multifunction display”
(
page 333).
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and
safety checks performed on the vehicle and
by bringing the vehicle to an authorized
Mercedes-Benz Center to address the mal-
function and warning messages
(
page 333).

131 Controls in detail
Control system
Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.Settings menu
In the
Settings menu there are two
functions:

The function Reset to factory
settings
, with which you can reset all
the settings to the original factory
settings.

A collection of submenus with which
you can make individual settings for
your vehicle.
Press buttonè orÿ repeatedly
until the
Settings menu appears in the
multifunction display.Resetting all settings
You can reset all the functions of all
submenus to the factory settings.
Press the reset button in the
instrument cluster (
page 118) for
approximately 3 seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.
Press the reset button once more.
The functions of all the submenus will
reset to factory settings.
iThe vehicle status message memory will be
cleared when you turn the SmartKey in the start-
er switch to position1 or2. You will then only
see high-priority messages in the multifunction
display (
page 333).

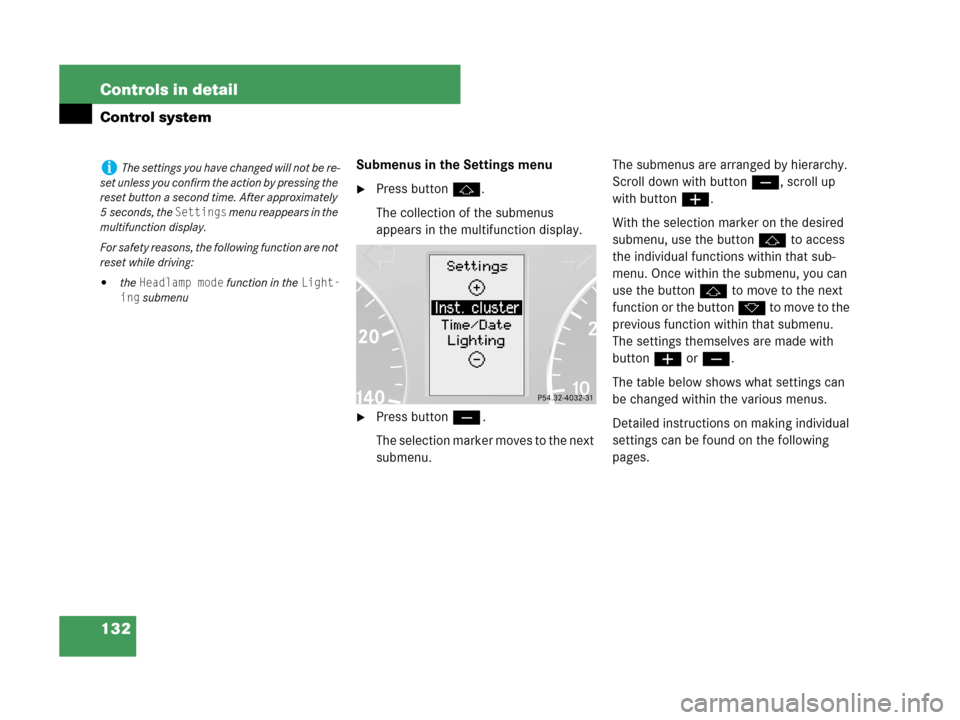

132 Controls in detail
Control system
Submenus in the Settings menu
Press buttonj.
The collection of the submenus
appears in the multifunction display.
Press buttonç.
The selection marker moves to the next
submenu.The submenus are arranged by hierarchy.
Scroll down with buttonç, scroll up
with buttonæ.
With the selection marker on the desired
submenu, use the buttonj to access
the individual functions within that sub-
menu. Once within the submenu, you can
use the button j to move to the next
function or the button k t o m o v e t o t h e
previous function within that submenu.
The settings themselves are made with
buttonæ orç.
The table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following
pages.
iThe settings you have changed will not be re-
set unless you confirm the action by pressing the
reset button a second time. After approximately
5seconds, the
Settings menu reappears in the
multifunction display.
For safety reasons, the following function are not
reset while driving:

the Headlamp mode function in the Light-
ing
submenu

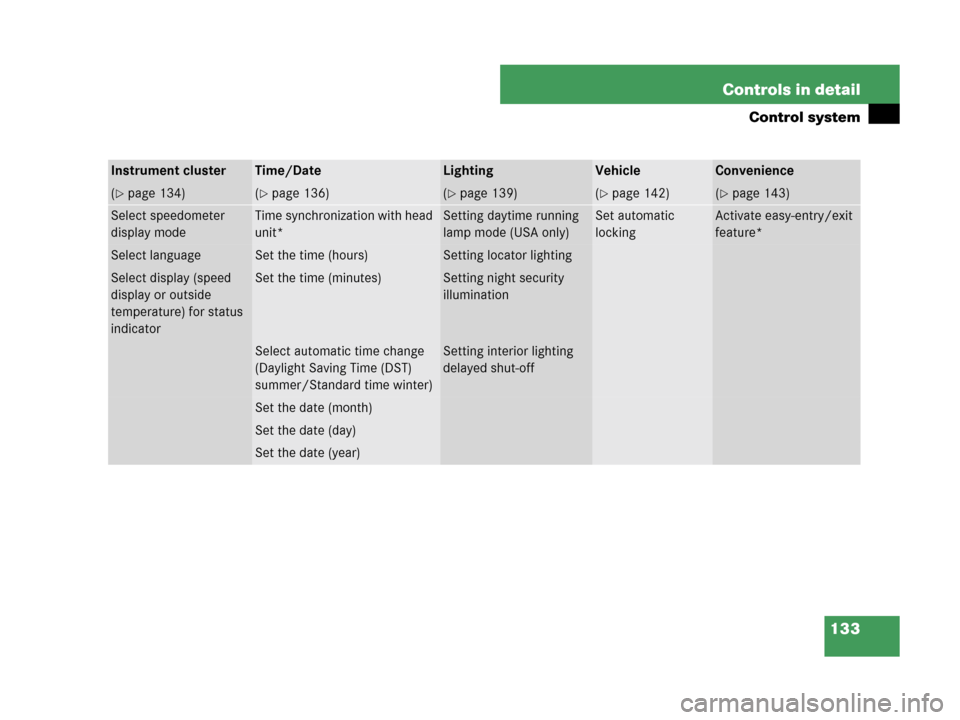

133 Controls in detail
Control system
Instrument clusterTime/DateLightingVehicleConvenience
(page 134)(page 136)(page 139)(page 142)(page 143)
Select speedometer
display modeTime synchronization with head
unit*Setting daytime running
lamp mode (USA only)Set automatic
lockingActivate easy-entry/exit
feature*
Select languageSet the time (hours)Setting locator lighting
Select display (speed
display or outside
temperature) for status
indicatorSet the time (minutes)Setting night security
illumination
Select automatic time change
(Daylight Saving Time (DST)
summer/Standard time winter)Setting interior lighting
delayed shut-off
Set the date (month)
Set the date (day)
Set the date (year)

134 Controls in detail
Control system
Instrument cluster submenu
Access the
Inst.cluster submenu via the
Settings menu. Use the Inst.cluster
submenu to change the instrument cluster
display settings.
The following functions are available:Select speedometer display mode
Move the selection marker with
buttonæ orç to the
Inst.cluster submenu.
Press buttonj ork repeatedly
until the message
Disp.Unit
Speed-/odom.
appears in the multifunc-
tion display.
The selection marker is on the current
setting.
Press buttonæ orç to set
speedometer unit to
km ormiles.Select language
Move the selection marker with
buttonæ orç to the
Inst.cluster submenu.
Press buttonj ork repeatedly
until the message
Language appears in
the multifunction display.
The selection marker is on the current
setting.
FunctionPage
Select speedometer display
mode134
Select language134
Select display (speed display or
outside temperature) for status
indicator135

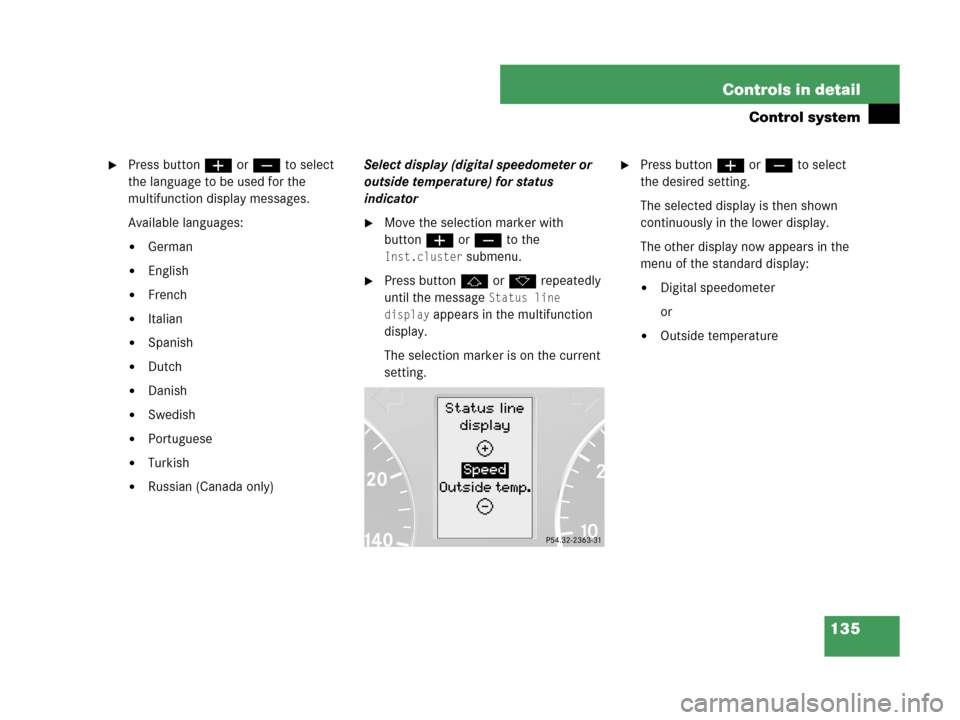

135 Controls in detail
Control system
Press buttonæ orç to select
the language to be used for the
multifunction display messages.
Available languages:

German

English

French

Italian

Spanish

Dutch

Danish

Swedish

Portuguese

Turkish

Russian (Canada only)Select display (digital speedometer or
outside temperature) for status
indicator
Move the selection marker with
buttonæ orç to the
Inst.cluster submenu.
Press buttonj ork repeatedly
until the message
Status line
display
appears in the multifunction
display.
The selection marker is on the current
setting.
Press buttonæ orç to select
the desired setting.
The selected display is then shown
continuously in the lower display.
The other display now appears in the
menu of the standard display:

Digital speedometer
or

Outside temperature
