2007 MERCEDES-BENZ C280 Owner's Manual

144 Controls in detail
Control system
Activate easy-entry/exit feature*
Use this function to activate and
deactivate the easy-entry/exit feature
(
page 40).
Move the selection marker with
buttonæ orç to the
Convenience submenu.
Press buttonj ork repeatedly
until the message
Easy-entry feature
appears in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the easy-entry feature
On or Off.
Trip computer menu
Use the trip computer menu to call up
statistical data on your vehicle.
The following information is available:
Fuel consumption statistics from start
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
From start appears
in the multifunction display.
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following:

Move steering wheel adjustment stalk*
(
page 40).

Press memory position switch*
(
page 108).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
FunctionPage
Fuel consumption statistics from
start144
Fuel consumption statistics
since last reset145
Distance to empty146

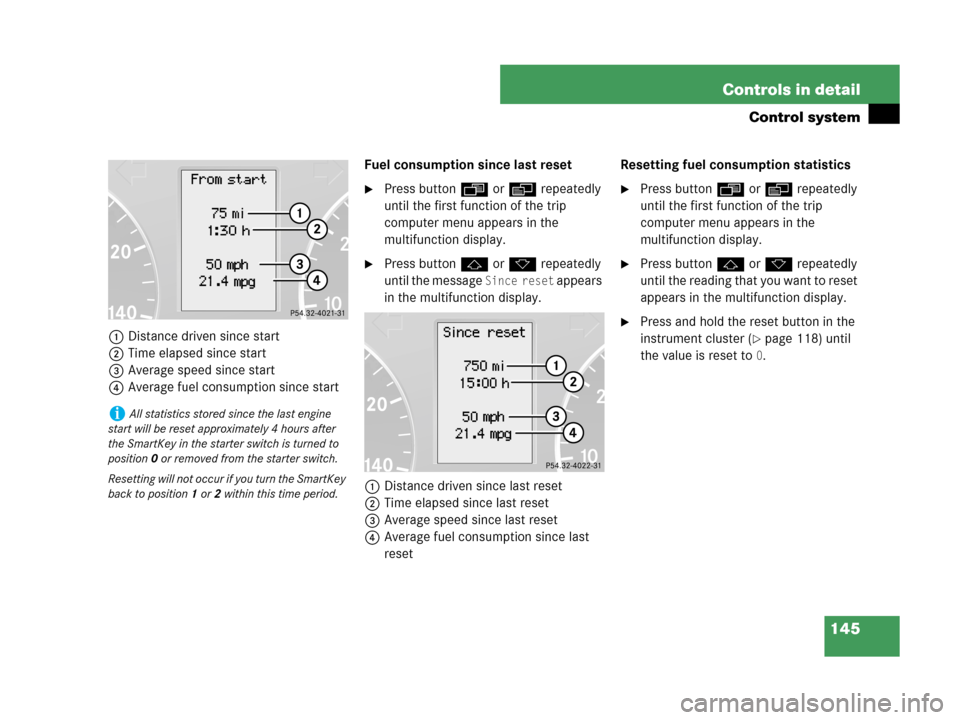

145 Controls in detail
Control system
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since startFuel consumption since last reset
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
Since reset appears
in the multifunction display.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last
resetResetting fuel consumption statistics
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the reading that you want to reset
appears in the multifunction display.
Press and hold the reset button in the
instrument cluster (
page 118) until
the value is reset to
0.
iAll statistics stored since the last engine
start will be reset approximately 4 hours after
the SmartKey in the starter switch is turned to
position0 or removed from the starter switch.
Resetting will not occur if you turn the SmartKey
back to position1 or2 within this time period.

146 Controls in detail
Control system
Distance to empty
Switch on the ignition (page 32).
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.
Press buttonj ork repeatedly
until the message
Range: appears in
the multifunction display.
The calculated remaining driving range
based on the current fuel tank level
appears in the multifunction display.
TEL menu*
You can use the functions in the
TEL menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.
Switch on the telephone and Audio or
COMAND*.
Press buttonÿ orè on the
steering wheel repeatedly until the
message
TEL appears in the
multifunction display.
Which messages will appear in the
multifunction display depends on whether
your telephone is switched on or off:
Warning!G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while driving, please use the
hands-free device and only use the
telephone when weather, road and traffic
conditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system,
possibly resulting in an accident and
personal injury.

147 Controls in detail
Control system

If the telephone is off, the message
Phone off appears in the multifunction
display.

If the telephone is on:
The telephone will then search for a
network. During this time the multi-
function display is empty.
As soon as the telephone has found a
network, the message
READY appears in
the multifunction display.
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will see the
message, or if available, the caller ID
(name and number):
Press buttons.
You have answered the call. The
duration of the call appears in the
multifunction display.
Ending a call or rejecting an incoming
call
Press buttont.Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonÿ orè repeatedly
until the message
TEL appears in the
multifunction display.
Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take several minutes. The
message
Please wait appears in the
multifunction display.
When the message
Please wait
disappears, the phone book has been
loaded.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
The stored names are displayed in
ascending or descending alphabetical
order.


148 Controls in detail
Control system
1Name from the phone book
Press buttons.
The system dials the selected phone
number.

If the connection is successful and
this feature is supported by your
network provider, the name of the
party you are calling (if stored in
your phone book) and the duration
of the call will appear in the multi-
function display.

If no connection is made, the
control system stores the dialed
number in the redial memory.Redialing
The control system stores the most
recently dialed phone numbers. This
eliminates the need to search through your
entire phone book.
Press buttonÿ orè repeatedly
until the message
TEL appears in the
multifunction display.
Press buttons.
The first number in the redial memory
appears in the multifunction display.
Press buttonj ork repeatedly
until the desired name appears in the
multifunction display.
Press buttons.
The control system dials the selected
phone number.
iIf you press and hold buttonj ork
for longer than 1 second, the system scrolls rap-
idly through the list of names until you release
the button again.
Cancel the quick search mode by pressing
buttont.


149 Controls in detail
Manual transmission
Manual transmission
Manual transmission is standard
equipment on select models and not
available on all models.
For information on driving with a manual
transmission, see “Manual transmission”
(
page 46).
Warning!G
For vehicles equipped with a manual trans-
mission, getting out of your vehicle with the
gearshift lever not engaged in first or
reverse gear and parking brake engaged is
dangerous.
Also, when parked on an incline, an engaged
first or reverse gear alone may not prevent
your vehicle from moving, possibly hitting
people or objects.
Always set the parking brake in addition to
engaging first or reverse gear (
page 54).
When parked on an incline, turn front wheels
towards the road curb.
Do not park this vehicle in areas where
combustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could move the gearshift lever, which could
result in an accident and/or serious person-
al injury.
Warning!G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced
vehicle control. Your vehicle’s ABS will not
prevent this type of loss of control.
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between or be-
neath the pedals. You could then no longer
brake or accelerate. This could lead to acci-
dents and injury.

150 Controls in detail
Manual transmission
Gearshift pattern for manual transmission
Shifting into reverse
Stop the vehicle completely.
Fully depress clutch pedal.
Move the gearshift lever to neutral
position (no gear selected).
Move the gearshift lever to the left until
you feel a certain resistance.
Push the gearshift lever past this
resistance.
Then move the gearshift lever forward
into positionR.
!When you are shifting into the5th or6th
gear, make sure that you press the gearshift le-
ver to the right. Otherwise, you could accidental-
ly shift into the3th or4th gear and damage the
transmission.
Downshifting gears leading to overrevving the
engine can result in engine damage that is not
covered by the Mercedes-Benz Limited Warran-
ty.
Never hold the vehicle stopped on a hill by using
the clutch pedal. The clutch may be damaged
which is not covered by the Mercedes-Benz Lim-
ited Warranty.
Do not exceed the engine speed limits. Refer to
tachometer (
page 120) for engine speeds.
!Only shift into reverse gearR when the vehi-
cle is stationary, as the transmission could oth-
erwise be damaged.

151 Controls in detail
Automatic transmission*
Automatic transmission*
Automatic transmission is standard
equipment on select models and available
as optional equipment on select other
models.
For more information on driving with an
automatic transmission, see “Automatic
transmission*” (
page 47).
Your vehicle’s transmission adapts its gear
shifting process to your individual driving
style by continually adjusting the shift
points up or down. These shift point adjust-
ments are performed based on current
operating and driving conditions.
If the operating conditions change, the
automatic transmission reacts by
adjusting its shift program.
Gear selector lever
The gear selector lever is located on the
lower part of the center console.
Gearshift pattern for automatic
transmission
PPark position
RReverse gear
NNeutral
DDrive position
iDuring the brief warm-up, transmission
upshifting is delayed. This allows the catalytic
converter to heat up more quickly to operating
temperature.
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneuvers
the objects could get caught between or be-
neath the pedals. You could then no longer
brake or accelerate. This could lead to acci-
dents and injury.
iThe current gear selector lever positionP,
R,N orD appears in the multifunction display
(
page 153).
