2007 Lexus GS350 Using the front audio system / LEXUS 2007 GS430/350 OWNER'S MANUAL (OM30A04U)

37
1-3. Adjustable components
1
Before driving
CAUTION
■Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of sud-
den braking or an accident. Failing to do so may cause death or serious injury.
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at the same time, including children.
●Children should be seated in the rear seat and always use a seat belt and/or an
appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from injury.
●Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt
does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, including the belt s, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify , disassemble or dispose of a seat belt.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may cause it to activate or operate improperly and may
cause death or serious injury.

38
1-3. Adjustable components
CAUTION
■Using a seat belt extender
●Do not wear the seat belt extender, if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when in stalling a child restraint system, because
the belt will not securely hold the child restraint system, increasing the risk of
death or injury in the event of a collision.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
■Precaution for pre-collision seat belts
Do not rely solely on the pre-collision system to avoid accidents. Always pay atten-
tion to the surrounding conditions, and drive safely and responsibly.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt. 
This helps prevent damage to the vehi cle interior and the extender itself.

39
1
1-3. Adjustable components
Before driving
Steering wheel
Auto tilt away and auto return
When the engine switch is turned
“OFF”, the steering wheel returns
to its stowed position by moving up
and away to enable easier driver
entry and exit.
Switching to “ACC” or “IG-ON”
mode will return the steering wheel
to the original position.
The steering wheel can be adjusted to a comfortable position while the
engine switch is in “ACC” or “IG-ON” mode.
Up
Down
Toward the driver
Away from the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving. 
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

40
1-3. Adjustable components
Inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, or resulting in
death or serious injury.
In the “AUTO” mode, sensors are used to detect the headlights of vehicles
behind and automatically re duces the reflected light.
Turns “AUTO” mode on/off
The indicator comes on when
“AUTO” mode is turned ON.
The anti-glare mirror default
mode is “

AUTO”. The anti-glare
mirror is automatically set to
“AUTO” whenever the engine
switch is turned ON.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.

41
1
1-3. Adjustable components
Before driving

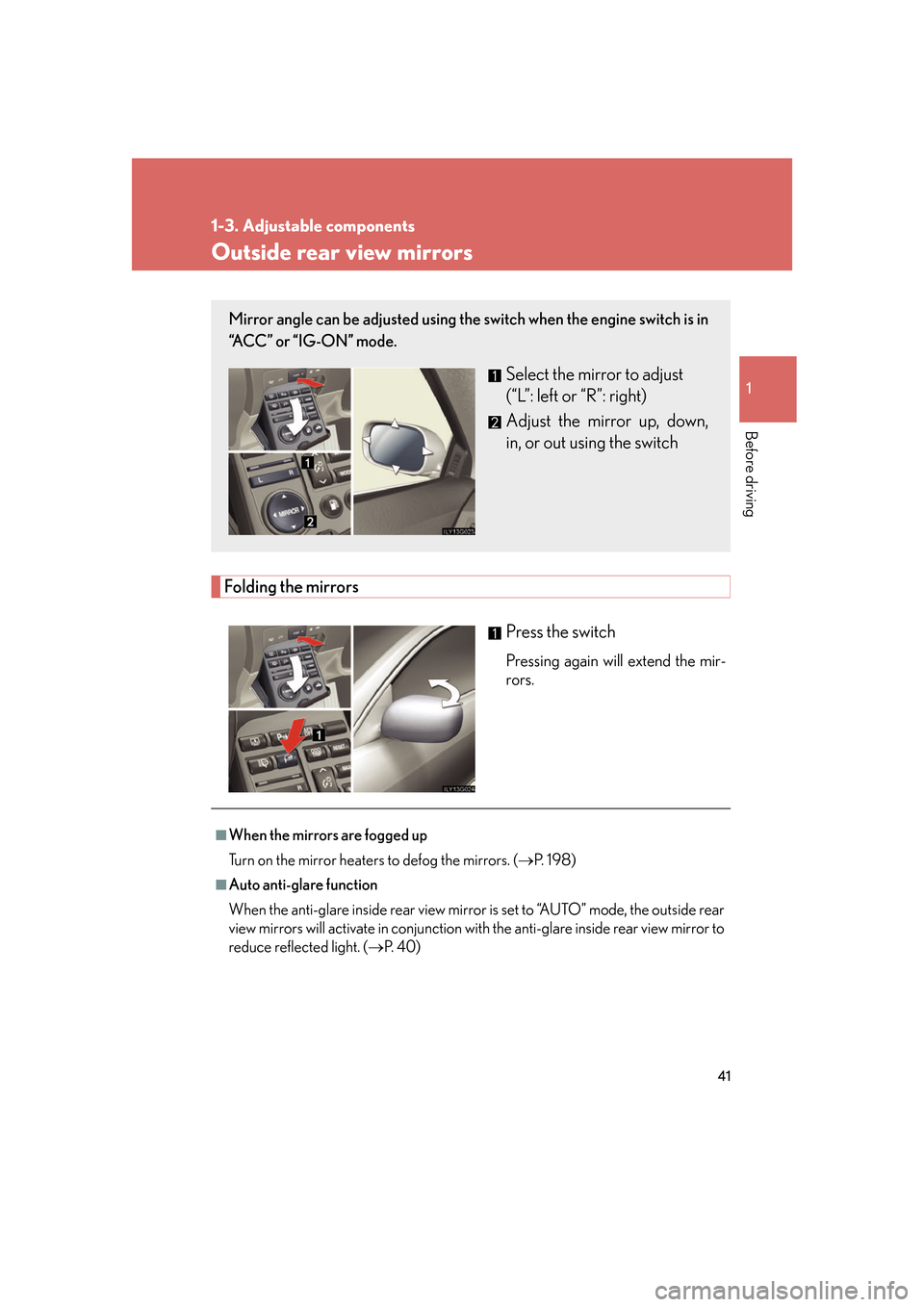

Outside rear view mirrors
Folding the mirrors
Press the switch
Pressing again will extend the mir-
rors.
Mirror angle can be adjusted using the switch when the engine switch is in
“ACC” or “IG-ON” mode.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
■When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. ( P.
1 9 8 )
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to “AUTO” mode, the outside rear
vie

w mirrors will activate in conjunction with the anti-glare inside rear view mirror to
reduce reflected light. ( P. 4 0 )

42
1-3. Adjustable components
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■One touch power adjustment
You can store and recall power adjustments su ch as the driver's seat, driver's seat
belt height, steering wheel and the outside rear view mirrors.( P. 2 7 )
CAUTION
■Caution while driving
Observe the following precautions. 
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors.
●Do not drive with the mirrors folded back.
●Before driving, be sure to extend mirrors and make an adjustment properly.
■When the mirror heaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
And do not touch the mirror surface also wh en the wiper switch is on at lower than
77 F (25 C) of the outside temperature.
NOTICE
■If ice should jam the mirror
Do not operate the control or scrape the mi rror face. Use a spray de-icer to free the
mirror.

43
1
Before driving
1-4. Opening and closing the windows and moon roof
Power windows
Lock switch
Press the switch down to lock pas -
senger window switches.
Use this switch to prevent children
from accidentally opening or clos -
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Opening
One-touch opening
*
Closing
One-touch closing
*
*:Pushing the switch in the
opposite direction will stop
window travel partway.

44
1-4. Opening and closing the windows and moon roof
■The power windows can be operated when
The engine switch is in “IG-ON” mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key. 
(  P. 4 8 6 )
●The power windows can be opened using the wireless remote control. ( P. 1 4 )
■Operating the power windows after turning the engine switch “OFF”
The power windows can be operated for ap pr
oximately 45 seconds even after the
engine switch is switched to “ACC” mode or turned “OFF”. They cannot, however,
be operated once the driver’s or front passenger’s door is opened.
■Jam protection function
If an object becomes caught between th e
window and the window frame, window
travel is stopped and the window is opened slightly.
■When the battery is disconnected
The power windows must be initialized in order to ensure proper operation. 
(Perform for each window with the switch for each seat.)
Open the window halfway.
Fully close the window by pulling the swi
tch up and continue holding the
switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on when initial
setting
s are complete.
■Customization
Settings (e.g. linked door lock operation) can be changed. ( P.
5 2 5 )
STEP1
STEP2
