2007 Lexus GS350 Using the front audio system / LEXUS 2007 GS430/350 OWNER'S MANUAL (OM30A04U)

69
1-7. Safety information
1
Before driving
CAUTION
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications with-
out consulting your Lexus dealer. The SRS airbag may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replace ment of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rail
●Repairs or modifications of the front fender , front bumper, or side of the occupant
compartment
●Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar
etc.)
●Modifications to the vehi cle's suspension system
●Installation of electronic devices such as mobile two-way radios or CD players
●Modifications to your vehicle for a person with a physical disability.

70
1-7. Safety information
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activ
ates or deactivates the devices for front passenger.
SRS warning light
AIRBAG OFF indicator light
AIRBAG ON indicator light
Front passenger’s seat belt reminder light

71
1-7. Safety information
1
Before driving
Condition and operation in the front passenger occupant classification system
■Adult*1
■Child*3 or child restraint system*4
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights AIRBAG
ON
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag on the right side
passenger seats
Curtain shield airbag in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights AIRBAG
OFF*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Deactivated
Side airbag on the right side
passenger seats
Curtain shield airbag in the front passenger side Activated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

72
1-7. Safety information
■Unoccupied
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag
Deactivated
Side airbag on the right side
passenger seats
Curtain shield airbag in the front passenger side Activated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner

73
1-7. Safety information
1
Before driving
■There is a malfunction in the system
*1: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt.
*3: When a large child who has outgrown a child restraint system sits in
the fr
ont passenger seat, the sys tem may recognize him/her as an
adult depending on his/her physique or posture.
*4: Never install a real-facing child restraint system on the front passen -
ger seat. A forward-facing child r
estraint system should only be
installed on the front passenger seat when it is unavoidable. 
( P. 8 9 )
*5: In case the indicator is not illuminated, consult this manual as for installing the child r
estraint system properly. ( P. 8 1 )
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights AIRBAG
OFF
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag on the right side
passenger seats
Curtain shield airbag in the front passenger side Activated
Front passenger knee airbag Deactivated
Front passenger’s seat belt pretensioner Activated

74
1-7. Safety information
CAUTION
■Front passenger occupant classification system precautions
Observe the following precautions regardin g front passenger occupant classifica-
tion system. 
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt tab has not been left inserted into the
buckle before someone sits in the front passenger seat.
●Make sure the AIRBAG OFF indicator lights is not illuminated when using the
seat belt extender for the front pass enger seat. If the AIRBAG OFF indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the AIRBAG ON indicator light is illuminated. If you use the seat belt extender
while the AIRBAG OFF indicator light is il luminated, the front passenger airbag,
side airbag on the front passenger side and front passenger knee airbag may not
activate correctly, which could cause death or serious injury in the event of colli-
sion.
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●Do not put objects under the front passenger seat.
●Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the AIRBAG OFF indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear se at, return the seatback to a position where it does
not touch the rear seat. Keep the front pa ssenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
●If an adult sits in the front passenger se at, the AIRBAG ON indicator light is illu-
minated, If the AIRBAG OFF indicator is il luminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the AIRBAG OFF indicator still remain illuminated, either ask the pas-
senger to move to the fear seat, or if that is not possible, move the front passenger
seat fully rearward.

75
1-7. Safety information
1
Before driving
CAUTION
■Front passenger occupant classification system precautions
●When it is unavoidable to install the forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. ( P. 8 1 )
●Do not modify of remove the front seats.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to in dicate a malfunction on the detection
system. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.

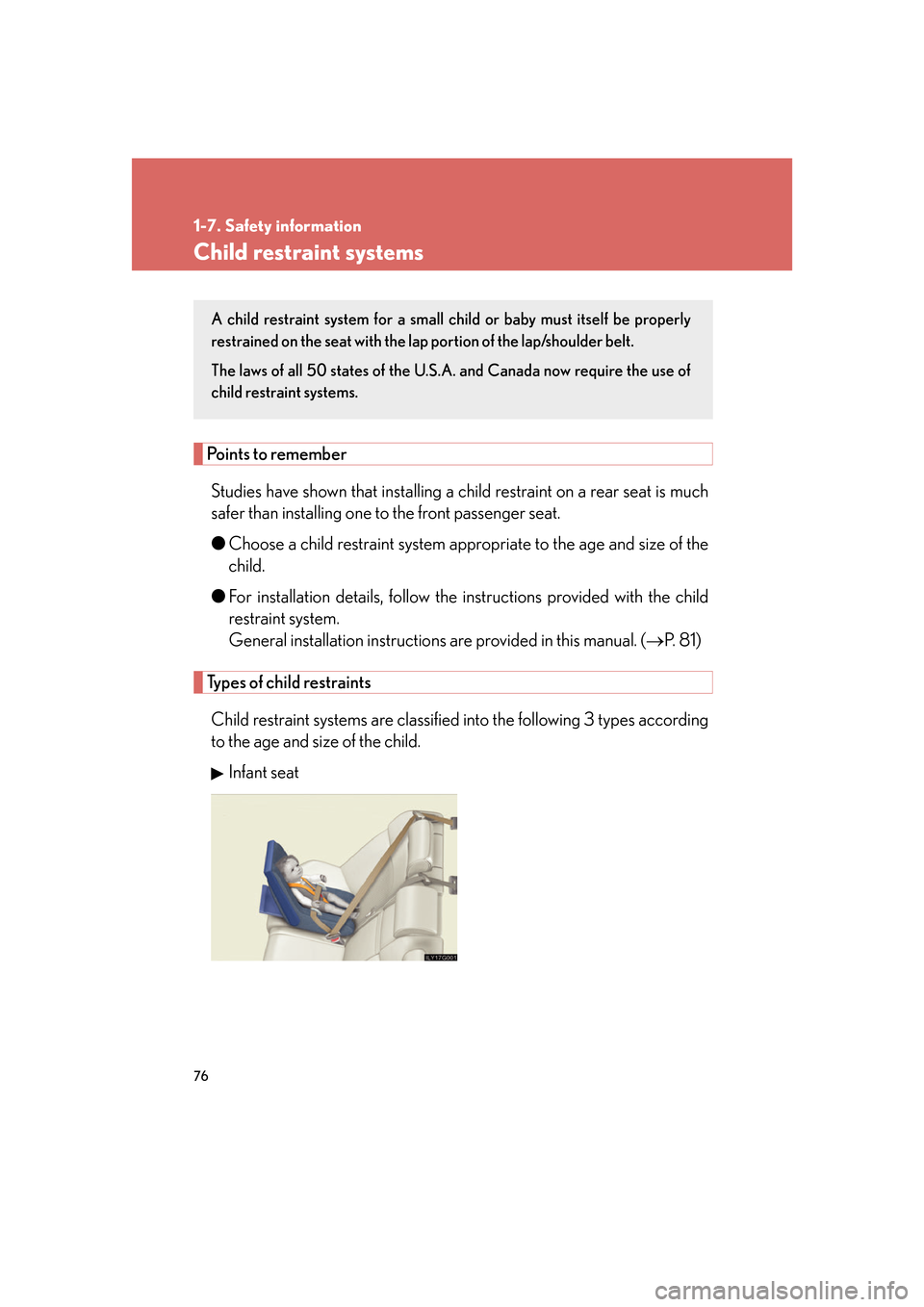

76
1-7. Safety information
Child restraint systems
Points to remember
Studies have shown that installing a child restraint on a rear seat is much
safer than installing one to the front passenger seat.
● Choose a child r
estraint system approp riate to the age and size of the
child.
● F
or installation details, follow the ins tructions provided with the child
restraint system. 
General installation instructions ar e pr
ovided in this manual. (P. 8 1 )
Types of child restraints
Child restraint systems are classified into the following 3 types according
to the age and size of the child.
Infant seat
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.
