2007 Lancia Musa technical specifications

IMPORTANT - Engine oil
Should prevailing use of the car be under one of the
following specially heavy conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) repeated and
with external temperatures below zero;
❒frequently idling engines or long distance low
speed driving (e.g. taxis or door-to-door
deliveries) or in case of a long term inactivity;
replace engine oil more frequently than required on
“Service schedule”.
IMPORTANT - Air cleaner
If the car is used on dusty roads change the air
cleaner more frequently than the indications in the
“Service schedule”.
If in doubt as to how often the engine oil and air
cleaner should be changed according to how you use
the car, contact a Lancia Dealership.IMPORTANT - Pollen filter
If the vehicle is used frequently in dusty or heavily
polluted environments it is advisable to replace the
filtering element more frequently; in particular it
should be replaced if a reduction of the amount of
air admitted to the passenger compartment is noted.
IMPORTANT - Diesel filter
The possibility of topping up with diesel fuel not
complying with EN590 European Norm might
make it necessary to replace the filter more
frequently than indicated in the “Service schedule”.
295
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

IMPORTANT - Battery
The charge in the battery should be checked at the
start of winter to limit the risk of electrolyte
freezing.This check should be carried out more frequently if
the car is used mainly for short trips, or if it is fitted
with accessories that permanently absorb electricity
even with the ignition key removed, especially in the
case of after market accessories. If the car is used in
hot climates or particularly harsh conditions it is
wise to check the level of the battery fluid
(electrolyte) more frequently than specified in the
“Service schedule” in this section.
296
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Car maintenance should be entrusted to Lancia Dealership. For routine and minor maintenance
operations you wish to carry out yourself, always make sure you have the proper equipment,
genuine Lancia spare parts and the necessary fluids; do not however carry out these operations if
you have no experience.

297
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
CHECKING FLUID
LEVELS
IMPORTANT When topping up
take care not to confuse the
various types of fluids: they are
all incompatible with one
another and could seriously
damage the car.
IMPORTANT Never smoke
while working in the engine
compartment: gas and
inflammable vapours may be
present, with the risk of fire.
L0D0206m
L0D0259m
1.416Vversions
1.48Vversions (where provided)
1 Engine coolant - 2 Engine
oil- 3 Brake fluid - 4 Battery -
5 Windscreen/rear window

298
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
1 Engine oil - 2 Battery -
3 Brake fluid - 4 Windscreen/
rear window - 5 Engine coolant
L0D0325m1.9 Multijet versions
L0D0207m1.3 Multijet versions
1 Engine oil - 2 Battery -
3 Brake fluid - 4 Windscreen/
rear window - 5 Engine coolant

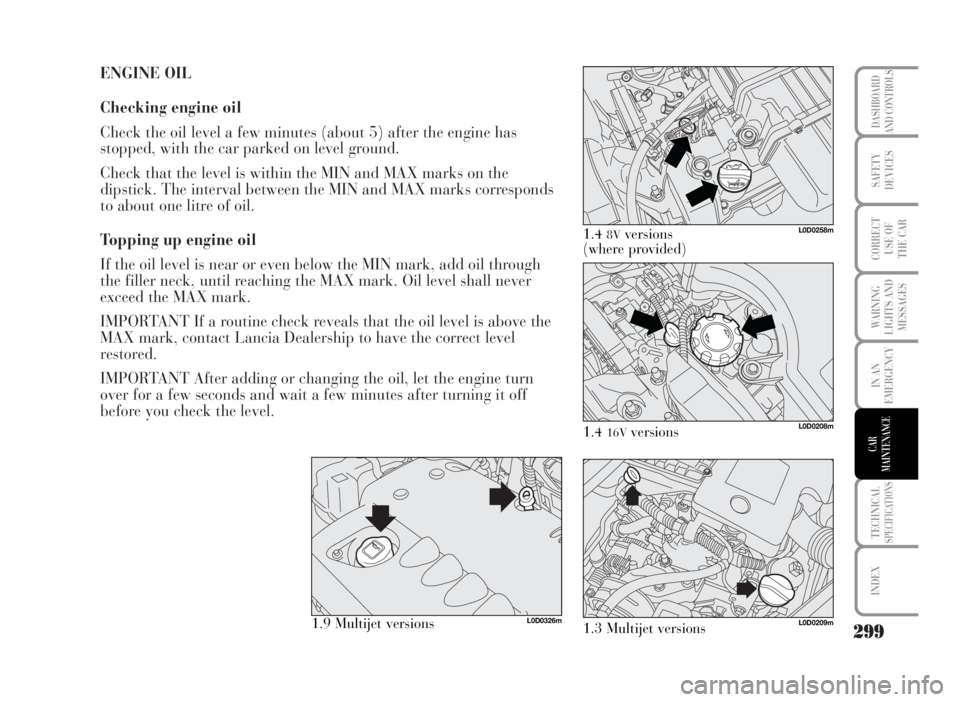

ENGINE OIL
Checking engine oil
Check the oil level a few minutes (about 5) after the engine has
stopped, with the car parked on level ground.
Check that the level is within the MIN and MAX marks on the
dipstick. The interval between the MIN and MAX marks corresponds
to about one litre of oil.
Topping up engine oil
If the oil level is near or even below the MIN mark, add oil through
the filler neck, until reaching the MAX mark. Oil level shall never
exceed the MAX mark.
IMPORTANT If a routine check reveals that the oil level is above the
MAX mark, contact Lancia Dealership to have the correct level
restored.
IMPORTANT After adding or changing the oil, let the engine turn
over for a few seconds and wait a few minutes after turning it off
before you check the level.
299
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
L0D0208m
L0D0209mL0D0326m
1.416Vversions
1.3 Multijet versions 1.9 Multijet versions
L0D0258m1.48Vversions
(where provided)

Engine oil consumption
Max engine oil consumption is usually 400 grams
every 1000 km.
When the car is new, the engine needs to run in,
therefore the engine oil consumption can only be
considered stabilised after the first 5000 - 6000 km.IMPORTANT The oil consumption depends on
driving style and the conditions under which the car
is used.
IMPORTANT Do not add oil with specifications
other than that already in the engine.
300
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Used engine oil and filter contain harmful substances for the environment.
Contact Lancia Dealership to have the oil and filter changed.
When the engine is hot, take care when working inside the engine compartment to
avoid burns. Remember that when the engine is hot, the fan may cut in: danger of
injury. Scarves, ties and other loose clothing might be pulled by moving parts.
WARNING

ENGINE COOLANT FLUID
The coolant level shall be checked with cold engine and shall be
included between the MIN and MAX mark on the reservoir.
If the level is low, pour slowly a mixture of 50% distilled water and
50% FL Selenia PARAFLU UP through the filler neck.
A 50-50 mixture of PARAFLU UP and distilled water gives freeze
protection to –35°C.
IMPORTANT Do not remove the reservoir cap when the engine is hot:
you risk scalding yourself.
301
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
L0D0210m
L0D0211m
1.48V(where provided)-
1.416Vversions
1.3 and 1.9 Multijet versions
DUAL FUNCTION SYSTEM GEARBOX HYDRAULIC
SYSTEM OIL
To have the oil level checked contact Lancia Dealership only.
WARNING
The cooling system uses PARAFLU UP antifreeze. Do not add fluid having
different specifications from that already existing. PARAFLU UP cannot be mixed
with other types of fluids. Should other fluids be added, do not start the engine
and contact Lancia Dealership as soon as possible.
The cooling system is pressurised. If necessary, replace the cap only with another
genuine one, otherwise system efficiency could be compromised.
WARNING

WINDSCREEN/REAR WINDOW/HEADLIGHT WASHER FLUID
To top up, remove the cap (A) and then pour a mixture of water and
TUTELA PROFESSIONAL SC 35, in the following concentrations:
❒30% TUTELA PROFESSIONAL SC 35 and 70% water in
summer;
❒50% TUTELA PROFESSIONAL SC 35 and 50% water in winter.
In case of temperatures below –20°C, use undiluted TUTELA
PROFESSIONAL SC 35.
Check level through the reservoir.
302
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
L0D0212m
WARNINGDo not travel with the windscreen washer reservoir empty: the windscreen washer
is fundamental for improving visibility.
WARNINGCertain commercial additives for windscreen washers are inflammable. The
engine compartment contains hot components which may set it on fire.
