2007 Lancia Musa technical specifications

119
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
ODDMENT COMPARTMENTS
Compartment A, located in the dashboard, is in front of the front
passenger.
Compartment A can house removable tool bag E, available at
Lineaccessori Lancia.
Compartment B, located in the dashboard, is on the steering wheel
left-hand side.
Compartment C and DIN compartment D, located in the dashboard,
are in central position.
The DIN compartment D can be removed to install the sound system
of the Lineaccessori Lancia.
L0D0088m
L0D0089m
L0D0090mL0D0343m

120
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0153m
L0D0091m
DOOR POCKETS
Each door has a pocket/oddment compartment.
GLASS/CAN HOLDER
The central console houses the glass/can holders in front of the
handbrake.

121
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
MAGNETIC CARD/TICKET SLOTS
The slots for holding magnetic cards and tickets (phone card, toll
slips, etc.) can be found on the central tunnel unit.
ROOF SHELF
This shelf was designed to facilitate quick storage of light objects
(e.g.: documents, road map, etc.).
IMPORTANT Do not put heavy objects on the shelf and do not lean
on it.
The shelf is an alternative to the sunroof.
L0D0092m
L0D0093m
L0D0236m
REAR CD COMPARTMENT WITH
GLASS/CAN HOLDER
On the central console, behind the handbrake, there is a CD
compartment with glass/can holder.

122
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0094m
L0D0095m
L0D0154m
OUTLETS (12V)
They work only with the ignition key at MAR.
Outlet A is at the front, outlet B present only if the car is fitted with
“smoker’s kit” is at the back; in this case outlet A is replaced by the
cigar lighter
Where provided, the car can be fitted with outlet C, also on the
luggage compartment left-hand side.

123
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
SMOKER’S KIT (where provided)
Cigar lighter
It is located on the central console, at the side of the handbrake lever.
With the ignition key at MAR, press the button; after about 15
seconds the button will return to its initial position and ready for use.
IMPORTANT Always check that the cigar lighter has turned off.

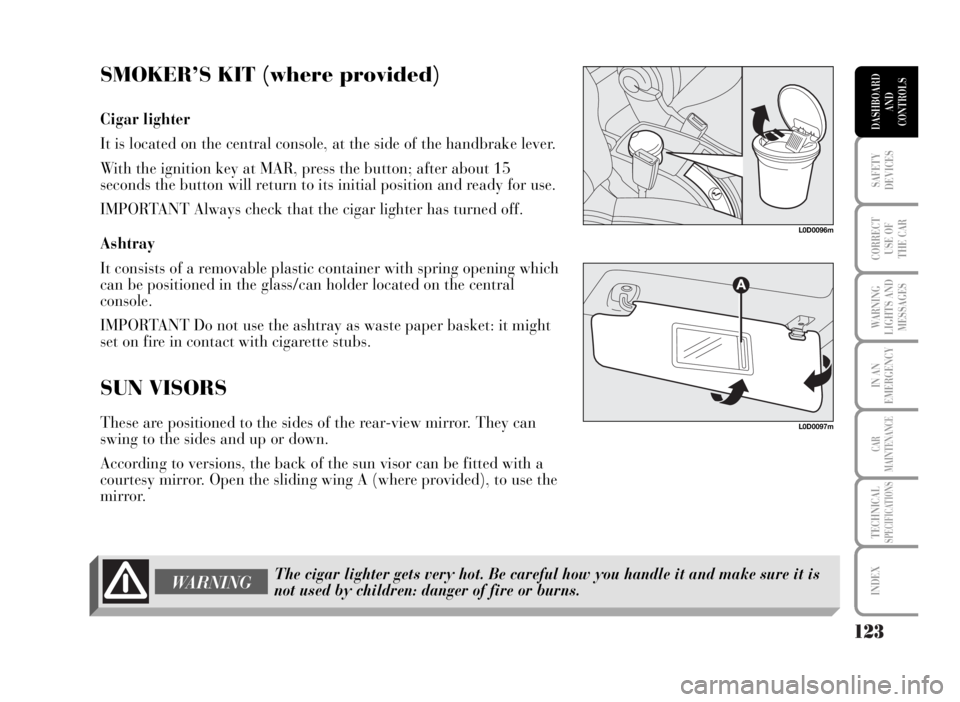

Ashtray
It consists of a removable plastic container with spring opening which
can be positioned in the glass/can holder located on the central
console.
IMPORTANT Do not use the ashtray as waste paper basket: it might
set on fire in contact with cigarette stubs.
SUN VISORS
These are positioned to the sides of the rear-view mirror. They can
swing to the sides and up or down.
According to versions, the back of the sun visor can be fitted with a
courtesy mirror. Open the sliding wing A (where provided), to use the
mirror.
WARNINGThe cigar lighter gets very hot. Be careful how you handle it and make sure it is
not used by children: danger of fire or burns.
L0D0096m
L0D0097m

124
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
SUNROOF (where provided)
The sunroof is fitted with a safety anti-crushing system able to detect
the presence of an obstacle during the window winding up; should it
happen, the system stops and lowers the window.
The sunroof is fitted with a “skydome” consisting of two glass panels
- one fixed and one moving - with sun visors operated manually in
two positions (open/closed).
The sunroof will only work when the ignition key is at MAR. The
button, next to the front ceiling light, controls opening and closing.
To open
Press and keep button B pressed so that the sunroof front glass panel
reaches the “spoiler” position; press again button (B) and operate it
for more than half a second, so that the sunroof glass reaches the
travel end; the sunroof glass can be stopped in an intermediate
position by operating the button again.
To close
From the complete opening position, press button A and operate it for
more than half a second so that the sunroof front glass panel reaches
the “spoiler” position; operate again the button to stop the sunroof
glass in an intermediate position; press again button A and keep it
pressed until complete closing.
L0D0098m

125
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0099m
WARNING
Always remove the ignition key when you get out of the car to prevent the sunroof
being operated accidentally and constituting a danger to the people left in the car.
The improper use of the sunroof can be dangerous. Before and during its
operation ensure that any passengers are not at risk from the moving roof either
by personal objects getting caught in the mechanism or by being injured by it
directly. Do not open the sunroof if there is snow or ice on it: it could be damaged.
In case of cross roof rack, you are suggested to use the sunroof only in “spoiler” position.
EMERGENCY OPERATION
If the switch does not work, the sunroof can be operated manually as
follows:
❒remove the protective cover between the two sun visors
❒take the provided Allen wrench
❒insert the provided wrench into the seat A and turn it:
– clockwise to open the sunroof
– counter-clockwise to close the sunroof.

126
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
POWER WINDOWS
For the 2-button version (only front power
windows) no type of automatism (either opening or
closing) is provided.
For the 4-button version (front and rear power
windows), the driver side is provided with both
opening and closing automatism, whereas the
passenger side is only provided with opening
automatism (where provided also closing
automatism). Rear windows are only provided with
opening automatism.
Power windows with opening and closing (where
provided) automatism are fitted with crush-
prevention seal safety system capable of reversing
the window stroke when an obstacle comes into
contact with glass and seal and therefore capable of
detecting the presence of an obstacle during the
front window closing motion.
IMPORTANT In the event that the anti-crushing
function is activated 5 times in only 1 minute, the
system will automatically enter the “recovery” mode
(self-protection). This conditions is pointed out by
the fact that, in the closing phase, the window goes
up in jerks.
WARNING
The system conforms to Standard 2000/4/CE concerning the safety of passengers
leaning out from the compartment. At the same time, the upper outer gasket is not
equipped with anti-crush protection in order to guarantee protection against
unwanted access from outside the car.So, it is necessary to carry out the system restore
procedure, acting as follows:
❒perform opening control;
or
❒turn the key to STOP and then to MAR.
The logic is restored if no malfunction is present,
the window returns to its normal operation
automatically; otherwise contact a Lancia
Dealership.
IMPORTANT With the ignition key at STOP or
removed, the power windows remain activated for
about 2 minutes and are deactivated immediately
the moment a door is opened.
