2007 KIA Sportage Owner's Manual

Knowing your vehicle104
3
1
2
3
4
5
6
7
8
9
3. Release the TILT UP button.
4. Press and hold the TILT UP button
once again until the sunroof has
returned to the original position of
TILT UP after it is raised a little
higher than the maximum TILT UP
position.
When this is complete, the sunroof
system is reset.
To keep items from shifting in the
cargo area, you can use the four
rings located in the cargo area to
attach the luggage net.
✽ ✽NOTICEDo not put fragile, bulky or an
excessive quantity of items into lug-
gage net. They could be damaged.
1KMA2176
LUGGAGE NET (IF EQUIPPED)
CAUTION
To avoid eye injury, DO NOT
overstretch the netting, allowingit to possibly snap back intoyour face.
DO NOT use the luggage netwhen the strap has visible signsof wear or damage.

3 105
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Use the tonneau cover to hide items
stored in the cargo area. To use the front shade of the ton-
neau cover, pull the hook forward
and hang the hook on the headrest
pole.
✽ ✽ NOTICEWhen folding the rear seatback for-
ward, remove the hook from the
headrest pole. Otherwise, the front
shade of the tonneau cover may be
damaged or malformed. To use the rear shade of the ton-
neau cover, pull the handle back-
ward and insert the edges into the
slots. When not in use, place the tonneau
cover on the lower portion of cargo
area.
TONNEAU COVER (IF EQUIPPED)
1KMA2180
1KMN2179
1KMA2181

Knowing your vehicle106
3
1
2
3
4
5
6
7
8
9
✽ ✽

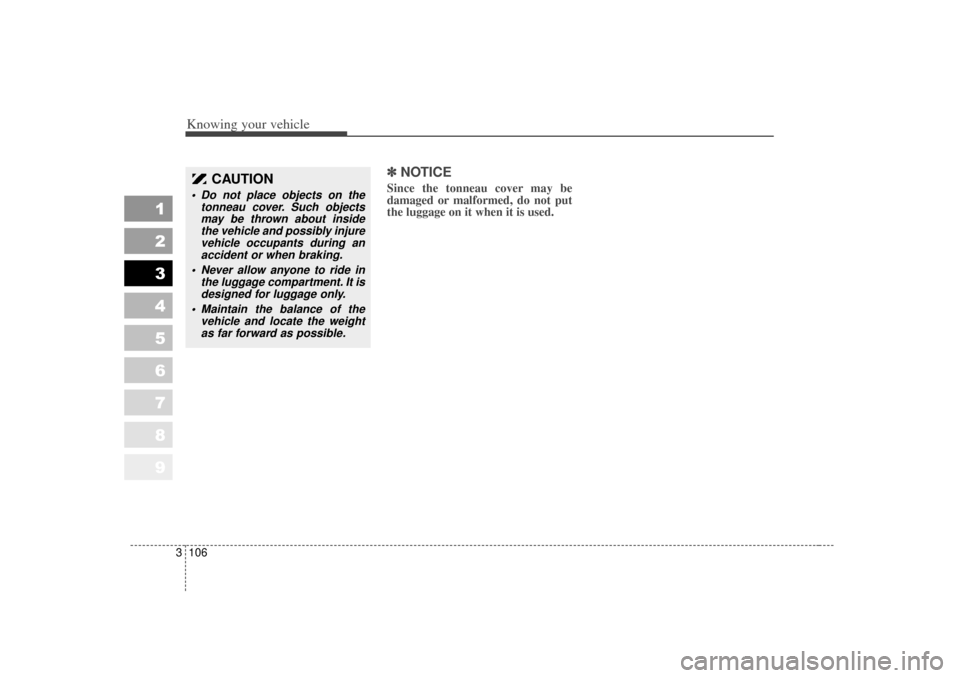

NOTICESince the tonneau cover may be
damaged or malformed, do not put
the luggage on it when it is used.
CAUTION
 Do not place objects on the
tonneau cover. Such objectsmay be thrown about insidethe vehicle and possibly injurevehicle occupants during anaccident or when braking.
 Never allow anyone to ride in the luggage compartment. It isdesigned for luggage only.
 Maintain the balance of the vehicle and locate the weightas far forward as possible.

3 107
1
2
3
4
5
6
7
8
9
Knowing your vehicle
The luggage center box is located
under the floor in cargo area. You can
place a first aid kit, a reflector trian-
gle, tools, etc. in the box for easy
access.1. Grasp the handle on the edge of
the cover and lift it. 2. Detach the hook from the cover
and hang the hook on the weather
strip.
When not in use, hang the hook on
the bottom of the cover.LUGGAGE CENTER BOX
1KMA2182
1KMA2183
1KMA2184

Knowing your vehicle108
3
1
2
3
4
5
6
7
8
9
If the vehicle has a roof rack, you can
load things on top of your vehicle.
Crossrails and fixing components to
adapt the roof rack on your vehicle
may be obtained from an authorized
Kia dealer.
✽ ✽
NOTICE• If the vehicle has a sunroof, do not
position the roof rack loads so that
they could interfere with the sun-
roof.
• Loading cargo or luggage above specification on the roof rack may
damage your vehicle.
ROOF RACK (IF EQUIPPED)
1KMA2177
CAUTION
 The following specification is
maximum weight when load-ing cargo or luggage.
When you carry large objects,never let them hang over therear or the sides of your vehi-cle.
 To prevent damage or loss of cargo as you are driving,check frequently to make surethe luggage carrier and cargoare still securely fastened.
 Always drive your vehicle at a moderate speed.
 Loading cargo or luggage over specification on the roofrack may damage the stabilityof your vehicle.ROOF 45 kg (100 lbs.)
RACK EVENLY DISTRIBUTED

3 109
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Roof type antennaIf your vehicle has an audio system,
an amplifying antenna is installed in
your vehicle.
This antenna can be removed from
the vehicle when you wash your
vehicle.
✽ ✽NOTICE• Be sure to remove the antenna
before washing the car in an auto-
matic car wash or it may be dam-
aged.
• When reinstalling your antenna, it is important that it is fully tight-
ened to ensure proper reception.
ANTENNA
OCM052140
Type A
Type B

1
2
3
4
5
6
7
8
9
Ignition switch / 4-2
Starting the engine / 4-4
Manual transaxle / 4-5
Automatic transaxle / 4-6
Four wheel drive (4WD) / 4-12
Brake system / 4-18
Steering wheel / 4-25
Cruise control system / 4-28
Traction control system / 4-33
Electronic stability control / 4-36
Instrument cluster / 4-39
Gauges / 4-40
Warnings and indicators / 4-46
Compass / 4-54
Lighting / 4-57
Wipers and washers / 4-61
Defroster / 4-64
Hazard warning flasher / 4-65
Manual climate control system / 4-66
Automatic climate control system / 4-75
Windshield defrosting and defogging / 4-88
Driving your vehicle
10

Driving your vehicle24
1
2
3
4
5
6
7
8
9
Illuminated ignition switch
(if equipped)Whenever a door is opened, the igni-
tion switch will be illuminated for your
convenience, provided the ignition
switch is not in the ON position. The
light will go off approximately 10 sec-
onds after closing the door or when
the ignition switch is turned on.
Ignition switch and anti-theft
steering column lock
Ignition switch positionLOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to
the LOCK position, push the key
inward at the ACC position (Type A)
and turn the key toward the LOCK
position.
ACC (Accessory)
The steering wheel is unlocked and
electrical accessories are operative.
ON
The warning lights can be checked
before the engine is started. This is
the normal running position after the
engine is started.Do not leave the ignition switch ON ifthe engine is not running to preventbattery discharge.
IGNITION SWITCH
1KMA3012
1KMA30131KMB3013
Type AType B
