2007 ISUZU KB P190 light

ELECTRICAL-BODY AND CHASSIS 8A-613


No. Connector face No. Connector face
C56
(4JH1-TC)


Black
ECM-A C77



WhiteClutch switch
C56
(HFV6)

Black
ECM-A C78

~
C93 NOT USED
C57



Black ECM-B C94



WhiteTCM-A (AW 30-40LE TRANSMISSION)
C58


Black ECM J2 C94



Gray TCM-A (JR405E TRANSMISSION)
C59
~
C62 NOT USED C95



White
TCM-B (AW 30-40LE TRANSMISSION)
C63


Brown
Front fog light-RH C95



WhiteTCM-B (JR405E TRANSMISSION)
C64


Brown
Front fog light-LH C96



BlackTCM1
C65
~
C66 NOT USED C97

~
C103 NOT USED
C67



Black
EHCU C104



BrownFront blower resister
C68
~
C76 NOT USED C105



White
Front blower motor


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-615


No. Connector face No. Connector face
C131



Black
Radiator fan C142



Gray Clearance light PJT HI-RH
C132


NOT USED C143



Gray
Clearance light PJT HI-LH
C133


Silver
Earth rad fan C144



Gray Headlight levering PJT-RH
C134


Gray
Motor actuator C145



Gray Headlight levering PJT-LH
C135


White
Joint connector 1 C146



BlackHeadlight PJT LOW -RH
C136


White
Joint connector 2 C147



BlackHeadlight PJT LOW -LH
C137


Black
Ambient sensor C148



Gray Front turn signal light PJT-RH
C138
~
C139 NOT USED C149



Gray
Front turn signal light PJT-LH
C140


Black
Headlight PJT HI-RH C150



WhiteJoint connector 5
C141


Black
Headlight PJT HI-LH C151



WhiteJoint connector 6


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-618 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
D20



White
Power window switch-driver side D30



White

Door mirror-turn signal light-passenger side
D21


White
Tweeter-driver side

D22



White
Tweeter-passenger side

D23



White
Door lock & super actuator front (RH)

D24



White
Key cylinder switch-driver side

D25



White
Door lock actuator-passenger side

D26



White
Key cylinder switch-driver side

D27



White
Door lock & super lock actuator RR (RH)

D28



White
Door lock & super lock actuator RR (LH)

D29



White
Door mirror-turn signal light-driver side



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-620 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
E19



Blue
Thermo meter unit E35



BlackMotor actuator
E20
~
E21 NOT USED E36




TACHO sensor
E22



Brown
TPS 1 main E37



Fuel cut solenoid
E23



Gray
TPS 2 main E38



BlackIntake throttle DC motor position
E24
~
E26 NOT USED E39



Black
Camshaft position (CAM) sensor
E27


Gray
Fuel temp sensor E40



BlackBarometric sensor
E28
~
E29 NOT USED E41
(4JH1-TC)


Black
W ater temperature sensor
E30


Gray
A/T speed sensor E41
(
4JJ1-TC)


Black
Engine coolant temperature sensor
E31


Gray
Turbine sensor E42


Natural greenBackup light switch
E32
~
E34 NOT USED E43


Natural green
Backup light switch


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-623


No. Connector face No. Connector face
E89



White

Immobilizer engine control unit E107




MAP sensor
E90


Black
ECM J1 E108



Blue Cylinder revolution
E92


Silver
Fuse & relay box E109



Blue SPGA
E94
~
E95 NOT USED E110



Brown
Backup light switch
E96


Black
Reverse switch E111



BrownNeutral switch
E97
~
E98 NOT USED E112



Gray
1st switch
E99


Black
O2 sensor-RH E113



Gray Clutch sleave cylinder
E100


Black
O2 sensor-LH E114

~
E115 NOT USED
E101

~
E105 NOT USED E116




Backup light switch
E106



EVRV: Turbo



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-624 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
F1



Gray
Fuel filter switch F12



BlackFuel clogging switch
F2


Black
Fuel pump sensor F13



BrownFuel filter switch
F3


NOT USED

F4



Gray
Rear ABS speed sensor

F5



Gray
Rear combination light-RH

F6



Black
Rear combination light-LH

F7



White
License plate light

F8



Black
Rear fog light – RH

F9



Black
Rear fog light - LH

F10

~
F11 NOT USED



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-626 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
H16



White
Rear body ~ Rear door-RH H29
(C24SE)

Battery (+) ~ Engine room
H17


Gray
Chassis ~ License plate light H30



NOT USED
H18



White
Engine room ~ INST H31
(C24SE)

Engine room ~ Mission
H19
~
H22 NOT USED H32
(C24SE)


Engine room ~ Rear body
H23


White
Engine ~ Engine room B H33



WhiteEngine ~ Engine room
H23
(4JA1T- (L))
White
Engine room B ~ T/misson H34



BlackEngine ~ Engine room
H24
~
H25 NOT USED H35



Gray
Trailer hitch
H26


Black
INST ~ Rear body H36



WhiteINST ~ Front door-RH
H27


NOT USED H37



White
INST ~ Front door-LH
H28


White
Sub harness connector H38



WhiteINST ~ Front door-RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

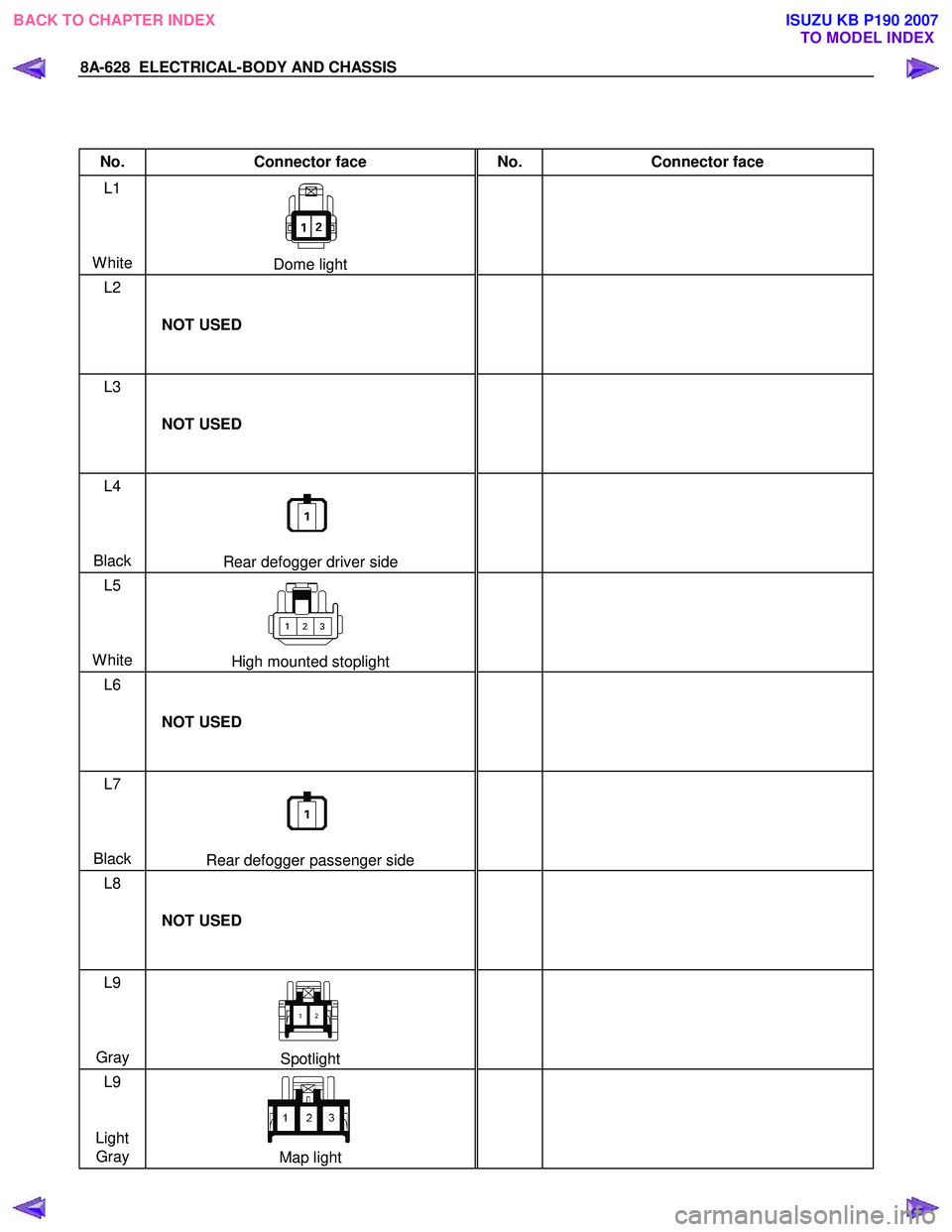

8A-628 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
L1



White
Dome light

L2



NOT USED

L3



NOT USED

L4



Black
Rear defogger driver side

L5



White
High mounted stoplight

L6



NOT USED

L7



Black
Rear defogger passenger side

L8



NOT USED

L9



Gray
Spotlight

L9


Light Gray
Map light



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
