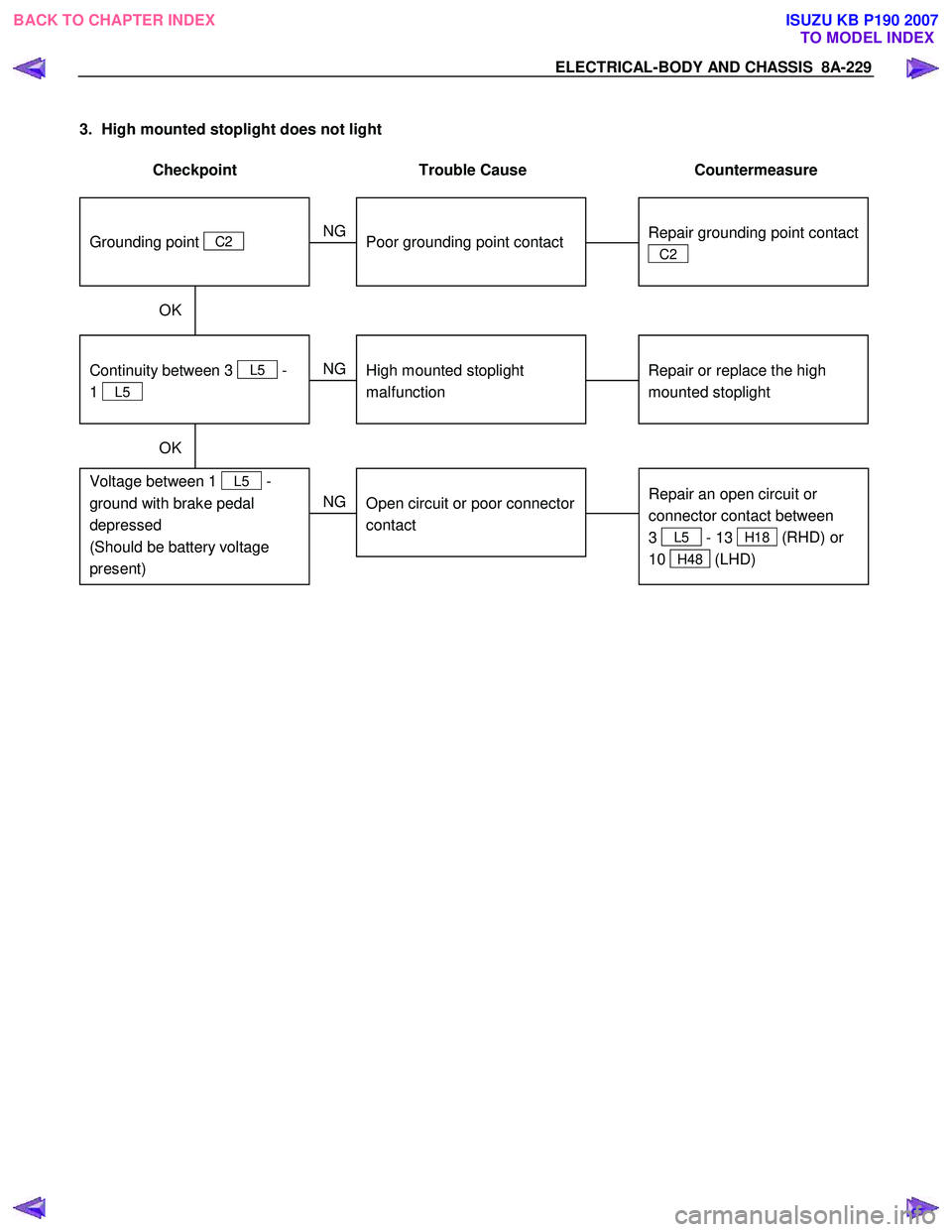

ELECTRICAL-BODY AND CHASSIS 8A-229

3. High mounted stoplight does not light

Checkpoint Trouble Cause Countermeasure



Repair or replace the high
mounted stoplight

Continuity between 3
L5 -
1
L5


High mounted stoplight
malfunction

NG
Repair an open circuit or
connector contact between
3
L5 - 13 H18 (RHD) or
10
H48 (LHD)
Voltage between 1
L5 -
ground with brake pedal
depressed
(Should be battery voltage
present)
Open circuit or poor connector
contact

NG
OK

Repair grounding point contact

C2


Grounding point
C2


Poor grounding point contact

NG
OK




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-230 ELECTRICAL-BODY AND CHASSIS
TURN SIGNAL LIGHT AND HAZARD WARNING LIGHT
1. Turn signal light does not light on both sides (RH and LH)

Checkpoint Trouble Cause Countermeasure



Replace the flasher unit

Flasher unit malfunction

NG

Repair or replace the
combination switch
Turn signal switch continuity
between connector
5
B60 - 6 B60 and
5
B60 - 7 B60 when
turn signal switch operates
Short circuit between
connector 3
B61 - 1 B61
when turn signal switch
operates with starter switch
in “ON” position (Turn
signal light should be ON)

Poor switch point contact or
faulty switch

NG
OK

Reinstall or replace fuse No.
EB16 (10A)

Fuse No. EB16 (10A, Fuse
box)

Poor fuse contact or blown
fuse

NG
OK
OK

Repair open circuit or
connector contact
Continuity between
connector 2
B61 -ground
(Should be continuity)


Open circuit or poor connector
contact

NG




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-231
2. Turn signal light does not light on one side (RH or LH)

Checkpoint Trouble Cause Countermeasure



Repair open circuit or
connector contact

Open circuit or poor connector
contact

NG
(LH)
Continuity between
1
C25 - 6 B60 (FRT),
1
C35 - 6 B60 (SIDE)
1
F6 - 6 B60 (RR)
(RH)
Continuity between
1
C22 - 7 B60 (FRT),
1
C1 - 7 B60 (SIDE)
1
F5 - 7 B60 (RR)

Repair or replace the
combination switch

Turn signal switch continuity

Poor switch point contact or
faulty switch

NG
OK
OK

Repair open circuit or
connector contact

Open circuit or poor connector
contact

NG



3. Hazard warning light does not light



Repair or replace the hazard
SW .

Hazard SW . malfunction

NG
Voltage between 5
B16 -
ground (Should be battery
voltage present)

Hazard SW . continuity


Reinstall or replace the fuse
No. EB-16 (10A)

Fuse No. EB16 (10A, Relay
and fuse box)

Poor fuse contact or blown
fuse

NG
OK
OK

Repair open circuit or
connector contact
Open circuit or poor
connector contact between
fuse No. EB16 (10A) -
5
B16
NG



4. Flashing rate too fast (One side)

Replace the bulb or repair
open circuitInspect bulbBurned out bulb
NG


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-232 ELECTRICAL-BODY AND CHASSIS
BACKUP LIGHT
1. Backup light does not light on one side (RH or LH)

Checkpoint Trouble Cause Countermeasure

Repair grounding point contactPoor ground contact
NGGrounding point
Replace the bulb or repair
connector contactBackup light bulb continuityBurned out bulb or poor
connector contact
NG
OK



2. Backup light does not light on both sides



Repair or replace the switch

Poor switch point contact of
faulty switch

NG
Voltage between 5 F6
(5
F5 ) - ground with
starter switch ON and shift
lev er into rev erse position
(Should be battery v oltage
present)

Back up light switch (mode
switch) continuity


Reinstall or replace fuse No.
C10 (15A)

Fuse No. C10 (15A, Fuse
box)

Poor fuse contact or blown
fuse

NG
OK
OK

Repair open circuit or
connector contact

Open circuit or poor connector
contact

NG



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-235

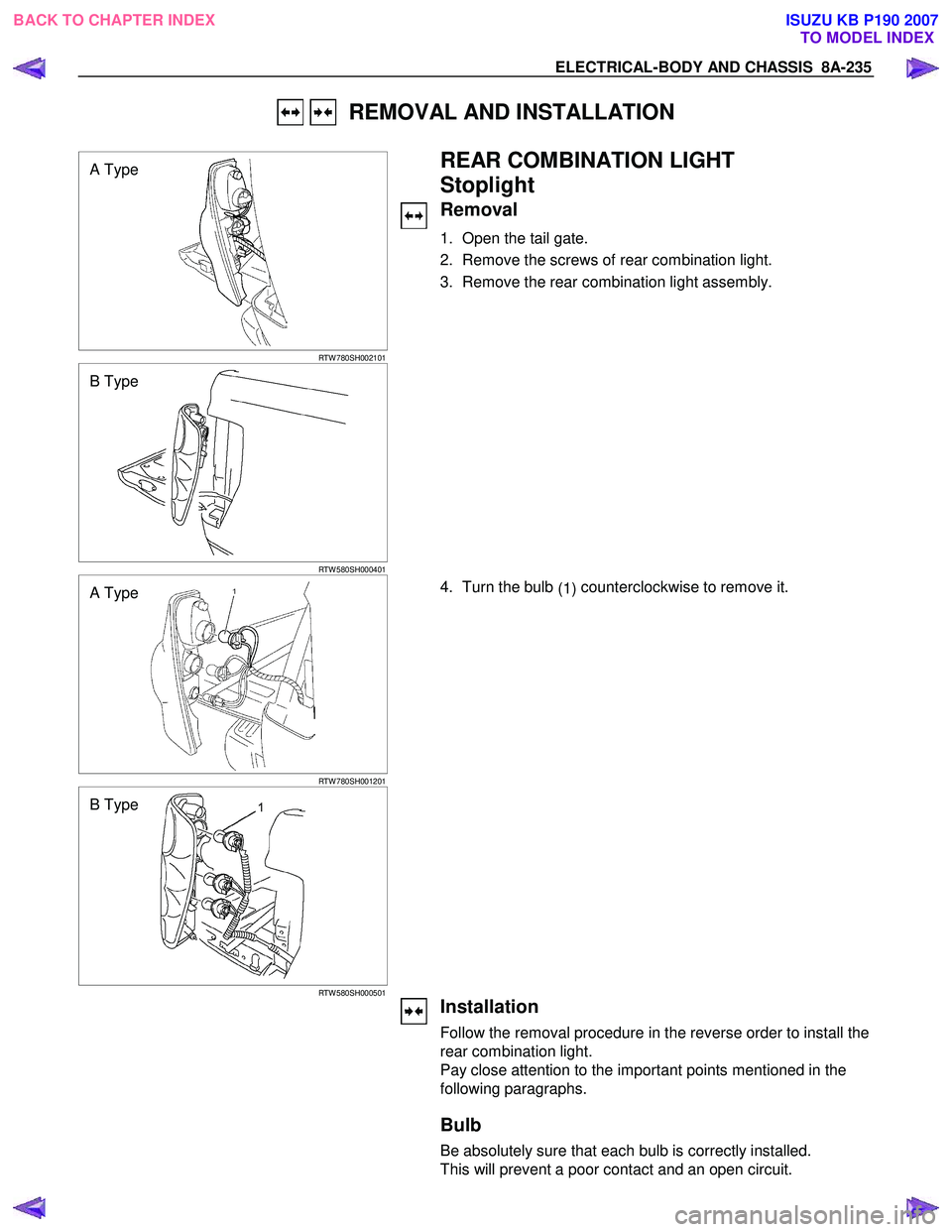

REMOVAL AND INSTALLATION



A Type
RTW 780SH002101

REAR COMBINATION LIGHT
Stoplight
Removal
1. Open the tail gate.
2. Remove the screws of rear combination light.
3. Remove the rear combination light assembly.




B Type
RTW 580SH000401



A Type
RTW 780SH001201
4. Turn the bulb (1) counterclockwise to remove it.




B Type
RTW 580SH000501



Installation
Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.



Bulb
Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-236 ELECTRICAL-BODY AND CHASSIS
HIGH MOUNTED STOPLIGHT
Remove the bulb socket
1. Remove the high mounted stoplight ASM. • Remove the screws.
• Disconnect the connector.

2. Remove the bulb socket.
• Turn the bulb
1 counterclockwise to remove it.


Installation
Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.



Bulb
Be absolutely sure that each bulb is correctly installed.
This will prevent a poor contact and an open circuit.



DOOR MIRROR - TURN SIGNAL LIGHT
Removal
1. Pull the lower outside corner of the mirror toward you.





RUW 580SH000701
2. Press the blade of an ordinary screwdriver (2) into the
mirror outside groove near the mirror base hole (1).

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-237


RUW 580SH000801
3. Turn the blade of the screwdriver 90 degrees to separate
the parts (1).



RUW 580SH000901
4. Use an ordinary screwdriver inserted into the inner groove
(1) of the outside mirror case to pry off the outside panel (it
pasts up on butyl tape). Do this at 5 points around the
groove.



RUW 580SH001001
5. Insert an ordinary screwdriver into the inner groove (1) of
the door mirror - turn signal light. Pry the light free.
6. Disconnect the connector (2).





Installation
Follow the removal procedure in the reverse order to install the
door mirror - turn signal light.
Pay close attention to the important points mentioned in the
following paragraphs.

SIDE TURN LIGHT
Removal
1. Remove the lens 1.
• Pull the light/bulb toward you while pushing the light
housing in the rear direction of the vehicle to release its
lock.
• Remove the socket by turning it counterclockwise.
2. Pull the bulb
2 to remove it.


Installation
Follow the removal procedure in the reverse order to install the
side turn light.
Pay close attention to the important points mentioned in the
following paragraphs.


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-238 ELECTRICAL-BODY AND CHASSIS

Bulb
Be absolutely sure that the side turn light bulb is correctly
installed.
This will prevent a poor contact and an open circuit.




A Type
RTW 780SH002101















REAR COMBINATION LIGHT
Turn Signal Light
Removal
1. Open the tail gate.
2. Remove the screws.
3. Remove the rear combination light assembly.



B Type
RTW 580SH000401



A Type
RTW 780SH001301

4. Turn the bulb 1 counterclockwise to remove it.




B Type
RTW 78ASH002501

Installation
Follow the removal procedure in the reverse order to install the
rear combination light.
Pay close attention to the important points mentioned in the
following paragraphs.
