2007 ISUZU KB P190 engine

11A-46 IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)
The ICU is installed to the steering lock. The ICU
controls the immobilizer system by authentication of the
transponder key and the ECM. An antenna coil is a part
of the ICU and it is located around steering key lock
cylinder. An antenna coil is energized when the ICU is
performing an authentication of the transponder key.
Engine Control Module (ECM)
Legend 1. ECM (4JK1/ 4JJ1)
2. ECM (HFV6)

The ECM is located inside of engine compartment via
mounting bracket and is behind air cleaner case (4JK1/
4JJ1) or attached to the engine (HFV6). The ECM
mainly controls the engine control and also exchanges
a request signal and a response signal to an ICU. If
fault occurs on immobilizer system, the ECM sets
DTC(s) and illuminates the service vehicle soon (SVS)
lamp or the malfunction indicator lamp (MIL). Powertrain Interface Module (PIM)
The PIM is located behind the driver’s side lower hinge
pillar trim. The PIM acts as the communication gateway
between the CAN communication protocol and other
protocol. The PIM converts analog signals from some
switches into serial data. The PIM upon inputs received
from the ECM, TCM and ICU controls the operation of
instruments and indicator lamps. (HFV6)
Transponder Key
Legend 1. Transponder chip

The transponder key accommodates a transponder
chip in the grip portion. The transponder keys have no
conventional power supply. The transponder chip is
energized via a radio wave supplied from an antenna
coil fitted around the steering lock cylinder. Only
transponder key that is correctly programmed key is
possible to engine run. Maximum five transponder keys
can be provided by additional programming.
RTW7BASH000201
1

BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-1

IMMOBILIZER SYSTEM
(C24SE, 4JA1-T)
CONTENTS

Service Precaution .................................................. 11A-2
General Description ................................................ 11A-3
W hat happens without proper transponder
operation? ........................................................... 11A-5
No proper transponder is available, what
should be done for the system? ...................... 11A-5
Caution to the operation ..................................... 11A-5
Summary of operation ......................................... 11A-5
W hat your organization should provide for
your customer .................................................... 11A-5
Car Pass .............................................................. 11A-5
Security code management .............................. 11A-5
Essential tool (Scan tool : Tech-2) .................. 11A-5

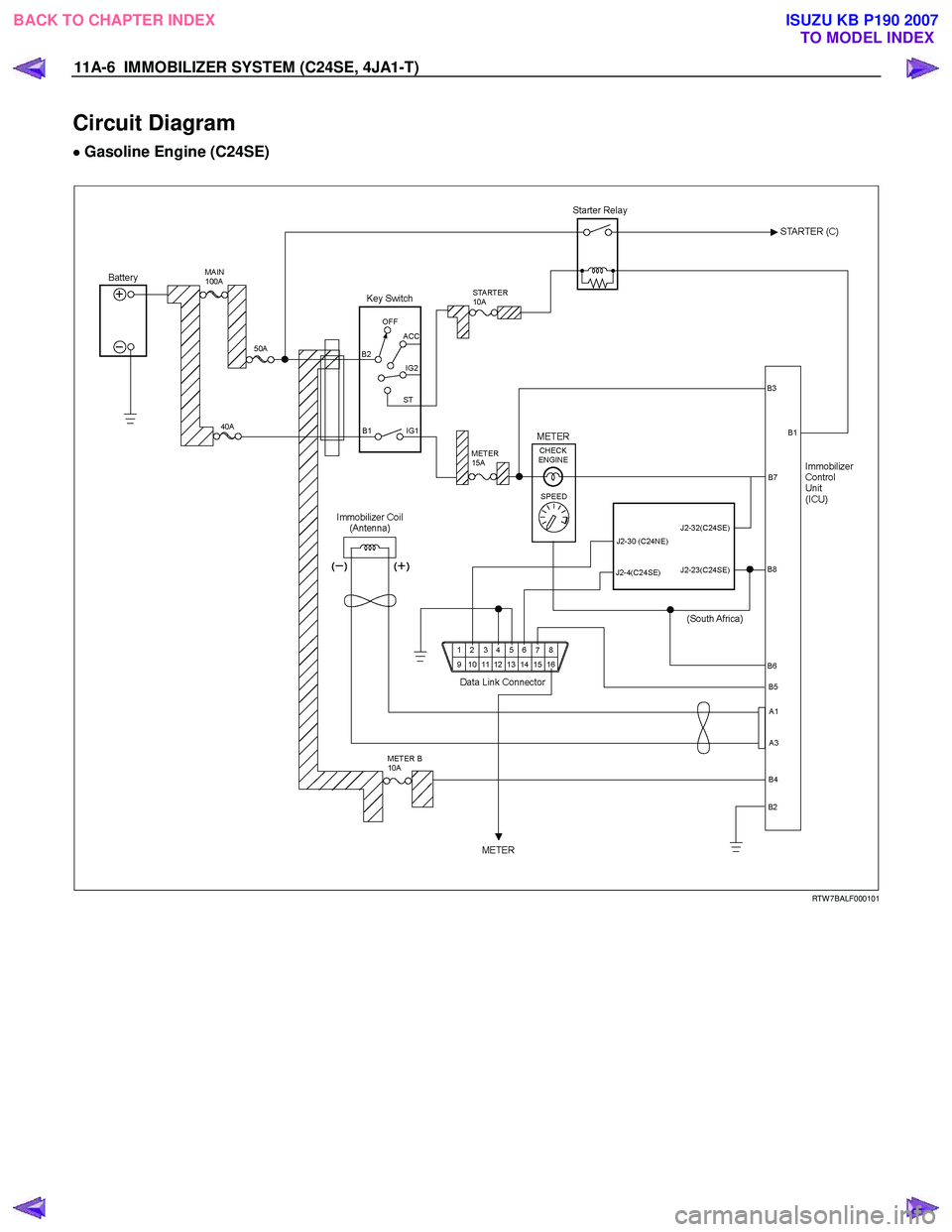

Circuit Diagram .................................................. 11A-6
Parts Location .......................................................... 11A-8
Immobilizer control unit (ICU); For Electronic
Control Engine (C24SE) .................................... 11A-9
Pin-outs; For Electronic Control Engine
(C24SE) ............................................................... 11A-10
Immobilizer control unit (ICU); Mechanical
Control Engine (4JA1-T) ...................................11A-11
Immobilizer coil (Antenna) ....................................11A-13
Transponder (Key) ............................................11A-13
Check engine lamp ...........................................11A-13
Engine control module (ECM) ...........................11A-13
Car Pass Card ...................................................11A-14 Loss of car pass card .......................................... 11A-14
Instructions on Filling Out the form "Data
request, car pass" ............................................. 11A-14
Important Instructions ........................................ 11A-15
lmportant information on Programming ..............11A-17
Security code ....................................................... 11A-17
Entering a code ................................................... 11A-17
Transponder (Key) ............................................. 11A-17
Tech-2 Scan Tool .................................................. 11A-18
Operating Procedure .......................................... 11A-18
Menu .................................................................... 11A-19
DTC ...................................................................... 11A-19
Clear DTC Information ......................................11A-19
Tech-2 Data Display .......................................... 11A-19
Check Vehicle Identification Number (VIN) ....11A-19
Reset Immobilizer (Reset Immobilizer
Control Unit) ....................................................... 11A-19
Reset Engine Control Module (Reset ECM) ..11A-20
Erase transponder key ......................................11A-20
Programming Immobilizer Function ................11A-21
Programming ICU .............................................. 11A-22
Programming ECM ............................................ 11A-23
Programming ICU and ECM .............................11A-24
Transponder program ........................................ 11A-24
Data List .............................................................. 11A-26
Diagnostic procedure ............................................ 11A-27
Clearing Diagnostic Trouble Codes ....................11A-27
Verifying Vehicle Repair .......................................11A-27
Diagnostic Aids ...................................................... 11A-27
Check the condition for system parts ..............11A-27
Check the Electro-Magnetic Interference
(EMI) ................................................................... 11A-27
Check the other items .......................................11A-27
Check the operation ........................................... 11A-27
Diagnostic Trouble Code (DTC) list ....................11A-28
IMMOBILIZER SYSTEM CHECK .......................11A-30
NO IMMOBILIZER W ARNING LAMP ................11A-32
CHECK IMMOBILIZER W ARNING LAMP O
STEADY ................................................................ 11A-33
B0001 REPLACE ELECTRONIC CONTROL
UNIT (ECU) (IMMOBILIZER FAULT) ................11A-34
B0002 IMMOBILIZER NOT PROGRAMMED ...11A-35
B0003 TRANSPONDER KEY PROBLEM .........11A-36
B0004 IMMOBILIZER COIL CIRCUIT
(ANTENNA COIL FAULT) ...................................11A-38
B0005 COMMUNICATION LINE W VOLTAGE
LOW ....................................................................... 11A-39
B0006 COMMUNICATION LINE W VOLTAGE
HIGH ...................................................................... 11A-40
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11A-2 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
B0007 NO ENGINE REQUEST RECEIVED ......11A-41
B0008 W RONG TRANSPONDER KEY .............11A-43
B0009 NO TRANSPONDER KEY
PROGRAMMED ................................................... 11A-44
B0010 UNKNOW N TRANSPONDER KEY ........11A-45
B0011 TRANSPONDER KEY PROBLEM
(Only 4JA1-T Engine) .......................................11A-46
B0012 W RONG TRANSPONDER KEY
(Only 4JA1-T Engine) .......................................11A-48
B0013 IMMOBILIZER NOT PROGRAMMED
(Only 4JA1-T Engine) .......................................11A-49
B0014 NO TRANSPONDER KEY
PROGRAMMED (Only 4JA1-T Engine) ...........11A-50
B0015 FREQUENCY SIGNAL LOW
(Only 4JA1-T Engine) ........................................11A-51
B0016 FREQUENCY SIGNAL HIGH
(Only 4JA1-T Engine) .......................................11A-52
B0023 IMMOBILIZER COIL CIRCUIT
(ANTENNA COIL FAULT)
(Only 4JA1-T Engine) ....................................... 11A-53
B0024 W RONG TRANSPONDER KEY
(Only 4JA1-T Engne) ........................................ 11A-54
B0055 EEPROM ERROR ................................. 11A-55
Special Tool ............................................................ 11A-56

Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.


CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-3
General Description
The immobilizer system consists of the four major
components which are Engine Control Module (ECM),
Immobilizer Control Unit (lCU), transponder, and scan
tool (Tech-2).
This system can be activated by a correctly programmed
transponder and starter switch is set to OFF.
This system can be deactivated by a correctl
y
programmed transponder key connected with a correctly
programmed ECM and a correctly programmed lCU.
While the system is on :

The starter cut off relay deactivates function of starter,
and the fuel injector power source is deactivated also.
• Check Engine lamp is flashing.
• W arning buzzer is operating.
(W ith antitheft system)
•
••
•
Gasoline Engine (C24SE)
LTW 3BALF000101


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

11A-4 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)

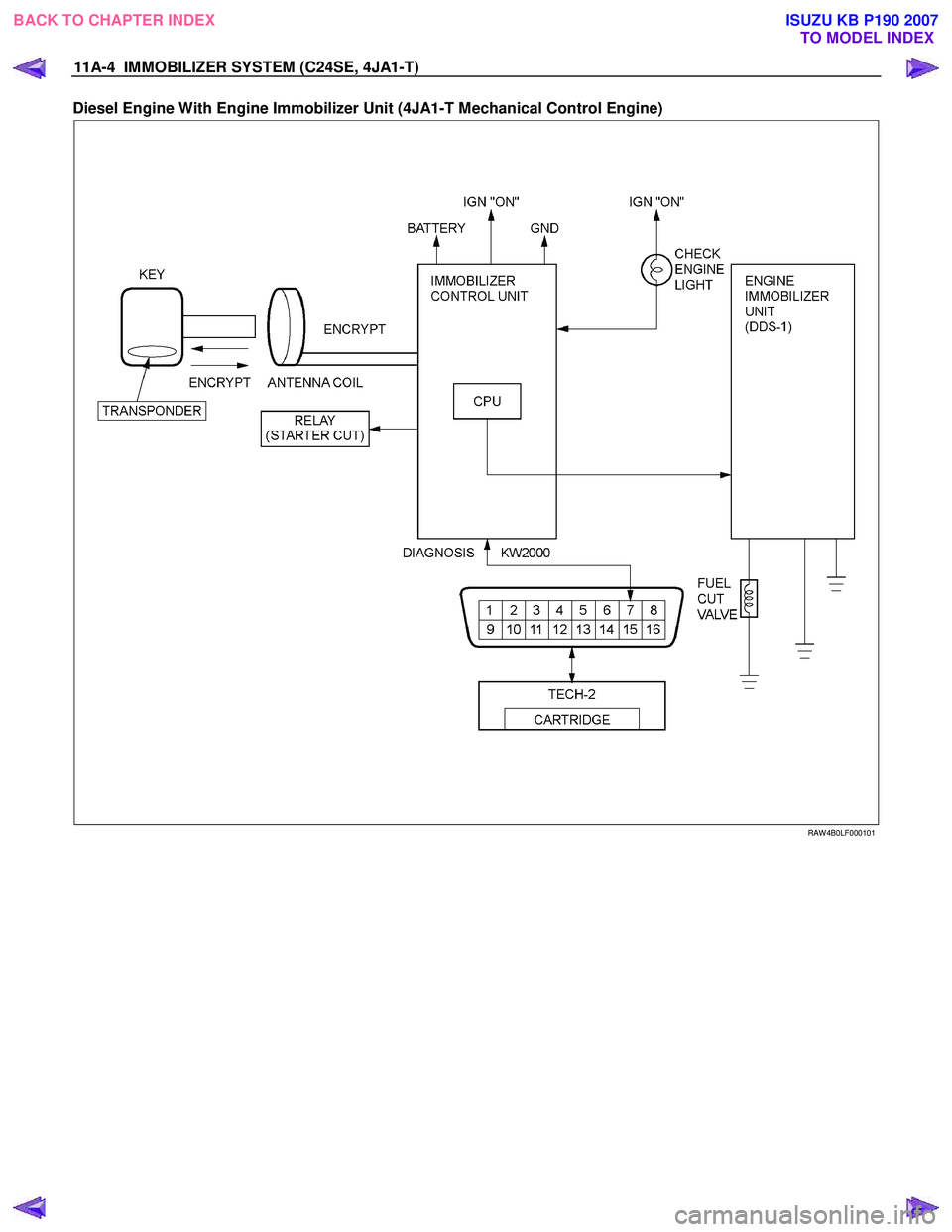

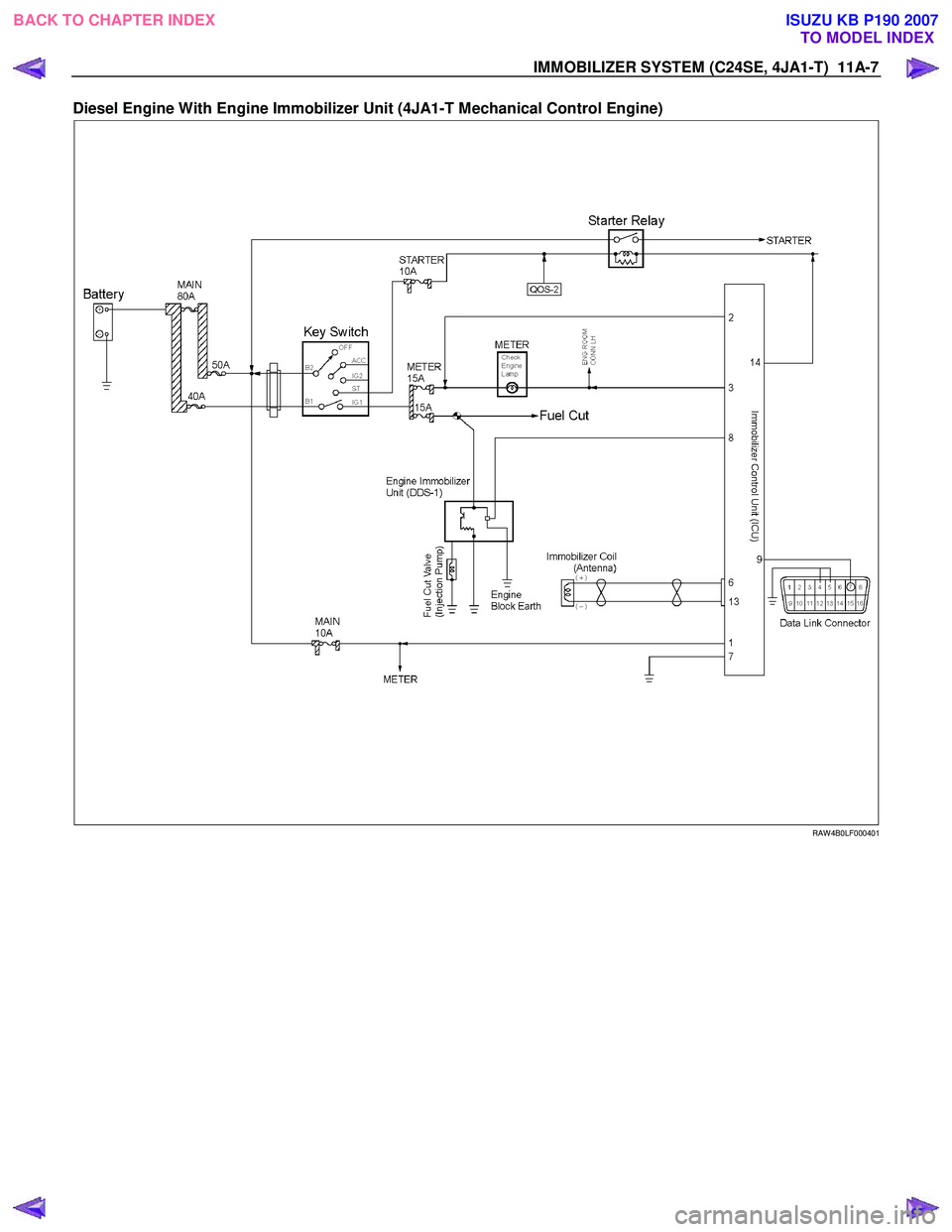

Diesel Engine With Engine Immobilizer Unit (4JA1-T Mechanical Control Engine)







RAW 4B0LF000101



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-5
What happens without proper transponder
operation?
One of the function of transponder is to deactivate or
activate starter function. lf the proper transponder is not
used, starter cannot be operated. Because starter rela
y
stays off, cranking engine is not possible.
After the starter relay is activated, transponder signal
triggers to let lCU calculate by transponder address
signal and immobilizer algorithm.
W hen the result matches with necessary condition, it
makes injector power source be activated.
If transponder does not send correct signal, lCU and
ECM do not activate injector system on.
Therefore the vehicle cannot be operated.
No proper transponder is available, what
should be done for the system?
W hen any proper transponder is not available, a new
transponder should be programmed. Up to 5
transponders can be provided with a scan tool (Tech-2)
and by proper procedure.
In addition to the absence of proper transponder, it ma
y
happen particular secret code to the particular vehicle is
missing. ln this case, the secret code must be provided
by your organization.
Otherwise transponder cannot be programmed in an
y
way.
lf the essential for a scan tool (Tech-2) for programming
and proper software for Tech-2 are not available, there
is no permanent way to fix system. Temporary replace
with new ECM, new ICU and new transponder without
any secret code can make the system be deactivated,
but it does not last long. Such a replacement does not
solve any condition. Even after replacement, the system
is activated automatically in short time and then no
operation of the vehicle can be made in any way.
Tech-2 should be provided in your organization.
Caution to the operation
lf an attempt is made to start the engine while the
immobilizer system is activated, the check engine lamp
flashes and the engine will not start.
Summary of operation
Switch on: Set the ignition and starter switch to OFF.
(Activate)
Switch off: Set the ignition and starter switch to ON b
y
using the transponder key. (Deactivate)

What your organization should provide for
your customer

•
••
•
Car Pass
For a new owner, your dealership must hand Car Pass
card, which has identification numbers of new owner's
vehicle immobilizer system. This information is ver
y
important in case of repair or lost of transponder.
The followings are necessary items provided by you
r
responsibility.
1) Car pass with identification for a new owner
2) Blank car pass card when it is for reissue
3) Instruction to dealers how to use car pass card
•
••
•
Security code management
Your organization must keep security codes for all
vehicles as confidential data. Once the security codes
are lost, anybody who have the security code can
access immobilizer system. Your organization has
responsibility of any missing vehicles caused by stolen
security code.
•
••
•
Essential tool (Scan tool : Tech-2)
Your dealership must have Tech-2, and Tech-2 updated
software for immobilizer system.



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

11A-6 IMMOBILIZER SYSTEM (C24SE, 4JA1-T)
Circuit Diagram
•
••
•
Gasoline Engine (C24SE)





RTW 7BALF000101


BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

IMMOBILIZER SYSTEM (C24SE, 4JA1-T) 11A-7
Diesel Engine With Engine Immobilizer Unit (4JA1-T Mechanical Control Engine)






RAW 4B0LF000401



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007
