2007 ISUZU KB P190 engine

MANUAL TRANSMISSION 7B1-63
6. Remove the gear control lever.
7. Raise and support the vehicle with suitable stands.
8. Remove the rear propeller shaft.
NOTE: Apply alignment marks on the flange at the
differential side.
9. Remove the front propeller shaft.
NOTE:
Apply alignment marks on the flange at both
front and rear sides.
401RS023
10. Loosen the front exhaust pipe fixing nuts at the engine side but do not remove them. (Diesel engine
only)





RTW 67BSH000101
11. Disconnect the harness connectors and clips on the
transmission and transfer.
• Neutral Switch: Transmission
• Back up Switch
• Actuator
• 2W D-4W D Switch
• Neutral Switch: Transfer
• Car Speed Sensor

810R300069
Legend
(1) Neutral Switch Connector: Transmission
(2) Back up Switch Connector
(3) Speed Sensor Connector
(4) Actuator Connector
(5) 2W D - 4W D Switch Connector
(6) Neutral Switch Connector: Transfer


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

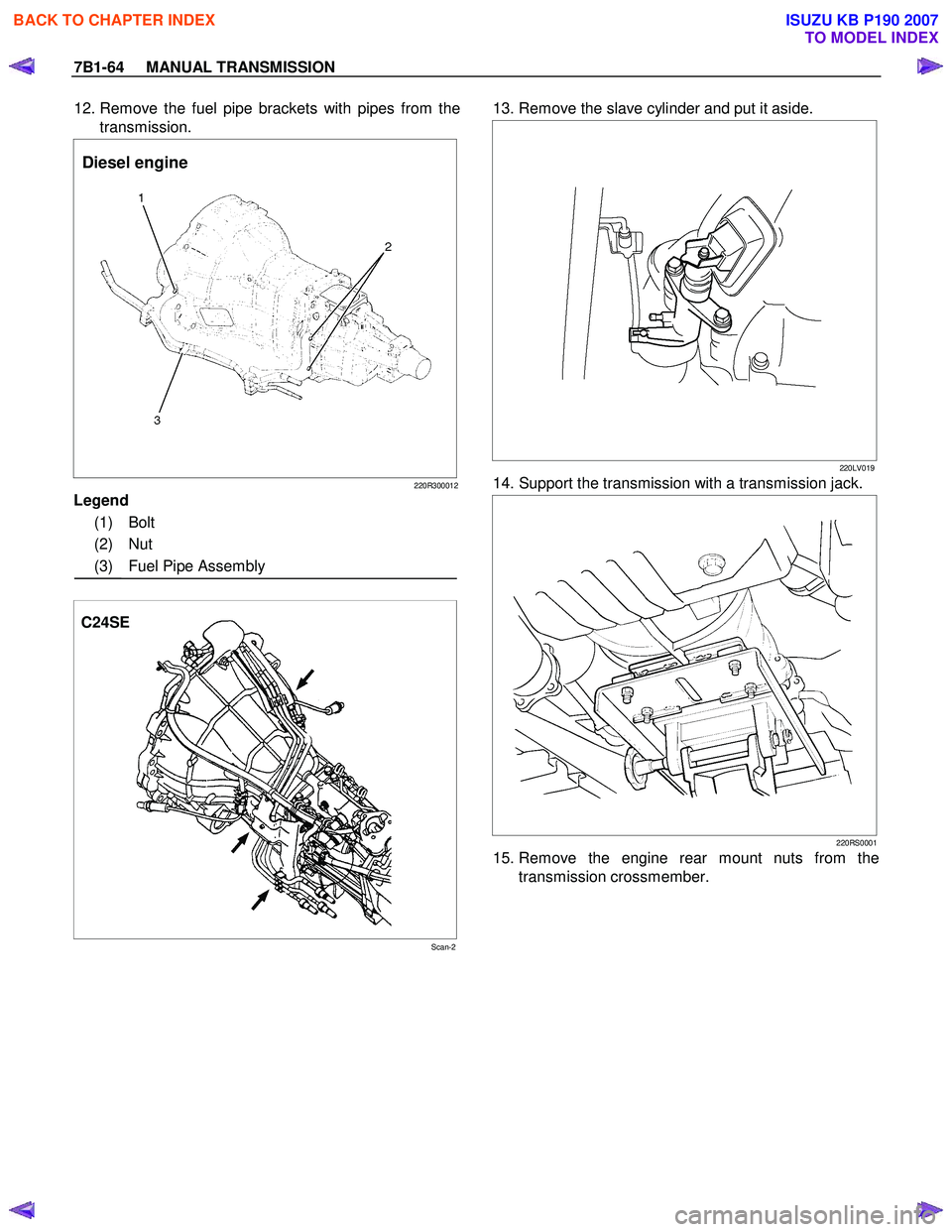

7B1-64 MANUAL TRANSMISSION
12. Remove the fuel pipe brackets with pipes from the
transmission.
Diesel engine
220R300012
Legend
(1) Bolt
(2) Nut
(3) Fuel Pipe Assembly





C24SE
Scan-2
13. Remove the slave cylinder and put it aside.
220LV019
14. Support the transmission with a transmission jack.
220RS0001
15. Remove the engine rear mount nuts from the
transmission crossmember.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

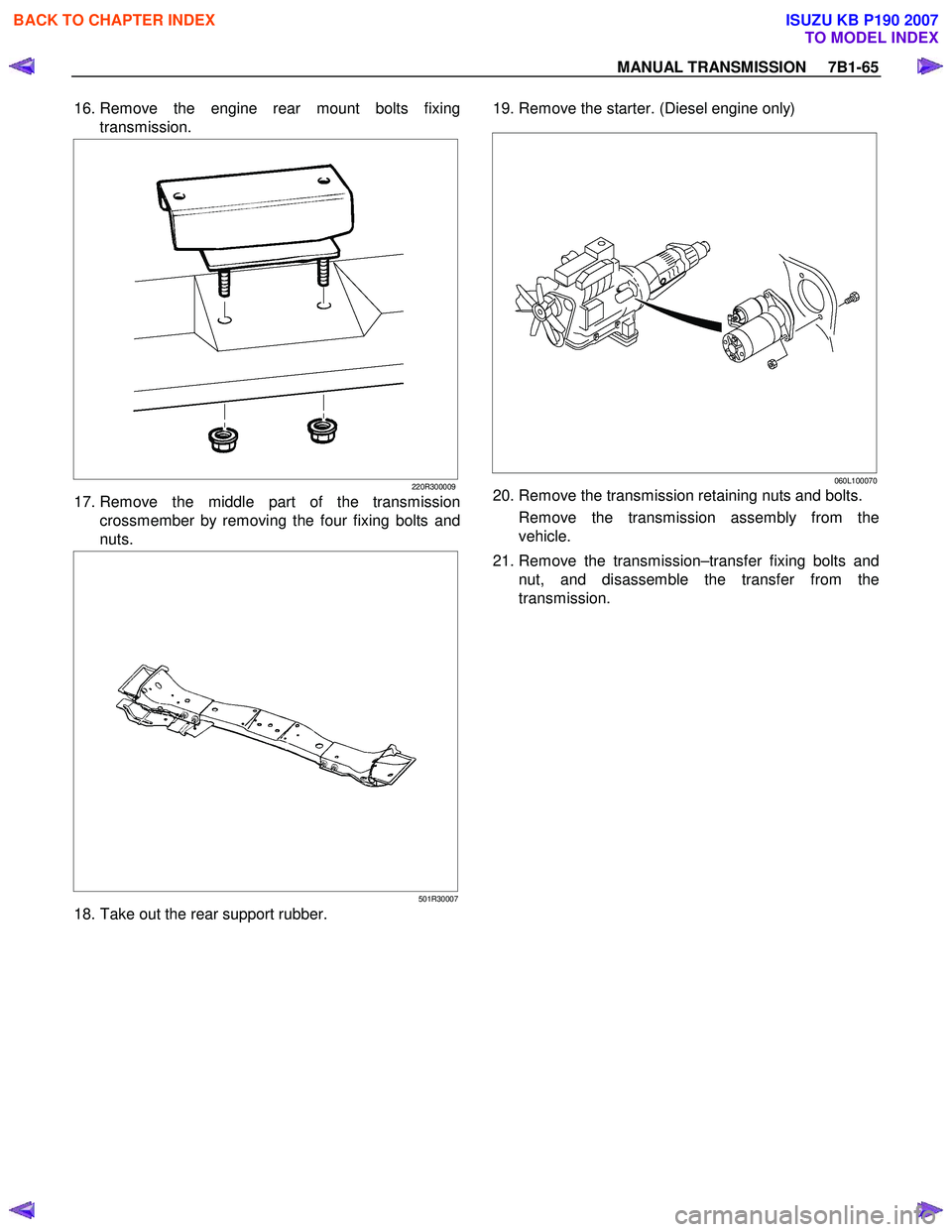

MANUAL TRANSMISSION 7B1-65
16. Remove the engine rear mount bolts fixing
transmission.
220R300009
17. Remove the middle part of the transmissioncrossmember by removing the four fixing bolts and
nuts.
501R30007
18. Take out the rear support rubber. 19. Remove the starter. (Diesel engine only)
060L100070
20. Remove the transmission retaining nuts and bolts.
Remove the transmission assembly from the
vehicle.
21. Remove the transmission–transfer fixing bolts and nut, and disassemble the transfer from the
transmission.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

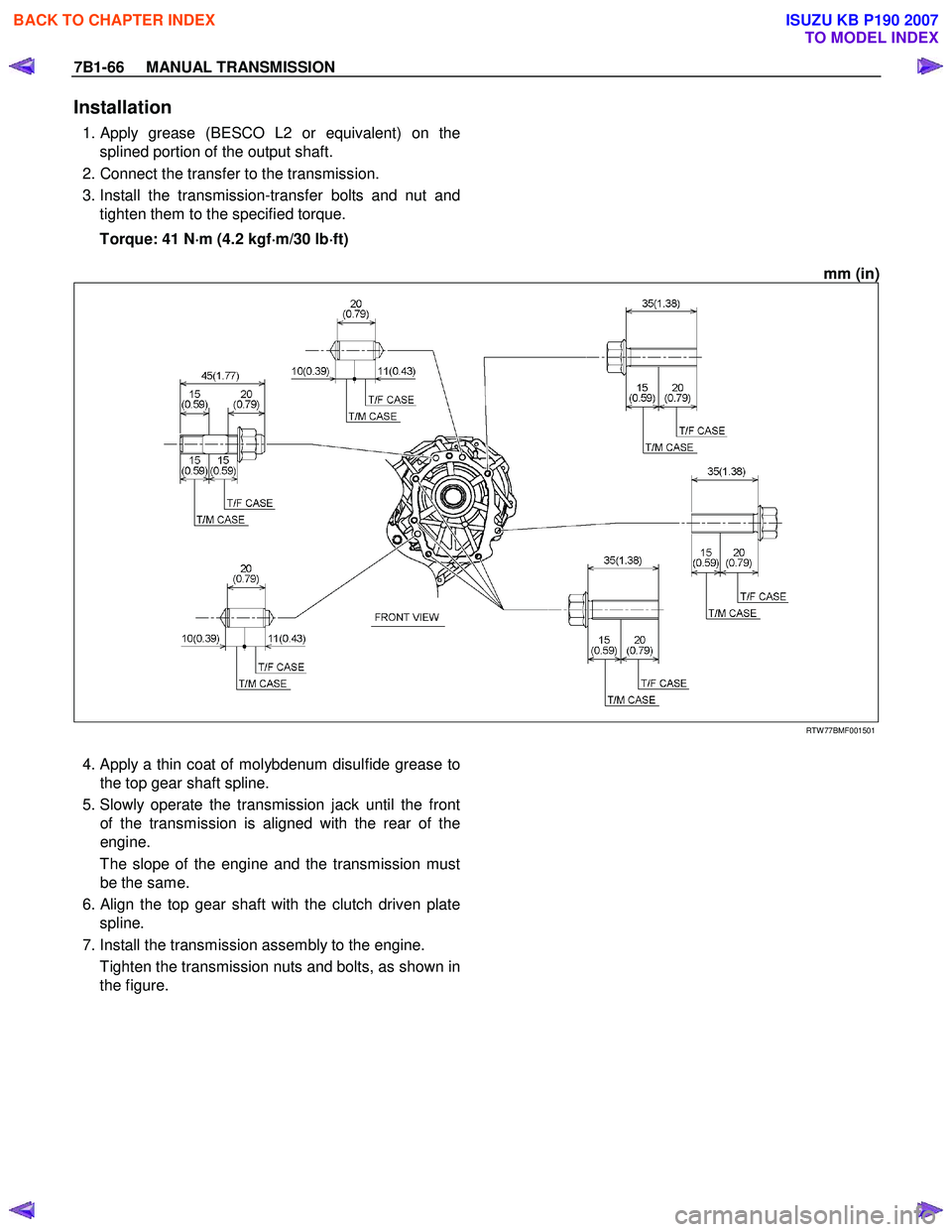

7B1-66 MANUAL TRANSMISSION
Installation
1. Apply grease (BESCO L2 or equivalent) on the
splined portion of the output shaft.
2. Connect the transfer to the transmission.
3. Install the transmission-transfer bolts and nut and tighten them to the specified torque.
Torque: 41 N ⋅
⋅⋅
⋅
m (4.2 kgf ⋅
⋅⋅
⋅
m/30 lb ⋅
⋅⋅
⋅
ft)
mm (in)



RTW 77BMF001501

4. Apply a thin coat of molybdenum disulfide grease to
the top gear shaft spline.
5. Slowly operate the transmission jack until the front of the transmission is aligned with the rear of the
engine.
The slope of the engine and the transmission must be the same.
6.
Align the top gear shaft with the clutch driven plate
spline.
7. Install the transmission assembly to the engine. Tighten the transmission nuts and bolts, as shown in
the figure.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

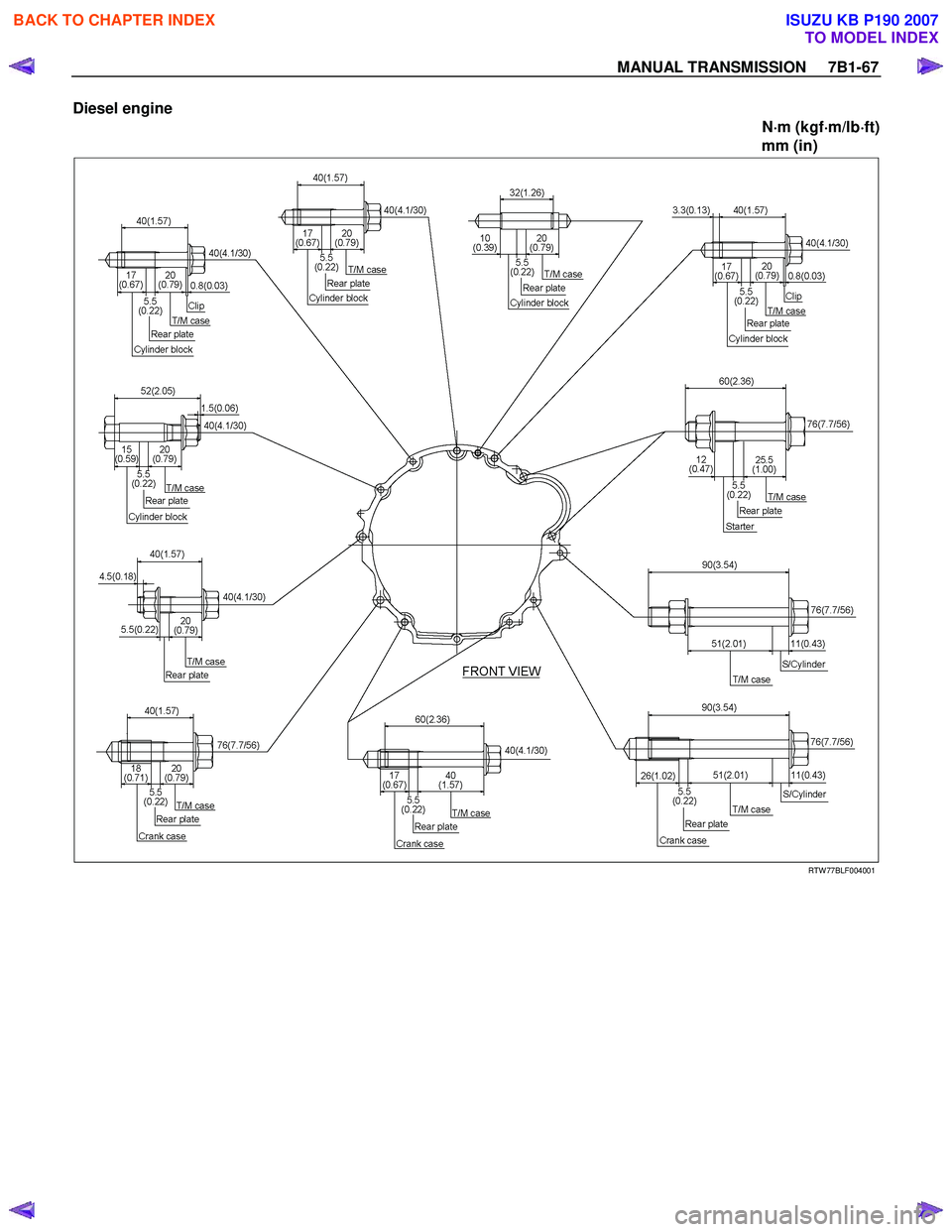

MANUAL TRANSMISSION 7B1-67
Diesel engine
N⋅
⋅⋅
⋅
m (kgf ⋅
⋅⋅
⋅
m/lb ⋅
⋅⋅
⋅
ft)
mm (in)


RTW 77BLF004001

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-69
8. Install the starter. (Diesel engine)
NOTE: Tighten the lower bolt temporarily.
After installing the fuel pipe assembly, tighten the bolt to
the specified torque.
Torque: 76 N ⋅
⋅⋅
⋅
m (7.7 kgf ⋅
⋅⋅
⋅
m/56 lb ⋅
⋅⋅
⋅
ft)
9. Install the rear support rubber on the transmission and tighten the bolts to the specified torque.
Torque: 50 N ⋅
⋅⋅
⋅
m (5.1 kgf ⋅
⋅⋅
⋅
m/37 lb ⋅
⋅⋅
⋅
ft)
10. Install the middle part of transmission crossmember and bolts.
Tighten the nuts to the specified torque.
Torque: 67 N ⋅
⋅⋅
⋅
m (6.8 kgf ⋅
⋅⋅
⋅
m/49 lb ⋅
⋅⋅
⋅
ft)
11. Install the engine rear mount nuts.
Torque: 52 N ⋅
⋅⋅
⋅
m (5.3 kgf ⋅
⋅⋅
⋅
m/38 lb ⋅
⋅⋅
⋅
ft)
Remove the transmission jack from the
transmission side.
12. Apply grease to top hole portion of the shift fork. Install the slave cylinder and tighten the bolts to the
specified torque.
Torque: 76 N ⋅
⋅⋅
⋅
m (7.7 kgf ⋅
⋅⋅
⋅
m/56 lb ⋅
⋅⋅
⋅
ft)
13. Install the fuel pipe brackets on the transmission.
Install the fuel pipe assembly to the fuel pipe brackets
Torque: Bolt & Nut 76 N ⋅
⋅⋅
⋅
m (7.7 kgf ⋅
⋅⋅
⋅
m/56 lb ⋅
⋅⋅
⋅
ft)
Nut 37 N ⋅
⋅⋅
⋅
m (3.8 kgf ⋅
⋅⋅
⋅
m/27 lb ⋅
⋅⋅
⋅
ft)
Diesel engine
220R300012

Legend
(1) Bolt
(2) Nut
(3) Fuel Pipe Assembly





C24SE
Scan-2
14. Connect the transmission harness connectors and
clips. Connector: transfer neutral switch, 2W D -
4W D switch, actuator, car speed sensor, backup
switch, transmission neutral switch.
810R300069
Legend
(1) Neutral Switch Connector: Transmission
(2) Backup Switch Connector
(3) Speed Sensor Connector
(4) Actuator Connector
(5) 2W D - 4W D Switch connector
(6) Neutral Switch Connector: Transfer


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

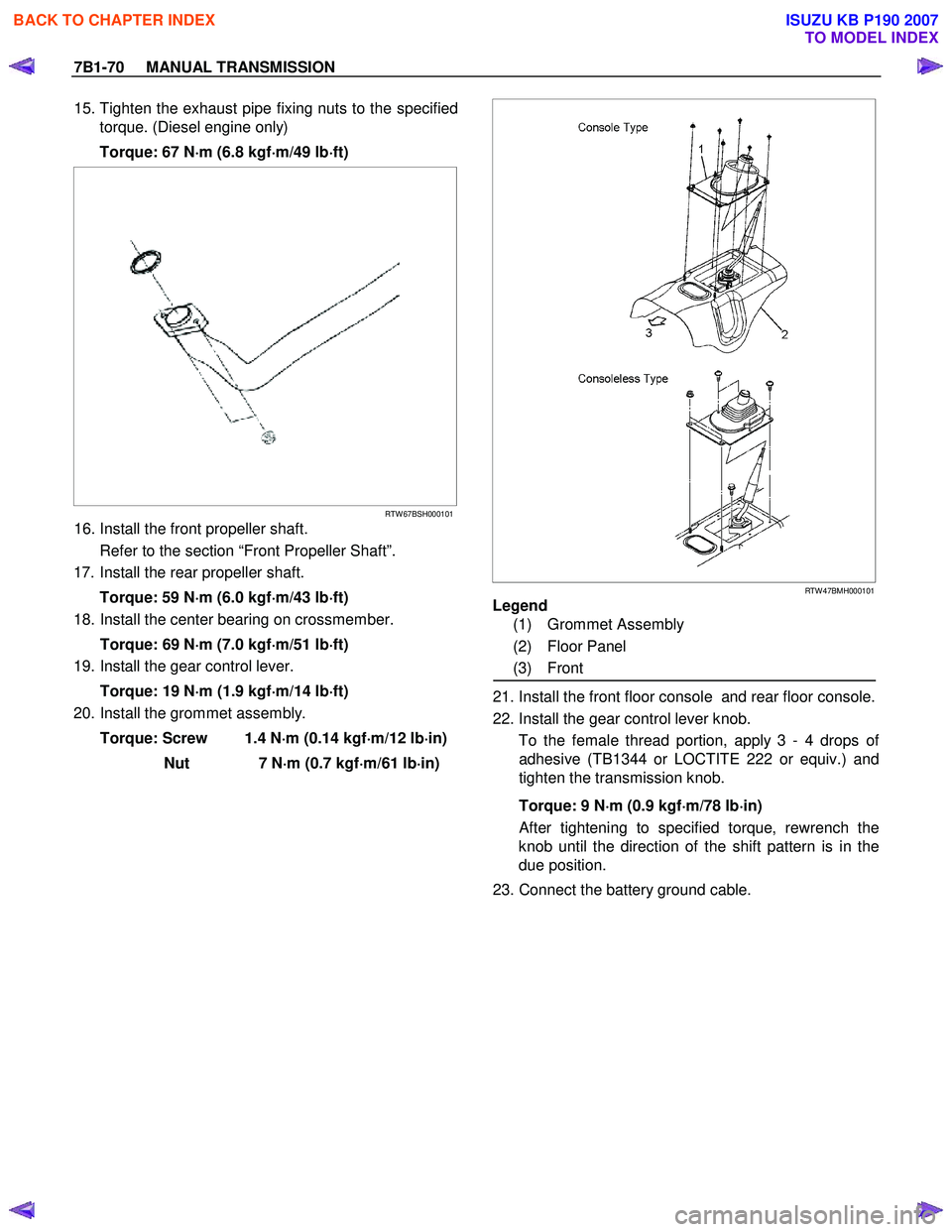

7B1-70 MANUAL TRANSMISSION
15. Tighten the exhaust pipe fixing nuts to the specified
torque. (Diesel engine only)
Torque: 67 N ⋅
⋅⋅
⋅
m (6.8 kgf ⋅
⋅⋅
⋅
m/49 lb ⋅
⋅⋅
⋅
ft)







RTW 67BSH000101
16. Install the front propeller shaft.
Refer to the section “Front Propeller Shaft”.
17. Install the rear propeller shaft.
Torque: 59 N ⋅
⋅⋅
⋅
m (6.0 kgf ⋅
⋅⋅
⋅
m/43 lb ⋅
⋅⋅
⋅
ft)
18. Install the center bearing on crossmember.
Torque: 69 N ⋅
⋅⋅
⋅
m (7.0 kgf ⋅
⋅⋅
⋅
m/51 lb ⋅
⋅⋅
⋅
ft)
19. Install the gear control lever.
Torque: 19 N ⋅
⋅⋅
⋅
m (1.9 kgf ⋅
⋅⋅
⋅
m/14 lb ⋅
⋅⋅
⋅
ft)
20. Install the grommet assembly.
Torque: Screw 1.4 N ⋅
⋅⋅
⋅
m (0.14 kgf ⋅
⋅⋅
⋅
m/12 lb ⋅
⋅⋅
⋅
in)
Nut 7 N ⋅
⋅⋅
⋅
m (0.7 kgf ⋅
⋅⋅
⋅
m/61 lb ⋅
⋅⋅
⋅
in)





RTW 47BMH000101
Legend
(1) Grommet Assembly
(2) Floor Panel
(3) Front
21. Install the front floor console and rear floor console.
22. Install the gear control lever knob. To the female thread portion, apply 3 - 4 drops o
f
adhesive (TB1344 or LOCTITE 222 or equiv.) and
tighten the transmission knob.
Torque: 9 N ⋅
⋅⋅
⋅
m (0.9 kgf ⋅
⋅⋅
⋅
m/78 lb ⋅
⋅⋅
⋅
in)
After tightening to specified torque, rewrench the
knob until the direction of the shift pattern is in the
due position.
23. Connect the battery ground cable.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

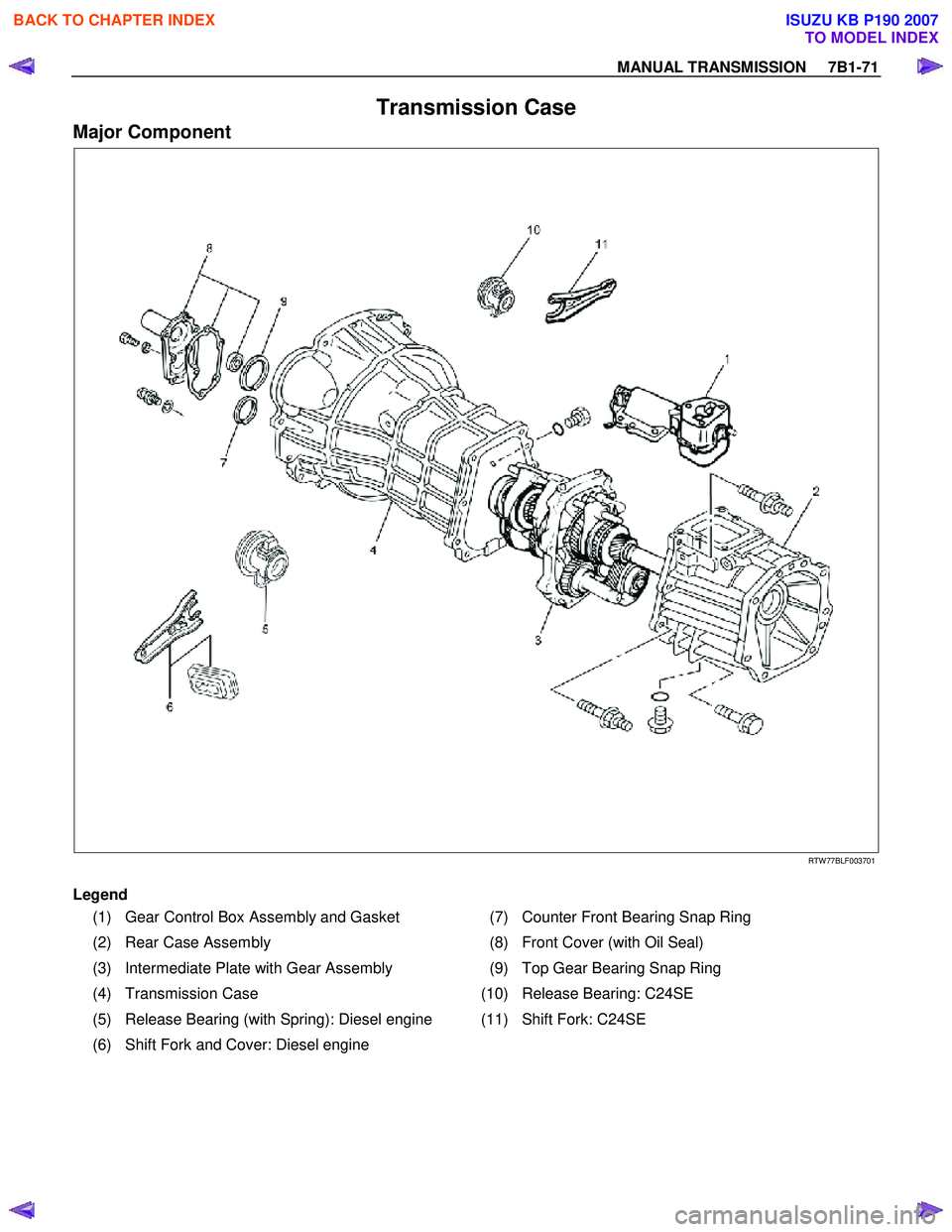

MANUAL TRANSMISSION 7B1-71
Transmission Case
Major Component






RTW 77BLF003701

Legend
(1) Gear Control Box Assembly and Gasket (7) Counter Front Bearing Snap Ring
(2) Rear Case Assembly (8) Front Cover (with Oil Seal)
(3) Intermediate Plate with Gear Assembly (9) Top Gear Bearing Snap Ring
(4) Transmission Case (10) Release Bearing: C24SE
(5) Release Bearing (with Spring): Diesel engine (11) Shift Fork: C24SE
(6) Shift Fork and Cover: Diesel engine
