ON-VEHICLE SERVICE (JR405E) 7A3-19
Install or Connect
1. Align the manual valve and the manual plate of the
transmission case.
43ASSY119
2. Install the control valve assembly and tighten the 12 fixing bolts to the specified torque.
Number of bolts Length Color
10 (A) 40 mm (1.57 in) Gold
2 (B) 30 mm (1.18 in) Gold

Bolt torque : 8 N·m (0.8 kgf·m/69 lb·in)
3. Connect the 2 harness connectors.
4. If removed, install the oil strainer.
Refer to “Solenoids, Oil Pressure Switch and Oil Temperature Sensor” previously in this section.
5. Install the new gasket and oil pan.
Bolt torque : 8 N·m (0.8 kgf·m/69 lb·in)
6. Fill with the fluid.
Refer to “ATF CHANGE” in this section.
7. Connect the negative battery cable.
8. Remove the wheel blocks.

FLUSHING THE TRANSMISSION FLUID COOLER AND LINE
The fluid cooler and lines may be flushed under the
following condition. This will help prevent more trouble
after the transmission is repaired.
1. W hen an abnormal amount of debris is found.
2. W hen an abnormal wear or chips on gears and shafts is found while overhauling.
3. W hen there is abnormal clutch facing wear and oil contamination found.

Procedures
1. Block the wheels.
2. Disconnect the negative battery cable.
3. Raise the vehicle and support it with suitable safet
y
stands.
4. Disconnect the fluid cooler lines at the transmission case and fluid cooler.
5. Flush and back-flush the fluid cooler and lines using solvent and compressed air.
Note:
DO NOT exceed (200 kPa/2.0 kgf/cm
2/28 psi) air
pressure, or damage may result to oil cooler.

6. Remove all remaining solvent from the system with
compressed air.
7. Flush the cooling system again with Automatic Transmission Fluid (ATF).
After the final flush, connect all lines.
Cooler line joint connector torque :
44 N·m (4.5 kgf·m/33 lb·ft)
8. Replenish the ATF.
9. Start the engine to test the system for the free flow o
f
fluid. If the flow is restricted, the cooler assembly o
r
lines must be replaced.
Repeated cleaning and flushing may not remove all the debris from the fluid cooler circuit.
Move the select lever through the various ranges and return to neutral.
Check for fluid level.
If the fluid level is below the specified range, ATF must be added.
10. Connect the negative battery cable.
11. Remove the safety stands.
12. Remove the wheel blocks.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A3-20 ON-VEHICLE SERVICE (JR405E)

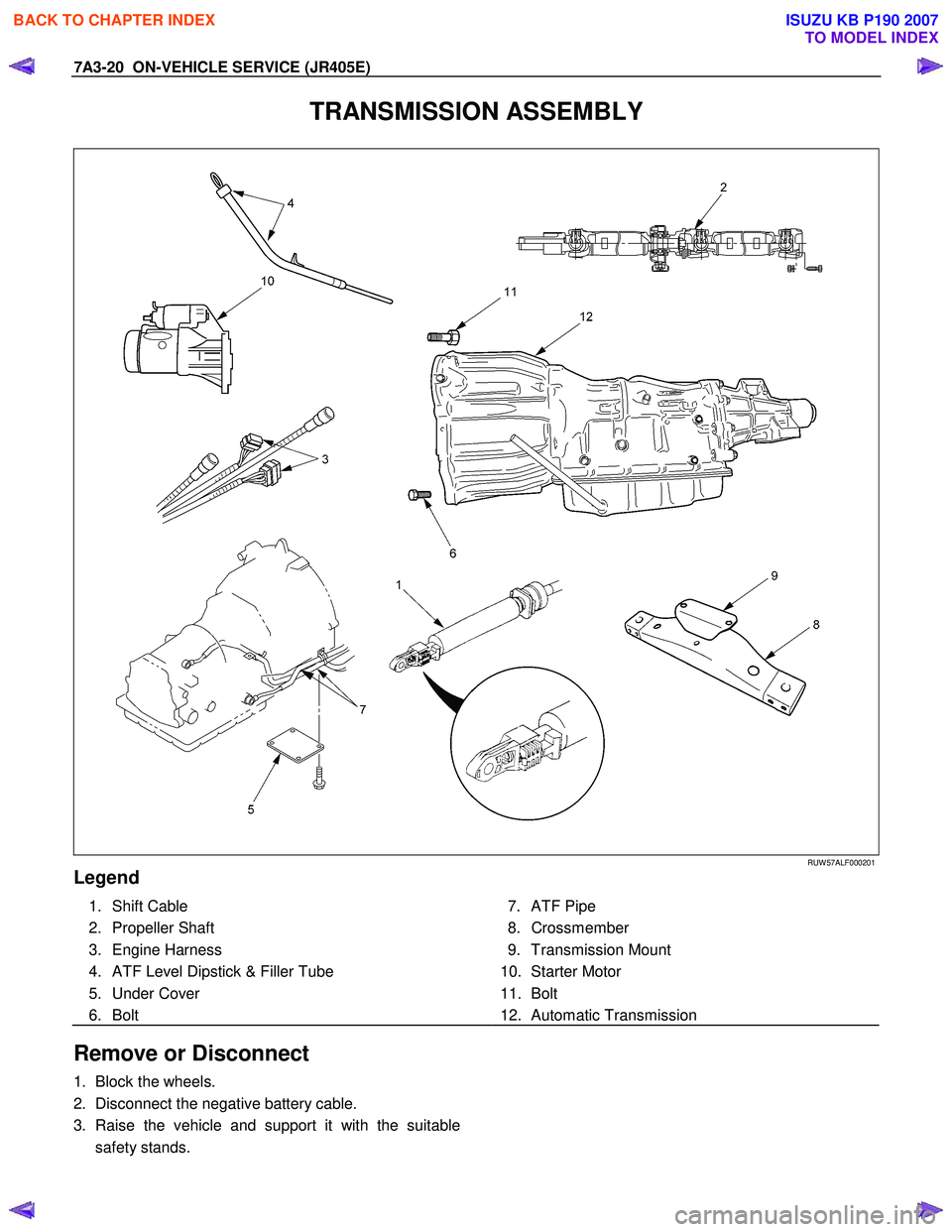

TRANSMISSION ASSEMBLY

RUW 57ALF000201
Legend
1. Shift Cable
2. Propeller Shaft
3. Engine Harness
4. ATF Level Dipstick & Filler Tube
5. Under Cover
6. Bolt

7. ATF Pipe
8. Crossmember
9. Transmission Mount
10. Starter Motor
11. Bolt
12. Automatic Transmission

Remove or Disconnect
1. Block the wheels.
2. Disconnect the negative battery cable.
3. Raise the vehicle and support it with the suitable safety stands.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

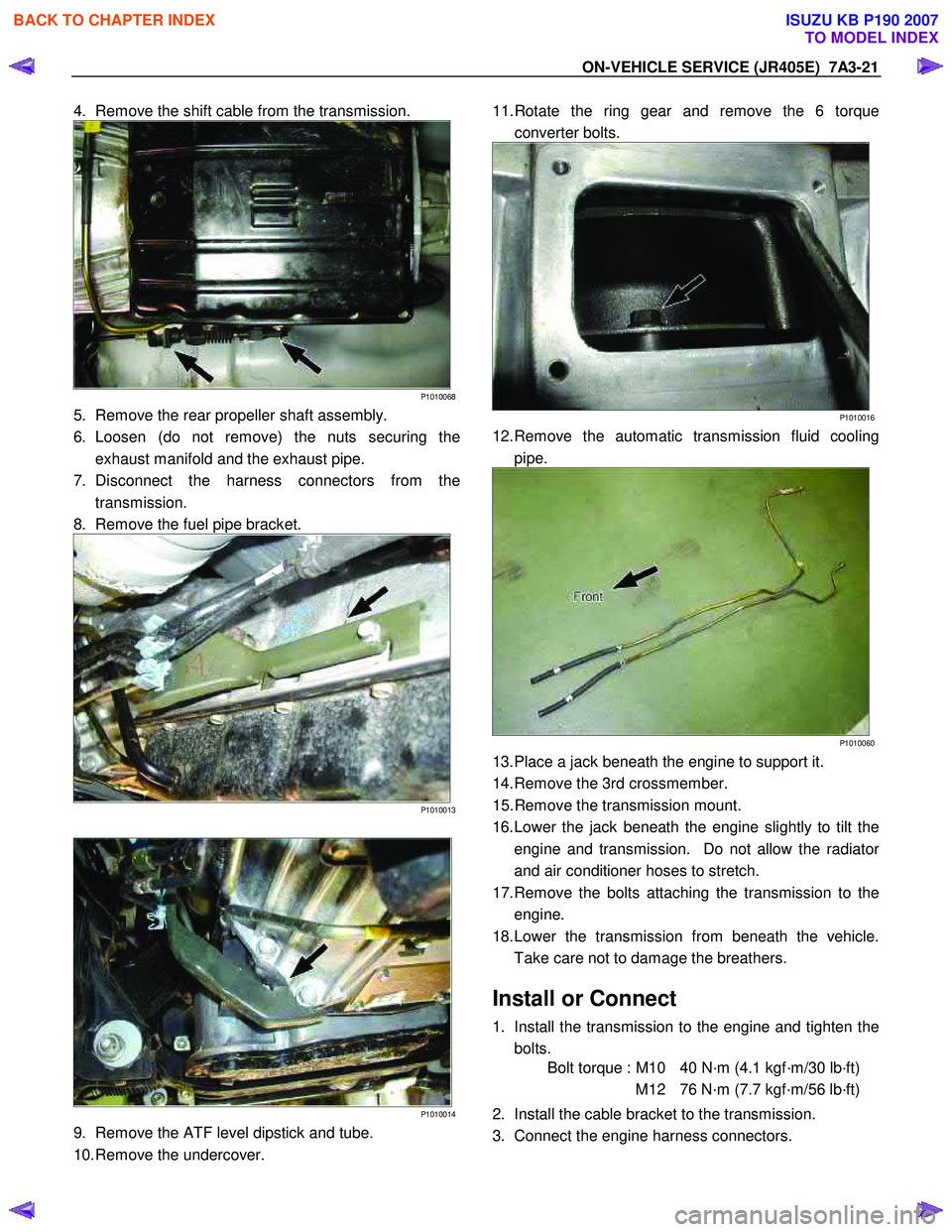

ON-VEHICLE SERVICE (JR405E) 7A3-21
4. Remove the shift cable from the transmission.
P1010068
5. Remove the rear propeller shaft assembly.
6. Loosen (do not remove) the nuts securing the exhaust manifold and the exhaust pipe.
7. Disconnect the harness connectors from the transmission.
8. Remove the fuel pipe bracket.
P1010013

P1010014
9. Remove the ATF level dipstick and tube.
10. Remove the undercover.
11. Rotate the ring gear and remove the 6 torque
converter bolts.
P1010016
12. Remove the automatic transmission fluid cooling pipe.
P1010060
13. Place a jack beneath the engine to support it.
14. Remove the 3rd crossmember.
15. Remove the transmission mount.
16. Lower the jack beneath the engine slightly to tilt the engine and transmission. Do not allow the radiato
r
and air conditioner hoses to stretch.
17. Remove the bolts attaching the transmission to the engine.
18. Lower the transmission from beneath the vehicle. Take care not to damage the breathers.

Install or Connect
1. Install the transmission to the engine and tighten the bolts.
Bolt torque : M10 40 N·m (4.1 kgf·m/30 lb·ft)
M12 76 N·m (7.7 kgf·m/56 lb·ft)
2. Install the cable bracket to the transmission.
3. Connect the engine harness connectors.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MSG MODEL 7B-7
REMOVAL AND INSTALLATION

Read this Section carefully before performing any removal and installation procedure. This Section gives you
important points as well as the order of operation. Be sure that you understand everything in this Section before you
begin.





Important Operations - Removal
Battery Cable
Disconnect the negative (-) cable from the battery terminal.

Engine Hood
Apply setting marks to the engine hood and the engine hood
hinges before removing the engine hood.



Gear Shift Lever
1. Place the gear shift lever in the neutral position.
2. Remove the gear shift lever knob.
3. Remove the front console assembly.
4. Remove the gear shift lever grommet and dust cover.
5. Remove the gear shift lever cover bolts.
6. Remove the gear shift lever.
Note:
Cover the shift lever hole to prevent the entry of foreign
material into the transmission.



Lifting the Vehicle
1. Jack up the vehicle.
2. Place chassis stands at the front and the rear of the vehicle.




Transmission Oil Draining
1. Remove the transmission oil drain plug.
2. Replace the drain plug after draining the oil.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

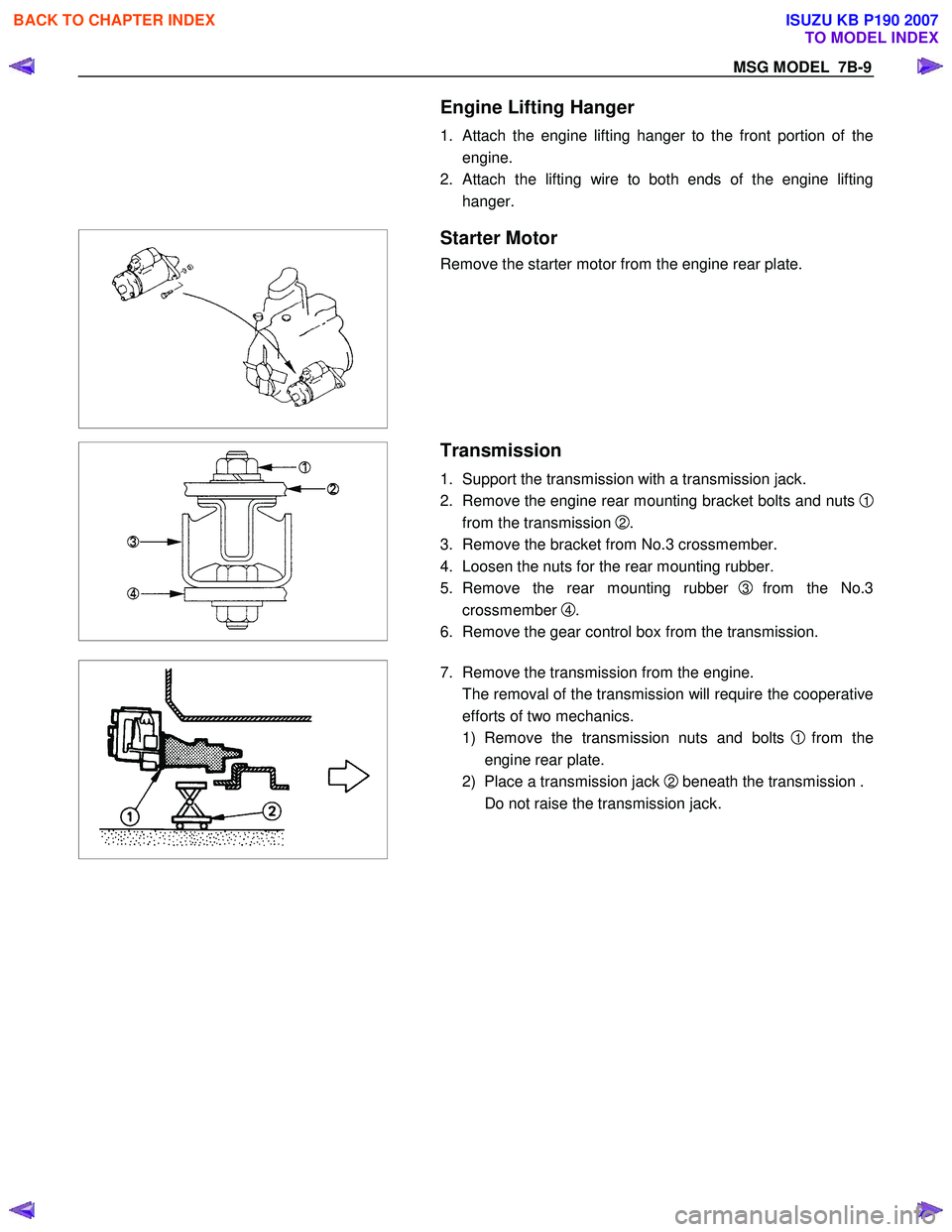

MSG MODEL 7B-9
Engine Lifting Hanger
1. Attach the engine lifting hanger to the front portion of the
engine.
2.
Attach the lifting wire to both ends of the engine lifting
hanger.




Starter Motor
Remove the starter motor from the engine rear plate.




Transmission
1. Support the transmission with a transmission jack.
2. Remove the engine rear mounting bracket bolts and nuts
1
from the transmission 2.
3. Remove the bracket from No.3 crossmember.
4. Loosen the nuts for the rear mounting rubber.
5. Remove the rear mounting rubber
3 from the No.3
crossmember
4.
6. Remove the gear control box from the transmission.



7. Remove the transmission from the engine.
The removal of the transmission will require the cooperative efforts of two mechanics.
1) Remove the transmission nuts and bolts
1 from the
engine rear plate.
2) Place a transmission jack
2 beneath the transmission .
Do not raise the transmission jack.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MSG MODEL 7B-11
Important Operations - Installation
Follow the removal procedure in the reverse order to perform
the installation procedure.
Pay careful attention to the important points during the
installation procedure.



Transmission
1. Apply a thin coat of molybdenum disulfide grease to the top
gear shaft spline.
2. Place the transmission on a transmission jack.
3. Carefully move the transmission jack and transmission into position behind the engine.




4. Slowly operate the transmission jack to raise the
transmission until the rear of the transmission is at the
same level as the No.3 crossmember
1 .
5. Manually support the transmission rear cover.
Move the transmission into position between the No.3 crossmember and the floor panel
2 .



6. Slowly raise the transmission jack until the front of the
transmission is aligned with the rear of the engine.
The slope of the engine and the transmission must be the same.
7. Install the gear control box the transmission.
8. Align the top gear shaft spline with the clutch drive plate spline.
9. Install the transmission to the engine.
Tighten the transmission nuts and bolts as shown in the figure.




BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MSG MODEL 7B-13




Starter Motor
1. Install the starter motor to the engine rear plate.
2. Tighten the starter motor bolts to the specified torque.
Starter Motor Torque N⋅m (kgf ⋅m/lb ⋅ft)
78 (8.0 / 58)




Slave Cylinder
Install the slave cylinder to the transmission case.
Slave Cylinder Bolt Torque N ⋅m (kgf ⋅m/lb ⋅ft
)
78 (8.0 / 58)

Harness Connector
Connect the back up light switch connector and speedometer
sensor connector.




Rear Propeller Shaft (Dual Shaft Type)
1. Place the center bearing and retainer 1 together with the
1st propeller shaft
2 and 2nd propeller shaft 7on the No.4
crossmember
3.
2. Insert the splined yoke
4 into the transmission main shaft
spline
5.
3. Tighten the center bearing retainer bolts
6 to the specified
torque.
Center Bearing Retainer Bolt Torque N ⋅m (kgf ⋅m/lb ⋅ft)
61 (6.2 / 45)



4. Connect the 2nd propeller shaft
7 and drive pinion side 8.
Be sure to align the setting marks applied at disassembly.
5. Tighten the coupling bolts to the specified torque.
Propeller Shaft Flange Yoke Bolt
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
M8 : 35 (3.6 / 26)
M10 : 63 (6.4 / 46)




Exhaust Pipe
1. Install the exhaust pipe to the exhaust manifold and the 2nd
exhaust pipe.
2. Install the exhaust pipe bracket to the transmission case.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

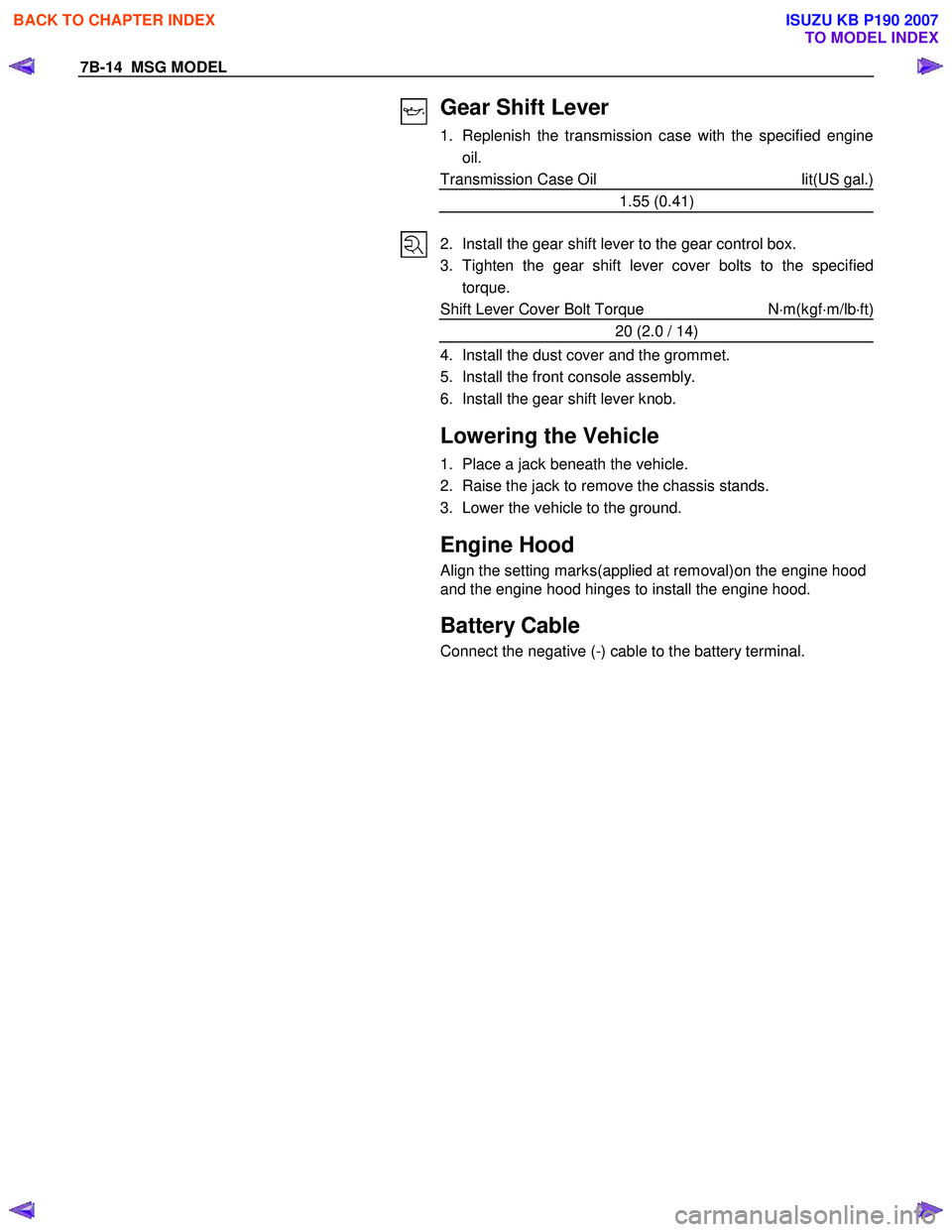

7B-14 MSG MODEL

Gear Shift Lever
1. Replenish the transmission case with the specified engineoil.
Transmission Case Oil lit(US gal.)
1.55 (0.41)


2. Install the gear shift lever to the gear control box.
3. Tighten the gear shift lever cover bolts to the specified torque.
Shift Lever Cover Bolt Torque N⋅m(kgf ⋅m/lb ⋅ft)
20 (2.0 / 14)
4. Install the dust cover and the grommet.
5. Install the front console assembly.
6. Install the gear shift lever knob.



Lowering the Vehicle
1. Place a jack beneath the vehicle.
2. Raise the jack to remove the chassis stands.
3. Lower the vehicle to the ground.



Engine Hood
Align the setting marks(applied at removal)on the engine hood
and the engine hood hinges to install the engine hood.



Battery Cable
Connect the negative (-) cable to the battery terminal.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
