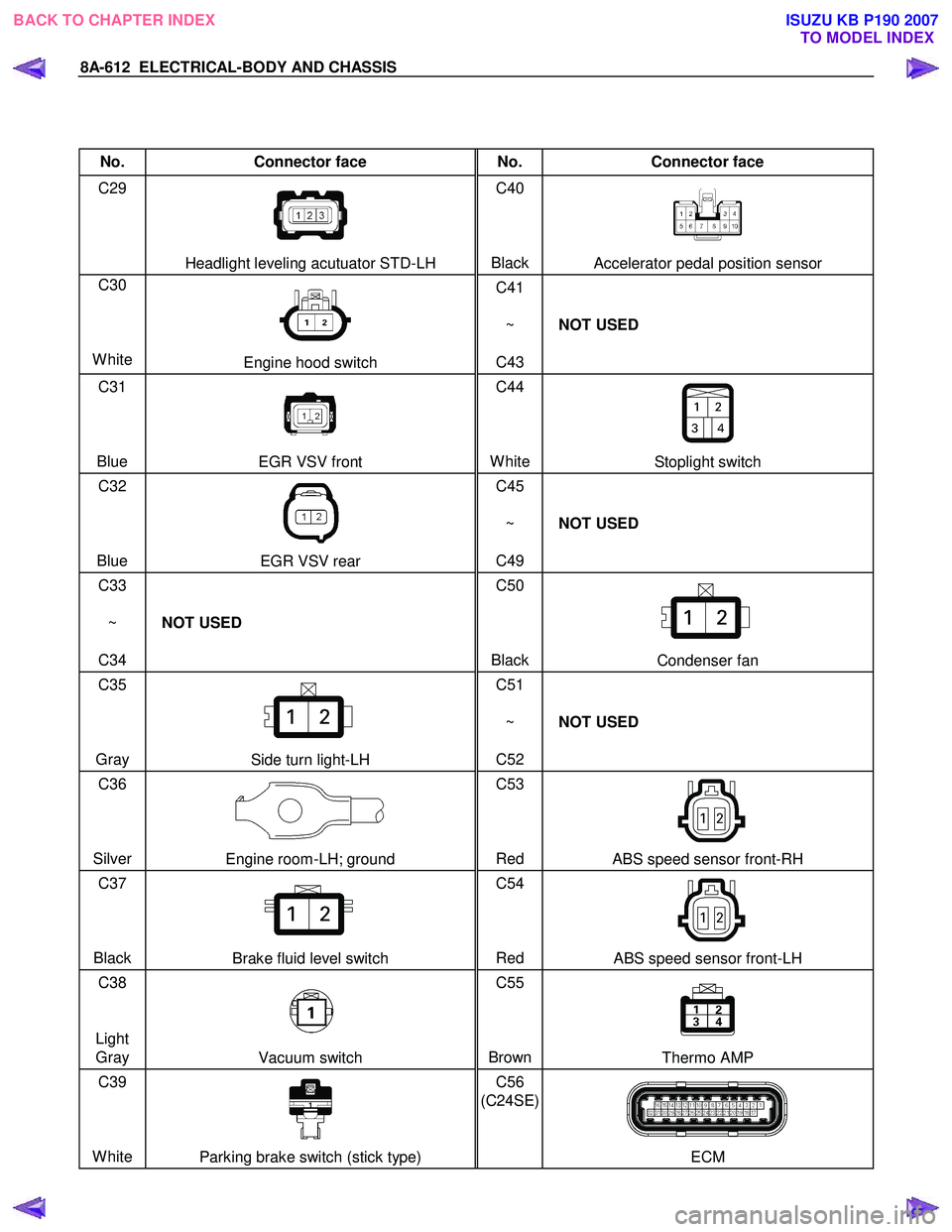

8A-612 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
C29




Headlight leveling acutuator STD-LH C40



BlackAccelerator pedal position sensor
C30


White
Engine hood switch C41

~
C43 NOT USED
C31



Blue
EGR VSV front C44



WhiteStoplight switch
C32


Blue
EGR VSV rear C45

~
C49 NOT USED
C33

~
C34 NOT USED C50



Black
Condenser fan
C35


Gray
Side turn light-LH C51

~
C52 NOT USED
C36



Silver
Engine room-LH; ground C53



Red ABS speed sensor front-RH
C37


Black
Brake fluid level switch C54



Red ABS speed sensor front-LH
C38

Light Gray
Vacuum switch C55



BrownThermo AMP
C39


White
Parking brake switch (stick type) C56
(C24SE)

ECM


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

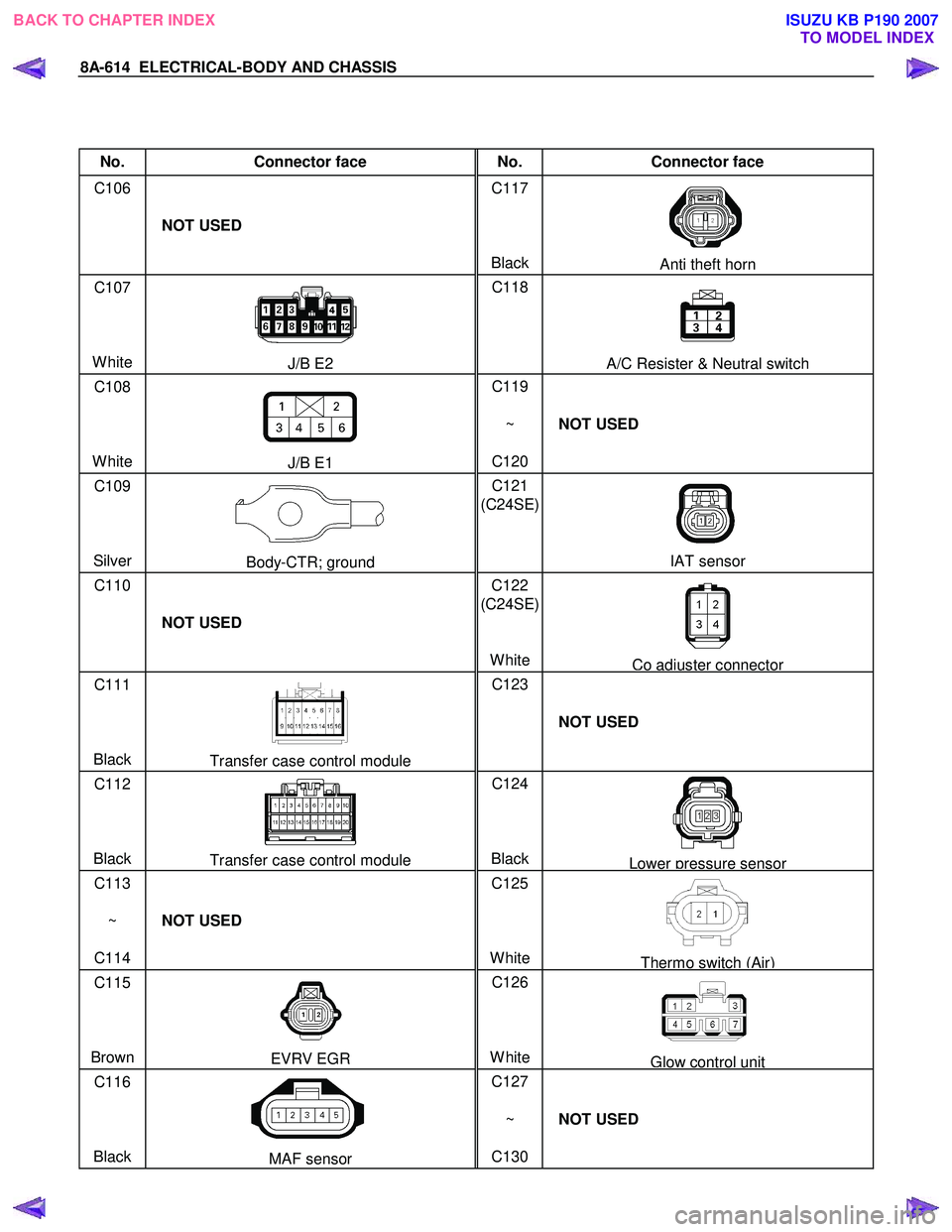

8A-614 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
C106



NOT USED C117



Black
Anti theft horn
C107


White
J/B E2 C118




A/C Resister & Neutral switch
C108


White
J/B E1 C119

~
C120 NOT USED
C109



Silver
Body-CTR; ground C121
(C24SE)

IAT sensor
C110


NOT USED C122
(C24SE)

White
Co adjuster connector
C111


Black
Transfer case control module C123



NOT USED
C112



Black
Transfer case control module C124



BlackLower pressure sensor
C113
~
C114 NOT USED C125



White
Thermo switch (Air)
C115


Brown
EVRV EGR C126



WhiteGlow control unit
C116


Black
MAF sensor C127

~
C130 NOT USED


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

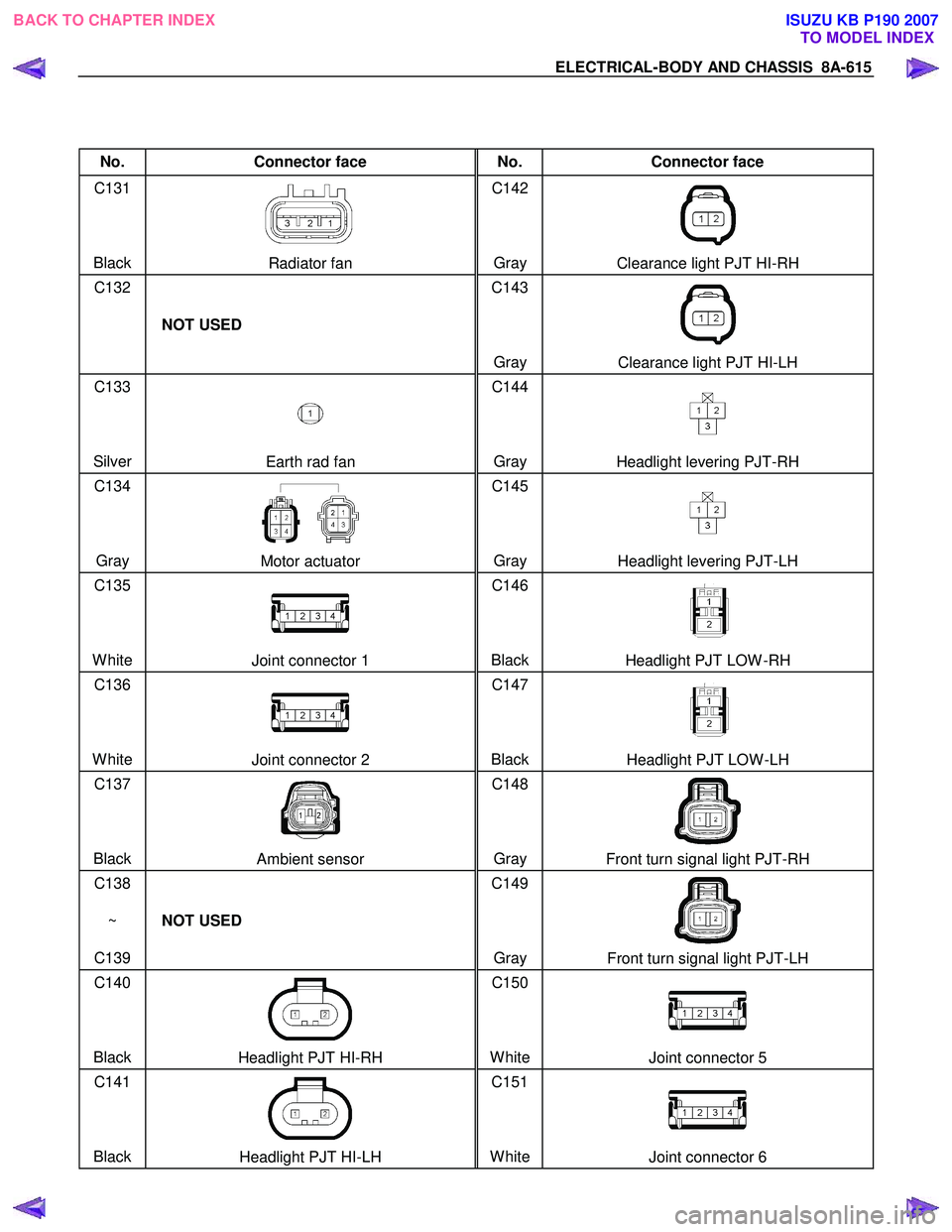

ELECTRICAL-BODY AND CHASSIS 8A-615


No. Connector face No. Connector face
C131



Black
Radiator fan C142



Gray Clearance light PJT HI-RH
C132


NOT USED C143



Gray
Clearance light PJT HI-LH
C133


Silver
Earth rad fan C144



Gray Headlight levering PJT-RH
C134


Gray
Motor actuator C145



Gray Headlight levering PJT-LH
C135


White
Joint connector 1 C146



BlackHeadlight PJT LOW -RH
C136


White
Joint connector 2 C147



BlackHeadlight PJT LOW -LH
C137


Black
Ambient sensor C148



Gray Front turn signal light PJT-RH
C138
~
C139 NOT USED C149



Gray
Front turn signal light PJT-LH
C140


Black
Headlight PJT HI-RH C150



WhiteJoint connector 5
C141


Black
Headlight PJT HI-LH C151



WhiteJoint connector 6


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

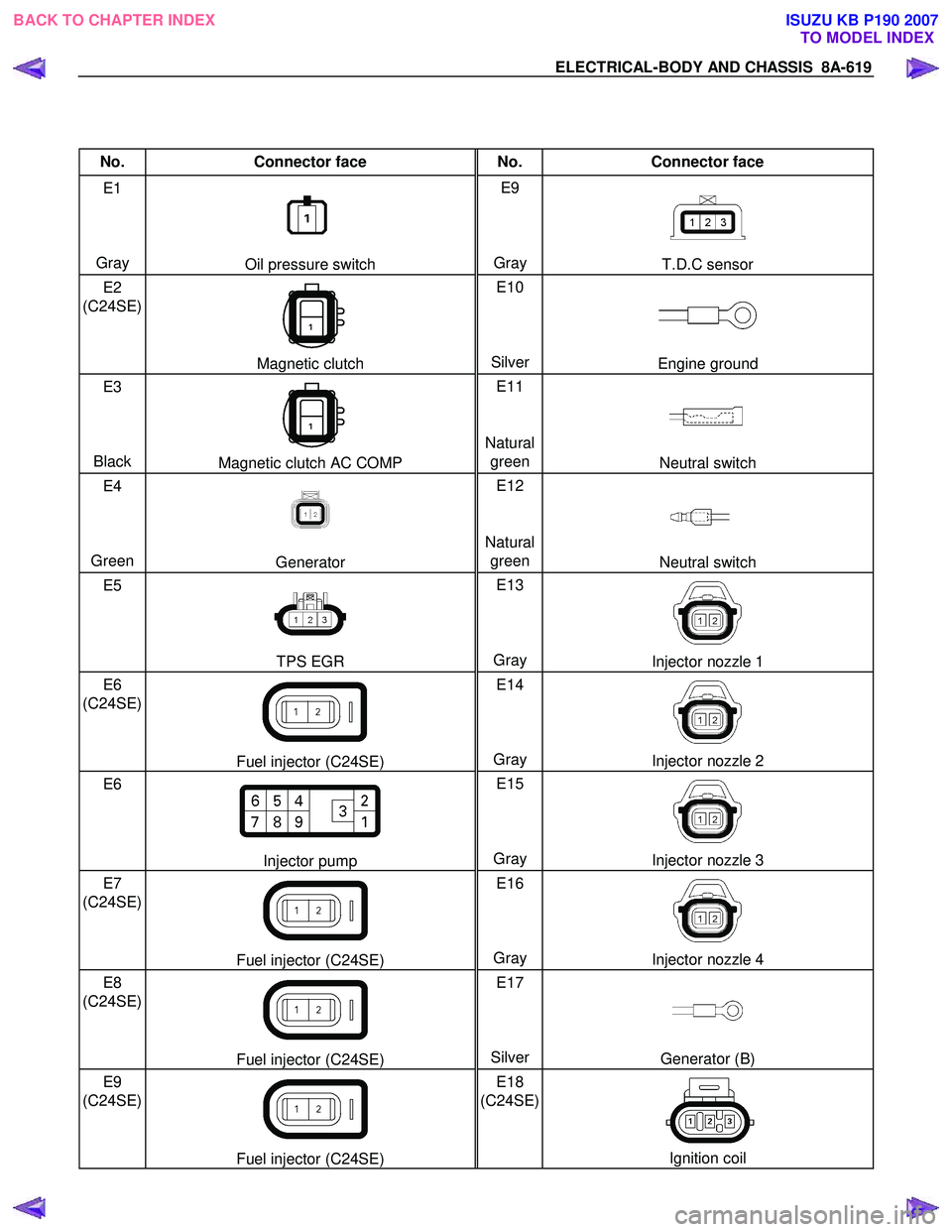

ELECTRICAL-BODY AND CHASSIS 8A-619


No. Connector face No. Connector face
E1



Gray
Oil pressure switch E9



Gray
T.D.C sensor
E2
(C24SE)


Magnetic clutch E10



SilverEngine ground
E3


Black
Magnetic clutch AC COMP E11


Natural greenNeutral switch
E4


Green
Generator E12


Natural greenNeutral switch
E5



TPS EGR E13



Gray Injector nozzle 1
E6
(C24SE)



Fuel injector (C24SE) E14



Gray
Injector nozzle 2
E6



Injector pump E15



Gray Injector nozzle 3
E7
(C24SE)



Fuel injector (C24SE) E16



Gray
Injector nozzle 4
E8
(C24SE)



Fuel injector (C24SE) E17



Silver
Generator (B)
E9
(C24SE)



Fuel injector (C24SE) E18
(C24SE)


Ignition coil


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

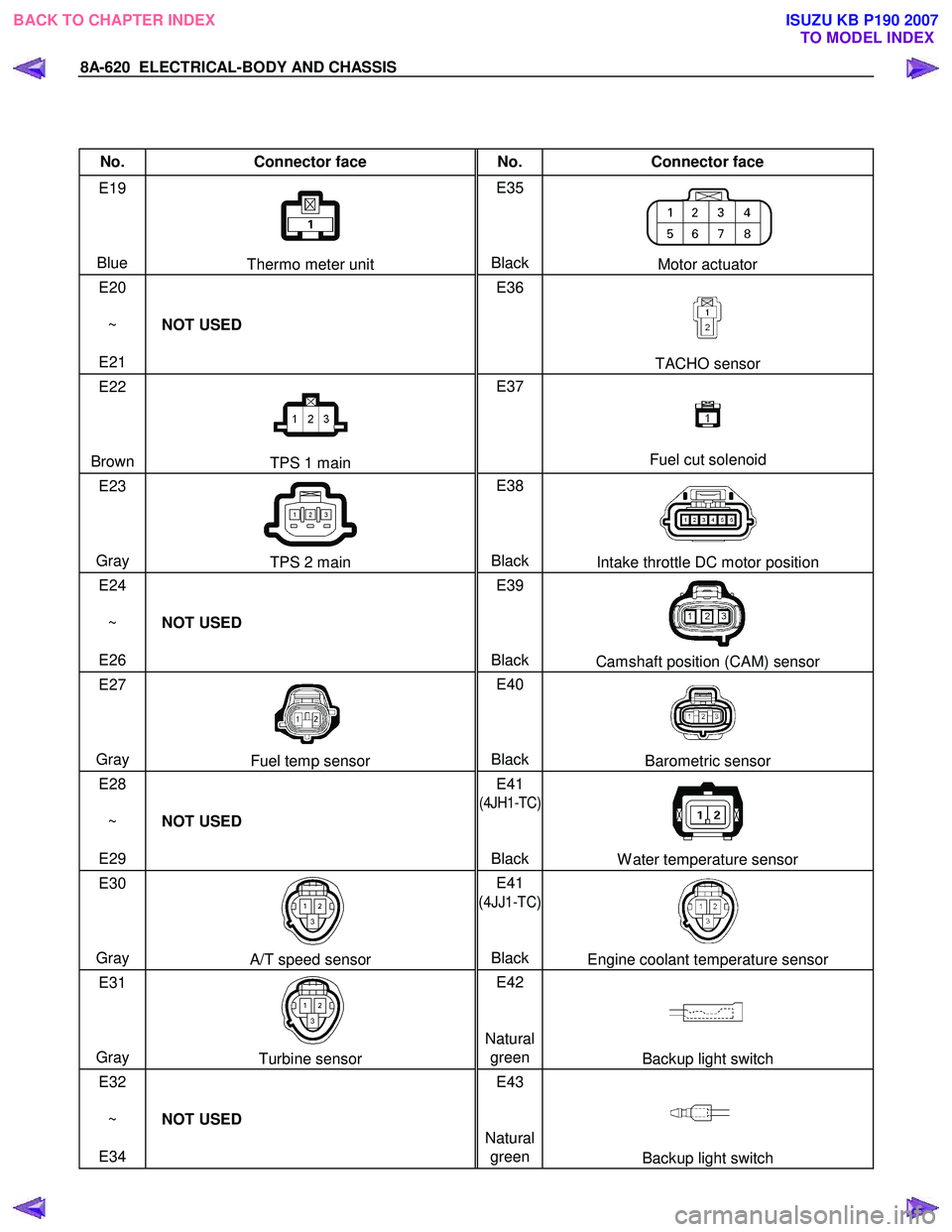

8A-620 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
E19



Blue
Thermo meter unit E35



BlackMotor actuator
E20
~
E21 NOT USED E36




TACHO sensor
E22



Brown
TPS 1 main E37



Fuel cut solenoid
E23



Gray
TPS 2 main E38



BlackIntake throttle DC motor position
E24
~
E26 NOT USED E39



Black
Camshaft position (CAM) sensor
E27


Gray
Fuel temp sensor E40



BlackBarometric sensor
E28
~
E29 NOT USED E41
(4JH1-TC)


Black
W ater temperature sensor
E30


Gray
A/T speed sensor E41
(
4JJ1-TC)


Black
Engine coolant temperature sensor
E31


Gray
Turbine sensor E42


Natural greenBackup light switch
E32
~
E34 NOT USED E43


Natural green
Backup light switch


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

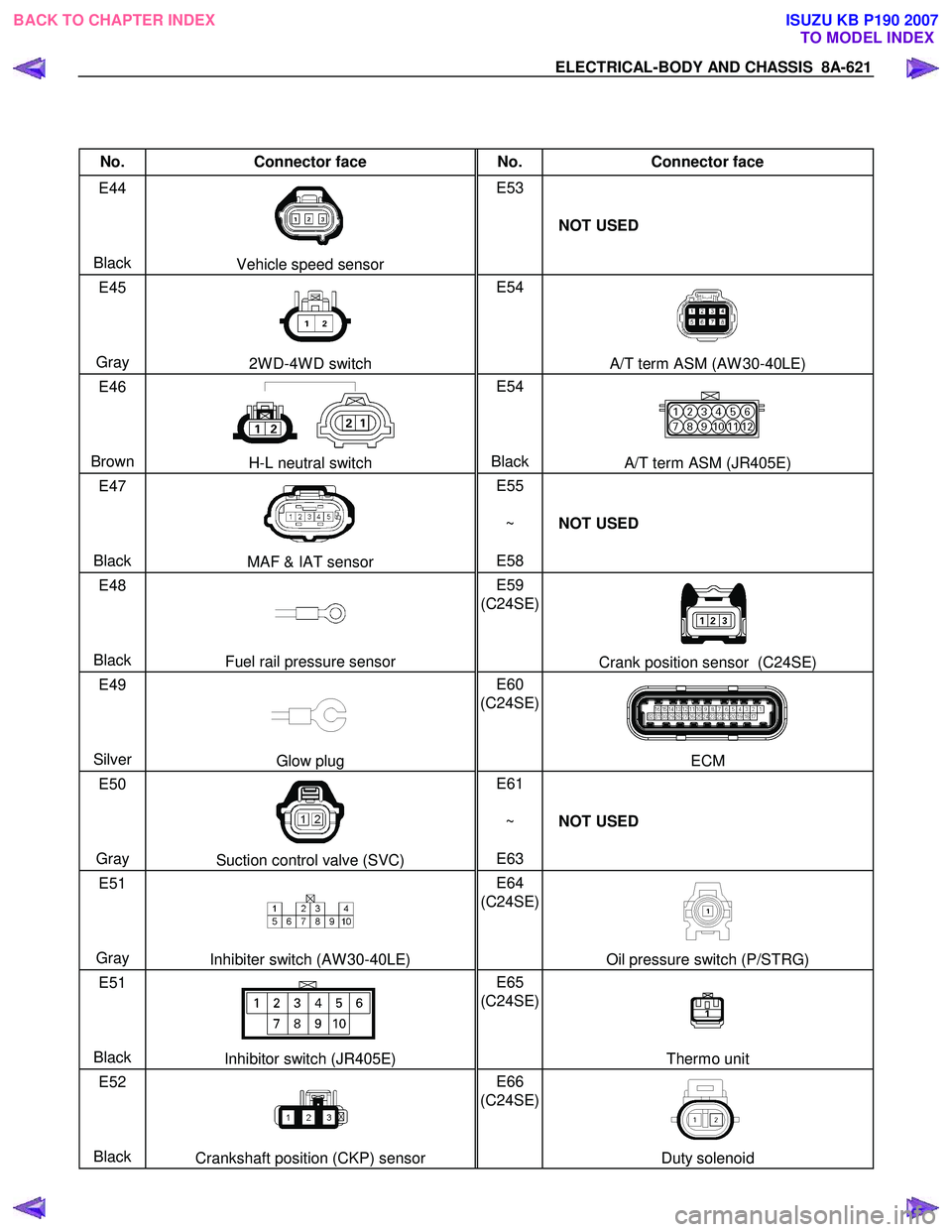

ELECTRICAL-BODY AND CHASSIS 8A-621


No. Connector face No. Connector face
E44



Black
Vehicle speed sensor E53



NOT USED
E45



Gray
2W D-4W D switch E54



A/T term ASM (AW 30-40LE)
E46


Brown
H-L neutral switch E54



BlackA/T term ASM (JR405E)
E47


Black
MAF & IAT sensor E55

~
E58 NOT USED
E48



Black
Fuel rail pressure sensor E59
(C24SE)



Crank position sensor (C24SE)
E49



Silver
Glow plug E60
(C24SE)

ECM
E50


Gray
Suction control valve (SVC) E61

~
E63 NOT USED
E51



Gray
Inhibiter switch (AW 30-40LE) E64
(C24SE)

Oil pressure switch (P/STRG)
E51


Black
Inhibitor switch (JR405E) E65
(C24SE)

Thermo unit
E52


Black
Crankshaft position (CKP) sensor E66
(C24SE)

Duty solenoid


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

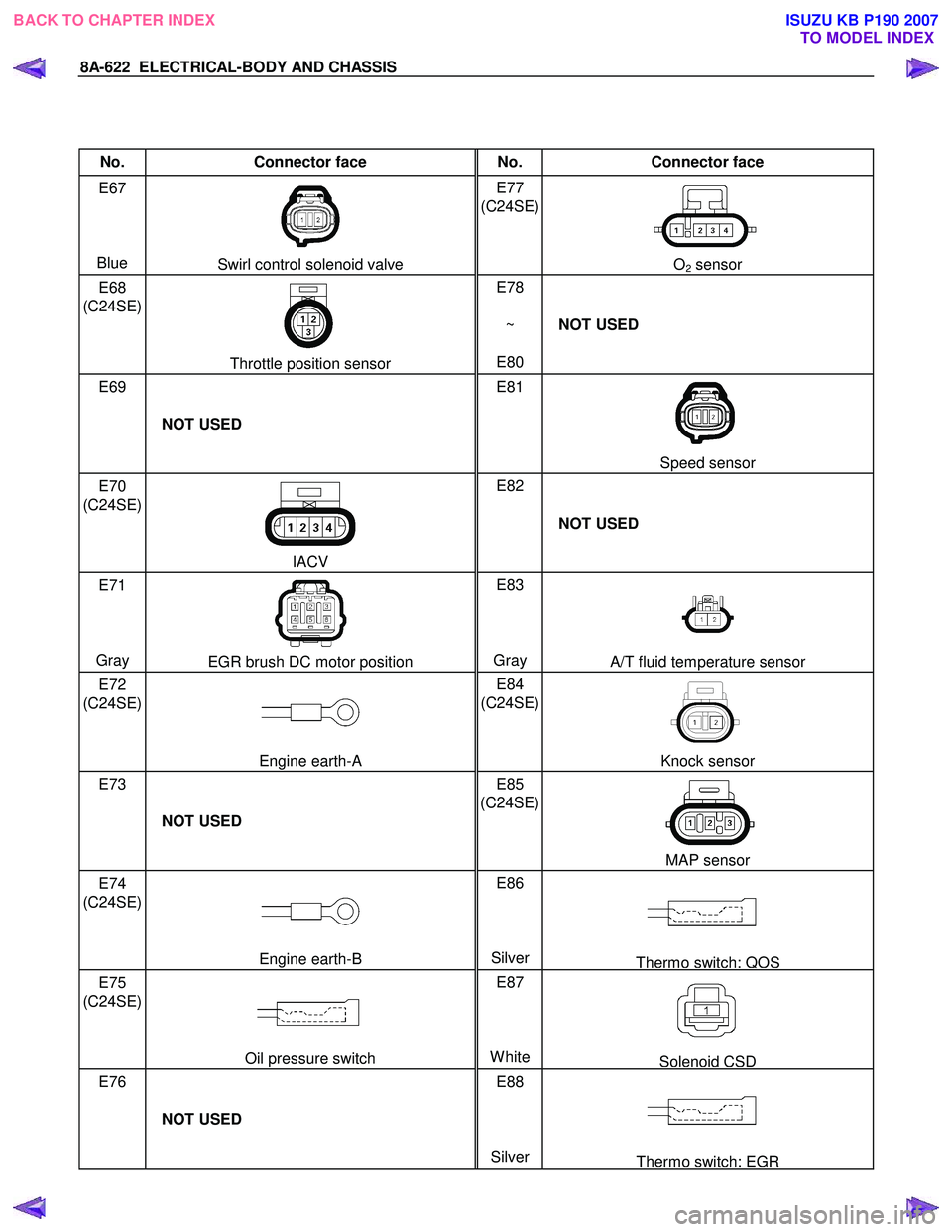

8A-622 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
E67



Blue
Swirl control solenoid valve E77
(C24SE)

O2 sensor
E68
(C24SE)


Throttle position sensor E78

~
E80 NOT USED
E69



NOT USED E81




Speed sensor
E70
(C24SE)


IACV E82



NOT USED
E71



Gray
EGR brush DC motor position E83



Gray A/T fluid temperature sensor
E72
(C24SE)


Engine earth-A E84
(C24SE)

Knock sensor
E73


NOT USED E85
(C24SE)


MAP sensor
E74
(C24SE)


Engine earth-B E86



SilverThermo switch; QOS
E75
(C24SE)


Oil pressure switch E87



WhiteSolenoid CSD
E76


NOT USED E88



Silver
Thermo switch; EGR


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

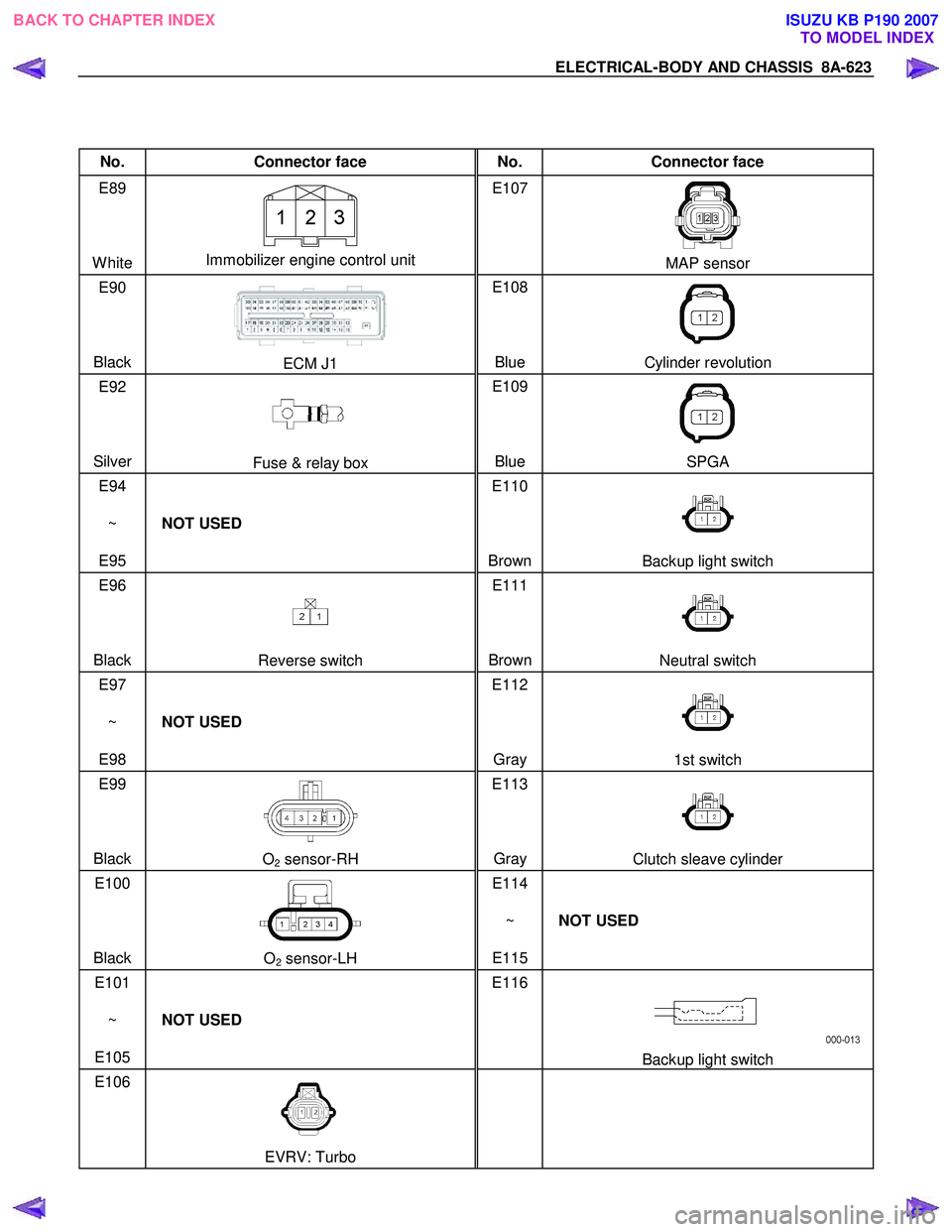

ELECTRICAL-BODY AND CHASSIS 8A-623


No. Connector face No. Connector face
E89



White

Immobilizer engine control unit E107




MAP sensor
E90


Black
ECM J1 E108



Blue Cylinder revolution
E92


Silver
Fuse & relay box E109



Blue SPGA
E94
~
E95 NOT USED E110



Brown
Backup light switch
E96


Black
Reverse switch E111



BrownNeutral switch
E97
~
E98 NOT USED E112



Gray
1st switch
E99


Black
O2 sensor-RH E113



Gray Clutch sleave cylinder
E100


Black
O2 sensor-LH E114

~
E115 NOT USED
E101

~
E105 NOT USED E116




Backup light switch
E106



EVRV: Turbo



BACK TO CHAPTER INDEX
