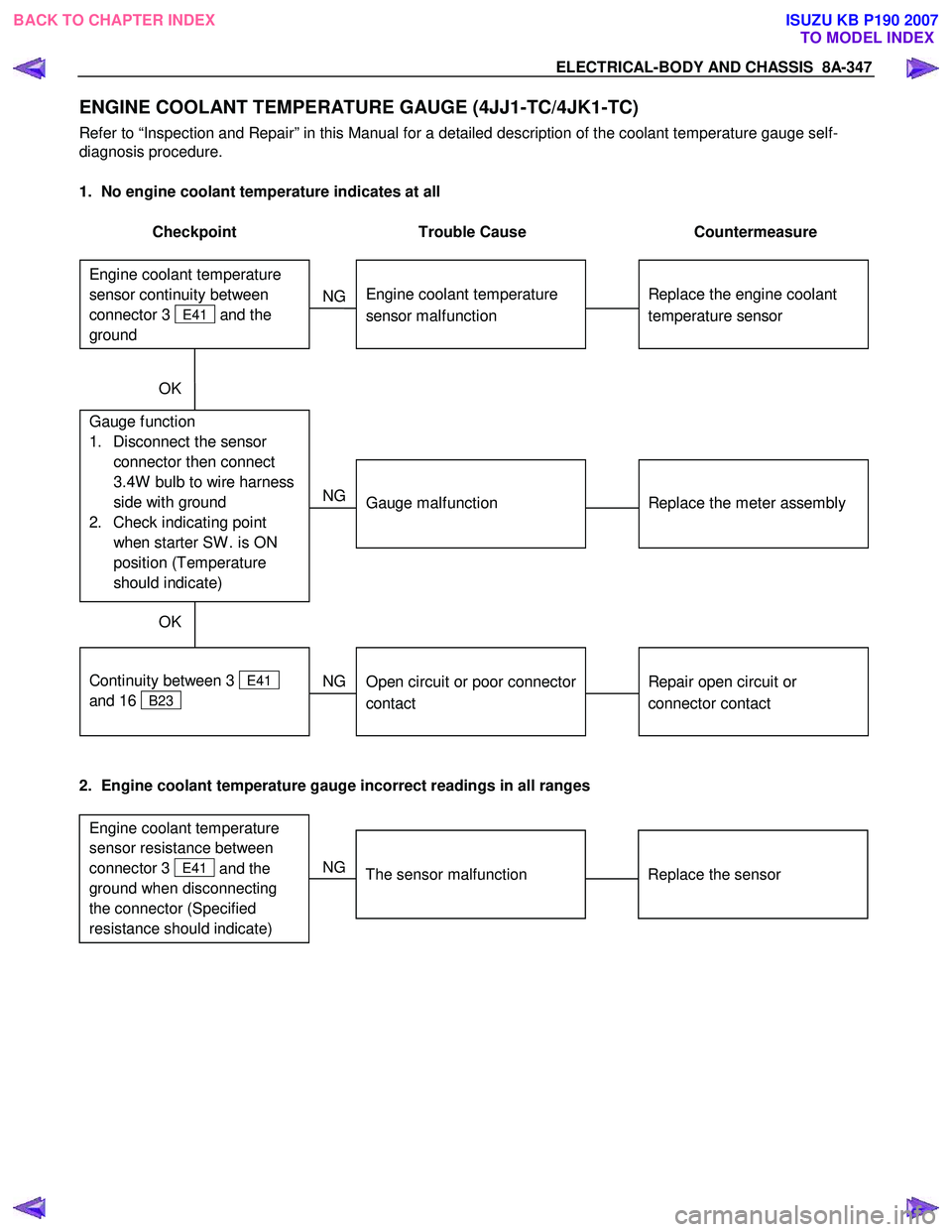

ELECTRICAL-BODY AND CHASSIS 8A-347
ENGINE COOLANT TEMPERATURE GAUGE (4JJ1-TC/4JK1-TC)
Refer to “Inspection and Repair” in this Manual for a detailed description of the coolant temperature gauge self-
diagnosis procedure.

1. No engine coolant temperature indicates at all

Checkpoint Trouble Cause Countermeasure


Replace the engine coolant
temperature sensor

Engine coolant temperature
sensor malfunction

NG


Replace the meter assembly

Gauge function
1. Disconnect the sensor connector then connect
3.4W bulb to wire harness
side with ground
2. Check indicating point when starter SW . is ON
position (Temperature
should indicate)

Gauge malfunction


Repair open circuit or
connector contact

Continuity between 3
E41
and 16
B23


Open circuit or poor connector
contact

NG
NG
OK
OK
Engine coolant temperature
sensor continuity between
connector 3
E41 and the
ground



2. Engine coolant temperature gauge incorrect readings in all ranges


Replace the sensor

The sensor malfunction

NG

Engine coolant temperature
sensor resistance between
connector 3
E41 and the
ground when disconnecting
the connector (Specified
resistance should indicate)


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

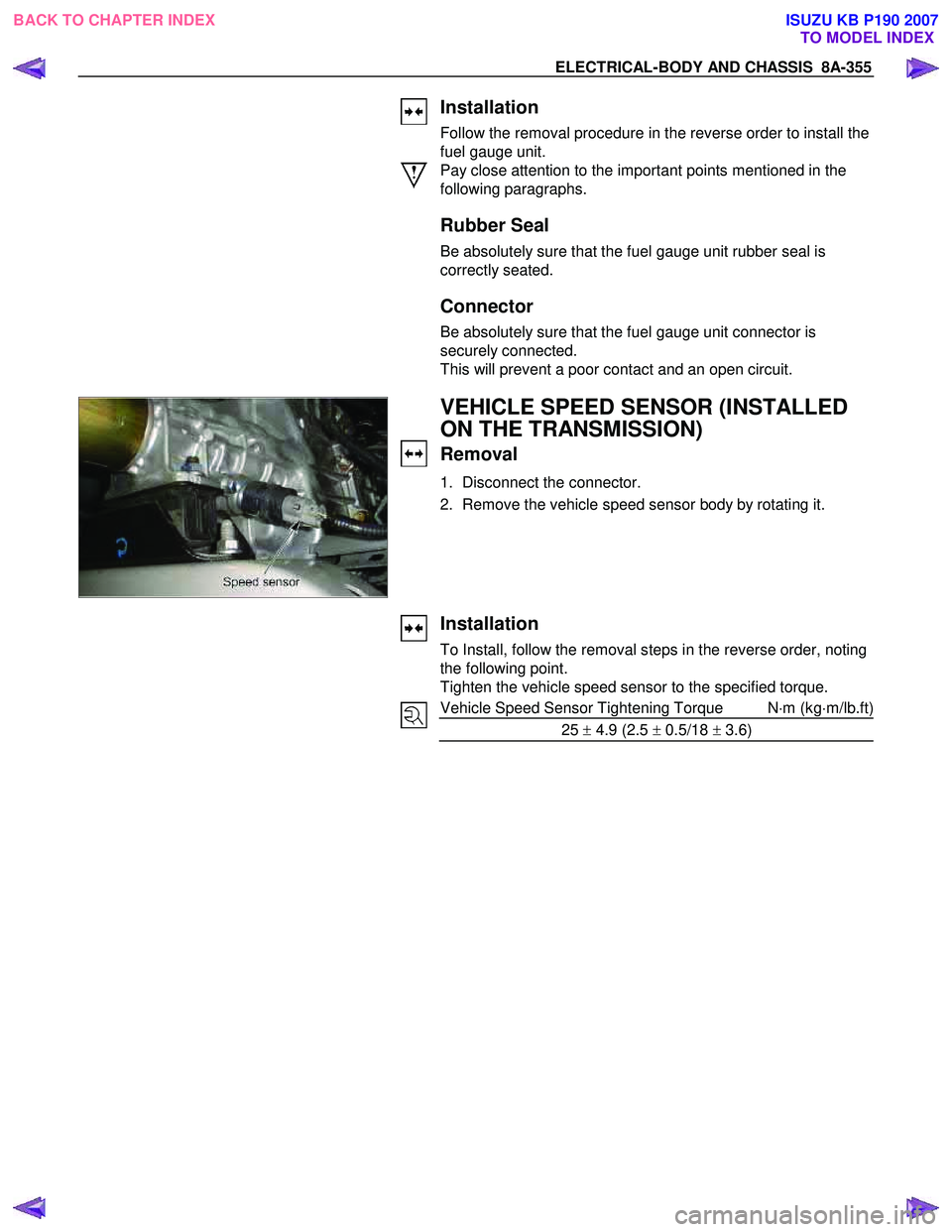

ELECTRICAL-BODY AND CHASSIS 8A-355



Installation
Follow the removal procedure in the reverse order to install the
fuel gauge unit.
Pay close attention to the important points mentioned in the
following paragraphs.


Rubber Seal
Be absolutely sure that the fuel gauge unit rubber seal is
correctly seated.



Connector
Be absolutely sure that the fuel gauge unit connector is
securely connected.
This will prevent a poor contact and an open circuit.



VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)
Removal
1. Disconnect the connector.
2. Remove the vehicle speed sensor body by rotating it.







Installation
To Install, follow the removal steps in the reverse order, noting
the following point.
Tighten the vehicle speed sensor to the specified torque.
Vehicle Speed Sensor Tightening Torque N ⋅m (kg ⋅m/lb.ft)
25 ± 4.9 (2.5 ± 0.5/18 ± 3.6)



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

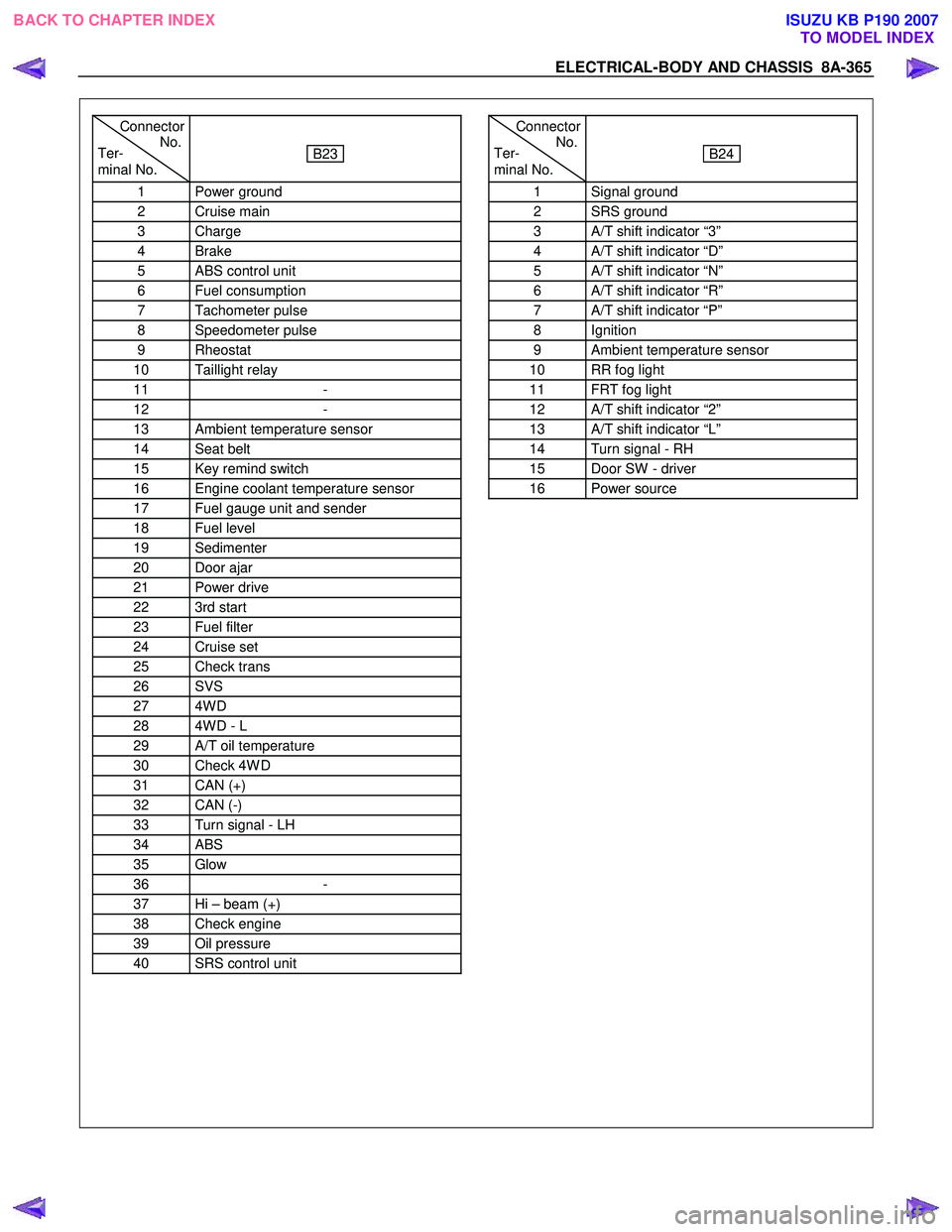

ELECTRICAL-BODY AND CHASSIS 8A-365




Connector
Ter- No.

minal No.
B23
1 Power ground
2 Cruise main
3 Charge
4 Brake
5 ABS control unit
6 Fuel consumption
7 Tachometer pulse
8 Speedometer pulse
9 Rheostat
10 Taillight relay
11 -
12 -
13 Ambient temperature sensor
14 Seat belt
15 Key remind switch
16 Engine coolant temperature sensor
17 Fuel gauge unit and sender
18 Fuel level
19 Sedimenter
20 Door ajar
21 Power drive
22 3rd start
23 Fuel filter
24 Cruise set
25 Check trans
26 SVS
27 4W D
28 4W D - L
29 A/T oil temperature
30 Check 4W D
31 CAN (+)
32 CAN (-)
33 Turn signal - LH
34 ABS
35 Glow
36 -
37 Hi – beam (+)
38 Check engine
39 Oil pressure
40 SRS control unit

Connector
Ter- No.
minal No.
B24
1 Signal ground
2 SRS ground
3 A/T shift indicator “3”
4 A/T shift indicator “D”
5 A/T shift indicator “N”
6 A/T shift indicator “R”
7 A/T shift indicator “P”
8 Ignition
9 Ambient temperature sensor
10 RR fog light
11 FRT fog light
12 A/T shift indicator “2”
13 A/T shift indicator “L”
14 Turn signal - RH
15 Door SW - driver
16 Power source



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

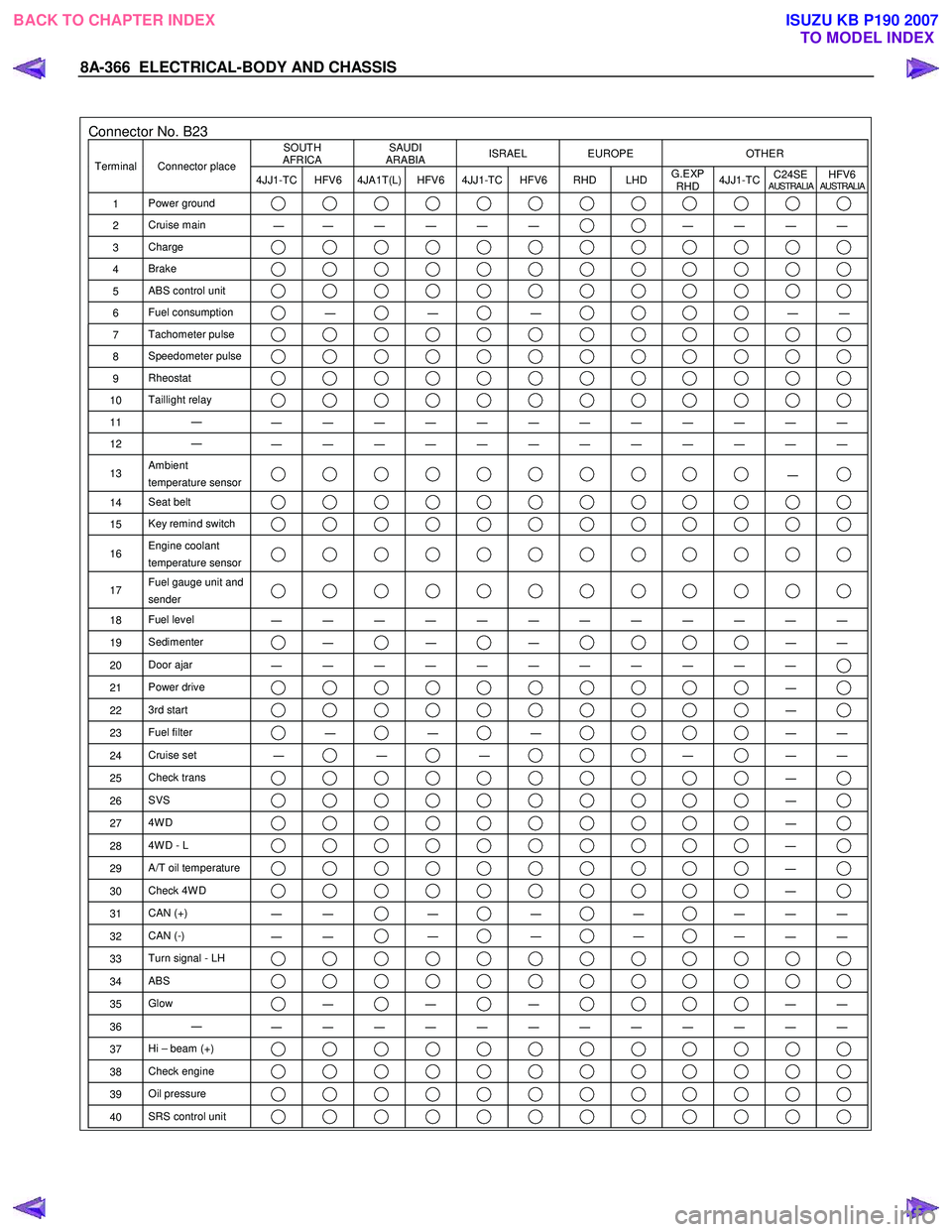

8A-366 ELECTRICAL-BODY AND CHASSIS


Connector No. B23 SOUTH
AFRICA SAUDI
ARABIA ISRAEL EUROPE OTHER
Terminal Connector place
4JJ1-TC HFV6 4JA1T(L) HFV6 4JJ1-TC HFV6 RHD LHD G.EXP
RHD 4JJ1-TC
C24SE
AUSTRALIAHFV6AUSTRALIA
1
Power ground
2 Cruise main
―
― ― ― ― ― ― ― ― ―
3
Charge
4 Brake
5 ABS control unit
6 Fuel consumption ―
―
―
―
―
7 Tachometer pulse
8 Speedometer pulse
9 Rheostat
10 Taillight relay
11 ―

― ― ― ― ― ― ― ― ― ― ― ―
12 ―

― ― ― ― ― ― ― ― ― ― ― ―
13 Ambient
temperature sensor ―

14 Seat belt
15 Key remind switch
16 Engine coolant
temperature sensor
17 Fuel gauge unit and
sender
18 Fuel level
― ― ― ― ― ― ― ― ― ― ― ―
19 Sedimenter ―
―
―
―
―
20 Door ajar
― ― ― ― ― ― ― ― ― ― ―
21 Power drive ―

22 3rd start ―

23 Fuel filter ―
―
―
―
―
24 Cruise set
― ―
―
―
―
―
25 Check trans ―

26 SVS ―

27 4W D ―

28 4W D - L ―

29 A/T oil temperature ―

30 Check 4W D ―

31 CAN (+)
― ― ―
―
―
― ― ―
32
CAN (-)
― ― ―
―
―
― ― ―
33
Turn signal - LH
34 ABS
35 Glow ―
―
―
―
―
36 ―

― ― ― ― ― ― ― ― ― ― ― ―
37 Hi – beam (+)
38 Check engine
39 Oil pressure
40 SRS control unit


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

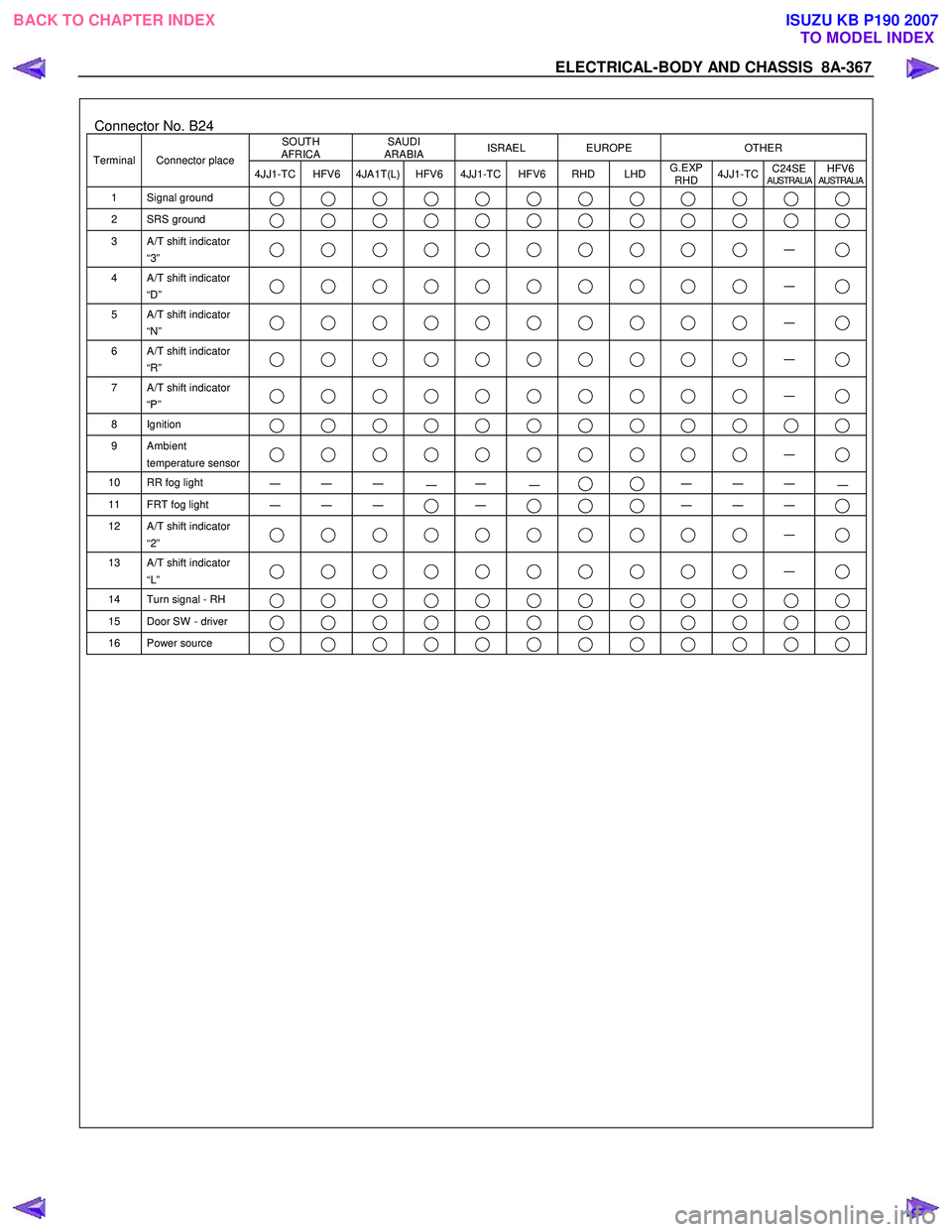

ELECTRICAL-BODY AND CHASSIS 8A-367

Connector No. B24 SOUTH
AFRICA SAUDI
ARABIA ISRAEL EUROPE OTHER
Terminal Connector place
4JJ1-TC HFV6 4JA1T(L) HFV6 4JJ1-TC HFV6 RHD LHD G.EXP
RHD 4JJ1-TC
C24SE
AUSTRALIAHFV6AUSTRALIA
1 Signal ground
2 SRS ground
3 A/T shift indicator
“3” ―
4 A/T shift indicator
“D” ―
5 A/T shift indicator
“N” ―
6 A/T shift indicator
“R” ―
7 A/T shift indicator
“P” ―
8 Ignition
9 Ambient
temperature sensor ―
10 RR fog light
― ― ― ― ― ―
―
― ― ―
11 FRT fog light
― ― ― ― ―
― ―
12 A/T shift indicator
“2” ―
13 A/T shift indicator
“L” ―
14 Turn signal - RH
15 Door SW - driver
16 Power source




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

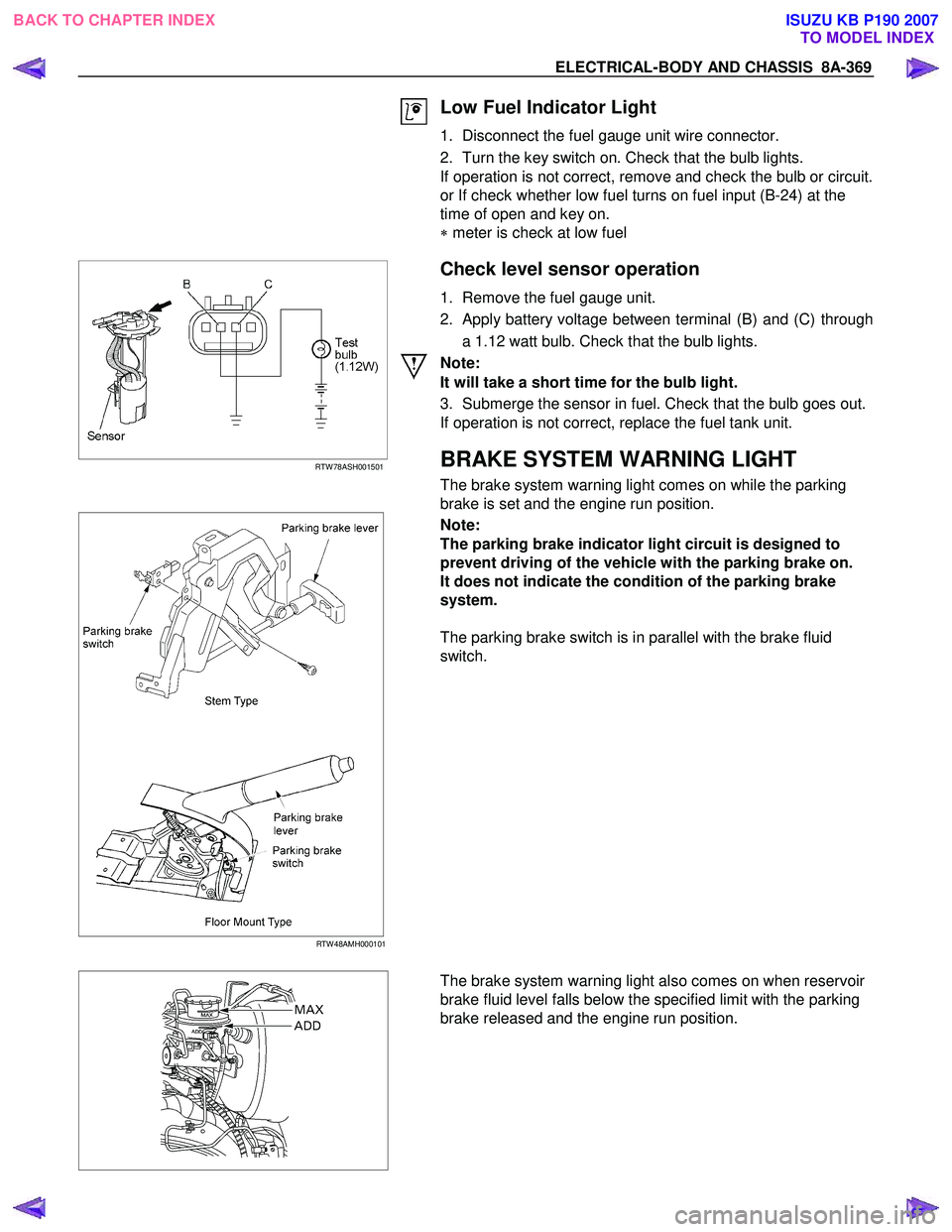

ELECTRICAL-BODY AND CHASSIS 8A-369
Low Fuel Indicator Light
1. Disconnect the fuel gauge unit wire connector.
2. Turn the key switch on. Check that the bulb lights.
If operation is not correct, remove and check the bulb or circuit.
or If check whether low fuel turns on fuel input (B-24) at the
time of open and key on.
∗ meter is check at low fuel



RTW 78ASH001501




Check level sensor operation
1. Remove the fuel gauge unit.
2. Apply battery voltage between terminal (B) and (C) through a 1.12 watt bulb. Check that the bulb lights.
Note:
It will take a short time for the bulb light.
3. Submerge the sensor in fuel. Check that the bulb goes out.
If operation is not correct, replace the fuel tank unit.

BRAKE SYSTEM WARNING LIGHT
The brake system warning light comes on while the parking
brake is set and the engine run position.

RTW 48AMH000101


Note:
The parking brake indicator light circuit is designed to
prevent driving of the vehicle with the parking brake on.
It does not indicate the condition of the parking brake
system.

The parking brake switch is in parallel with the brake fluid
switch.


The brake system warning light also comes on when reservoir
brake fluid level falls below the specified limit with the parking
brake released and the engine run position.

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

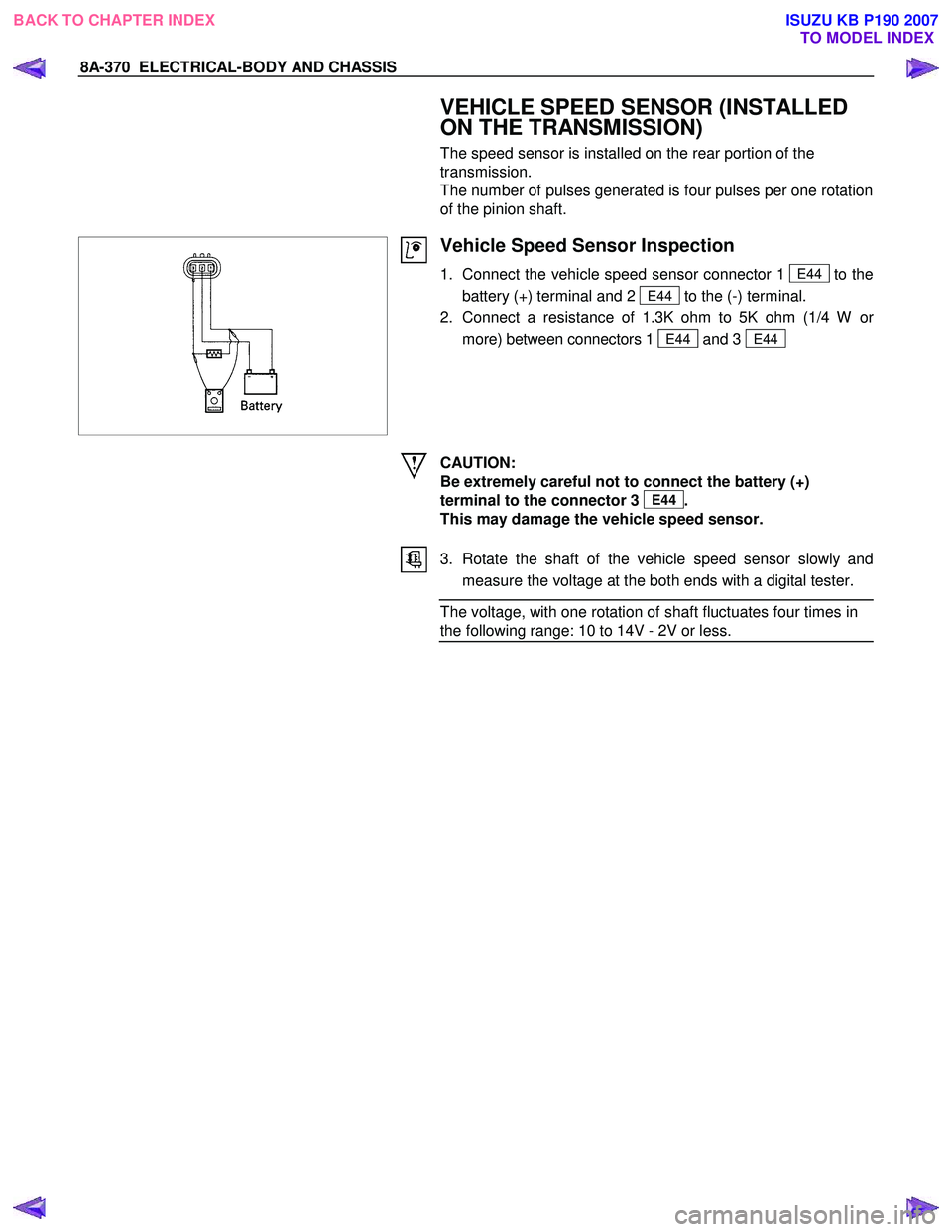

8A-370 ELECTRICAL-BODY AND CHASSIS




VEHICLE SPEED SENSOR (INSTALLED
ON THE TRANSMISSION)
The speed sensor is installed on the rear portion of the
transmission.
The number of pulses generated is four pulses per one rotation
of the pinion shaft.



Vehicle Speed Sensor Inspection
1. Connect the vehicle speed sensor connector 1 E44to the
battery (+) terminal and 2
E44 to the (-) terminal.
2. Connect a resistance of 1.3K ohm to 5K ohm (1/4 W o
r
more) between connectors 1 E44 and 3 E44


CAUTION:
Be extremely careful not to connect the battery (+)
terminal to the connector 3
E44 .
This may damage the vehicle speed sensor.



3. Rotate the shaft of the vehicle speed sensor slowly and
measure the voltage at the both ends with a digital tester.

The voltage, with one rotation of shaft fluctuates four times in
the following range: 10 to 14V - 2V or less.




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

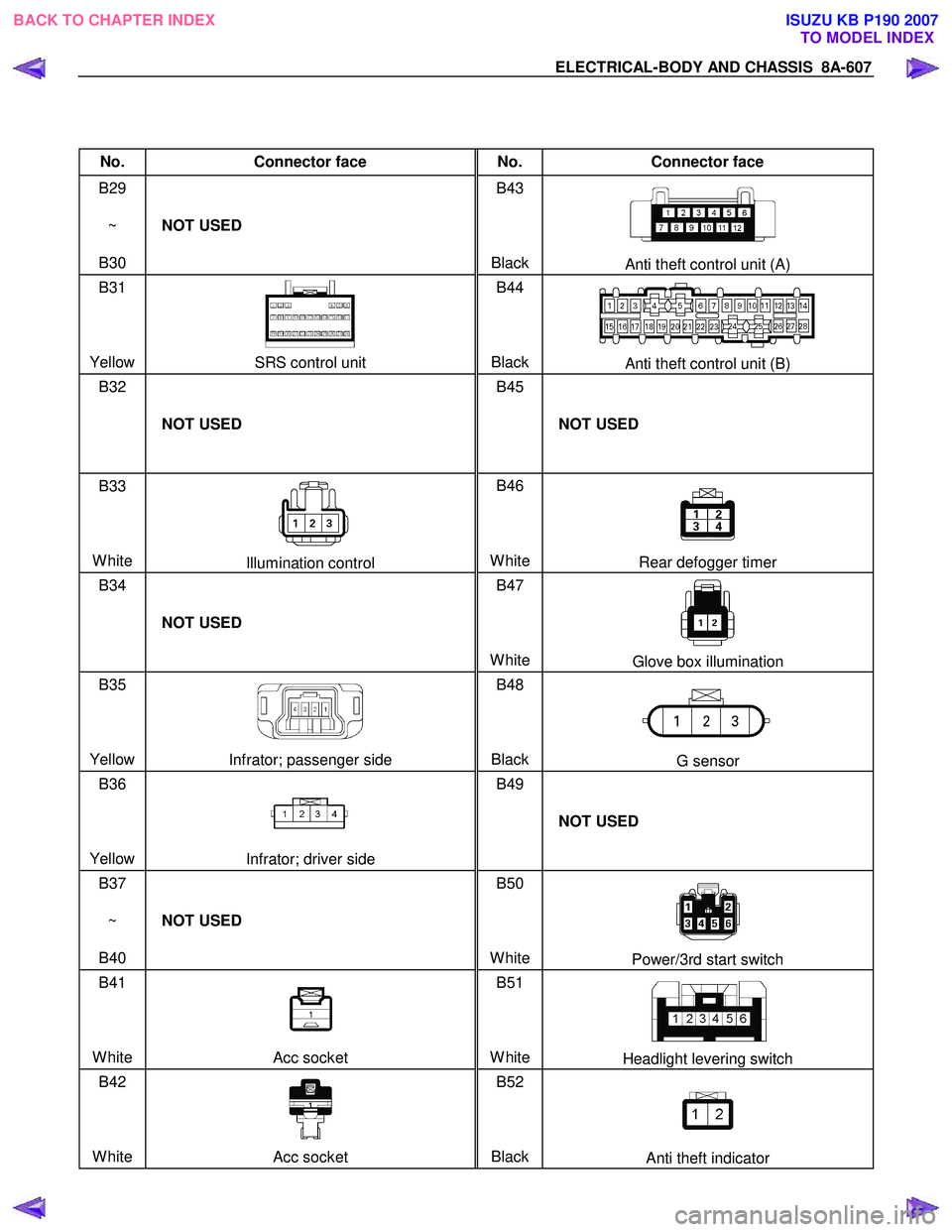

ELECTRICAL-BODY AND CHASSIS 8A-607


No. Connector face No. Connector face
B29

~
B30 NOT USED B43



Black
Anti theft control unit (A)
B31


Yellow
SRS control unit B44



BlackAnti theft control unit (B)
B32


NOT USED B45



NOT USED
B33



White
Illumination control B46



WhiteRear defogger timer
B34


NOT USED B47



White
Glove box illumination
B35


Yellow
Infrator; passenger side B48



BlackG sensor
B36


Yellow
Infrator; driver side B49



NOT USED
B37

~
B40 NOT USED B50



White
Power/3rd start switch
B41


White
Acc socket B51



WhiteHeadlight levering switch
B42


White
Acc socket B52



BlackAnti theft indicator
