2007 ISUZU KB P190 sensor

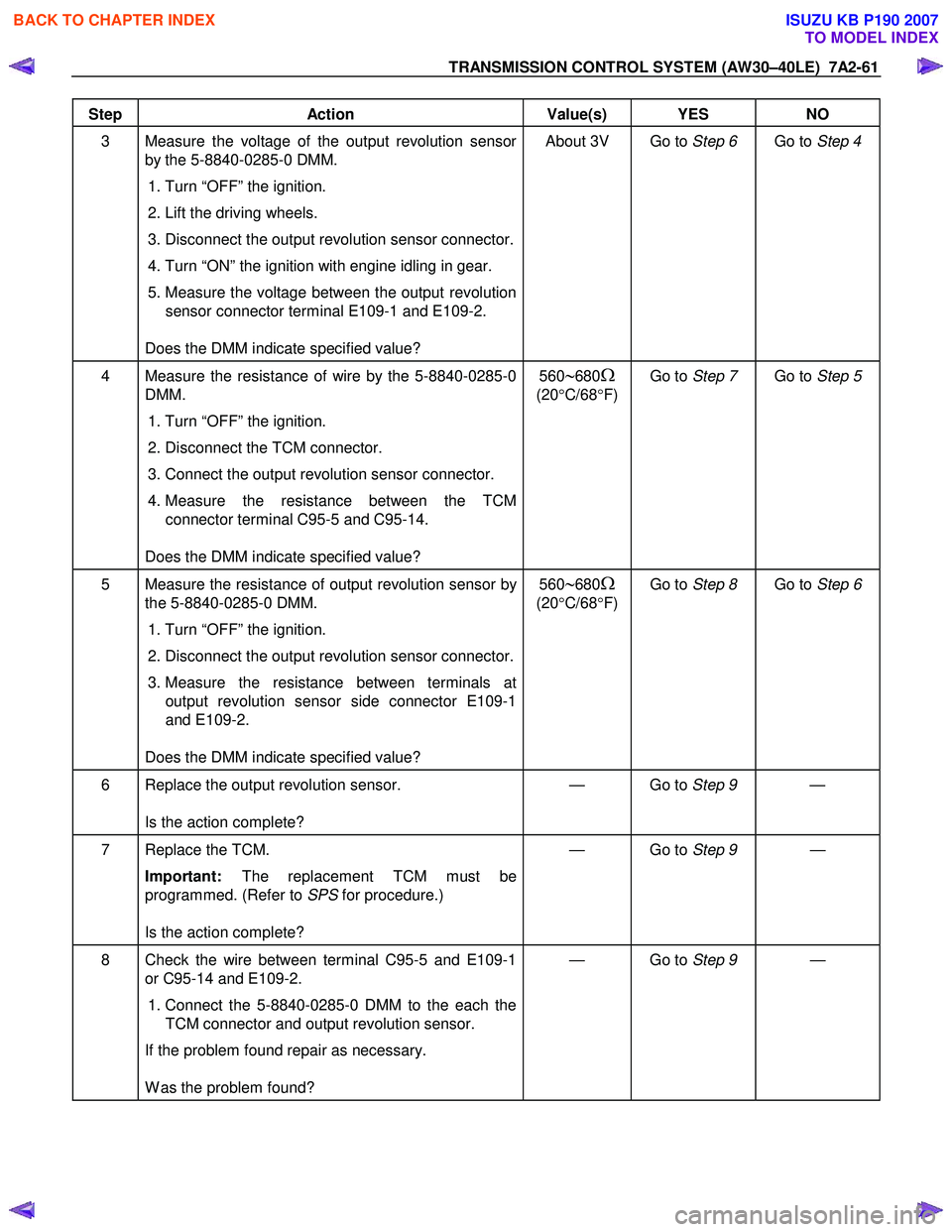

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-61

Step Action Value(s) YES NO
3 Measure the voltage of the output revolution sensor
by the 5-8840-0285-0 DMM.
1. Turn “OFF” the ignition.
2. Lift the driving wheels.
3. Disconnect the output revolution sensor connector.
4. Turn “ON” the ignition with engine idling in gear.
5. Measure the voltage between the output revolution sensor connector terminal E109-1 and E109-2.

Does the DMM indicate specified value? About 3V Go to
Step 6 Go to Step 4
4 Measure the resistance of wire by the 5-8840-0285-0
DMM.
1. Turn “OFF” the ignition.
2. Disconnect the TCM connector.
3. Connect the output revolution sensor connector.
4. Measure the resistance between the TCM
connector terminal C95-5 and C95-14.

Does the DMM indicate specified value? 560∼680Ω
(20
°C/68 °F) Go to
Step 7 Go to Step 5
5 Measure the resistance of output revolution sensor by
the 5-8840-0285-0 DMM.
1. Turn “OFF” the ignition.
2. Disconnect the output revolution sensor connector.
3. Measure the resistance between terminals at
output revolution sensor side connector E109-1
and E109-2.

Does the DMM indicate specified value? 560∼680Ω
(20
°C/68 °F) Go to
Step 8 Go to Step 6
6 Replace the output revolution sensor.

Is the action complete? — Go to
Step 9 —
7 Replace the TCM.
Important: The replacement TCM must be
programmed. (Refer to SPS for procedure.)

Is the action complete? — Go to
Step 9 —
8 Check the wire between terminal C95-5 and E109-1
or C95-14 and E109-2.
1. Connect the 5-8840-0285-0 DMM to the each the
TCM connector and output revolution sensor.
If the problem found repair as necessary.

W as the problem found? — Go to
Step 9 —

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

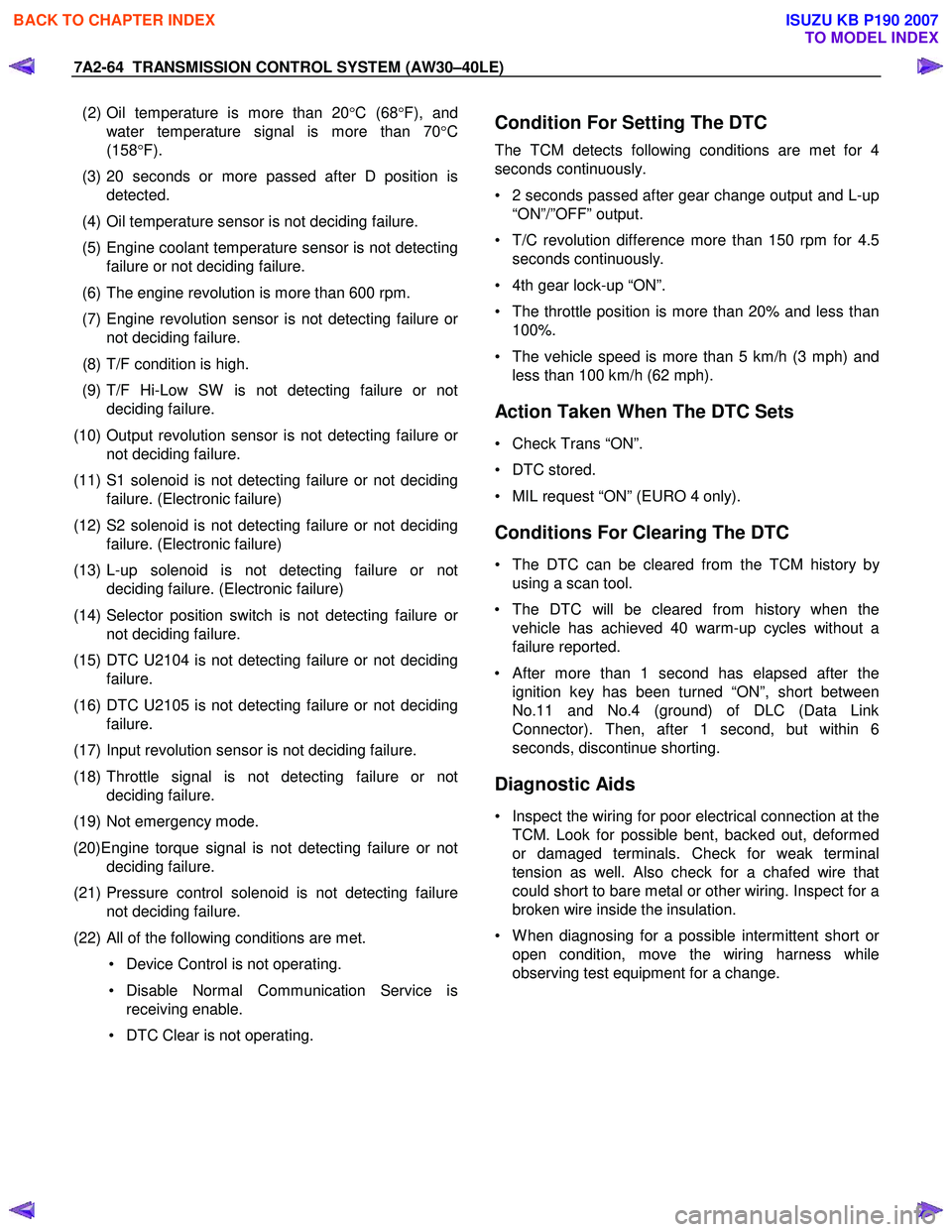

7A2-64 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.
(5) Engine coolant temperature sensor is not detecting failure or not deciding failure.
(6) The engine revolution is more than 600 rpm.
(7) Engine revolution sensor is not detecting failure o
r
not deciding failure.
(8) T/F condition is high.
(9) T/F Hi-Low SW is not detecting failure or not deciding failure.
(10) Output revolution sensor is not detecting failure o
r
not deciding failure.
(11) S1 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(12) S2 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(13) L-up solenoid is not detecting failure or not
deciding failure. (Electronic failure)
(14) Selector position switch is not detecting failure o
r
not deciding failure.
(15) DTC U2104 is not detecting failure or not deciding
failure.
(16) DTC U2105 is not detecting failure or not deciding
failure.
(17) Input revolution sensor is not deciding failure.
(18) Throttle signal is not detecting failure or not
deciding failure.
(19) Not emergency mode.
(20)Engine torque signal is not detecting failure or not deciding failure.
(21) Pressure control solenoid is not detecting failure
not deciding failure.
(22) All of the following conditions are met.
• Device Control is not operating.
• Disable Normal Communication Service is receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
The TCM detects following conditions are met for 4
seconds continuously.
• 2 seconds passed after gear change output and L-up “ON”/”OFF” output.
• T/C revolution difference more than 150 rpm for 4.5 seconds continuously.
• 4th gear lock-up “ON”.
• The throttle position is more than 20% and less than 100%.
• The vehicle speed is more than 5 km/h (3 mph) and less than 100 km/h (62 mph).
Action Taken When The DTC Sets
• Check Trans “ON”.
• DTC stored.
• MIL request “ON” (EURO 4 only).
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
• After more than 1 second has elapsed after the ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

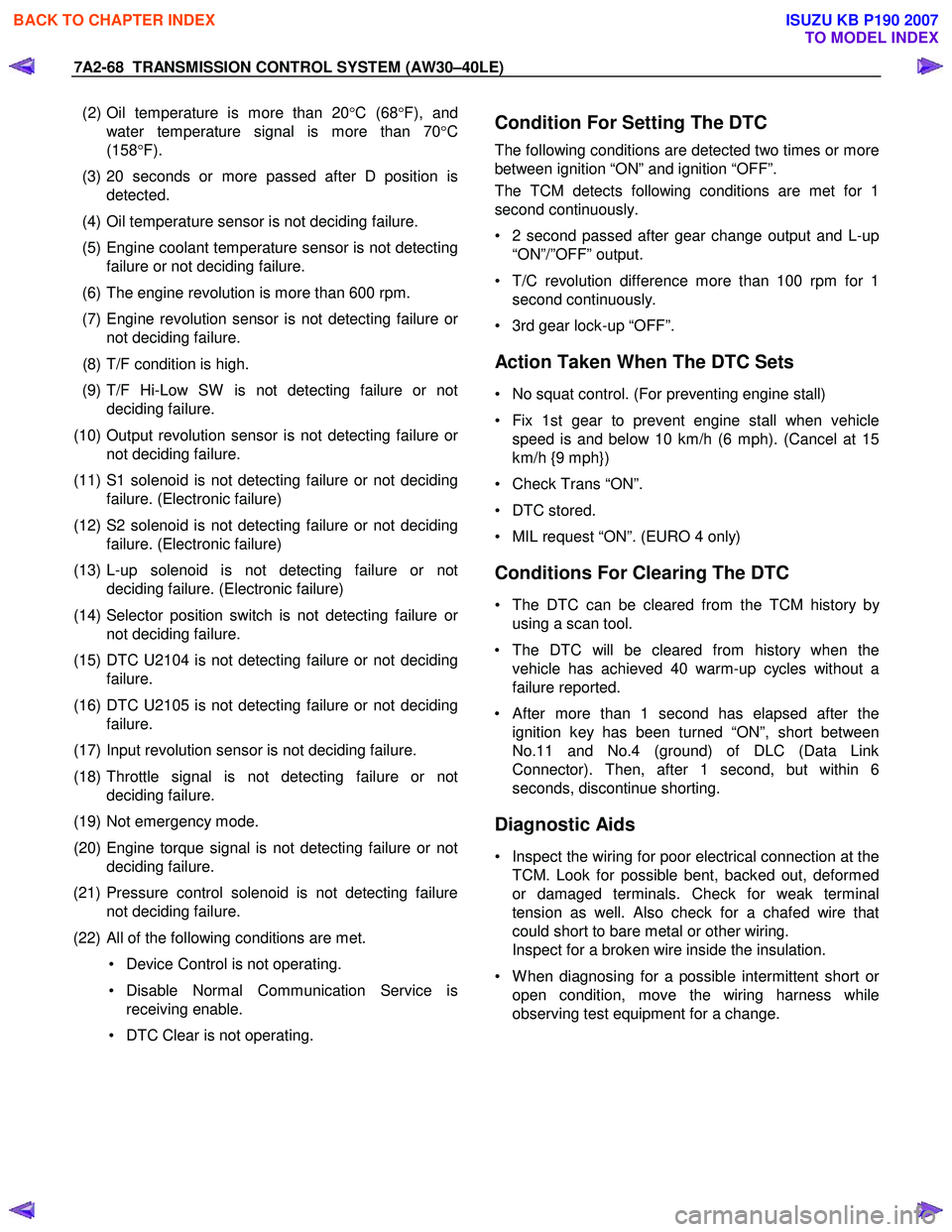

7A2-68 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.
(5) Engine coolant temperature sensor is not detecting failure or not deciding failure.
(6) The engine revolution is more than 600 rpm.
(7) Engine revolution sensor is not detecting failure o
r
not deciding failure.
(8) T/F condition is high.
(9) T/F Hi-Low SW is not detecting failure or not deciding failure.
(10) Output revolution sensor is not detecting failure o
r
not deciding failure.
(11) S1 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(12) S2 solenoid is not detecting failure or not deciding
failure. (Electronic failure)
(13) L-up solenoid is not detecting failure or not
deciding failure. (Electronic failure)
(14) Selector position switch is not detecting failure o
r
not deciding failure.
(15) DTC U2104 is not detecting failure or not deciding
failure.
(16) DTC U2105 is not detecting failure or not deciding
failure.
(17) Input revolution sensor is not deciding failure.
(18) Throttle signal is not detecting failure or not
deciding failure.
(19) Not emergency mode.
(20) Engine torque signal is not detecting failure or not
deciding failure.
(21) Pressure control solenoid is not detecting failure
not deciding failure.
(22) All of the following conditions are met.
• Device Control is not operating.
• Disable Normal Communication Service is receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
The following conditions are detected two times or more
between ignition “ON” and ignition “OFF”.
The TCM detects following conditions are met for 1
second continuously.
• 2 second passed after gear change output and L-up “ON”/”OFF” output.
• T/C revolution difference more than 100 rpm for 1 second continuously.
• 3rd gear lock-up “OFF”.
Action Taken When The DTC Sets
• No squat control. (For preventing engine stall)
• Fix 1st gear to prevent engine stall when vehicle speed is and below 10 km/h (6 mph). (Cancel at 15
km/h {9 mph})
• Check Trans “ON”.
• DTC stored.
• MIL request “ON”. (EURO 4 only)
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

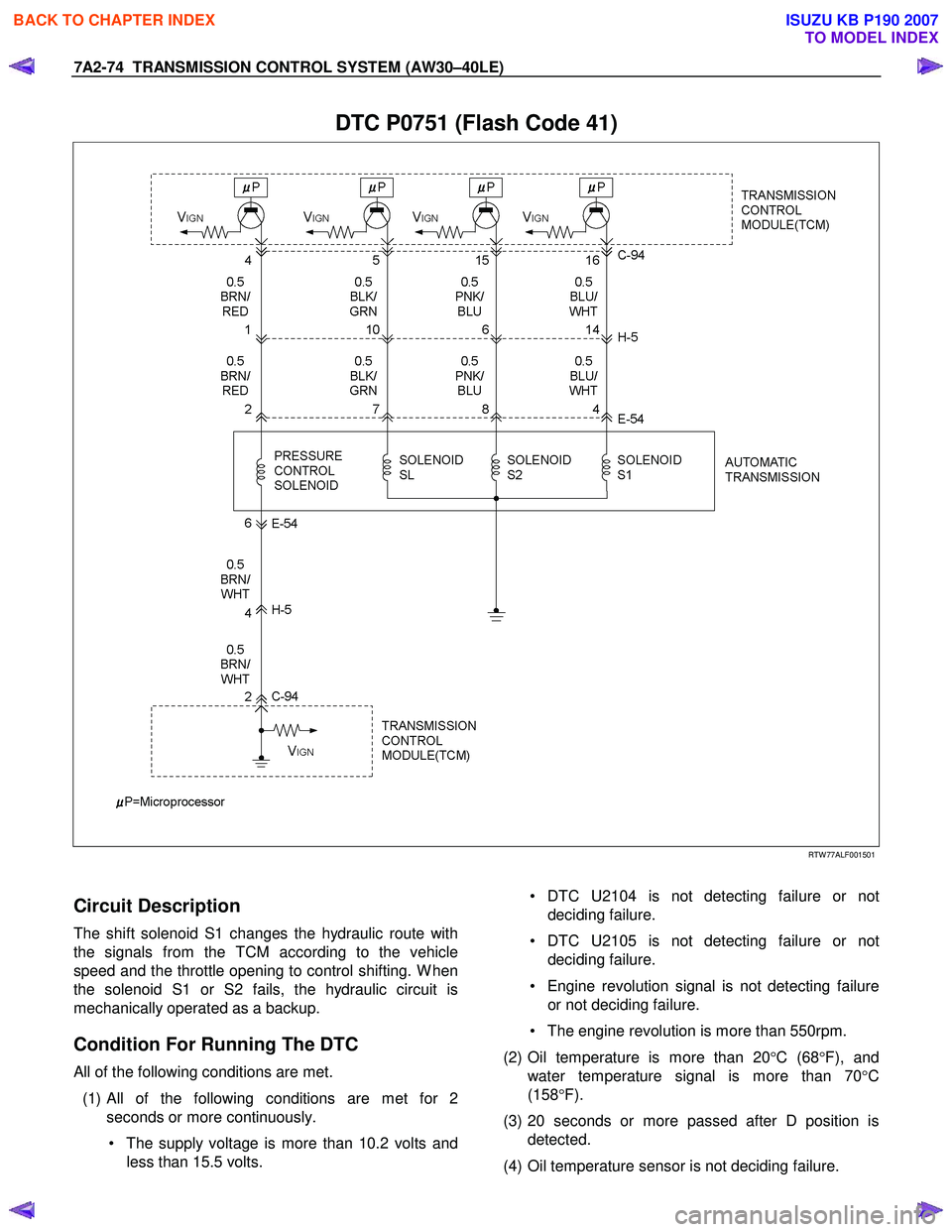

7A2-74 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

DTC P0751 (Flash Code 41)






RTW 77ALF001501

Circuit Description
The shift solenoid S1 changes the hydraulic route with
the signals from the TCM according to the vehicle
speed and the throttle opening to control shifting. W hen
the solenoid S1 or S2 fails, the hydraulic circuit is
mechanically operated as a backup.
Condition For Running The DTC
All of the following conditions are met.
(1)
All of the following conditions are met for 2
seconds or more continuously.
• The supply voltage is more than 10.2 volts and less than 15.5 volts.

• DTC U2104 is not detecting failure or not
deciding failure.
• DTC U2105 is not detecting failure or not deciding failure.
• Engine revolution signal is not detecting failure or not deciding failure.
• The engine revolution is more than 550rpm.
(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

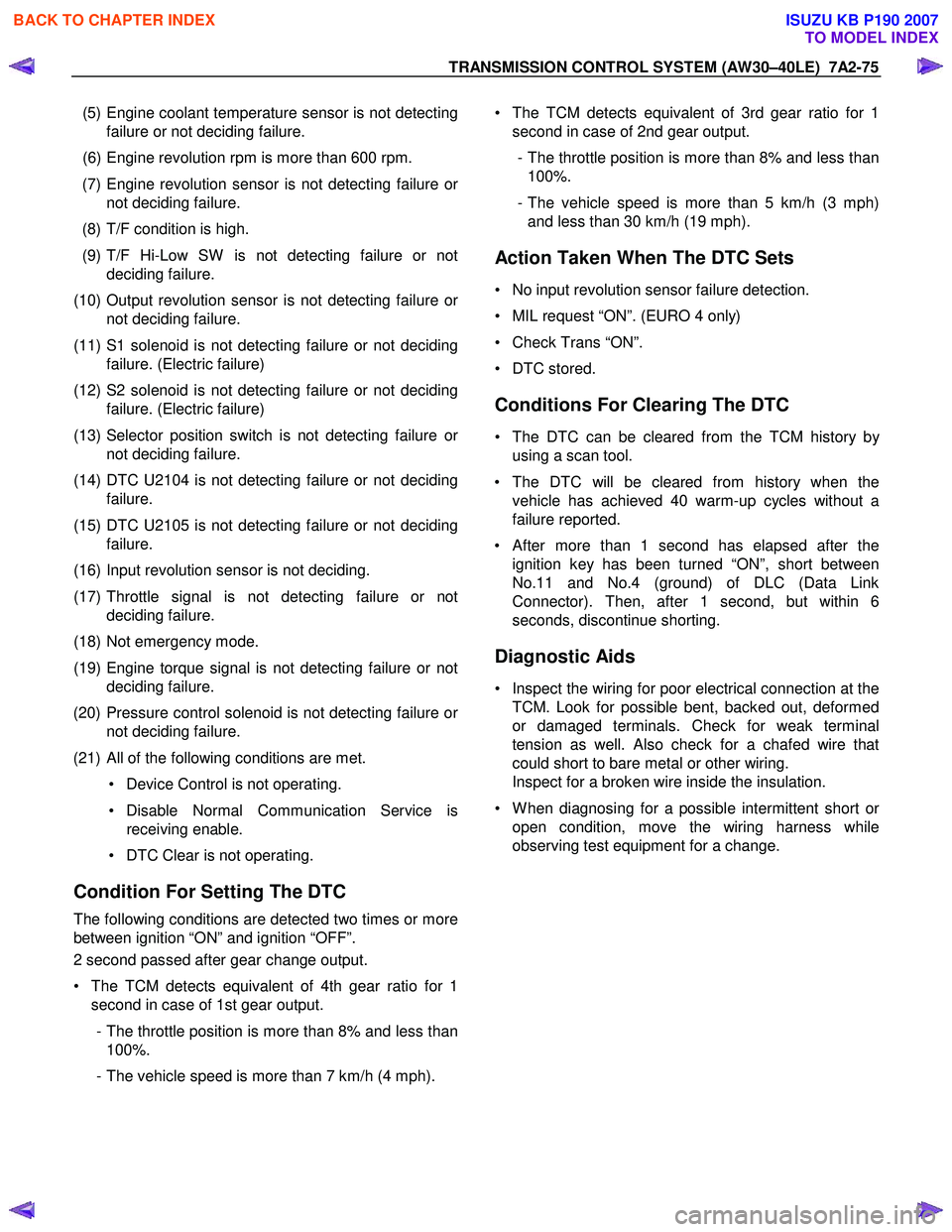

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-75

(5) Engine coolant temperature sensor is not detecting failure or not deciding failure.
(6) Engine revolution rpm is more than 600 rpm.
(7) Engine revolution sensor is not detecting failure o
r
not deciding failure.
(8) T/F condition is high.
(9) T/F Hi-Low SW is not detecting failure or not deciding failure.
(10) Output revolution sensor is not detecting failure o
r
not deciding failure.
(11) S1 solenoid is not detecting failure or not deciding
failure. (Electric failure)
(12) S2 solenoid is not detecting failure or not deciding
failure. (Electric failure)
(13) Selector position switch is not detecting failure o
r
not deciding failure.
(14) DTC U2104 is not detecting failure or not deciding
failure.
(15) DTC U2105 is not detecting failure or not deciding
failure.
(16) Input revolution sensor is not deciding.
(17) Throttle signal is not detecting failure or not
deciding failure.
(18) Not emergency mode.
(19) Engine torque signal is not detecting failure or not
deciding failure.
(20) Pressure control solenoid is not detecting failure o
r
not deciding failure.
(21) All of the following conditions are met.
• Device Control is not operating.
• Disable Normal Communication Service is receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
The following conditions are detected two times or more
between ignition “ON” and ignition “OFF”.
2 second passed after gear change output.
• The TCM detects equivalent of 4th gear ratio for 1 second in case of 1st gear output.
- The throttle position is more than 8% and less than 100%.
- The vehicle speed is more than 7 km/h (4 mph).

• The TCM detects equivalent of 3rd gear ratio for 1
second in case of 2nd gear output.
- The throttle position is more than 8% and less than 100%.
- The vehicle speed is more than 5 km/h (3 mph) and less than 30 km/h (19 mph).
Action Taken When The DTC Sets
• No input revolution sensor failure detection.
• MIL request “ON”. (EURO 4 only)
• Check Trans “ON”.
• DTC stored.
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring.
Inspect for a broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-78 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

DTC P0752 (Flash Code 51)






RTW 77ALF001501

Circuit Description
The shift solenoid S1 changes the hydraulic route with
the signals from the TCM according to the vehicle
speed and the throttle opening to control shifting. W hen
the solenoid S1 or S2 fails, the hydraulic circuit is
mechanically operated as a backup.
Condition For Running The DTC
All of the following conditions are met.
(1) All of the following conditions are met for 2 seconds or more continuously.
• The supply voltage is more than 10.2 volts and less than 15.5 volts.

• DTC U2104 is not detecting failure or not
deciding failure.
• DTC U2105 is not detecting failure or not deciding failure.
• Engine revolution signal is not detecting failure or not deciding failure.
• The engine revolution is more than 550 rpm.
(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

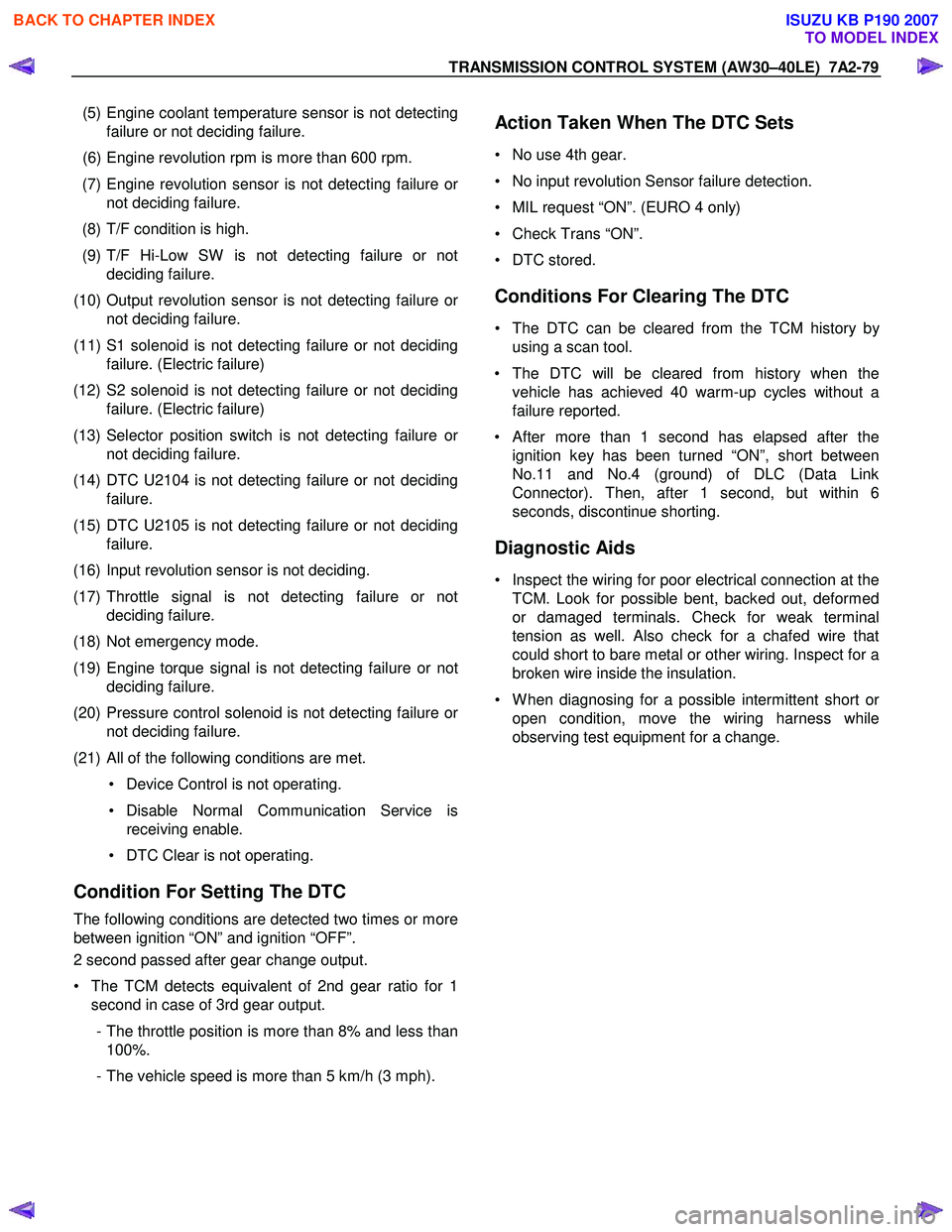

TRANSMISSION CONTROL SYSTEM (AW30–40LE) 7A2-79

(5) Engine coolant temperature sensor is not detecting failure or not deciding failure.
(6) Engine revolution rpm is more than 600 rpm.
(7) Engine revolution sensor is not detecting failure o
r
not deciding failure.
(8) T/F condition is high.
(9) T/F Hi-Low SW is not detecting failure or not deciding failure.
(10) Output revolution sensor is not detecting failure o
r
not deciding failure.
(11) S1 solenoid is not detecting failure or not deciding
failure. (Electric failure)
(12) S2 solenoid is not detecting failure or not deciding
failure. (Electric failure)
(13) Selector position switch is not detecting failure o
r
not deciding failure.
(14) DTC U2104 is not detecting failure or not deciding
failure.
(15) DTC U2105 is not detecting failure or not deciding
failure.
(16) Input revolution sensor is not deciding.
(17) Throttle signal is not detecting failure or not
deciding failure.
(18) Not emergency mode.
(19) Engine torque signal is not detecting failure or not
deciding failure.
(20) Pressure control solenoid is not detecting failure o
r
not deciding failure.
(21) All of the following conditions are met.
• Device Control is not operating.
• Disable Normal Communication Service is receiving enable.
• DTC Clear is not operating.
Condition For Setting The DTC
The following conditions are detected two times or more
between ignition “ON” and ignition “OFF”.
2 second passed after gear change output.
• The TCM detects equivalent of 2nd gear ratio for 1 second in case of 3rd gear output.
- The throttle position is more than 8% and less than 100%.
- The vehicle speed is more than 5 km/h (3 mph).
Action Taken When The DTC Sets
• No use 4th gear.
• No input revolution Sensor failure detection.
• MIL request “ON”. (EURO 4 only)
• Check Trans “ON”.
• DTC stored.
Conditions For Clearing The DTC
• The DTC can be cleared from the TCM history by
using a scan tool.
• The DTC will be cleared from history when the vehicle has achieved 40 warm-up cycles without a
failure reported.
•
After more than 1 second has elapsed after the
ignition key has been turned “ON”, short between
No.11 and No.4 (ground) of DLC (Data Link
Connector). Then, after 1 second, but within 6
seconds, discontinue shorting.
Diagnostic Aids
• Inspect the wiring for poor electrical connection at the TCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.
• W hen diagnosing for a possible intermittent short o
r
open condition, move the wiring harness while
observing test equipment for a change.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7A2-82 TRANSMISSION CONTROL SYSTEM (AW30–40LE)

DTC P0756 (Flash Code 42)






RTW 77ALF001501

Circuit Description
The shift solenoid S2 changes the hydraulic route with
the signals from the TCM according to the vehicle
speed and the throttle opening to control shifting. W hen
the solenoid S1 or S2 fails, the hydraulic circuit is
mechanically operated as a backup.
Condition For Running The DTC
All of the following conditions are met.
(1)
All of the following conditions are met for 2
seconds or more continuously.
• The supply voltage is more than 10.2 volts and less than 15.5 volts.

• DTC U2104 is not detecting failure or not
deciding failure.
• DTC U2105 is not detecting failure or not deciding failure.
• Engine revolution signal is not detecting failure or not deciding failure.
• The engine revolution is more than 550rpm.
(2) Oil temperature is more than 20 °C (68 °F), and
water temperature signal is more than 70 °C
(158 °F).
(3) 20 seconds or more passed after D position is detected.
(4) Oil temperature sensor is not deciding failure.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
