INSTRUMENT PANEL ASSEMBLY
IP-11
C
D
E
F
G
H
J
K
L
MA
B
IP
Revision: 2007 April2007 M35/M45
Removal and Installation of Instrument Panel & PadNIS0025D
REMOVAL
1. Remove cup holder.

Backside pull up.
2. Remove switch finisher.

Disconnect harness connector.
3. Remove A/T console finisher.

Place the selector lever in "D" position.

Remove selector lever knob. Refer to AT- 2 2 2 , "Control Device
Removal and Installation" .

Lift up backside and pull back.

Disconnect harness connector.
4. Remove cluster lid C.

Pull back.

Disconnect harness connector.
1. Cup holder 2. Switch finisher 3. A/T console finisher
4. Cluster lid C 5. Console rear finisher 6. Center console
7. Glove box 8. Instrument passenger lower cover 9. Instrument side finisher (RH)
10. Glove box cover 11. Instrument finisher B 12. Instrument side finisher (LH)
13. Instrument driver lower panel 14. Instrument finisher A 15. Instrument finisher C
16. Cluster lid A 17. Combination meter 18. Steering column cover
19. Upper ventilator gurille 20. Center ventilator grille 21. Multifunction switch
22. Front display unit 23. Audio assembly 24. NAVI C/U
25. Side ventilator grille (RH/LH) 26. Front defroster grille 27. Instrument panel & pad
Pawl Clip Metal clip
PIIB4107J
PIIB4108E
PIIB4109E

IP-14
INSTRUMENT PANEL ASSEMBLY
Revision: 2007 April2007 M35/M45
20. Remove center ventilator grille.

Insert a remover into rear lower space.

Pull up.
21. Remove multifunction switch. Refer to AV- 2 8 4 , "
Multifunction Switch" .
22. Remove front display unit. Refer to AV- 2 8 3 , "
Front Display Unit" .
23. Remove audio assembly. Refer to AV- 2 7 7 , "
Audio Unit" .
24. Remove NAVI C/U. Refer to AV- 2 8 2 , "
AV (NAVI) Control Unit" .
25. Remove side ventilator grille (RH/LH).

Insert a remover into lower space.

Pull back.
26. Remove front defroster grille.

Insert a remover into back space.

Disconnect harness connector.
27. Remove instrument panel & pad.

Remove front passenger air bag module mounting bolt and disconnect harness connector. Refer to
SRS-46, "
FRONT PASSENGER AIR BAG MODULE" .

Remove front pillar garnish. Refer to EI-38, "FRONT PILLAR GARNISH" .
INSTALLATION
Install in the reverse order of removal.
CAUTION:

To install, confirm locating pins on back of instrument panel are completely inserted into holes on
vehicle.

Do not leave harness stuck when installing.
PIIB4121E
PIIB4123E
PIIB4122E

TROUBLE DIAGNOSIS
LAN-9
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Example: Data link connector branch line open circuit
NOTE:

When data link connector branch line is open, transmission and reception of CAN communication signals
are not affected. Therefore, no symptoms occur. However, be sure to repair malfunctioning circuit.

When data link connector branch line is open, the screen-display of the CONSULT-II “SELECT SYSTEM”
screen may be the same as when the CAN communication line has short-circuit. However, symptoms dif-
fer depending on the case. See below chart for the differences.
SKIB8739E
Unit name Symptom
ECM
Normal operation. BCM
EPS control unit
Combination meter
ABS actuator and electric unit (control unit)
TCM
IPDM E/R
SELECT SYSTEM
(CONSULT-II)Difference of symptom
Data link connector branch line open cir-
cuit
All Diag on CAN units are not
indicated.Normal operation.
CAN-H, CAN-L harness short-circuitMost of the units which are connected to the CAN
communication system enter fail-safe mode or are
deactivated.

LAN-14
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
MONITOR ITEM (ON-BOARD DIAGNOSIS)
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-II is
not available.)

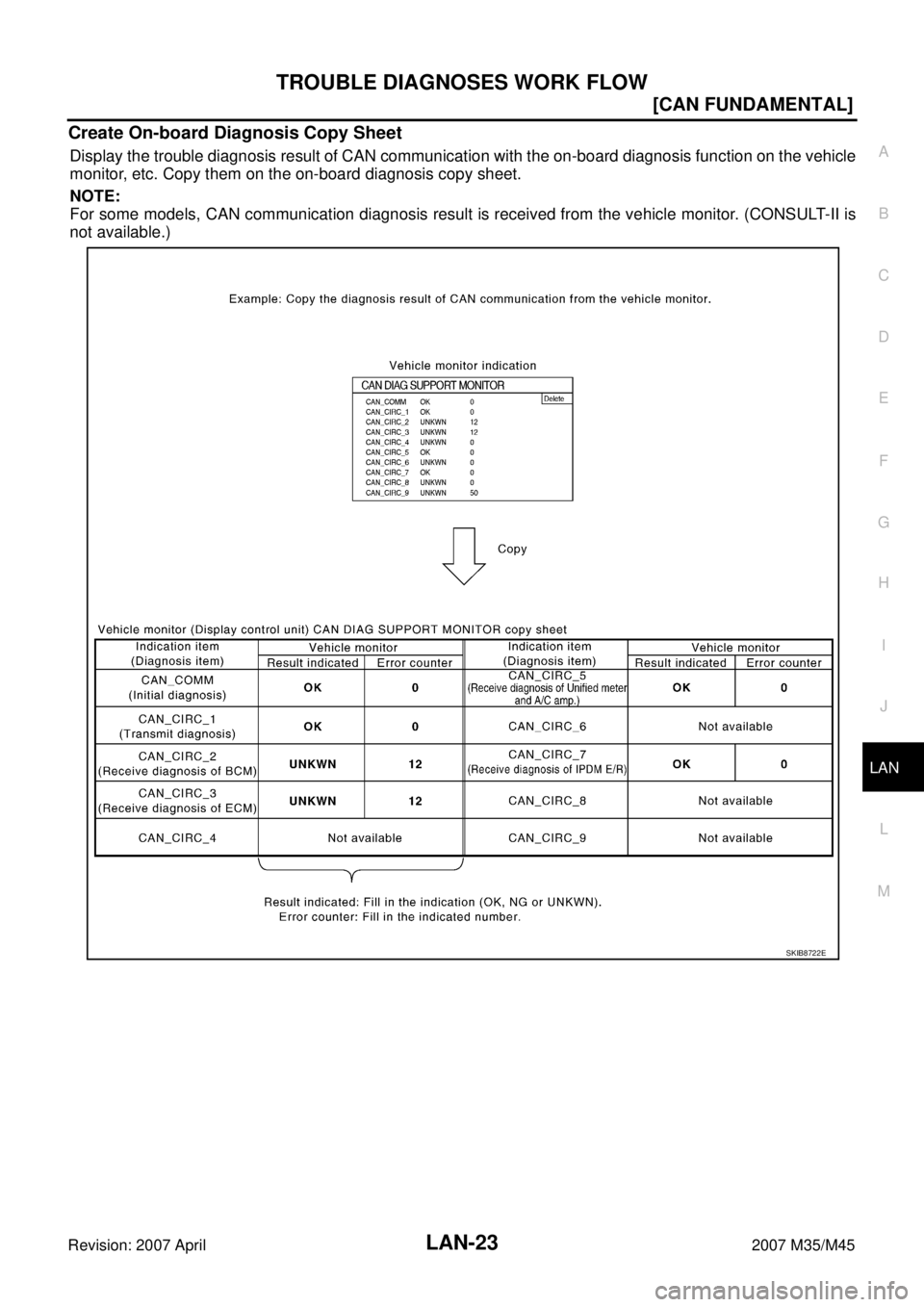

Example: Vehicle Display
ItemResult indi-
catedError counter Description
CAN_COMM
(Initial diagnosis)OK 0 Normal at present
NG 1 – 50Control unit error
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_1
(Transmission diagnosis)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_2 – 9
(Reception diagnosis of each unit)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
Diagnosis not performed.
No control unit for receiving signals. (No applicable optional
parts)

TROUBLE DIAGNOSES WORK FLOW
LAN-23
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Create On-board Diagnosis Copy Sheet
Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-II is
not available.)
SKIB8722E

HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004FN

This section describes information specific to a vehicle, sheets for trouble diagnosis, and inspection pro-
cedures.

For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure" .
Abbreviation ListNKS004FO
Abbreviations in CAN communication signal chart and the diagnosis sheet are as per the following list.
Abbreviation Unit nameSELECT SYSTEM
(CONSULT-II)CAN DIAG SUPPORT MNTR
(CONSULT-II)
4WD AWD control unit ALL MODE AWD/4WD AWD/4WD
ABS ABS actuator and electric unit (control unit) ABS VDC/TCS/ABS
ADP Driver seat control unit AUTO DRIVE POS. –
AFS AFS control unit ADAPTIVE LIGHT AFS
AVNAVI control unit
MULTI AVMULTI AV
DISPLAY
AV control unitMULTI AV
DISPLAY
BCM BCM BCM BCM/SEC
DLC Data link connector – –
ECM ECM ENGINE ECM
ICC ICC sensor integrated unit ICCICC
ICC/e4WD
I-KEY Intelligent Key unit INTELLIGENT KEY I-KEY
IPDM-E IPDM E/R IPDM E/R IPDM E/R
M&A Unified meter and A/C amp. METER A/C AMP METER/M&A
PSB Pre-crash seat belt control unit PRECRASH SEATBELT –
RAS RAS control unit RAS/HICAS RAS C/U
STRG Steering angle sensor – STRG
TCM TCM A/T TCM
TPMS Low tire pressure warning control unit AIR PRESSURE MONITOR TIRE-P
LANE LDW camera unit LDW –

TROUBLE DIAGNOSIS
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Unified meter and A/C amp.
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Low tire pressure warning control unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
METER A/C AMPTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
TCM Signal receiving status from the TCM
BCM/SEC Signal receiving status from the BCM
VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
IPDM E/R Not used even though indicated
DISPLAYWith navigation system: Signal receiving
status from the NAVI control unit
OKOK
or
1 – 39
*UNKWN 0 Without navigation system: Signal receiv-
ing status from the AV control unit
I-KEYSignal receiving status from the Intelligent
Key unit
EPS Not used even though indicated
AW D/4W DSignal receiving status from the AWD con-
trol unitOKOK
or
1 – 39
*UNKWN 0
e4WD Not used even though indicated
ICCSignal receiving status from the ICC sen-
sor integrated unitOKOK
or
1 – 39
*UNKWN 0
LANE KEEP
Not used even though indicated
TIRE-P
AFSSignal receiving status from the AFS con-
trol unitOKOK
or
1 – 39
*UNKWN 0
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
AIR PRESSURE
MONITORTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
