2007 INFINITI M35 headlamp

LT-5
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45 REMOVAL AND INSTALLATION ...................... 292
Trunk Room Lamp (Upper/Lower) ........................ 292
BULB REPLACEMENT ..................................... 292
REMOVAL AND INSTALLATION ...................... 292
ILLUMINATION ....................................................... 293
System Description .............................................. 293
OUTLINE ........................................................... 293
ILLUMINATION OPERATION BY LIGHTING
SWITCH ............................................................ 294
EXTERIOR LAMP BATTERY SAVER CONTROL . 295
CAN Communication System Description ............ 295
CAN Communication Unit .................................... 295
Schematic ............................................................ 296
Wiring Diagram — ILL — ..................................... 298
Glove Box Lamp .................................................... 311BULB REPLACEMENT, REMOVAL AND
INSTALLATION .................................................311
Cigarette Lighter Illumination ................................311
BULB REPLACEMENT, REMOVAL AND
INSTALLATION .................................................311
Front Ashtray Illumination .....................................312
BULB REPLACEMENT, REMOVAL AND
INSTALLATION .................................................312
Rear Ashtray Illumination .....................................312
REMOVAL AND INSTALLATION ......................312
INSTALLATION .................................................312
BULB SPECIFICATIONS ........................................313
Headlamp .............................................................313
Exterior Lamp .......................................................313
Interior Lamp/Illumination .....................................313

PRECAUTIONS
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
General Precautions for Service OperationsNKS003NX

Never work with wet hands.

Xenon headlamp includes high voltage generating part. Be sure
to disconnect battery negative cable (negative terminal) or
power fuse before removing, installing, or touching the xenon
headlamp (including lamp bulb).

Turn the lighting switch OFF before disconnecting and connect-
ing the connector.

When turning the xenon headlamp on and while it is illuminated,
never touch the harness, bulb, and socket of the headlamp.

When checking the headlamp on/off operation, check it on vehi-
cle and with the power connected to the vehicle-side connector.

Do not touch the headlamp bulb glass surface with bare hands or allow oil or grease to get on it. Do not
touch the headlamp bulb just after the headlamp is turned off, because it is very hot.

Install the xenon headlamp bulb socket correctly. If it is installed improperly, high-voltage leak or corona
discharge may occur that can melt the bulb, connector, and housing. Do not illuminate the xenon head-
lamp bulb out of the headlamp housing. Doing so can cause fire and harm your eyes.

When the bulb has burned out, wrap it in a thick vinyl bag and discard. Do not break the bulb.

Leaving the bulb removed from the headlamp housing for a long period of time can deteriorate the perfor-
mance of the lens and reflector (dirt, clouding). Always prepare a new bulb and have it on hand when
replacing the bulb.

When adjusting the headlamp aiming, turn the aiming adjustment screw only in the tightening direction. (If
it is necessary to loosen the screw, first fully loosen the screw, and then turn it in the tightening direction.)

Do not use organic solvent (paint thinner or gasoline) to clean lamps and to remove old sealant.
PKIB7344E

LT-8
HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
Revision: 2007 April2007 M35/M45
HEADLAMP (FOR USA) - CONVENTIONAL TYPE -PFP:26010

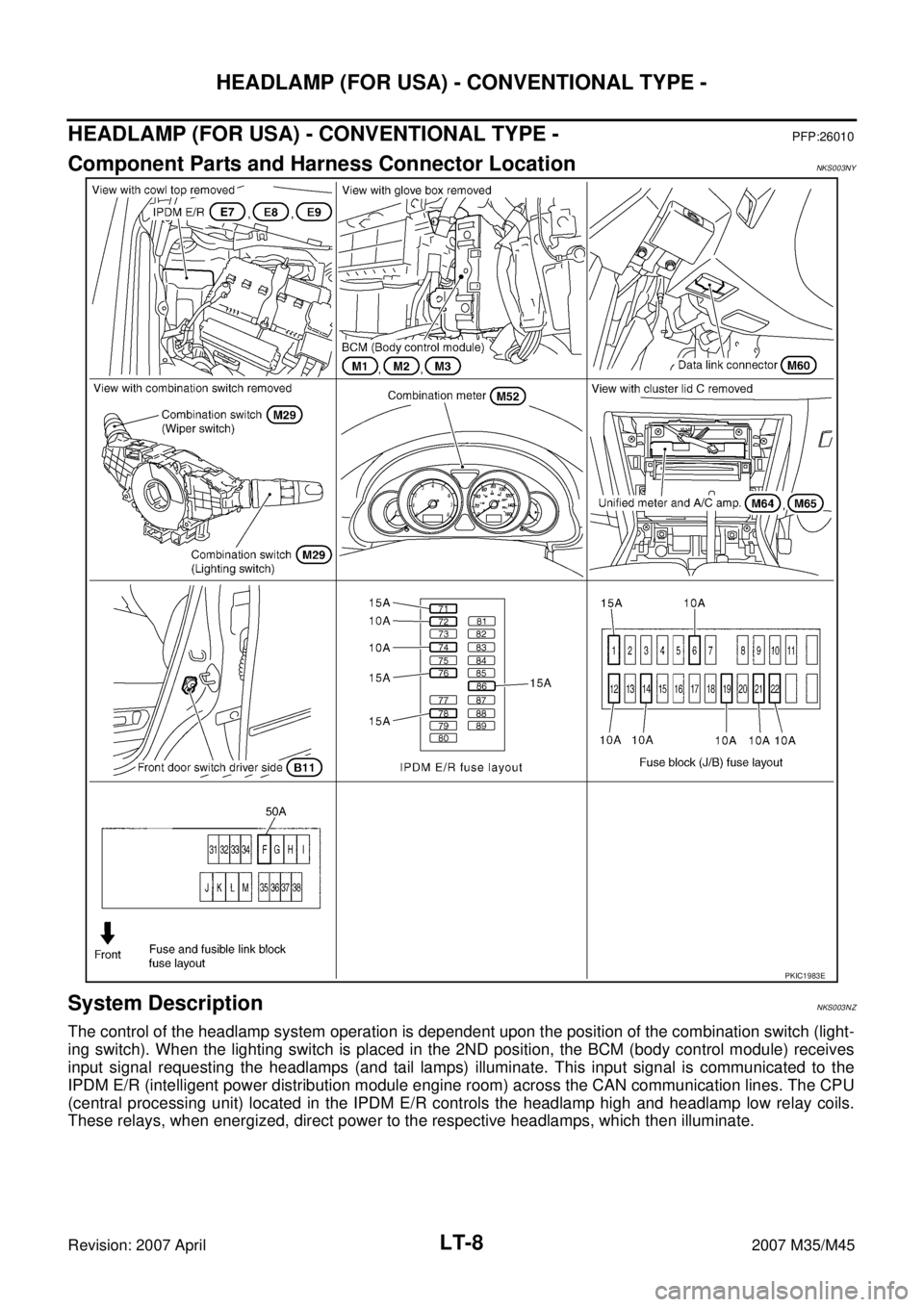

Component Parts and Harness Connector LocationNKS003NY
System DescriptionNKS003NZ
The control of the headlamp system operation is dependent upon the position of the combination switch (light-
ing switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives
input signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the
IPDM E/R (intelligent power distribution module engine room) across the CAN communication lines. The CPU
(central processing unit) located in the IPDM E/R controls the headlamp high and headlamp low relay coils.
These relays, when energized, direct power to the respective headlamps, which then illuminate.
PKIC1983E

HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
LT-9
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R and

to headlamp low relay, located in IPDM E/R, from battery direct,

through 15A fuse (No. 71, located in IPDM E/R)

to CPU, located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU, located in IPDM E/R,

through 50A fusible link (letter F, located in fuse and fusible link block)

to BCM terminal 55,

through 10A fuse [No. 21, located in fuse block (J/B)]

to BCM terminal 42 and

to combination meter terminal 23,

through 10A fuse [No. 19, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 54,

through 10A fuse [No. 22, located in fuse block (J/B)]

to key slot terminal 1.
When the ignition switch is in the ON or START position, power is supplied

to CPU, located in IPDM E/R,

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 12,

through 10A fuse [No. 12, located in fuse block (J/B)]

to unified meter and A/C amp. terminal 53.
When the ignition switch is in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

to combination meter terminals 9, 10, and 11

to unified meter and A/C amp. terminals 55 and 71

to push-button ignition switch (push switch) terminal 1

to key slot terminal 8

through grounds M16 and M70,

to IPDM E/R terminals 38 and 51

through grounds E22 and E43.

LT-10
HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
Revision: 2007 April2007 M35/M45
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal requesting the headlamps to illuminate.
This input signal is communicated to the IPDM E/R across the CAN communication lines. The CPU located in
the IPDM E/R controls the headlamp low relay coil, which when energized, directs power

through 15A fuse (No. 76, located in IPDM E/R)

through IPDM E/R terminal 20

to front combination lamp RH terminal 8,

through 15A fuse (No. 86, located in IPDM E/R)

through IPDM E/R terminal 30

to front combination lamp LH terminal 8.
Ground is supplied

to front combination lamp RH terminal 4

to front combination lamp LH terminal 4

through grounds E22 and E43.
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting the headlamp high beams and low beams to illuminate. This input signal is communicated to the
IPDM E/R across the CAN communication lines. The CPU located in the IPDM E/R controls the headlamp
high relay coil and low relay coil, which when energized, directs power

through 15A fuse (No. 76, located in IPDM E/R)

through IPDM E/R terminal 20

to front combination lamp RH terminal 8,

through 15A fuse (No. 86, located in IPDM E/R)

through IPDM E/R terminal 30

to front combination lamp LH terminal 8,

through 10A fuse (No. 72, located in IPDM E/R)

through IPDM E/R terminal 27

to front combination lamp RH terminal 6,

through 10A fuse (No. 74, located in IPDM E/R)

through IPDM E/R terminal 28

to front combination lamp LH terminal 6.
Ground is supplied

to front combination lamp RH terminal 4

to front combination lamp LH terminal 4

to front combination lamp RH terminal 2

to front combination lamp LH terminal 2

through grounds E22 and E43.
With power and ground supplied, the high beam and low beam headlamps illuminate.
The unified meter and A/C amp. that received the high beam request signal by BCM across the CAN commu-
nication makes a high beam indicator lamp turn on in the combination meter.

HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
LT-11
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), and the ignition switch is turned
from ON or ACC to OFF, the battery saver control function is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
AUTO LIGHT OPERATION
Refer to LT- 11 5 , "System Description" .
CAN Communication System DescriptionNKS003O0
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003O1
Refer to LAN-50, "CAN System Specification Chart" .

LT-12
HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
Revision: 2007 April2007 M35/M45

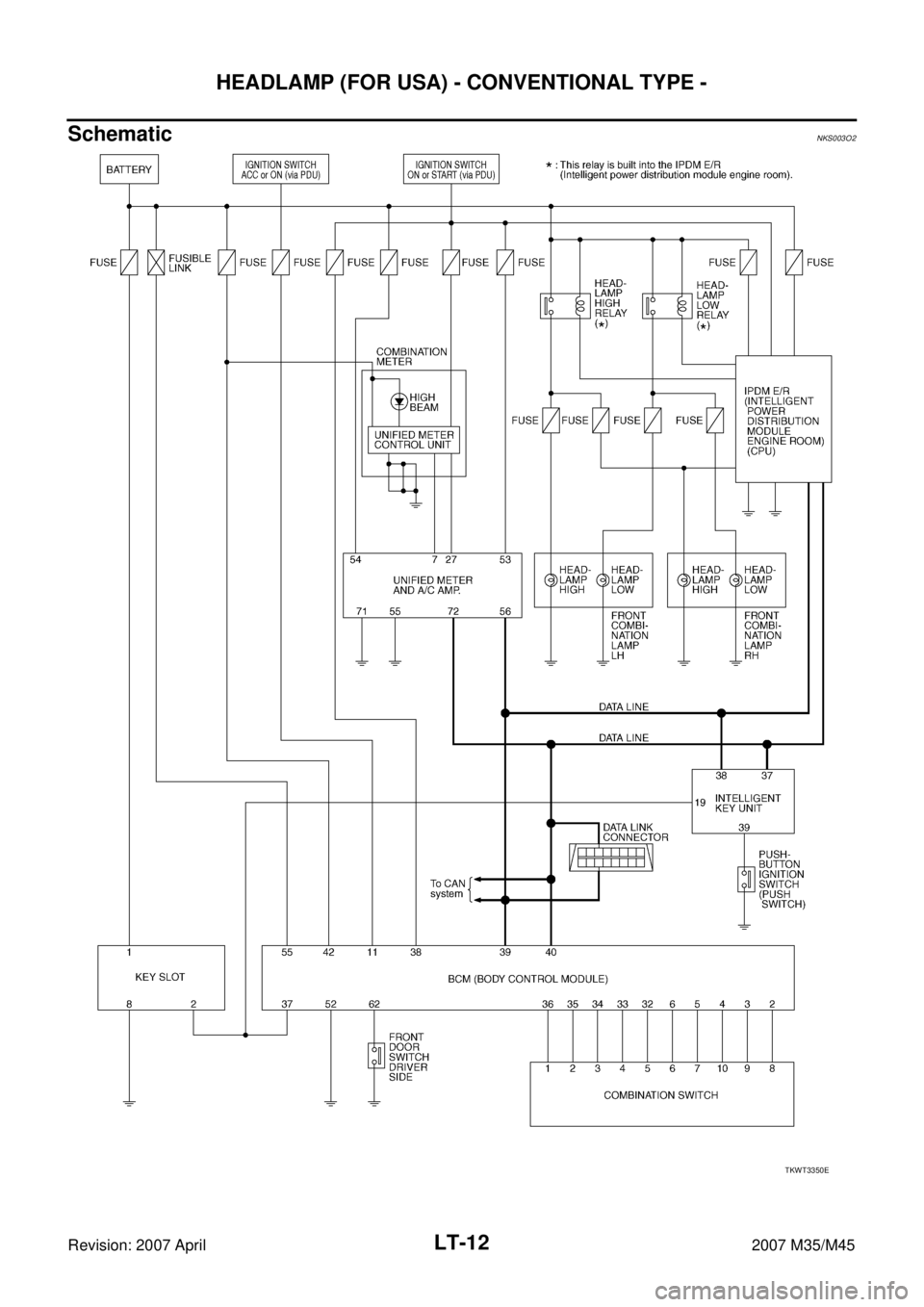

SchematicNKS003O2
TKWT3350E

HEADLAMP (FOR USA) - CONVENTIONAL TYPE -
LT-13
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

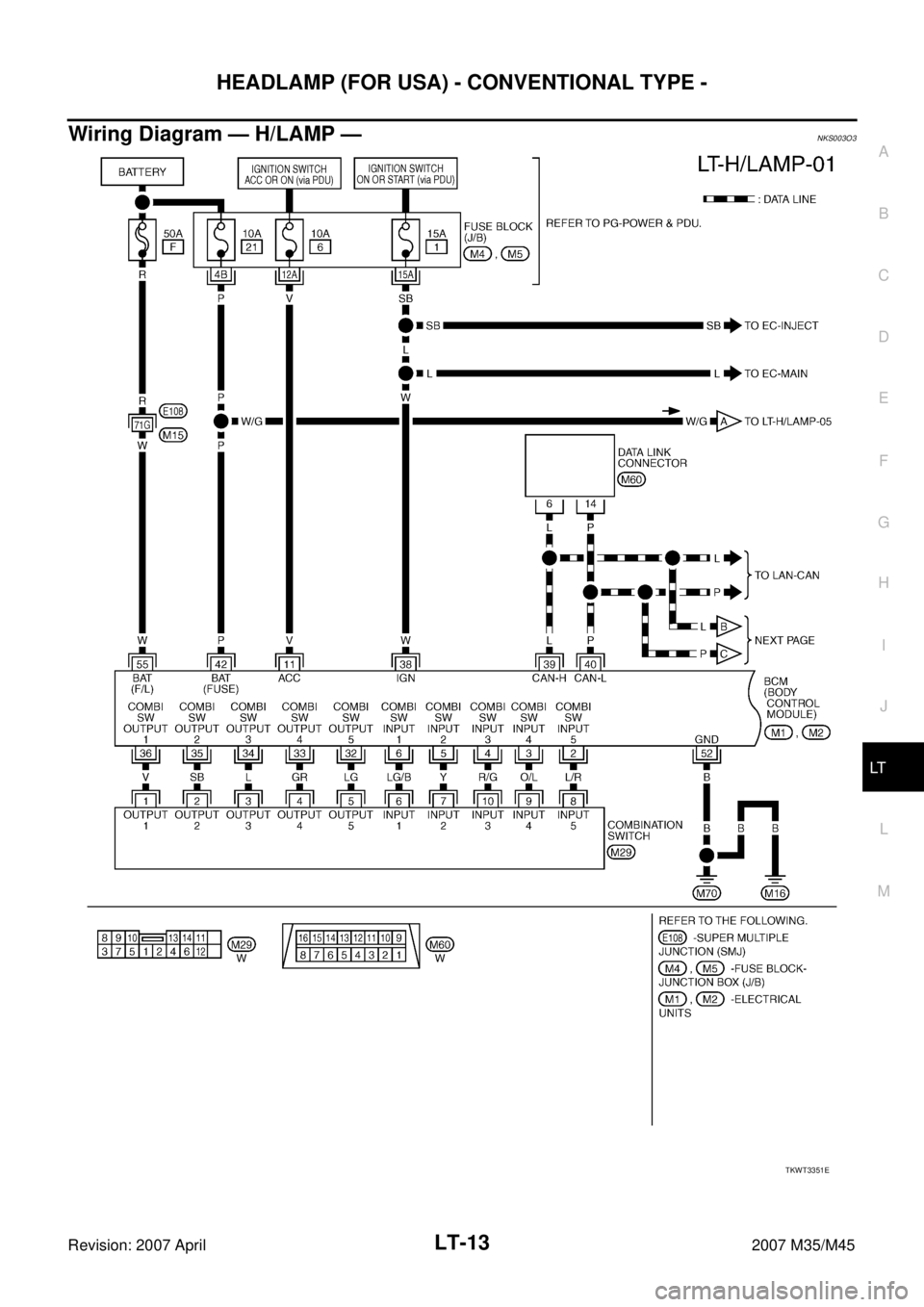

Wiring Diagram — H/LAMP —NKS003O3
TKWT3351E
